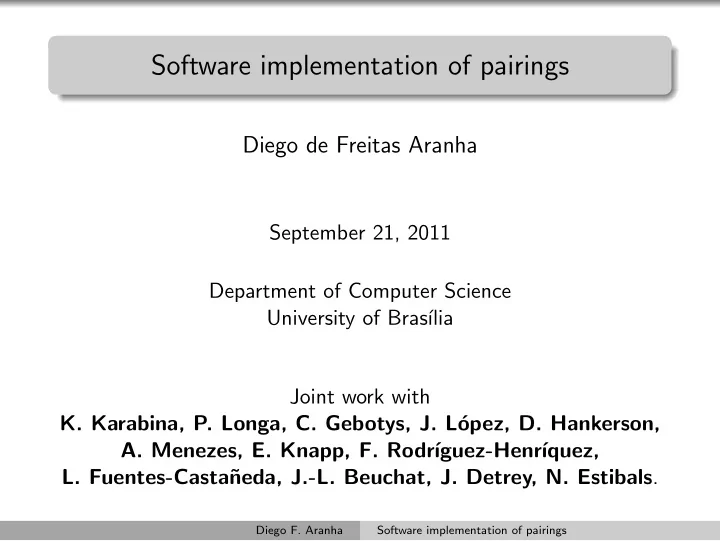

Software implementation of pairings

Diego de Freitas Aranha

September 21, 2011 Department of Computer Science University of Bras´ ılia Joint work with

  • K. Karabina, P. Longa, C. Gebotys, J. L´
  • pez, D. Hankerson,
  • A. Menezes, E. Knapp, F. Rodr´

ıguez-Henr´ ıquez,

  • L. Fuentes-Casta˜

neda, J.-L. Beuchat, J. Detrey, N. Estibals.

Diego F. Aranha Software implementation of pairings

slide-2
SLIDE 2

Introduction

Pairing-Based Cryptography enables many elegant solutions to cryptographic problems: Identity-based encryption Short signatures Non-interactive authenticated key agreement Pairing computation is the most expensive operation in PBC. Important: Make it faster!

Diego F. Aranha Software implementation of pairings

slide-3
SLIDE 3

Objective

Explore new ways to accelerate serial and parallel implementations

  • f cryptographic pairings:

Maximize throughput Minimize latency Applications: servers, real-time services. Contributions Lazy reduction in extension fields Elimination of penalty for negative parameterizations Compressed cyclotomic squarings Parallelization of Miller’s Algorithm Delayed squarings and new formulations Notes on high security levels and current state-of-the-art

Diego F. Aranha Software implementation of pairings

slide-4
SLIDE 4

Bilinear pairings

Let G1 = P and G2 = Q be additive groups and GT be a multiplicative group such that |G1| = |G2| = |GT| = prime n. An efficiently-computable map e : G1 × G2 → GT is an admissible bilinear map if the following properties are satisfied:

1 Bilinearity: given (V , W ) ∈ G1 × G2 and (a, b) ∈ Z∗

q:

e(aV , bW ) = e(V , W )ab = e(abV , W ) = e(V , abW ).

2 Non-degeneracy: e(P, Q) = 1GT , where 1GT is the identity of

the group GT.

Diego F. Aranha Software implementation of pairings

slide-5
SLIDE 5

Bilinear pairings

Diego F. Aranha Software implementation of pairings

slide-6
SLIDE 6

Bilinear pairings

If G1 = G2, the pairing is symmetric.

Diego F. Aranha Software implementation of pairings

slide-7
SLIDE 7

Barreto-Naehrig curves

Let u be an integer such that p and n below are prime: p = 36u4 + 36u3 + 24u2 + 6u + 1 n = 36u4 + 36u3 + 18u2 + 6u + 1 Then E : y2 = x3 + b, b ∈ Fp is a curve of order n and embedding degree k = 12. Example: u = −(262 + 255 + 1), b = 2 (implementation-friendly).

Diego F. Aranha Software implementation of pairings

slide-8
SLIDE 8

Pairing computation

The pairing er(P, Q) is defined by the evaluation of fr,P at a divisor related to Q. [Miller 1986] constructed fr,P in stages combining Miller functions evaluated at divisors.

Diego F. Aranha Software implementation of pairings

slide-9
SLIDE 9

Pairing computation

Let lU,V be the line equation through points U, V ∈ E(Fqk) and vU the shorthand for lU,−U. For any integers a and b, we have:

1 fa+b,P(D) = fa,P(D) · fb,P(D) · laP,bP(D)

v(a+b)P(D);

2 f2a,P(D) = fa,P(D)2 · laP,aP(D)

v2aP(D) ;

3 fa+1,P(D) = fa,P(D) ·

l(a)P,P(D) v(a+1)P(D).

[Barreto et al. 2002] showed how to evaluate fr,P at Q using the final exponentiation in the Tate pairing.

Diego F. Aranha Software implementation of pairings

slide-10
SLIDE 10

Pairing computation

Algorithm 1 Miller’s Algorithm. Input: r = log2 r

i=0 ri2i, P, Q.

Output: er(P, Q).

1: T ← P 2: f ← 1 3: for i = ⌊log2(r)⌋ − 1 downto 0 do 4:

f ← f 2 · lT,T(Q)

5:

T ← 2T

6:

if ri = 1 then

7:

f ← f · lT,P(Q)

8:

T ← T + P

9:

end if

10: end for 11: return f (qk−1)/n

Diego F. Aranha Software implementation of pairings

slide-11
SLIDE 11

Asymmetric pairing

aopt : G2 × G1 → GT (Q, P) → (fr,Q(P) · lrQ,πp(Q)(P) · lrQ+πp(Q),−π2

p(Q)(P)) p12−1 n

with r = 6u + 2, G1 = E(Fp), G2 = E ′(Fp2)[n]. The towering is: Fp2 = Fp[i]/(i2 − β), where β = −1. Fp4 = Fp2[s]/(s2 − ξ), where ξ = 1 + i. Fp6 = Fp2[v]/(v3 − ξ), where ξ = 1 + i. Fp12 = Fp4[t]/(t3 − s) or Fp6[w]/(w2 − v).

Diego F. Aranha Software implementation of pairings

slide-12
SLIDE 12

Generalized lazy reduction

Intuitively, it is a trade-off between addition and modular reduction: (a · b) mod p + (c · d) mod p = (a · b + c · d) mod p Observation: Pairings use non-sparse primes for Fp!

Diego F. Aranha Software implementation of pairings

slide-13
SLIDE 13

Generalized lazy reduction

Intuitively, it is a trade-off between addition and modular reduction: (a · b) mod p + (c · d) mod p = (a · b + c · d) mod p Observation: Pairings use non-sparse primes for Fp! Previous state-of-the-art (3M + 2R in Fp2): a · b = (a0b0 + a1b1β) + [(a0 + a1)(b0 + b1) − a0b0 − a1b1] i, For k = 2i3j, total of (3i · 6j)M + (2 · 3i−1 · 6j)R.

Diego F. Aranha Software implementation of pairings

slide-14
SLIDE 14

Generalized lazy reduction

Idea: Suppose Fp2 is a higher extension and apply recursively! Any component c of an element in Fpk is ultimately computed as c = ±aibj mod p, requiring a single reduction. New state-of-the-art: total of (3i · 6j)M + kR.

Diego F. Aranha Software implementation of pairings

slide-15
SLIDE 15

Generalized lazy reduction

Idea: Suppose Fp2 is a higher extension and apply recursively! Any component c of an element in Fpk is ultimately computed as c = ±aibj mod p, requiring a single reduction. New state-of-the-art: total of (3i · 6j)M + kR. Remark 1: Montgomery bounds should be maintained for intermediate results. Choose |p| acoordingly. Remark 2: Same idea applies to arithmetic in E ′(Fp2). Example: Multiplication in Fp12 goes from 54M + 36R to 54M + 12R. In total, 40% of reductions are saved.

Diego F. Aranha Software implementation of pairings

slide-16
SLIDE 16

Removing the inversion penalty

Consider (p12 − 1)/n = (p6 − 1)(p2 + 1)(p4 − p2 + 1)/n. The hard part is (p4 − p2 + 1)/n which requires 3 |u|-th powers. If u < 0, from pairing definition: aopt(Q, P) =

  • f|r|,Q(P)−1 · h

p12−1

n

. By distributing the power (p12 − 1)/n, we can compute instead: aopt(Q, P) =

  • f|r|,Q(P)p6 · h

p12−1

n

.

Diego F. Aranha Software implementation of pairings

slide-17
SLIDE 17

Revised pairing computation

Algorithm 2 Miller’s Algorithm for general r, even k. Input: r = log2 r

i=0 ri2i, P, Q.

Output: er(P, Q).

1: T ← P 2: f ← 1 3: for i = ⌊log2(r)⌋ − 1 downto 0 do 4:

f ← f 2 · lT,T(Q)

5:

T ← 2T

6:

if ri = 1 then

7:

f ← f · lT,P(Q)

8:

T ← T + P

9:

end if

10: end for 11: if u < 0 then T ← −T, f ← f qk/2 12: return f (qk−1)/n

Diego F. Aranha Software implementation of pairings

slide-18
SLIDE 18

Compressed cyclotomic squarings

Consider Fp12 = Fp4[t]/(t3 − s). Let g = 2

i=0 (g2i + g2i+1s)ti ∈ Gφ6(Fp2) and

g2 = 2

i=0 (h2i + h2i+1s)ti with gi, hi ∈ Fp2.

Given C(g) = [g2, g3, g4, g5], it is efficient to compute C(g2) = [h2, h3, h4, h5] . Important: Decompression map D requires one inversion in Fp2.

Diego F. Aranha Software implementation of pairings

slide-19
SLIDE 19

Compressed cyclotomic squarings

Recall that |u| = 262 + 255 + 1. Idea: g|u| can now be computed in three steps:

1 Compute C(g2i) for 1 ≤ i ≤ 62 and store C(g255) and C(g262) 2 Compute D(C(g255)) = g255 and D(C(g262)) = g262 3 Compute g|u| = g262 · g255 · g

Remark: Montgomery’s simultaneous inversion allows simultaneous decompression. Example: Computing a |u|-th power is now 30% faster.

Diego F. Aranha Software implementation of pairings

slide-20
SLIDE 20

Implementation results

Table: Operation counts for different implementations of the Optimal Ate pairing at the 128-bit security level.

Work Phase Operations in Fp Beuchat et al. 2010 ML 6992M + 5040R FE 4647M + 4244R ML+FE 11639M + 9284R Aranha et al. 2011 ML 6504M + 2736R FE 3648M + 1926R ML+FE 10152M + 4662R [Pereira et al. 2011] has a slightly faster operation count, but which produces a slower implementation in the target platform.

Diego F. Aranha Software implementation of pairings

slide-21
SLIDE 21

Implementation results

Table: Timings in cycles for the asymmetric setting on 64-bit processors. Beuchat et al. 2010 Operation Phenom II Core i7 Opteron Core 2 Duo Mult in Fp2 440 435 443 590 Squaring in Fp2 353 342 355 479 Miller Loop 1,338,000 1,330,000 1,360,000 1,781,000 Final Exp. 1,020,000 1,000,000 1,040,000 1,370,000 Pairing 2,358,000 2,330,000 2,400,000 3,151,000 Aranha et al. 2011 Operation Phenom II Core i5 Opteron Core 2 Duo Mult in Fp2 368 412 390 560 Squaring in Fp2 288 328 295 451 Miller Loop 898,000 978,000 988,000 1,275,000 Final Exp. 664,000 710,000 722,000 919,000 Pairing 1,562,000 1,688,000 1,710,000 2,194,000 Improvement 34% 28% 29% 30%

Important: Latency of around 0.5 milisec in a 3GHz Phenom II X4.

Diego F. Aranha Software implementation of pairings

slide-22
SLIDE 22

Parallelization

Property of Miller functions fa·b,P(D) = f b,P(D)a · f a,bP(D)

Diego F. Aranha Software implementation of pairings

slide-23
SLIDE 23

Parallelization

Property of Miller functions fa·b,P(D) = f b,P(D)a · f a,bP(D) We can write r = 2wr1 + r0 and compute fr,P(D): fr,P(D) = f2wr1+r0,P(D) = f r1,P(D)2w · f 2w,r1P(D) · f r0,P(D) · l(2wr1)P,r0P(D) vrP(D) .

Diego F. Aranha Software implementation of pairings

slide-24
SLIDE 24

Parallelization

Property of Miller functions fa·b,P(D) = f b,P(D)a · f a,bP(D) We can write r = 2wr1 + r0 and compute fr,P(D): fr,P(D) = f2wr1+r0,P(D) = f r1,P(D)2w · f 2w,r1P(D) · f r0,P(D) · l(2wr1)P,r0P(D) vrP(D) . If r has low Hamming weight, w can be chosen so that r0 is small. For many processors, we can: Apply the formula recursively Write r as r = 2wiri + · · · + 2w2r2 + 2w1r1 + r0 If P is fixed (private key), riP can also be precomputed.

Diego F. Aranha Software implementation of pairings

slide-25
SLIDE 25

Load balancing

Problem: We must determine an optimal partition wi. Let c1(1) be the cost of a serial loop and cπ(i) be the cost of a parallel loop for processor 1 ≤ i ≤ π.

Diego F. Aranha Software implementation of pairings

slide-26
SLIDE 26

Load balancing

Problem: We must determine an optimal partition wi. Let c1(1) be the cost of a serial loop and cπ(i) be the cost of a parallel loop for processor 1 ≤ i ≤ π. We can count the operations executed by each processor and solve the system cπ(1) = cπ(i) to obtain wi. The speedup is: s(π) =

c1(1)+exp cπ(1)+par+exp,

where par is the cost of parallelization and exp is the cost of the final exponentiation.

Diego F. Aranha Software implementation of pairings

slide-27
SLIDE 27

Symmetric pairing

A pairing-friendly supersingular binary elliptic curve is the set

  • f solutions (x, y) ∈ F2m × F2m satisfying the equation

y2 + y = x3 + x + b, where b ∈ {0, 1}, and a point at infinity ∞.

Diego F. Aranha Software implementation of pairings

slide-28
SLIDE 28

Symmetric pairing

Choosing T = 2m − N and a prime n dividing N, [Barreto et al. 2004] defined the reduced ηT pairing: ηT : E(F2m)[n] × E(F2m)[n] → F∗

24m

ηT(P, Q) = fT ′,P′(ψ(Q))

24m−1 N

, where T ′ = ±T and P′ = ±P. The function f is a Miller function and ψ is the distortion map ψ(x, y) = (x2 + s, y + sx + t).

Diego F. Aranha Software implementation of pairings

slide-29
SLIDE 29

Implementation results

For the asymmetric setting, estimated speedup of only 10%. For the symmetric setting:

2 4 6 8 10 12 14 10 20 30 40 50 60 Speedup Number of processors Beuchat et al. 2009 Aranha et al. 2010 Diego F. Aranha Software implementation of pairings

slide-30
SLIDE 30

Implementation results

Figure: Timings in the symmetric setting taken on an Intel Core 2 45nm.

5 10 15 20 25 30 Latency (millions of cycles) 1 2 4 8 Number of threads Beuchat et al. 2009 23.03 13.14 9.08 8.93 Aranha et al. 2010 17.40 9.34 5.08 3.02 Diego F. Aranha Software implementation of pairings

slide-31
SLIDE 31

Implementation results

New parallelization: No significant storage costs and almost-linear scalability Latency improvement of 28%, 44% and 66% in 2, 4, 8 processors Limitations in the asymmetric setting: Serial final exponentiation Expensive point doublings Expensive extension field squarings

Diego F. Aranha Software implementation of pairings

slide-32
SLIDE 32

Delayed squaring

Idea: Delay the squarings until we reach the cyclotomic subgroup! Recall the parallelization (M = qk−1

r

): fr,P(D)M =

  • f r1,P(D)M

2w · f 2w,r1P(D)M ·

  • fr0,P(D) · l(2wr1)P,r0P(D)

vrP(D)

  • M.

Remark: Delayed squarings increase speedup to 18-20%.

Diego F. Aranha Software implementation of pairings

slide-33
SLIDE 33

Parallel pairing derivations

Hess’ instantiation (α-Weil) α(P, Q) =  f2u+1,P(Q) f2u+1,Q(P)

  • fu,(6u+2)P(Q)f u

6u+2,P(Q)

fu,(6u+2)Q(P)f u

6u+2,Q(P)

  • p2

(p6−1)(p2+1)

Critical path:

  • f u

u,(6u+2)Q(P)

p2(p6−1)(p2+1)

Diego F. Aranha Software implementation of pairings

slide-34
SLIDE 34

Parallel pairing derivations

New instantiation (β-Weil) β(P, Q) = fp,h,P(Q) fp,h,Q(P) p fp,h,pP(Q) fp,h,Q(pP) (p6−1)(p2+1) Critical path: pP, (fp,h,Q(pP))(p6−1)(p2+1) Optimization: pP = 2u(p2 − 2)P + p2P − P = 2u(φ(P) − 2P) + φ(P) − P.

Diego F. Aranha Software implementation of pairings

slide-35
SLIDE 35

Implementation results

0.5 1 1.5 2 1 2 3 4 5 6 7 8 Speedup Number of processors Optimal ate Optimal ate with delayed squaring α-Weil pairing β-Weil pairing

Best results until now: Optimal ate pairing reaches speedup of 1.45 with 4 processors β-Weil pairing reaches speedup of 1.86 with 8 processors

Diego F. Aranha Software implementation of pairings

slide-36
SLIDE 36

Curve choice at higher security levels

Important: Pairing security is defined by the hardness of the DLP in G1, G2, GT. Barreto-Naehrig curves are optimal at the 128-bit level Security usually scaled by increasing embedding degree Kachisa-Scott-Schaefer curves with k = 18 have been pointed as the best family known for the 192-bit level What about other families?

Diego F. Aranha Software implementation of pairings

slide-37
SLIDE 37

Curve choice at higher security levels

Table: Operation counts for the Optimal Ate pairing at the 192-bit security level. M is the cost of multiplying two 512-bit integers in a 64-bit machine. Family Phase Operations in Fp BLS (k = 24, |p| = 478) ML 14990M FE 25785M ML+FE 40775M BN (k = 12, |p| = 638) ML 26084M FE 11284M ML+FE 37368M KSS (k = 18, |p| = 512) ML 13817M FE 23022M ML+FE 36839M BW (k = 12, |p| = 638) ML 16823M FE 12647M ML+FE 29470M

Diego F. Aranha Software implementation of pairings

slide-38
SLIDE 38

State-of-the-art

Table: Timings in 103 cycles on an Intel Core i7 Sandy Bridge 32nm at the 128-bit security level using the fastest multipliers available.

Number of threads Asymmetric pairing 1 2 4 8 Optimal ate 1562 1287 1137 1107 Improved optimal ate – 1260 1080 1056 α-Weil – – 1272 936 β-Weil – – 1104 840 Symmetric pairing 1 2 4 8 Genus-1 ηT 6455 3370 1794 1034 Genus-2 Optimal η – general 8265 – – – Genus-2 Optimal η – degenerate 2358 – – –

Diego F. Aranha Software implementation of pairings

slide-39
SLIDE 39

Conclusions and future

New techniques for implementing pairings: Speed records for pairing computation in software (hardware) Dependency on architectural features Scalable parallelization New pairing derivations Emphasis on implementation of protocols: Pairing type and optimizations differ greatly Higher security levels should be more interesting

Diego F. Aranha Software implementation of pairings

slide-40
SLIDE 40

RELIC cryptographic library: http://code.google.com/p/relic-toolkit/ Thank you for your attention! Any questions?

Diego F. Aranha Software implementation of pairings

slide-41
SLIDE 41

References

  • D. F. Aranha, J. L´
  • pez, D. Hankerson. High-speed parallel

software implementation of ηT pairing. CT-RSA 2010, 89–105.

  • D. F. Aranha, J.-L. Beuchat, J. Detrey, N. Estibals. Optimal

Eta Pairing on Supersingular Genus-2 Binary Hyperelliptic

  • Curves. Cryptology ePrint Archive, Report 2010/559.
  • D. F. Aranha, K. Karabina, P. Longa, C. Gebotys, J. L´
  • pez.

Faster Explicit Formulas for Computing Pairings over Ordinary

  • Curves. EUROCRYPT 2011, 48–68.
  • D. F. Aranha, E. Knapp, A. Menezes,
  • F. Rodr´

ıguez-Henr´ ıquez. Parallelizing the Weil and Tate

  • Pairings. IMA-CC 2011, To appear.

Diego F. Aranha Software implementation of pairings
