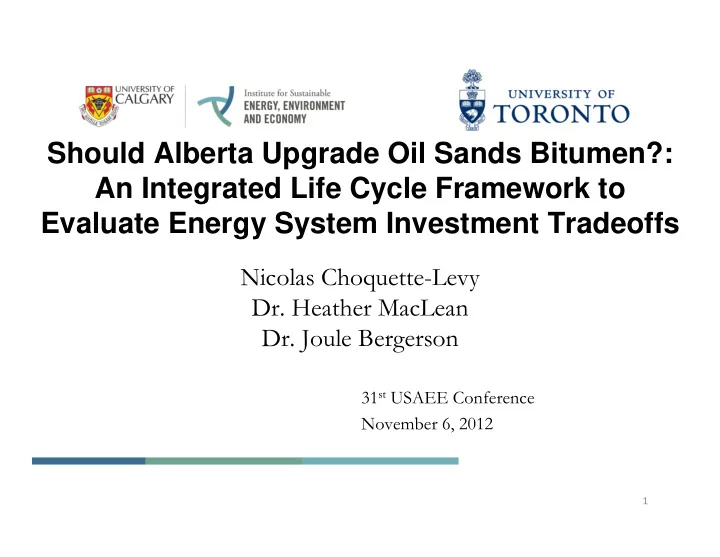

Should Alberta Upgrade Oil Sands Bitumen?: An Integrated Life Cycle Framework to Evaluate Energy System Investment Tradeoffs Nicolas Choquette-Levy Dr. Heather MacLean Dr. Joule Bergerson 31 st USAEE Conference November 6, 2012 1 Case Study:

slide-1
SLIDE 1

Should Alberta Upgrade Oil Sands Bitumen?: An Integrated Life Cycle Framework to Evaluate Energy System Investment Tradeoffs

Nicolas Choquette-Levy

  • Dr. Heather MacLean
  • Dr. Joule Bergerson

31st USAEE Conference November 6, 2012

1

slide-2
SLIDE 2

Case Study: Should Alberta Upgrade Oil Sands Bitumen?

  • Motivation for study:

Oil sands = 3rd largest proven oil reserves in the world 60% of bitumen upgraded (2009) Alberta’s target: 72% of bitumen upgraded (2016)

2

  • Key Tradeoffs:

High upstream GHG emissions vs. low downstream emissions High capital expenses vs. higher expected profit margins

slide-3
SLIDE 3

Bitumen Production Bitumen Production

Heavy Crude Refineries Heavy Crude Refineries Medium Crude Refineries Medium Crude Refineries Light Crude Refineries Light Crude Refineries

Upgrading Upgrading

Light Sweet SCO Heavy Sour SCO

Diluent Diluent

Medium Sweet SCO Dilbit

Source: Adapted from Gary R. Brierley et al, 2006

3

Technical Overview

Synbit Coke

slide-4
SLIDE 4
  • Previous Studies:

– Consultancy reports (Jacobs, TIAX, CERI, CERA) – Academic studies (McCann and Magee 1999, Furimsky 2003) – Government models (GREET, GHGenius)

  • Academic Contributions:
  • 1. Build integrated well-to-tank model
  • 2. Develop ranges of GHG emissions
  • 3. Integrate LCA results with cost-benefit model
  • Policy Contributions:
  • 1. Aid stakeholders in exploring the tradeoffs of upgrading investments
  • 2. Develop recommendations for environmental and Alberta policymakers

4

Existing literature does not explore GHG and economic tradeoffs

slide-5
SLIDE 5

Private and Public Stakeholder Perspectives

Stakeholder Objective Unit of Analysis Discount Rate

Industry Maximize the profit of investment 1 bbl bitumen 15% (high risk) Alberta Public Maximize the aggregate wealth

  • f Alberta

1 bbl bitumen 5% (low risk) Climate- Concerned Alberta Citizen Minimize life cycle GHGs; maximize the wealth of Alberta 1 GJ transportation fuel 5% (low risk)

5

slide-6
SLIDE 6

Base Case Scenario

150,000 bpd bitumen 214,000 bpd dilbit 128,000 bpd SCO Dilution Upgrading 64,000 bpd naphtha

6

150,000 bpd bitumen 27 kg coke

slide-7
SLIDE 7

Industry Perspective

Costs Benefits

Bitumen Production Costs Upgrading/Dilution Facility Costs Royalties Income Taxes Upstream GHG Taxes Diluent Expenses SCO/Dilbit Revenues SCO/Dilbit Revenues - Adjusted Discount Rate = 15%*

7

* Sensitivity Analysis conducted

slide-8
SLIDE 8

Alberta Public Perspective

Costs Benefits

Bitumen Production Costs Upgrading/Dilution Facility Costs Royalties Income Taxes Upstream GHG Taxes Diluent Expenses SCO/Dilbit Revenues - Adjusted Upstream GHG Social Costs Discount Rate =5%

8

slide-9
SLIDE 9

Industry prefers Dilution to Upgrading under any CO2 price < $200/tonne (Base Case) – 15% discount rate

Dilbit - Industry SCO - Industry

9

slide-10
SLIDE 10

However, AB public prefers upgrading at CO2 prices > $80/tonne – 5% discount rate

SCO AB public Dilbit AB public

10

Dilbit - Industry SCO - Industry

slide-11
SLIDE 11

Risk perception is key leverage point: 10% Industry discount rate

11

SCO - Industry Dilbit - Industry SCO AB public Dilbit AB public

slide-12
SLIDE 12

12

Risk perception is key leverage point: 5% Industry discount rate

SCO AB public Dilbit AB public Dilbit - Industry SCO - Industry

slide-13
SLIDE 13

Industry results robust for economic variability

13

SCO-Dilbit Differential ($/bbl) Base Case

slide-14
SLIDE 14

Industry results dependent on technical variability

14

Base Case Bitumen:SC O Ratio

slide-15
SLIDE 15

Should Alberta Upgrade Oil Sands Bitumen?

Stakeholder Position Industry No: If GHG emissions are near base case results Maybe: If SCO can be refined at hydroskimming refinery or if risk

  • f investment is reduced

Alberta Public No: If carbon tax/social cost of GHGs are low Yes: If carbon tax/social costs are above $80/tonne CO2e

15

slide-16
SLIDE 16

Research Themes Revisited

16

slide-17
SLIDE 17

Future Work

  • Improve LCA model

1. Link parameters (e.g. electricity consumption and SOR) for more plausible GHG ranges 2. Track other indicators of crude quality (e.g. aromaticity) that affect refinery emissions

  • Develop alternate scenarios (e.g. partial upgrading)
  • Explore other research questions/approaches

1. Real Options Analysis 2. Consequential LCA

17

slide-18
SLIDE 18

Acknowledgements

  • Dr. Joule Bergerson and Dr. Heather MacLean
  • LCAOST research group members
  • Institute for Sustainable Energy, Environment, and Economy
  • Natural Sciences and Engineering Research Council of Canada
  • Carbon Management Canada
  • Canada School of Energy and the Environment
  • Oil sands industry reviewers

18

slide-19
SLIDE 19

Questions

Nicolas Choquette-Levy nicolas.choquette.levy@gmail.com (403) 531-6739 Joule Bergerson jbergers@ucalgary.ca (403) 220-7794

19

slide-20
SLIDE 20

Alternate Slides

20

slide-21
SLIDE 21

Context

21

slide-22
SLIDE 22

From Brandt and Farrell (2007), Climatic Change

  • High initial expenses vs. future expected profits
  • Investment in capital vs. degree of reversibility

Energy systems investment tradeoffs…

  • Energy consumption vs. GHG costs

22

…Involve industry and public stakeholders

slide-23
SLIDE 23

Policy Case Study: Low Carbon Fuel Standard

  • Implemented in B.C. and California
  • LCA used to assign each fuel a “carbon

intensity”

  • Fuels must reduce carbon intensity by 10%
  • ver 10 years
  • Low-carbon fuels gain credits, high-carbon

petroleum fuels must buy credits

  • In CA, oil sands crude assigned higher carbon

intensity than conventional crude

  • “Upstream” processes (up until refinery) are

more heavily emphasized than “downstream”

23

slide-24
SLIDE 24

Recommendations for cost- and GHG-effective energy investments

24

slide-25
SLIDE 25

Methods

25

slide-26
SLIDE 26

Integrated Model Steps

GHOST Model Pipeline Model

PRELIM Model

Bitumen Life Cycle Stages: Corresponding Models:

26

Recovery

&

Extraction Recovery

&

Extraction Refining Refining End Use End Use

Diluted Bitumen SCO Transp Fuel

Upgrading Upgrading

slide-27
SLIDE 27

Integrated Model Steps

GHOST Model Pipeline Model

PRELIM Model

27

SOR Electricity H2 Consumption Bitumen-Crude ratio Crude Densit y Crude Viscosity Pipeline Diameter Distance Elevation Change Sulphur Content H Content MCR Refinery Config.

slide-28
SLIDE 28

Upgrading image from Suncor Energy Inc. image library

Bitumen Recovery SAGD, 2.1 – 3.3 SOR Upgrading Delayed Coking, Hydrocracking End use of fuel Dilution Naphtha, SCO diluents Pipeline Transport 2,000 – 4,500 km 24 – 46 in. diameter Refining SCO - Hydroskimming and medium conversion Dilbit – Deep conversion API 20 API 27 - 32

What are the ranges of well-to-tank emissions of upgrading and dilution pathways from SAGD extraction?

28

slide-29
SLIDE 29

Climate-Concerned POV

Costs Benefits

Bitumen Production Costs Upgrading/Dilution Facility Costs Diluent Expenses SCO/Dilbit Revenues - Adjusted Life Cycle GHG Social Costs Discount Rate =5% Royalties Income Taxes Upstream GHG Social Costs

29

slide-30
SLIDE 30

Results

30

slide-31
SLIDE 31

Base case upgrading pathway has lower GHG emissions per barrel bitumen

31

Upgrading Pathway Dilution Pathways

slide-32
SLIDE 32

Base Case upgrading pathway has higher GHG emissions than dilution pathways

32

Dilution Pathways Upgrading Pathway

slide-33
SLIDE 33

Base Case upgrading pathway has higher GHG emissions than dilution pathways

33

Upgrading Pathway Dilution Pathways

slide-34
SLIDE 34

However, ranges of plausible emissions

  • verlap

34

Dilution Pathways Upgrading Pathway

slide-35
SLIDE 35

Some upgrading pathways can be lower in GHG emissions than some dilbit pathways

35

= modified pathway Upgrading Pathway Dilution Pathways

slide-36
SLIDE 36

The California LCFS does not account for this possibility

WTR Emissions WTR Emissions WTR Emissions

36

LCFS Threshold

Dilution Pathways Upgrading Pathway

slide-37
SLIDE 37

Under Base Case assumptions, dilution is more profitable than upgrading

Dilbit profit = $5.40/bbl bit

37

slide-38
SLIDE 38

Full Base Case Results

38

Dilbit AB public SCO AB public Dilbit - Industry SCO - Industry Dilbit Climate Concerned SCO Climate Concerned

slide-39
SLIDE 39

Sensitivity Analyses

39

slide-40
SLIDE 40

Sensitivity to Discount Rate – Company POV

40

Dilbit SCO

slide-41
SLIDE 41

Industry Sensitivities

41

slide-42
SLIDE 42

Industry results robust for economic variability

42

slide-43
SLIDE 43

Industry results dependent on technical variability

43

slide-44
SLIDE 44

Economic Sensitivity

44

slide-45
SLIDE 45

Economic Assumptions

45

slide-46
SLIDE 46

Fuel Price Forecasts – Base Case

46

Naphtha

slide-47
SLIDE 47

Climate Policy Options

  • Economy-wide Carbon Tax:
  • LCFS-like Policy:

Direct Taxes Adjusted dilbit price

projected implemented Costs CIi,j – CIbase * MJ/year

47

slide-48
SLIDE 48

Comparison with Other Studies

48

slide-49
SLIDE 49

Ranges developed via Low- and High-Impact Values for Parameters

Parameter Base Case Low-Impact High-Impact

Steam-to-oil ratio 2.6 2.1 3.3 SCO/bitumen ratio (upgrading) 0.85 0.9 0.78 API 27 (upgrading) 20 (dilbit/synbit) 32 (upgrading) 20 (dilbit/synbit) 27 (upgrading) 20 (dilbit/synbit) Transportation Distance (km) 3,000 2,000 4,500 Pipeline Diameter (in.) 34 46 24 Refining Emissions (kg CO2e/bbl crude) 69 (SCO) 81 (dilbit) 23 (SCO) 73 (dilbit) 69 (SCO) 105 (dilbit)

49

slide-50
SLIDE 50

Comparison of SCO Range with Previous Studies

50

slide-51
SLIDE 51

Comparison of Dilbit Range with Previous Studies

51

slide-52
SLIDE 52

Existing literature does not explore GHG and economic tradeoffs

52

Feature Government Models (GREET & GHGenius) Consultancy Reports (TIAX & Jacobs) McCann & Magee CERI Report Linking of Parameters ✖   ✖ Range of Emissions ✖ ✖ ✖ ✖ Data Quality ✖ ✔  ✔ Effect of CO2 policies ✖ ✖ ✖ ✔ Thesis ✔ ✔ ✔ ✔

slide-53
SLIDE 53

Additional Material

53

slide-54
SLIDE 54

Technological Overview – Upgrading

54

Source: Scotford Upgrader, NRCan

Raw Bitumen Hydrogen, Electricity, Natural Gas Coke SCO Fuel Gas

slide-55
SLIDE 55

Technological Overview – Refinery Configurations

55

Abella and Bergerson (2011)

slide-56
SLIDE 56

Whether to upgrade involves GHG and economic tradeoffs

Upgrade Dilute

Produce higher quality crude (SCO) ✔ Produce lower quality crude (dilbit) Higher “upstream” GHGs Lower “upstream” GHGs ✔ Lower “downstream” GHGs ✔ Higher “downstream” GHGs High CapEx ($1 – 10 billion) Low CapEx ✔ Self-sufficient ✔ Dependent on diluent (uncertainty)

56
