SEWARD PARK PLANNING PROCESS Urban Design Framework February 28, 2011 F E B R U A R Y 2 8 , 2 0 1 1 S E W A R D P A R K U R B A N D E S I G N INTRODUCTION Develop an initial framework for urban design based on: Communitys

slide-1
SLIDE 1

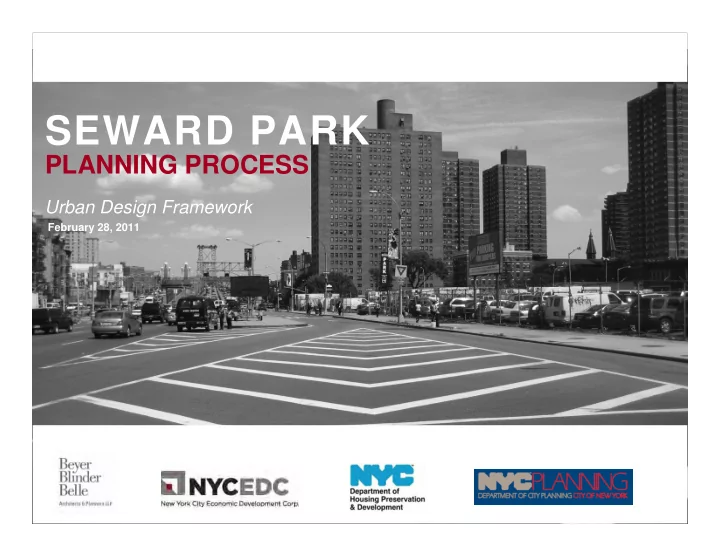

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

SEWARD PARK

PLANNING PROCESS

Urban Design Framework

February 28, 2011

slide-2
SLIDE 2

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

INTRODUCTION

Develop an initial framework for urban design based on:

  • Community’s process to date
  • Urban design principles
  • Unique site characteristics

S E W A R D P A R K U R B A N D E S I G N

slide-3
SLIDE 3

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

AGENDA

  • Site History
  • The Seward Park Site
  • Urban Design Framework
  • Connections
  • Density & Form
  • Human Scale & Streetscape
  • Identity & Program

S E W A R D P A R K U R B A N D E S I G N

slide-4
SLIDE 4

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1 S E W A R D P A R K U R B A N D E S I G N

SITE HISTORY

slide-5
SLIDE 5

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

DELANCEY STREET — 1919

New York Then and Now

slide-6
SLIDE 6

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

WILLIAMSBURG BRIDGE (Traffic Congestion) – 1923

Eugine de Salignac

slide-7
SLIDE 7

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN RENEWAL - 1965

Artist’s Rendering - Seward Park Extension Grand and Delancey Streets Artist’s Rendering - Seward Park Extension Grand and Essex Streets

slide-8
SLIDE 8

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

LOWER MANHATTAN EXPRESSWAY PROPOSAL – 1960s

Paul Rudolph Architect

slide-9
SLIDE 9

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1 S E W A R D P A R K U R B A N D E S I G N

THE SEWARD PARK SITE

slide-10
SLIDE 10

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

SEWARD PARK SITE – CROSSROAD

slide-11
SLIDE 11

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

SEWARD PARK SITE – LAND USE

slide-12
SLIDE 12

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

SEWARD PARK SITE – EXISTING CONDITIONS

Suffolk St. looking East towards Clinton St. Orchard St. looking South towards Broome St. Broome St. looking North towards Delancey St. Clinton St. looking South towards Delancey St.

Google

slide-13
SLIDE 13

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

Delancey Street E s s e x S t r e e t N

  • r

f

  • l

k S t r e e t S u f f

  • l

k S t r e e t C l i n t

  • n

S t r e e t Broome St Grand St

SEWARD PARK SITES

slide-14
SLIDE 14

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

Pearl District/River District, Portland, OR Vancouver, BC Hafen City, Hamburg, Germany Aker Brygge Quartier Moderne Oslo, Norway

New Image

NATIONAL AND INTERNATIONAL MODELS

slide-15
SLIDE 15

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

LESSONS

  • Mixed-use
  • Contextual buildings with streetwalls
  • Variety of architecture and variety of building heights
  • Streetscape that enhances the pedestrian experience
  • Great access supporting density and public uses
  • Responsive to climate and environment

S E W A R D P A R K U R B A N D E S I G N

What design principles do the case studies share?

NATIONAL AND INTERNATIONAL MODELS

slide-16
SLIDE 16

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

SUMMARY

  • Reflect the significance of this crossroads of multiple

neighborhoods with high quality urban design

  • Extend the mixed-use character of the surroundings

throughout the development

  • Take inspiration from the best national and

international models of similar scale and character

  • Provide a variety of architecture and building scales

S E W A R D P A R K U R B A N D E S I G N

slide-17
SLIDE 17

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

Step 1 – Connections Step 2 – Density & Form Step 3 – Human Scale & Streetscape Step 4 – Identity & Program

S E W A R D P A R K U R B A N D E S I G N

Four Steps to developing an initial urban design framework for the sites:

URBAN DESIGN STEPS

slide-18
SLIDE 18

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

Urban Design Step 1

CONNECTIONS

slide-19
SLIDE 19

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 1 CONNECTIONS

STREET HIERARCHY

slide-20
SLIDE 20

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 1 CONNECTIONS

STREET HIERARCHY

slide-21
SLIDE 21

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 1 CONNECTIONS

RE-CONNECT THE HISTORIC GRID

slide-22
SLIDE 22

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

ESSEX STREET – 80 FEET CLINTON STREET – 53 FEET

URBAN DESIGN STEP 1 CONNECTIONS

STREET WIDTHS

slide-23
SLIDE 23

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

SUMMARY

  • Base site development on the street hierarchy
  • Reconnect the grid through the site
  • Restore pedestrian connections north to south

and east to west

  • Frame view corridors
  • Weave together the urban fabric of the

neighborhood

URBAN DESIGN STEP 1 CONNECTIONS

slide-24
SLIDE 24

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

Urban Design Step 2

DENSITY & FORM

slide-25
SLIDE 25

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 2 DENSITY & FORM

POTENTIAL DEVELOPMENT:

APPROXIMATELY 1.5 MILLION SQUARE FEET

slide-26
SLIDE 26

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

Cadman Plaza Towers, Brooklyn As of Right Development - R8 District

Superimposed Land Area Maps for Development comparison

Brooklyn Courthouse, Brooklyn Contextual Quality Housing - R8A District

URBAN DESIGN STEP 2 DENSITY & FORM

DENSITY SCALE COMPARISON

slide-27
SLIDE 27

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

240’ 30 St. 225’ 22 St. 240’ 24 St. 190’ 19 St. 130’ 13 St. 70’ 6 St. 175’ 16 St. 205’ 20 St. 230’ 29 St. 330’ 31 St. 180’ 16 St. 120’ 11 St. 80’ 7 St. 200’ 19 St.

URBAN DESIGN STEP 2 DENSITY & FORM

AS-OF-RIGHT DENSITY AND FORM

slide-28
SLIDE 28

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 2 DENSITY & FORM

AS-OF-RIGHT DENSITY AND FORM DELANCEY LOOKING EAST

slide-29
SLIDE 29

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 2 DENSITY & FORM

AS-OF-RIGHT DENSITY AND FORM BROOME STREET LOOKING EAST

slide-30
SLIDE 30

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 2 DENSITY & FORM

HYBRID APPROACH: LEARNING FROM THE CONTEXT

slide-31
SLIDE 31

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 2 DENSITY & FORM

HYBRID APPROACH: LEARNING FROM THE CONTEXT

55’ – 80’ typical 190’- 240’ typical

slide-32
SLIDE 32

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

EXISTING CONDITION COMBINE NEIGHBORHOOD FORMS

URBAN DESIGN STEP 2 DENSITY & FORM

VARIETY OF BUILDING HEIGHTS

Conceptual Diagram

slide-33
SLIDE 33

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 2 DENSITY & FORM

DELANCEY STREET WIDTH 200 – 250 FEET

slide-34
SLIDE 34

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

4-5 Stories 11-14 Stories 15-25 Stories Street wall at minor streets Mid-Rise massing Setback towers Local Retail Ground Level 6-7 Stories Street wall at major streets 8-10 Stories Mid-Rise massing Mid Box Retail Second Level

URBAN DESIGN STEP 2 DENSITY & FORM

HYBRID APPROACH TO URBAN FORM

Sketch for illustrative purpose only

slide-35
SLIDE 35

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 2 DENSITY & FORM

STREETWALL AND TOWER

Sketch for illustrative purpose only

slide-36
SLIDE 36

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

Portland, OR Pearl District

Superimposed Land Area Maps for Development comparison

Vancouver, BC

URBAN DESIGN STEP 2 DENSITY & FORM

MIXED-HEIGHT EXAMPLES

slide-37
SLIDE 37

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 2 DENSITY & FORM

STREETWALL EXAMPLES

Philadelphia Berkeley Vancouver Portland

slide-38
SLIDE 38

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

SUMMARY

  • Employ the same high density as in the neighborhood
  • Combine the best aspects of the neighborhood building

forms

  • Provide streetwalls to create a pedestrian environment
  • Use variation of height to maximize light and air

URBAN DESIGN STEP 2 DENSITY & FORM

slide-39
SLIDE 39

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

Urban Design Step 3

HUMAN SCALE & STREETSCAPE

slide-40
SLIDE 40

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 3 HUMAN SCALE & STREETSCAPE

PEDESTRIAN EXPERIENCE

slide-41
SLIDE 41

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 3 HUMAN SCALE & STREETSCAPE

PEDESTRIAN EXPERIENCE

Sketch for illustrative purpose only

slide-42
SLIDE 42

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

Ground floor retail Potential second floor commercial in some areas Underground parking garages Parking entrances and loading docks will be carefully integrated into the streetscape

URBAN DESIGN STEP 3 HUMAN SCALE & STREETSCAPE

PEDESTRIAN EXPERIENCE

slide-43
SLIDE 43

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 3 HUMAN SCALE & STREETSCAPE

RETAIL STREET/STREETSCAPE

slide-44
SLIDE 44

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

SUMMARY

  • Create a human scale that extends the character of the

neighborhood

  • Locate housing in mixed-use buildings above street-oriented

retail

  • Maximize ground floor activity and transparency; minimize

impacts of parking, service, and blank walls

  • Create new streetscapes that define a strong pedestrian

realm

URBAN DESIGN STEP 3 HUMAN SCALE & STREETSCAPE

slide-45
SLIDE 45

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

Urban Design Step 4

IDENTITY & PROGRAM

slide-46
SLIDE 46

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 4 IDENTITY & PROGRAM

GATEWAY TO SITE

slide-47
SLIDE 47

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 4 IDENTITY & PROGRAM

GATEWAY TO SITE

slide-48
SLIDE 48

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 4 IDENTITY & PROGRAM

BUILDING FORM AND STREET HIERARCHY

slide-49
SLIDE 49

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN STEP 4 IDENTITY & PROGRAM

EMERGING RETAIL DISTRICT – POTENTIAL LOCATIONS

Diagram for illustrative purpose only

slide-50
SLIDE 50

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

SUMMARY

  • Provide flexible layouts to accommodate various

non-residential uses

  • Locate non-retail commercial uses to maximize

transit access, visibility, and pedestrian circulation (Site 2)

  • Locate tallest elements at gateways and along

major streets

  • Relate a variety of retail types to the hierarchy of

streets

URBAN DESIGN STEP 4 IDENTITY & PROGRAM

slide-51
SLIDE 51

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

URBAN DESIGN SUMMARY

S E W A R D P A R K U R B A N D E S I G N

Step 1 – Connections Step 2 – Density & Form Step 3 – Human Scale & Streetscape Step 4 – Identity & Program

slide-52
SLIDE 52

S E W A R D P A R K U R B A N D E S I G N F E B R U A R Y 2 8 , 2 0 1 1

QUESTIONS
