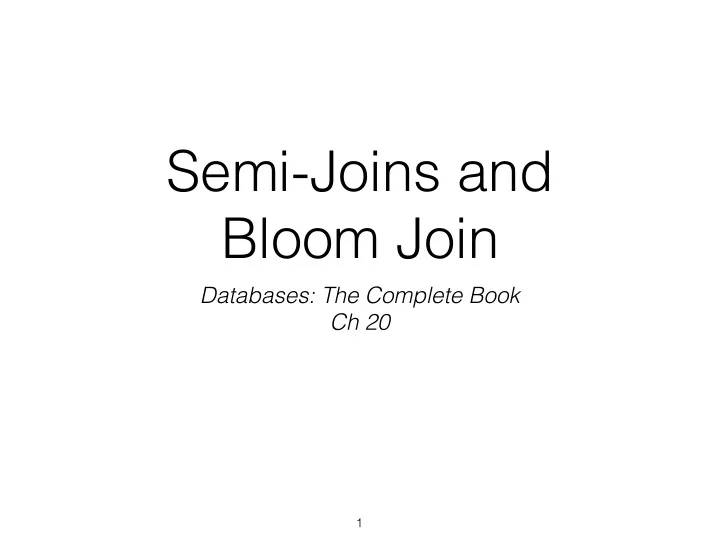

Semi-Joins and Bloom Join
Databases: The Complete Book Ch 20
1
Practical Concerns
2
R1⋈S1 R1⋈S2 R2⋈S1
RN⋈SM
R1 R2 RN
…
S1 S2 SM
…
UNION
Semi-Joins and Bloom Join Databases: The Complete Book Ch 20 1 - - PowerPoint PPT Presentation
Semi-Joins and Bloom Join Databases: The Complete Book Ch 20 1 - - PowerPoint PPT Presentation
Semi-Joins and Bloom Join Databases: The Complete Book Ch 20 1 Practical Concerns UNION R 1 S 1 R 1 S 2 R 2 S 1 R N S M R 1 R 2 R N S 1 S 2 S M 2 Practical Concerns UNION R 1 S 1 R 1 S 2 R 2 S 1 R N
SLIDE 2
SLIDE 3
Practical Concerns
2
R1⋈S1 R1⋈S2 R2⋈S1
RN⋈SM
R1 R2 RN
…
S1 S2 SM
…
UNION
Where does the computation happen? How does the data get there?
SLIDE 4
Distributing the Work
3
S ⋈B R
Let’s start simple… what can we do with no partitions?
SLIDE 5
Distributing the Work
3
S ⋈B R
Let’s start simple… what can we do with no partitions? R and S may be any RA expression…
SLIDE 6
Distributing the Work
4
S ⋈B R
Node 1
SLIDE 7
Distributing the Work
4
S ⋈B R
Node 1
No Parallelism!
SLIDE 8
Distributing the Work
5
S ⋈B R
Node 2 Node 1 Node 3
SLIDE 9
Distributing the Work
5
S ⋈B R
Node 2 Node 1 Node 3
Lots of Data Transfer! All of R and All of S get sent!
SLIDE 10
Distributing the Work
6
S ⋈B R
Node 2 Node 1
SLIDE 11
Distributing the Work
6
S ⋈B R
Node 2 Node 1
All of R get sent Better! We can guess whether R or S is smaller.
SLIDE 12
Distributing the Work
7
What can we do if R is partitioned?
R2 ⋈B S R1 ⋈B U
SLIDE 13
Distributing the Work
8
There are lots of partitioning strategies, but this one is interesting….
R2 ⋈B S R1 ⋈B U
Node 2 Node 3 Node 1
SLIDE 14
R2 ⋈B S1 R1 ⋈B U
Distributing the Work
9
… it can be used as a model for partitioning S…
Node 2 Node 3 Node 1
SLIDE 15
R2 ⋈B S2 R1 ⋈B U
Distributing the Work
10
… it can be used as a model for partitioning S…
Node 2 Node 3 Node 1
SLIDE 16
R2 ⋈B S R1 ⋈B U
Distributing the Work
11
…and neatly captures the data transfer issue.
Node 2 Node 3 Node 1
SLIDE 17
Distributing the Work
12
Si joins with R1,R2,…,RN locally. So let’s use it:
SLIDE 18
Distributing the Work
12
Si joins with R1,R2,…,RN locally. So let’s use it: Goal: Minimize amount of data sent from Rk to Si
SLIDE 19
Distributing the Work
12
Si joins with R1,R2,…,RN locally. So let’s use it: Goal: Minimize amount of data sent from Rk to Si Solution 1: Use the partitioning strategy (like last lecture)
SLIDE 20
Distributing the Work
12
Si joins with R1,R2,…,RN locally. So let’s use it: Goal: Minimize amount of data sent from Rk to Si Solution 1: Use the partitioning strategy (like last lecture) Solution 2: “Hints” to figure out what Rk should send
SLIDE 21
Sending Hints
13
Node 1 Node 2
Rk Si
Rk ⋈B Si
The naive approach…
SLIDE 22
Sending Hints
14
Node 1 Node 2
Rk Si
Rk ⋈B Si
The naive approach…
Send me Rk
SLIDE 23
Sending Hints
15
Node 1 Node 2
Rk Si
Rk ⋈B Si
The naive approach…
Rk
SLIDE 24
Sending Hints
16
Node 1 Node 2
Rk Si
Rk ⋈B Si
The smarter approach…
πB( )
Si
SLIDE 25
Sending Hints
17
Node 1 Node 2
Rk Si
Rk ⋈B Si
The smarter approach…
πB( )
Si
⋈ πB( )
Rk Si
SLIDE 26
Sending Hints
18
Node 1 Node 2
Rk ⋈B Si
The smarter approach…
<1,A> <2,B> <2,C> <3,D> <4,E> <2,X> <3,Y> <6,Y>
SLIDE 27
Sending Hints
19
Node 1 Node 2
Rk ⋈B Si
The smarter approach…
<2,X>
Send me rows with a ‘B’ of 2,3, or 6
<3,Y> <1,A> <2,B> <2,C> <3,D> <4,E> <6,Y>
SLIDE 28
Sending Hints
20
Node 1 Node 2
Rk ⋈B Si
The smarter approach…
<1,A> <2,B> <2,C> <3,D> <2,X>
Send me rows with a ‘B’ of 2,3, or 6
<3,Y>
<2,B> <2,C> <3,D>
<4,E> <6,Y>
SLIDE 29
Sending Hints
20
Node 1 Node 2
Rk ⋈B Si
The smarter approach…
<1,A> <2,B> <2,C> <3,D> <2,X>
Send me rows with a ‘B’ of 2,3, or 6
<3,Y>
<2,B> <2,C> <3,D>
<4,E>
This is called a semi-join.
<6,Y>
SLIDE 30
Sending Hints
21
Now Node 1 sends as little data as possible… … but Node 2 needs to send a lot of data. Can we do better?
SLIDE 31
Sending Hints
22
Node 1 Node 2
Rk ⋈B Si
<1,A> <2,B> <2,C> <3,D> <2,X> <4,E>
Strategy 1: Parity Bits
1 1
<6,Y>
SLIDE 32
Sending Hints
23
Node 1 Node 2
Rk ⋈B Si
<1,A> <2,B> <2,C> <3,D> <2,X> <4,E>
Strategy 1: Parity Bits
1 1
Send me data with a parity bit of ‘0’
<6,Y>
SLIDE 33
Sending Hints
24
Node 1 Node 2
Rk ⋈B Si
<1,A> <2,B> <2,C> <3,D> <2,X> <4,E>
Strategy 1: Parity Bit
1 1
Send me data with a parity bit of ‘0’
<2,B> <2,C> <4,E>
<6,Y>
SLIDE 34
Sending Hints
24
Node 1 Node 2
Rk ⋈B Si
<1,A> <2,B> <2,C> <3,D> <2,X> <4,E>
Strategy 1: Parity Bit
1 1
Send me data with a parity bit of ‘0’
<2,B> <2,C> <4,E>
Node 1 sending too much is ok! (Node 2 still needs to compute ⋈B)
<6,Y>
SLIDE 35
Sending Hints
24
Node 1 Node 2
Rk ⋈B Si
<1,A> <2,B> <2,C> <3,D> <2,X> <4,E>
Strategy 1: Parity Bit
1 1
Send me data with a parity bit of ‘0’
<2,B> <2,C> <4,E>
Node 1 sending too much is ok! (Node 2 still needs to compute ⋈B)
<6,Y>
Problem: One parity bit is too little
SLIDE 36
Sending Hints
25
Node 1 Node 2
Rk ⋈B Si
<1,A> <2,B> <2,C> <3,D> <2,X> <4,E>
Strategy 1: Parity Bit
1 1 1
Problem: One parity bit is too little
<3,Y> <6,Y>
SLIDE 37
Sending Hints
26
Node 1 Node 2
Rk ⋈B Si
<1,A> <2,B> <2,C> <3,D> <2,X> <4,E>
Strategy 2: Parity Bits
01 10 10 00 11 10 11<3,Y>
<6,Y>
10
Send me data with parity bits 10 or 11
<2,B> <2,C> <3,D>
SLIDE 38
Sending Hints
26
Node 1 Node 2
Rk ⋈B Si
<1,A> <2,B> <2,C> <3,D> <2,X> <4,E>
Strategy 2: Parity Bits
01 10 10 00 11 10 11<3,Y>
<6,Y>
10
Send me data with parity bits 10 or 11
<2,B> <2,C> <3,D>
Problem: Almost as much data as πB
SLIDE 39
Sending Hints
27
Can we summarize the parity bits?
SLIDE 40
Bloom Filters
28
Alice Bob Carol Dave
SLIDE 41
Bloom Filters
29
Bloom Filter
Alice Bob Carol Dave
SLIDE 42
Bloom Filters
30
Bloom Filter
Alice Bob Carol Dave
Is Alice part
- f the set?
SLIDE 43
Bloom Filters
30
Bloom Filter
Alice Bob Carol Dave
Is Alice part
- f the set?
Yes
SLIDE 44
Bloom Filters
30
Bloom Filter
Alice Bob Carol Dave
Is Alice part
- f the set?
Is Eve part of the set? Yes
SLIDE 45
Bloom Filters
30
Bloom Filter
Alice Bob Carol Dave
Is Alice part
- f the set?
Is Eve part of the set? Yes No
SLIDE 46
Bloom Filters
30
Bloom Filter
Alice Bob Carol Dave
Is Alice part
- f the set?
Is Eve part of the set? Is Fred part
- f the set?
Yes No
SLIDE 47
Bloom Filters
30
Bloom Filter
Alice Bob Carol Dave
Is Alice part
- f the set?
Is Eve part of the set? Is Fred part
- f the set?
Yes No Yes
SLIDE 48
Bloom Filters
30
Bloom Filter
Alice Bob Carol Dave
Is Alice part
- f the set?
Is Eve part of the set? Is Fred part
- f the set?
Yes No Yes
Bloom Filter Guarantee Test definitely returns Yes if the element is in the set Test usually returns No if the element is not in the set
SLIDE 49
Bloom Filters
31
A Bloom Filter is a bit vector M - # of bits in the bit vector K - # of hash functions For ONE key (or record): For i between 0 and K: bitvector[ hashi (key) % M ] = 1
SLIDE 50
Bloom Filters
31
A Bloom Filter is a bit vector M - # of bits in the bit vector K - # of hash functions For ONE key (or record): For i between 0 and K: bitvector[ hashi (key) % M ] = 1
Each bit vector has ~K bits set
SLIDE 51
Bloom Filters
32
00101010 01010110 10000110 01001100 Key 1 Key 2 Key 3 Key 4
Filters are combined by Bitwise-OR e.g. (Key 1 | Key 2) = 01111110
SLIDE 52
Bloom Filters
32
00101010 01010110 10000110 01001100 Key 1 Key 2 Key 3 Key 4
Filters are combined by Bitwise-OR e.g. (Key 1 | Key 2) = 01111110 How do we test for inclusion?
SLIDE 53
Bloom Filters
32
00101010 01010110 10000110 01001100 Key 1 Key 2 Key 3 Key 4
Filters are combined by Bitwise-OR e.g. (Key 1 | Key 2) = 01111110 How do we test for inclusion? (Key & Filter) == Key? (Key 1 & S) = 00101010 (Key 3 & S) = 00000110 (Key 4 & S) = 01001100
SLIDE 54
Bloom Filters
32
00101010 01010110 10000110 01001100 Key 1 Key 2 Key 3 Key 4
Filters are combined by Bitwise-OR e.g. (Key 1 | Key 2) = 01111110 How do we test for inclusion? (Key & Filter) == Key? (Key 1 & S) = 00101010 (Key 3 & S) = 00000110 (Key 4 & S) = 01001100
√
SLIDE 55
Bloom Filters
32
00101010 01010110 10000110 01001100 Key 1 Key 2 Key 3 Key 4
Filters are combined by Bitwise-OR e.g. (Key 1 | Key 2) = 01111110 How do we test for inclusion? (Key & Filter) == Key? (Key 1 & S) = 00101010 (Key 3 & S) = 00000110 (Key 4 & S) = 01001100
X √
SLIDE 56
Bloom Filters
32
00101010 01010110 10000110 01001100 Key 1 Key 2 Key 3 Key 4
Filters are combined by Bitwise-OR e.g. (Key 1 | Key 2) = 01111110 How do we test for inclusion? (Key & Filter) == Key? (Key 1 & S) = 00101010 (Key 3 & S) = 00000110 (Key 4 & S) = 01001100
X √ False Positive √
SLIDE 57
Sending Hints
33
Node 1 Node 2
Rk ⋈B Si
<1,A> <2,B> <2,C> <3,D> <2,X> <4,E>
Strategy 3: Bloom Filters
<3,Y> <6,Y>
SLIDE 58
Sending Hints
34
Node 1 Node 2
Rk ⋈B Si
<1,A> <2,B> <2,C> <3,D> <2,X> <4,E>
Strategy 3: Bloom Filters
<3,Y> <6,Y>
Send me rows with a ‘B’ in the bloom filter summarizing the set {2,3,6}
SLIDE 59
Sending Hints
35
Node 1 Node 2
Rk ⋈B Si
<1,A> <2,B> <2,C> <3,D> <2,X> <4,E>
Strategy 3: Bloom Filters
<3,Y> <6,Y>
<2,B> <2,C> <3,D> <4,E>
Send me rows with a ‘B’ in the bloom filter summarizing the set {2,3,6}
SLIDE 60
Sending Hints
35
Node 1 Node 2
Rk ⋈B Si
<1,A> <2,B> <2,C> <3,D> <2,X> <4,E>
Strategy 3: Bloom Filters
<3,Y> <6,Y>
<2,B> <2,C> <3,D> <4,E>
This is called a bloom-join.
Send me rows with a ‘B’ in the bloom filter summarizing the set {2,3,6}
