[PPT] - SDH-deficient GIST 2019 Update Michael C. Heinrich, MD Professor PowerPoint Presentation

SLIDE 1

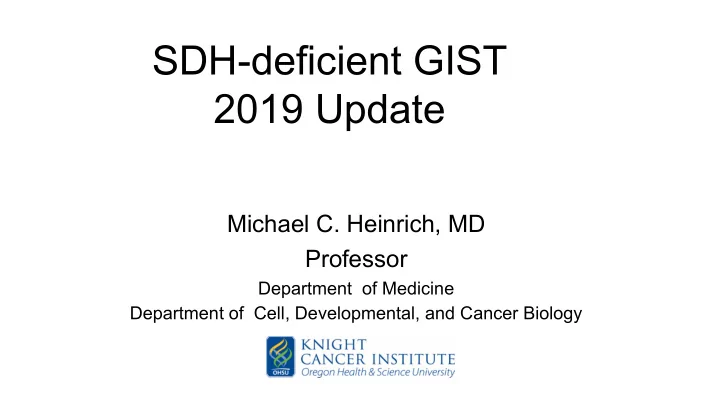

SDH-deficient GIST 2019 Update

Michael C. Heinrich, MD Professor

Department of Medicine Department of Cell, Developmental, and Cancer Biology

SLIDE 2

Established 2008

SLIDE 3

The NIH pediatric and wild-type GIST clinic

Bi-annual clinic at NIH established June, 2008

– Collaborative effort between clinicians, researchers, support groups and patients – Objective: further the investigation of the clinical features and

ncogenic mechanisms underlying wild-type GIST

Surgical Management of Wild-type Gastrointestinal Stromal Tumors: A Report from the NIH Pediatric and Wild-type GIST Clinic; Weldon, CW et al; JCO epub (in press

Cancer Discovery 2013

JAMA Oncology 2016

SLIDE 4

Comparison of Adult and Pediatric/AYA GIST

Adult Peds/AYA Primary tumor site Gastric 70% Gastric 90%+ Gender M>F (slight bias) Female predominance SDHB expression Retained Lost KIT mutations More than 70% Minority Multiple primary tumors Rare Common Due to inherited mutation Rare Majority (SDH) Response to imatinib Majority Uncommon Family inheritance Rare Majority

SLIDE 5

KIT mutant 77.1% PDGFRA mutant 10.1% SDH deficient 10.0% BRAF mutant 1.5% RAS mutant 0.1% NF1-related 0.1% RTK translocation 0.1% Unclassifed 1.0%

Molecular Classification of GIST 2018

Note: This data are compiled from series largely composed of adult patients

SLIDE 6

Matrix IMM

Succinate dehydrogenase

6

TCA Cycle Q QH2 ETC

4-subunit complex in

mitochondrial matrix

Links TCA to ETC
Cofactors:
FAD
3 iron-sulfur clusters
Heme b
Assembly Factors
SDHAF1-4

Slide courtesy of Jason Kent

SLIDE 7

7

SDH dysfunction and human disease

Slide courtesy of Jason Kent

SLIDE 8

8

SDH dysfunction and human disease

Inactivation of any subunit

results in loss of SDHB and whole-complex activity

Slide courtesy of Jason Kent

SLIDE 9

9

SDH dysfunction and human disease

Inactivation of any subunit

results in loss of SDHB and whole-complex activity

Slide courtesy of Jason Kent

SLIDE 10

10

SDH dysfunction and human disease

Inactivation of any subunit

results in loss of SDHB and whole-complex activity

Loss of SDH activity results

in succinate accumulation

Slide courtesy of Jason Kent

SLIDE 11

11

SDH dysfunction and human disease

Inactivation of any subunit

results in loss of SDHB and whole-complex activity

Loss of SDH activity results in

succinate accumulation

Elevated succinate inhibits ⍺-

ketoglutarate-dependent dioxygenases resulting in pathological phenotypes

Dioxygenase Example Consequence Hydroxylase HIF prolyl hydroxylase Pseudohypoxia Demethylase TET Hypermethylation

Image: Wikipedia

Slide courtesy of Jason Kent

SLIDE 12

SDH-deficient GIST tumor are globally hypermethylated

SLIDE 13

SDH-deficiency is associated with multiple human

diseases

– Cancer

Gastrointestinal stromal tumor (GIST)
Paraganglioma and pheochromocytoma (PGL/PCC)
Renal cell carcinoma (RCC)

– Leigh syndrome and other neurodegenerative disorders – Neonatal cardiomyopathy

13

SDH dysfunction and human disease

SLIDE 14

SDH-deficiency defined by loss of SDHB

14

SDHB IHC - PGL/PCC tumor samples

SDH-Deficient SDH-Proficient

Adapted from van Nederveen, 2009

SDHB mutation SDHC mutation SDHD mutation VHL mutation RET mutation NF1 mutation

NEGATIVE POSITIVE

What causes SDH- deficiency in these tumors? Loss-of-function mutations in SDHx

Slide courtesy of Jason Kent

SLIDE 15

SDH-deficiency defined by loss of SDHB

15

SDHB IHC - PGL/PCC tumor samples

SDH-Deficient

SDHB mutation SDHC mutation SDHD mutation

What causes SDH- deficiency in these tumors? Loss-of-function mutations in SDHx

Adapted from Eveneopoel, 2014

NEGATIVE

Slide courtesy of Jason Kent

SLIDE 16

Out of control automobile as a model of cancer

Car = cell
Car out of control = cancer cell
Jammed accelerator = oncogene (e.g. KIT mutation)

– Gain of function – Only need one event (mutation)

Defective brakes = tumor suppressor gene (e.g. SDH)

– Loss of function – Need two events (mutations) to inactivate front and rear brakes

SLIDE 17

SDH-deficient cancers require two SDH mutations for cancer development

Two ‘inactivating’ SDH hits in order to become deficient
First hit

– Germline – Somatic – Epimutation

Banno et al 2012

Second hit

1. Somatic
2. Loss of heterozygosity
3. Epimutation

1 2 3

SLIDE 18

Inheriting a loss-of-function SDH mutation results in high life-time risk for tumor development

18

Neumann et al., 2004; Bausch et al., 2017

PGL/PCC

SLIDE 19

SLIDE 20
