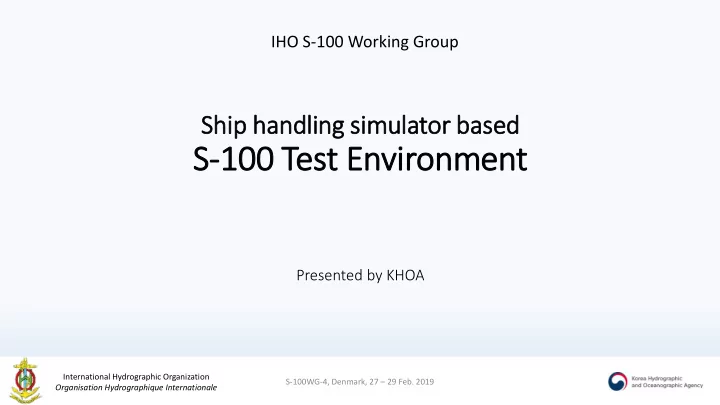

IHO S-100 Working Group Ship handling sim imulator based S-100 Test Environment Presented by KHOA International Hydrographic Organization S-100WG-4, Denmark, 27 29 Feb. 2019 Organisation Hydrographique Internationale In Introduction

SLIDE 1

International Hydrographic Organization Organisation Hydrographique Internationale

IHO S-100 Working Group

S-100WG-4, Denmark, 27 – 29 Feb. 2019

Ship handling sim imulator based

S-100 Test Environment

Presented by KHOA

SLIDE 2

International Hydrographic Organization Organisation Hydrographique Internationale

In Introduction

KHOA S-100 Test bed project
S-100 Simple Viewer and S-100 Test System (shore-based ECDIS) to support

the IHO S-100 Test Framework

verify the quality and usability of S-100 data.
Ship handling simulator based S-100 test environment
to verify the S-100 data such as S-101 ENC and S-111 Surface Currents in an

environment similar to a ship bridge

This paper introduces the main results of prototype development in

2018 and seeks advices from experts.

S-100WG-4, Denmark, 27 – 29 Feb. 2019

SLIDE 3

International Hydrographic Organization Organisation Hydrographique Internationale

S-100 Sim imple Vie iewer and Test System of f KHOA

S-100 Simple Viewer
aims to verify feature/portrayal catalogue created by S-100 registry and

catalogue builders and S-101 data converted by S-101 Converter.

S-100 test system (shore-based ECDIS)
combining the S-100 Simple Viewer and ECDIS SW
KHOA research team performed three sea trials between 2016 and 2017

S-100WG-4, Denmark, 27 – 29 Feb. 2019

SLIDE 4

International Hydrographic Organization Organisation Hydrographique Internationale

Ship Sim imulator Based S-100 Test Environment

Prototype development

S-100WG-4, Denmark, 27 – 29 Feb. 2019 Ship simulator

S-10X TDS Metadata S-10X File DB

NMEA 0183 S-100 Test system xFTP TDS Management Sys. Exchange set WMTS

S-100 4.0 Metadata Base map

SLIDE 5

International Hydrographic Organization Organisation Hydrographique Internationale

Ship Sim imulator Based S-100 Test Environment

Prototype development

S-100WG-4, Denmark, 27 – 29 Feb. 2019

SLIDE 6

International Hydrographic Organization Organisation Hydrographique Internationale

Summary ry

The ship simulator based test was more beneficial than sea trials
Efficient communication with various stakeholders such as mariners, data

producers and OEM developers

More practical test in terms of usability view using the ship simulator based

S-100 test system (Shore based ECDIS) compared to the S-100 Simple Viewer

Improved efficiency in terms of time and cost compared to sea trial tests
Construction of the operational environment (2019)
ship handling simulator based S-100 test system in 2019 based on the lessons

learned from the prototype development

verify S-100 test data and S-100 test system with domestic and international

experts.

S-100WG-4, Denmark, 27 – 29 Feb. 2019

SLIDE 7

International Hydrographic Organization Organisation Hydrographique Internationale

Recommendations

Test plan
Indoor test using the ship handling simulator based S-100 test environment
Sea trial using the S-100 test system
It’s invited
interested experts to advice on the plan of testing S-100 data by ship handling

simulator based S-100 test system indoor

sea trial using the S-100 test system
for the purpose of testing harmonized integration and display of S-100 data.

S-100WG-4, Denmark, 27 – 29 Feb. 2019
