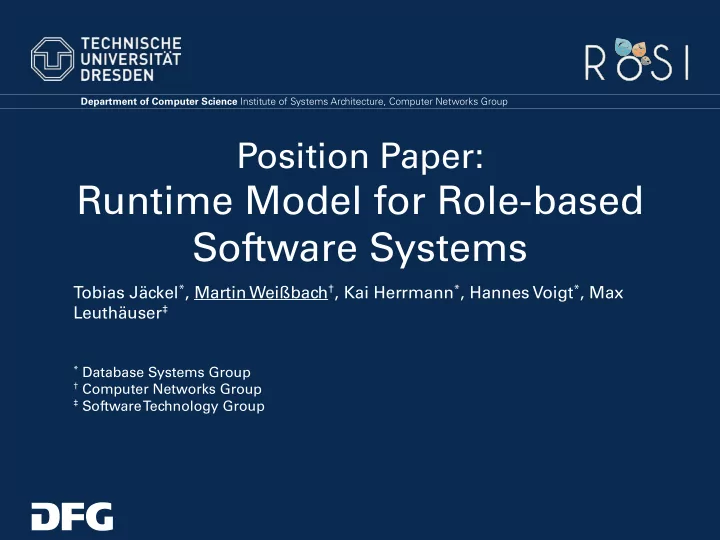

Position Paper:

Runtime Model for Role-based Software Systems

Tobias Jäckel*, Martin Weißbach†, Kai Herrmann*, Hannes Voigt*, Max Leuthäuser‡

* Database Systems Group † Computer Networks Group ‡ Software

Technology Group

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

Modeling Languages Programming Languages

2

Motivation

Helena- Approach (2014) Onto-UML (2012) DCI (in Scala) (2009) INM (2009) Metamodel for Roles (2007) JavaStage (2012) NextEJ (2009) Rumer (2007) powerJava (2006) OT/J (2005)

• roles allows for an intuitive separation of static and

dynamic, context-dependent behavior

• investigation of roles throughout all steps of the

software development process and across all layers

• f developed software applications

ORM 2 (2005) Raw (2006)

Modeling & Programming Languages taken from: T . Kühn, et al., “ A Metamodel Family for Role-Based Modeling and Programming Languages, ” in Software Language Engineering, Cham: Springer International Publishing, 2014, pp. 141–160.

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

Compartment Role Object Model (CROM) [3],[4]

3

Motivation

Programming Language / Framework Database

LyRT [1],[2] SCROLL [6] RSQL [4]

Runtime Environment

Java Virtual Machine (JVM)

Formal Foundation

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

Our Assumed Role Model

4

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

HighBandwidth BrightEnvironment LowBandwidth

5

Our Assumed Role Model

LazyLoading

+fetchData()

EagerLoading

+fetchData()

Browser

+fetchData() +displayContent()

Downloadable

+download() +save(File)

BrightDisplay

+displayContent()

• bjects may play

different roles simultaneously

• bjects may

acquire and abandon roles dynamically features of an

• bject can be

role-specific

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

• Roles have properties and behaviors
• objects may play different roles simultaneously
• objects may acquire and abandon roles dynamically
• roles can be transferred between objects
• the state of an object can be role-specific
• features of an object can be role-specific
• an object and its roles share identity
• an object and its roles have different identity
• roles depend on compartments
• compartments have their own identity

6

Our Assumed Role Model

Browser

+fetchData() +displayContent()

Downloadable

+download() +save(File)

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

• applied role concept to different layers of the

application independently

• Are the states of roles the same on each layer?
• Are any transitions between layer-specific role states

possible?

7

Role States

B1:Browser D1:Downloadable

Database Runtime

B1:Browser D1:Downloadable

Application

B1:Browser D1:Downloadable

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

LowBandwidth HighBandwidth

8

Application Layer (AL)

Application Layer Not Existent Bound Active Passive

• Bound Active roles’ behavior

is ‘visible’ to the user

• Bound Passive roles’

behavior is not perceivable

• role-base application thats behavior can be modified

dynamically at run time (through roles)

• user-interaction, business logic etc.

B1:Browser LazyLoading EagerLoading

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach 9

Runtime Environment Layer (REL)

Runtime Environment Layer Not Existent Unbound Player Compartment Bound

• Bound roles are considered

for the method dispatch

• Unbound states are

transparent for the application and transient

• book-keeping of currently played roles (binding

information)

• dispatch of method invocations
• creation, deletion, binding etc. of roles

B1:Browser LazyLoading EagerLoading

fetchData()

HighBandwidth

fetchData()

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

• mapping of the programming-language specific
• bject instances of roles and players to their

respective representation on the database layer

• autonomous storage to the database on changes

made to the objects

10

Persistence Layer (PL)

Persistence Layer Not Existent Bound

• Bound roles are stored to the

database

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach 11

Database Layer (DBL)

Database Layer Not Existent Bound

• Only information about roles

being bound to players are required being persistent

• stores roles, players and bind information persistently

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

• combinatorics allow invalid states → might also occur

if the system is left unattended

• motivation: roles instances might exist on a single

layer only, but the “entity” of the role cuts all layers in the layer stack

• limit space of possible transitions of a role, globally in

the system

12

Global Role State

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach 13

Create and Store a Role

Runtime Environment Layer Database Layer Persistence Layer Application Layer

P1:Browser R1:BrightDisplay not existent not existent not existent not existent C1:BrightEnvironment Unbound Player Unbound Compartment bound bound Passive bound Active bound bound

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach 14

Reload a Role from the Database

Runtime Environment Layer Database Layer Persistence Layer Application Layer

P1:Browser R1:BrightDisplay C1:BrightEnvironment bound not existent not existent not existent bound Unbound Player Unbound Compartment bound bound Passive bound Active

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach 15

The Global State Manager

Runtime Environment Layer Database Layer Persistence Layer Application Layer

P1:Browser R1:Downloadable C1:BrightEnvironment bound bound bound bound Active Global State Manager

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

Global State Manager

16

The Global State Manager

R1 R6 R3 R4 R5 R2

…knows…

• the roles in the

system

• their current state on

each layer

R7

{ba,b,b,b} {AL,REL,PL,DBL} {nex,nex,nex,nex} {ba,b,nex,nex} {bp,b,nex,nex} {ba,b,nex,nex} {nex,nex,nex,b} {ba,b,nex,nex}

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

• transitions of global role states can be checked at run

time

• model can be used to check the system in advance

for correctness

• possibly especially interesting in the case of

constraints or collaborations between roles

17

Benefits

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

Global State Manager

18

The Global State Manager

R1 R6 R3 R4 R5 R2

…knows…

• the roles in the

system

• their current state on

each layer

• roles and their

players

• the object net of

players

{ba,b,b,b} {AL,REL,PL,DBL} {ba,b,nex,nex} {bp,b,nex,nex} {ba,b,nex,nex} {nex,nex,nex,b} {ba,b,nex,nex}

P2

constraint to be always played together collaboration

P3 P1 P4 P5

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

• transitions of global role states can be checked at run

time

• transactional changes of multiple roles can both be

checked and guided

• model can be used to check the system in advance

for correctness

• possibly especially interesting in the case of

constraints or collaborations between roles

19

Benefits

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

• role-concept on the modeling and programming

language level

• exemplary investigation of the role-concept in an

entire software application

• argument to incorporate the concept in a run-time

model to allow for dynamic adaptation and validation

20

Conclusion

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

• refinement of layers
• superset of role models that fulfil the state machine
• different quality / isolation levels
• e.g. transactional storage of changes of role

bindings / creations vs. lazy storage that allows information loss

• distributed settings & decentralization aspects

21

Future Work

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

Thank you for your attention!

Questions?

Department of Computer Science Institute of Systems Architecture, Computer Networks Group

DFG · RoSI · Martin Weißbach

[1] Nguonly Taing, Thomas Springer, Nicolás Cardozo, Alexander Schill: A Dynamic Instance Binding Mechanism Supporting Run-Time Variability of Role-Based Software Systems. Modularity Companion 2016, Màlaga, Spain [2] Nguonly Taing, Markus Wutzler, Thomas Springer, Nicolás Cardozo, Alexander Schill: Consistent Unanticipated Adaptation for Context- Dependent Applications. To appear at COP'16, 2016, Rome, Italy [3] Thomas Kühn, Max Leuthäuser, Sebastian Götz, Christoph Seidl, Uwe Aßmann: A Metamodel Family for Role-Based Modeling and Programming Languages, In Proc. of the 7th International Conference on Software Language Engineering (SLE 2014), 2014. [4] Tobias Jäkel, Thomas Kühn, Hannes Voigt, Wolfgang Lehner: RSQL - A Query Language for Dynamic Data Types. In Proc. of the 18th International Database Engineering & Applications Symposium (IDEAS '14), 2014. [5] Thomas Kühn, Stephan Böhme, Sebastian Götz: A Combined Formal Model for Relational Context-Dependent Roles. In Proc. of SLE'15, ACM, 2015. [6] Max Leuthäuser: SCROLL - A Scala-based library for Roles at Runtime. In Proc. of the 3rd Workshop on Domain-Specific Language Design and Implementation (DSLDI 2015)
