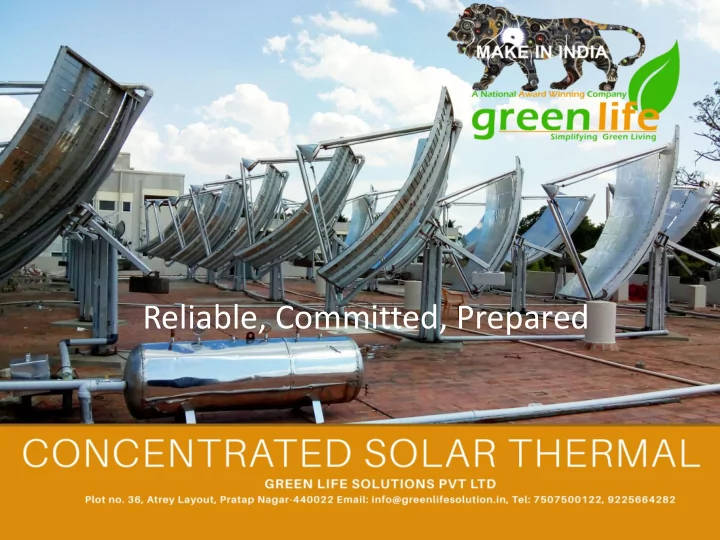

Reliable, Committed, Prepared

ABOUT

GREEN LIFE SOLUTIONS PVT LTD

GREEN LIFE

GREEN LIFE SOLUTIONS PRIVATE LIMITE, is a concern dedicated to the promotion

• f Renewable Energy Propagation and Implementation in India. ‘Greenlife’ has

established itself well in solar Technologies and completed many projects in Renewable Energy (Thermal and PV) Solutions. The company has been recognized by Govt. of India as a pioneer in renewable energy sector (ESCO) by conferring award at the hands of Hon’ble Shri Piyushji Goyal, Minister for Power, Coal & Renewable energy, on 29th April’2016. Green Life Solutions Pvt Ltd. is determined to create an advanced, Quality manufacturing facility and to achieve superior standards by laying the foundation to meet and exceed where possible, cGMP (current Good Manufacturing Practice). Quality is non-negotiable: The state-of-the-art manufacturing facility of Green Life Solutions Pvt. Ltd., here is a perfect testimony of quality adherence and class

• performance. Inspection checks as well as numerous tests to evaluate product

performance in different conditions are undertaken stringently.

GREEN LIFE

The teams of highly trained and qualified staff provide wealth of experience to ensure a high quality standards are maintained throughout the manufacturing process. Green Life Solutions Pvt Ltd is Grade ‘A’ Channel partner of MNRE for Roof Top Solar PV system , Concentrated Solar Thermal (CST) and Manufacturer of True Parabolic Concentrators, Compound Parabolic Collector , Solar Dryers, Water Heaters etc. We boast reduction of million tons of carbon dioxide through our Clientele base spread across India. Our offerings of complete commissioning services from KW to MW scale grid- connected and off-grid standalone solar power projects helps our clients in reducing investment and recurring cost. ‘Greenlife’ is continuously involved in R & D and experimentation to develop and

• ffer green solutions to the society at large and serve the nation.

PARABOLIC CONCENTRATORS

CONCENTRATED SOLAR THERMAL (CST)

(For higher temperature application)

CONCENTRATED SOLAR THERMAL

It is a paraboloid reflecting concentrator with downward facing conical cavity receiver at its focus designed to absorb the concentrated solar energy and to transfer it for useful application. The concentrator tracks the sun on two axes, continuously facing it to capture maximum amount of solar radiation over a day. The dish concentrator along with the receiver is mounted on a specially designed pillar with tracking system. The system is equipped with a heat retrieval mechanism (which consist of piping and fittings, insulation, fluid circulating pump, etc.), and system controls related to tracking, thermal system and security/ emergency measures. Each dish of this technology having a weight of around 300KG could generate around 25 Kg of steam in a day depending on the solar insolation and steam

• pressure. More dishes could be installed for meeting the required steam in an

establishment at desired temperature and pressure Dish Systems comprise of following components ➢Parabolic Collector ➢Receiver ➢Automatic Dual Axis Tracking System ➢Working fluid (Oil/water) ➢Circulation system

C S T

Parabolic Dishes with dual axis tracker

CONCENTRATED SOLAR THERMAL

C S T

Efficiency The overall conversion efficiency of the solar energy (DNI 700 W/m²) in thermal is 65% Thermal Energy GL-CST is able to generate 20000 Kcal per day. In one year it can produces upto 6000kWh of thermal energy. Self Protection In heavy wind condition

• r

bad weather, can automatically come in parking position (Self protection mode) Tracking GL-CST is equipped with an automatic dual axis solar tracking system. Operating Space Each GL-CST Dish need 24 sq meters of area and only 2 sq ft as foot print area. Economics Cost

• f

manufacturing

• f

dishes is economical and hence easy for client to invest in CST technology. Installation and Transportation GL-CST is designed in modular design leads to easy transportation and quick installation. Maintenance Due to optimum dish size and design, leads to minimize the maintenance efforts and give customer a feel of ease to run and maintain the system.

SPECIFICATIONS- CST

SPECIFICATIONS

General

Gross Collector Area Collector Area Efficiency Sun Tracking

Thermal Power

Receiver Temperature Peak Thermal Power Yearly average thermal energy Heat Fluid transfer Concentration ration

Material

Reflector Structure

Environmental Performance

Stand in maximum wind conditions Weight Reflector diameter 11.83 Sq meters 10.24 sq mtrs 65% Dual Axis (Automatic) Upto 700 degree 20000 Kcal 6000 KW Water / Thermic Oil 600 Aluminum Mirrors GI Structure 180 KM/hr 300 KG 3.20 meters

APPLICATIONS - CST

APPLICATIONS

PROJECTS - CST

PROJECTS

YERWADA JAIL PUNE

Application – Cooking Meals per day – 300 Meals Project size – 120 sq mtrs LPG Savings/Yr – 1680 KG Co2 Savings/Yr – 2520 KG

PROJECTS - YERWADA

PROJECTS

PROJECTS - YERWADA

PROJECTS

PROJECTS - CST

PROJECTS

INDIAN ORDNANCE FACTORY, NAGPUR

Application – Cooking Meals per day – 500 Meals Project size – 180 sq mtrs LPG Savings/Yr – 3800 KG Co2 Savings/Yr – 5700 KG

PROJECTS – ORDNANCE FACOTORY

PROJECTS

PROJECTS - CST

PROJECTS

PMC Engineering College, Hosur

Application – Cooking Meals per day – 600 Meals Project size – 250 sq mtrs LPG Savings/Yr – 4500 KG Co2 Savings/Yr – 6750 KG

PROJECTS – PMC, HOSUR

PROJECTS

PROJECTS - CST

PROJECTS

Velammal Engineering College, Madurai

Application – Cooking Meals per day – 650 Meals Project size – 250 sq mtrs LPG Savings/Yr – 4500 KG Co2 Savings/Yr – 6750 KG

PROJECTS – Velammal, MADURAI

PROJECTS

PROJECTS – Velammal, MADURAI

PROJECTS

COMPOUND PARABOLIC CONCENTRATORS(CPC)

CPC collectors for Industrial process heating (Water & oil)

For temperature range from 55 degree to 110 degree

COMPOUND PARABOLIC COLLECTORS (CPC)

CPC

For water, space and process heating from 55 C ~ 110 C temperature range. The vacuum tube collector with CPC-reflector has high energy yield due to special collector structure that contains vacuum tubes with highly selective absorber layer, U-shaped copper pipes inside vacuum tube for heat transport, aluminium heat transfer plate and highly reflecting CPC- reflector

Industrial hot water and air

Using

SUN

Free Energy For Ever

SPECIFICATIONS (CPC)

CPC

Components

1. CPC reflectors 2. Evacuated receiver tubes 3. Supporting structure

General Specifications

Aperture Area 3.20 sq mtrs Gross Area 3.74 Sq mtrs

• No. of Tubes

15 ETC Tube Length 1.8 mtrs Collector Weight 50 Kg (approx) Tube Connections Series Working fluid Water /Oil Working Temperature range 55 degree to 130 degree Insulation material Rock wool / Glass Wool Reflector Material Aluminum Structure GI Energy delivery 6000 Kcal per day

THANK YOU

Its simple, its easy just a thought away…

CONCENTRATED SOLAR THERMAL

Green Life Solutions Pvt Ltd. Plot No. 36, Atrey Layout, Pratap Nagar, Nagpur-440022, (MS), India Email : info@greenlifesolution.in, Tel: +91 7507500122
