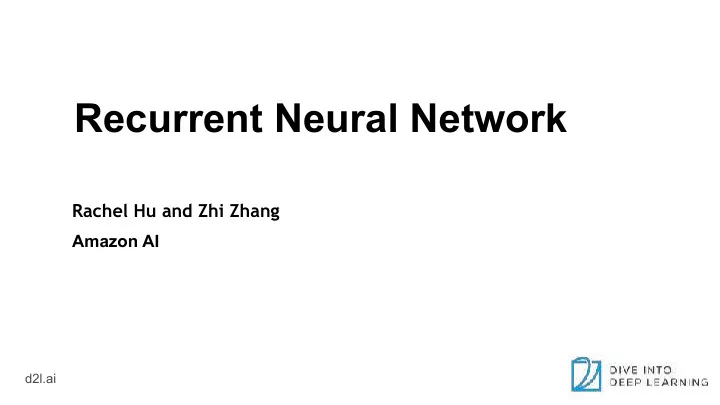

Recurrent Neural Network

Rachel Hu and Zhi Zhang

Amazon AI

d2l.ai

Outline

• Dependent Random Variables
• Text Preprocessing
• Language Modeling
• Recurrent Neural Networks (RNN)
• LSTM
• Bidirectional RNN
• Deep RNN

d2l.ai

Dependent Random Variables

d2l.ai

Time matters (Koren, 2009) Netflix changed the labels its rating system

Yehuda Koren, 2009

d2l.ai

Time matters (Koren, 2009)

Selection Bias

Yehuda Koren, 2009

d2l.ai

Kahnemann & Krueger, 2006

d2l.ai

Kahnemann & Krueger, 2006

d2l.ai

TL;DR - Data usually isn’t IID

prime day Christmas back to school Q2 earnings rate cuts

• range

hair tweets rating agencies inventory Black Friday

d2l.ai

Data

• So far …
• Collect observation pairs for training
• Estimate for unseen
• Examples
• Images classification & objects recognition
• Disease prediction
• Housing price prediction
• The order of the data does not matter

(xi, yi) ∼ p(x, y) y|x ∼ p(y|x) x′ ∼ p(x)

d2l.ai

Text Processing

d2l.ai

Text Preprocessing

• Sequence data has long dependency (very costly)
• Truncate into shorter fragments
• Transform examples into mini-batches with ndarrays

(batch size, width, height, channel) (batch size, sentence length)

d2l.ai

Tokenization

• Basic Idea - map text into sequence of tokens
• “Deep learning is fun” -> [“Deep”, “learning”, “is”, “fun”, “.”]
• Character Encoding (each character as a token)
• Small vocabulary
• Doesn’t work so well (needs to learn spelling)
• Word Encoding (each word as a token)
• Accurate spelling
• Doesn’t work so well (huge vocabulary = costly multinomial)
• Byte Pair Encoding (Goldilocks zone)
• Frequent subsequences (like syllables)

d2l.ai

Vocabulary

• Find unique tokens, map each one into a numerical index
• “Deep” : 1, “learning” : 2, “is” : 3, “fun” : 4, “.” : 5
• The frequency of words often

• beys a power law distribution
• Map the tailing tokens,


e.g. appears < 5 times,
 into a special “unknown”
 token

d2l.ai

Minibatch Generation

d2l.ai

Text Preprocessing Notebook

d2l.ai

Language Models

d2l.ai

Language Models

• Tokens not real values (domain is countably finite)
• e.g.,
• Estimating it

p(w1, w2, …, wT) = p(w1)

T

∏

t=2

p(wt|w1, …, wt−1)

p(deep, learning, is, fun, . ) = p(deep)p(learning|deep)p(is|deep, learning) p(fun|deep, learning, is)p( . |deep, learning, is, fun)

̂ p(learning|deep) = n(deep, learning) n(deep)

Need Smoothing

d2l.ai

Language Modeling

• Goal: predict the probability of a sentence, e.g.
• NLP fundamental tasks
• Typing - predict the next word
• Machine translation - dog bites man vs man bites dog
• Speech recognition


to recognize speech vs to wreck a nice beach

p(Deep, learning, is, fun, . )

d2l.ai

Language Modeling

• NLP fundamental tasks
• Named-entity recognition
• Part-of-speech tagging
• Machine translation
• Question answering
• Automatic Summarization
• …

d2l.ai

Recurrent Neural Networks

d2l.ai

RNN with Hidden States

• 2-layer MLP

Ht = ϕ(WhxXt−1 + bh)

• t = WhoHt + bo

Ht = ϕ(WhhHt−1 + WhxXt−1 + bh)

• t = WhoHt + bo
• Hidden State update
• Observation update

d2l.ai

Next word prediction

d2l.ai

Input Encoding

• Need to map input numerical indices to vectors
• Pick granularity (words, characters, subwords)
• Map to indicator vectors

d2l.ai

RNN with hidden state mechanics

• Input: vector sequence
• Hidden states:
• Output: vector sequence
• p is the vocabulary size
• is confident score that the t-th timestamp in the

sequence equals to j-th token in the vocabulary

• Loss: measure the classification error on T tokens

x1, …, xT ∈ ℝd h1, …, hT ∈ ℝh where ht = f(ht−1, xt)

• 1, …, oT ∈ ℝp where ot = g(ht)
• t,j

d2l.ai

Gradient Clipping

• Long chain of dependencies for backprop
• Need to keep a lot of intermediate values in memory
• Butterfly effect style dependencies
• Gradients can vanish or explod
• Clipping to prevent divergence





 rescales to gradient of size at most g ← min (1, θ ∥g∥ ) g θ

d2l.ai

RNN Notebook

d2l.ai

Paying attention to a sequence

• Not all observations are equally relevant

d2l.ai

Paying attention to a sequence

• Not all observations are equally relevant
• Need mechanism to pay attention (update gate)

e.g., an early observation is highly significant for predicting all future observations. We would like to have some mechanism for storing/updaing vital early information in a memory cell.

d2l.ai

Paying attention to a sequence

• Not all observations are equally relevant
• Need mechanism to forget (reset gate)

e.g., There is a logical break between parts of a sequence. For instance there might be a transition between chapters in a book, a transition between a bear and a bull market for securities, etc.

d2l.ai

From RNN to GRU

Rt = σ(XtWxr + Ht−1Whr + br), Zt = σ(XtWxz + Ht−1Whz + bz) ˜ Ht = tanh(XtWxh + (Rt ⊙ Ht−1) Whh + bh) Ht = Zt ⊙ Ht−1 + (1 − Zt) ⊙ ˜ Ht

• t = WhoHt + bo

Ht = ϕ(WhhHt−1 + WhxXt−1 + bh)

• t = WhoHt + bo

d2l.ai

GRU - Gates

Rt = σ(XtWxr + Ht−1Whr + br), Zt = σ(XtWxz + Ht−1Whz + bz)

d2l.ai

GRU - Candidate Hidden State

˜ Ht = tanh(XtWxh + (Rt ⊙ Ht−1) Whh + bh)

d2l.ai

Hidden State

Ht = Zt ⊙ Ht−1 + (1 − Zt) ⊙ ˜ Ht

d2l.ai

Summary

Rt = σ(XtWxr + Ht−1Whr + br), Zt = σ(XtWxz + Ht−1Whz + bz) ˜ Ht = tanh(XtWxh + (Rt ⊙ Ht−1) Whh + bh) Ht = Zt ⊙ Ht−1 + (1 − Zt) ⊙ ˜ Ht

d2l.ai

Long Short Term Memory

d2l.ai

GRU and LSTM

Rt = σ(XtWxr + Ht−1Whr + br), Zt = σ(XtWxz + Ht−1Whz + bz) ˜ Ht = tanh(XtWxh + (Rt ⊙ Ht−1) Whh + bh) Ht = Zt ⊙ Ht−1 + (1 − Zt) ⊙ ˜ Ht

It = σ(XtWxi + Ht−1Whi + bi) Ft = σ(XtWxf + Ht−1Whf + bf) Ot = σ(XtWxo + Ht−1Who + bo) ˜ Ct = tanh(XtWxc + Ht−1Whc + bc) Ct = Ft ⊙ Ct−1 + It ⊙ ˜ Ct Ht = Ot ⊙ tanh(Ct)

d2l.ai

Long Short Term Memory

• Forget gate


Reset the memory cell values

• Input gate


Decide whether we should ignore the input data

• Output gate


Decide whether the hidden state is used for the output generated by the LSTM


• Hidden state and Memory cell

d2l.ai

Gates

It = σ(XtWxi + Ht−1Whi + bi) Ft = σ(XtWxf + Ht−1Whf + bf) Ot = σ(XtWxo + Ht−1Who + bo)

d2l.ai

Candidate Memory Cell

˜ Ct = tanh(XtWxc + Ht−1Whc + bc)

d2l.ai

Memory Cell

Ct = Ft ⊙ Ct−1 + It ⊙ ˜ Ct

d2l.ai

Hidden State / Output

Ht = Ot ⊙ tanh(Ct)

d2l.ai

Hidden State / Output

It = σ(XtWxi + Ht−1Whi + bi) Ft = σ(XtWxf + Ht−1Whf + bf) Ot = σ(XtWxo + Ht−1Who + bo) ˜ Ct = tanh(XtWxc + Ht−1Whc + bc) Ct = Ft ⊙ Ct−1 + It ⊙ ˜ Ct Ht = Ot ⊙ tanh(Ct)

d2l.ai

LSTM Notebook

d2l.ai

Bidirectional RNNs

d2l.ai

I am _____ I am _____ very hungry, I am _____ very hungry, I could eat half a pig.

d2l.ai

I am hungry. I am not very hungry, I am very very hungry, I could eat half a pig.

d2l.ai

The Future Matters

I am happy. I am not very hungry, I am very very hungry, I could eat half a pig.

• Very different words to fill in, depending on past and

future context of a word.

• RNNs so far only look at the past
• In interpolation (fill in) we can use the future, too.

I am hungry. I am not very hungry, I am very very hungry, I could eat half a pig.

d2l.ai

Bidirectional RNN

• One RNN forward
• Another one

backward

• Combine both

hidden states for

• utput generation

d2l.ai

Using RNNs

(image courtesy of karpathy.github.io)

Poetry Generation Sentiment Analysis Document Classification Question Answering Machine Translation Named Entity Tagging

d2l.ai

Recall - RNNs Architecture

How to make more nonlinear?

Ht = ϕ(WhhHt−1 + WhxXt−1 + bh)

• t = WhoHt + bo
• Hidden State update
• Observation update

d2l.ai

We go deeper

d2l.ai

We go deeper

• Shallow RNN
• Input
• Hidden layer
• Output
• Deep RNN
• Input
• Hidden layer
• Hidden layer


…

• Output

Ht = f(Ht−1, Xt) Ot = g(Ht)

H1

t = f1(H1 t−1, Xt)

Hj

t = fj(Hj t−1, Hj−1 t

) Ot = g(HL

t )

d2l.ai

Summary

• Dependent Random Variables
• Text Preprocessing
• Language Modeling
• Recurrent Neural Networks (RNN)
• LSTM
• Bidirectional RNN
• Deep RNN

d2l.ai

• Linear algebra,
• Prob, Calculus &

Statistics Gradient Math

• Linear regression
• Image classification
• Softmax regression
• Multilayer perceptron

Basic models

• Loss function
• Regularization
• Model selection
• Environment

Machine learning

• Convolution, LeNet
• Alex, VGG, Inception,

ResNet CNN

• Data Augmentation
• Fine-tuning
• Object detection
• Segmentation

CV

• Recurrent networks

(RNN, GRU, LSTM) for language modeling

• Word embedding
• Seq2seq for machine

translation RNNs and

• NDarray
• Autograd
• Gluon

Basic

• Numerical stability
• Multi-GPU Training

Performanc

• Seq2seq w/ attention
• Transformer
• BERT

Attention

• Convex Optimization
• Momentum,

RMSProp, Adam Optimizatio

• Generative Adversarial

Networks

• DCGAN

GAN

More Contents in D2L.ai

• What we

covered

• Not

d2l.ai

Resources

• Textbook: numpy.d2l.ai
• Toolkit for computer vision: gluon-cv.mxnet.io
• Toolkit for natural language processing: gluon-nlp.mxnet.io
• Toolkit for time series: gluon-ts.mxnet.io
• Toolkit for graph neural networks: dgl.ai
• Discussion forum: https://discuss.mxnet.io/
