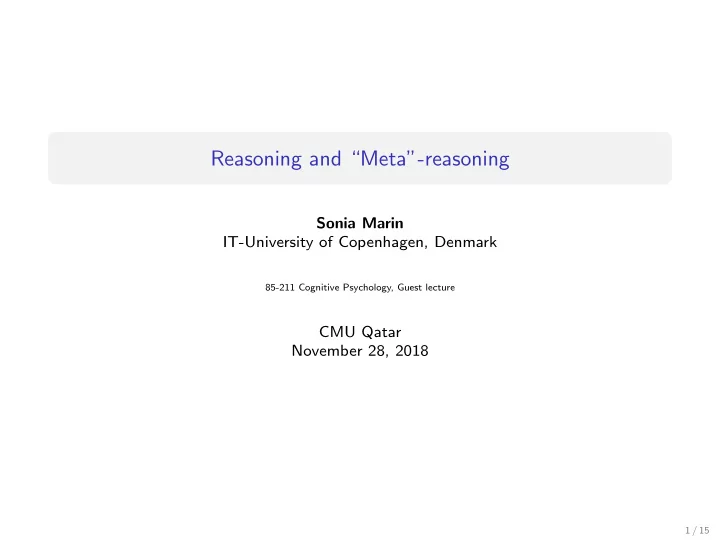

Reasoning and “Meta”-reasoning

Sonia Marin IT-University of Copenhagen, Denmark

85-211 Cognitive Psychology, Guest lecture

CMU Qatar November 28, 2018

1 / 15

slide-2
SLIDE 2

What is reasoning?

Reasoning is the process of “drawing” conclusions from principles and from evidence

2 / 15

slide-3
SLIDE 3

What is reasoning?

Reasoning is the process of “drawing” conclusions from principles and from evidence

  • deduce new conclusion → top-down
  • evaluate proposed conclusion → bottom-up

2 / 15

slide-4
SLIDE 4

What is reasoning?

Reasoning is the process of “drawing” conclusions from principles and from evidence

  • deduce new conclusion → top-down
  • evaluate proposed conclusion → bottom-up

Two main forms of reasoning:

2 / 15

slide-5
SLIDE 5

What is reasoning?

Reasoning is the process of “drawing” conclusions from principles and from evidence

  • deduce new conclusion → top-down
  • evaluate proposed conclusion → bottom-up

Two main forms of reasoning:

  • 1. deductive: from the general to the specific = no new information

2 / 15

slide-6
SLIDE 6

What is reasoning?

Reasoning is the process of “drawing” conclusions from principles and from evidence

  • deduce new conclusion → top-down
  • evaluate proposed conclusion → bottom-up

Two main forms of reasoning:

  • 1. deductive: from the general to the specific = no new information
  • 2. inductive: from the specific to the general = new information

2 / 15

slide-7
SLIDE 7

What is reasoning?

Reasoning is the process of “drawing” conclusions from principles and from evidence

  • deduce new conclusion → top-down
  • evaluate proposed conclusion → bottom-up

Two main forms of reasoning:

  • 1. deductive: from the general to the specific = no new information
  • 2. inductive: from the specific to the general = new information

When and where do you use each type?

2 / 15

slide-8
SLIDE 8

What is reasoning?

Reasoning is the process of “drawing” conclusions from principles and from evidence

  • deduce new conclusion → top-down
  • evaluate proposed conclusion → bottom-up

Two main forms of reasoning:

  • 1. deductive: from the general to the specific = no new information

◮ e.g. mathematics

  • 2. inductive: from the specific to the general = new information

When and where do you use each type?

2 / 15

slide-9
SLIDE 9

What is reasoning?

Reasoning is the process of “drawing” conclusions from principles and from evidence

  • deduce new conclusion → top-down
  • evaluate proposed conclusion → bottom-up

Two main forms of reasoning:

  • 1. deductive: from the general to the specific = no new information

◮ e.g. mathematics

  • 2. inductive: from the specific to the general = new information

◮ e.g. experimental sciences

When and where do you use each type?

2 / 15

slide-10
SLIDE 10

Deductive reasoning

3 / 15

slide-11
SLIDE 11

Propositional logic

Syntax: p : it is raining ✜

atomic propositions

¯ p : it is not raining ✣ s : she is sad ¯ s : she is not sad Semantics: Observed world

¯ p : it is not raining ✣ s : she is sad

4 / 15

slide-12
SLIDE 12

Propositional logic

Syntax: p : it is raining ✜

atomic propositions

¯ p : it is not raining ✣ s : she is sad ¯ s : she is not sad Semantics: Observed world

V (p) = 0 V (s) = 1

¯ p : it is not raining ✣ s : she is sad

4 / 15

slide-13
SLIDE 13

Propositional logic

Syntax: p : it is raining ✜

atomic propositions

¯ p : it is not raining ✣ s : she is sad ¯ s : she is not sad p ∨ s : it is raining or she is sad Semantics: Observed world

V (p) = 0 V (s) = 1 V (p ∨ s) = 1

¯ p : it is not raining ✣ s : she is sad

4 / 15

slide-14
SLIDE 14

Propositional logic

Syntax: p : it is raining ✜

atomic propositions

¯ p : it is not raining ✣ s : she is sad ¯ s : she is not sad p ∨ s : it is raining or she is sad p ∧ s : it is raining and she is sad Semantics: Observed world

V (p) = 0 V (s) = 1 V (p ∨ s) = 1 V (p ∧ s) = 0

¯ p : it is not raining ✣ s : she is sad

4 / 15

slide-15
SLIDE 15

Propositional logic

Syntax: p : it is raining ✜

atomic propositions

¯ p : it is not raining ✣ s : she is sad ¯ s : she is not sad p ∨ s : it is raining or she is sad p ∧ s : it is raining and she is sad p ⊃ s : if it is raining then she is sad Semantics: Observed world

V (p) = 0 V (s) = 1 V (p ∨ s) = 1 V (p ∧ s) = 0 V (p ⊃ s) = ?

¯ p : it is not raining ✣ s : she is sad

4 / 15

slide-16
SLIDE 16

Wason selection task

https://www.youtube.com/watch?v=qNBzwwLiOUc

5 / 15

slide-17
SLIDE 17

Deduction and fallacies

p ⊃ s p

− − − − − − − − −

s p ⊃ s ¯ s

− − − − − − − − −

¯ p p ⊃ s ¯ p

− − − − − − − − −

¯ s p ⊃ s s

− − − − − − − − −

p

6 / 15

slide-18
SLIDE 18

Deduction and fallacies

p ⊃ s p

− − − − − − − − −

s p ⊃ s ¯ s

− − − − − − − − −

¯ p Modus ponens p ⊃ s ¯ p

− − − − − − − − −

¯ s p ⊃ s s

− − − − − − − − −

p

6 / 15

slide-19
SLIDE 19

Deduction and fallacies

p ⊃ s p

− − − − − − − − −

s p ⊃ s ¯ s

− − − − − − − − −

¯ p Modus ponens p ⊃ s ¯ p

− − − − − − − − −

¯ s p ⊃ s s

− − − − − − − − −

p Denying the antecedent ×

6 / 15

slide-20
SLIDE 20

Deduction and fallacies

p ⊃ s p

− − − − − − − − −

s p ⊃ s ¯ s

− − − − − − − − −

¯ p Modus ponens Modus tollens p ⊃ s ¯ p

− − − − − − − − −

¯ s p ⊃ s s

− − − − − − − − −

p Denying the antecedent ×

6 / 15

slide-21
SLIDE 21

Deduction and fallacies

p ⊃ s p

− − − − − − − − −

s p ⊃ s ¯ s

− − − − − − − − −

¯ p Modus ponens Modus tollens p ⊃ s ¯ p

− − − − − − − − −

¯ s p ⊃ s s

− − − − − − − − −

p Denying the antecedent × Affirming the consequent ×

6 / 15

slide-22
SLIDE 22

Deduction and fallacies

p ⊃ s p

− − − − − − − − −

s p ⊃ s ¯ s

− − − − − − − − −

¯ p Inference rules Modus ponens Modus tollens p ⊃ s ¯ p

− − − − − − − − −

¯ s p ⊃ s s

− − − − − − − − −

p Denying the antecedent × Affirming the consequent ×

6 / 15

slide-23
SLIDE 23

Deduction and fallacies

p ⊃ s p

− − − − − − − − −

s p ⊃ s ¯ s

− − − − − − − − −

¯ p Inference rules Modus ponens Modus tollens p ⊃ s ¯ p

− − − − − − − − −

¯ s p ⊃ s s

− − − − − − − − −

p Logical fallacies Denying the antecedent × Affirming the consequent ×

6 / 15

slide-24
SLIDE 24

Theory of reasoning

Dual-process theory: Two systems in one brain

7 / 15

slide-25
SLIDE 25

Theory of reasoning

Dual-process theory: Two systems in one brain

  • System 1: implicit, automatic, unconscious
  • System 2: explicit, controlled, conscious

7 / 15

slide-26
SLIDE 26

Theory of reasoning

Dual-process theory: Two systems in one brain

  • System 1: implicit, automatic, unconscious
  • System 2: explicit, controlled, conscious

Discussion:

7 / 15

slide-27
SLIDE 27

Theory of reasoning

Dual-process theory: Two systems in one brain

  • System 1: implicit, automatic, unconscious
  • System 2: explicit, controlled, conscious

Discussion: In which contexts are you using either of these systems? Separately or in parallel?

7 / 15

slide-28
SLIDE 28

Theory of reasoning

Dual-process theory: Two systems in one brain

  • System 1: implicit, automatic, unconscious
  • System 2: explicit, controlled, conscious

Discussion: In which contexts are you using either of these systems? Separately or in parallel? Some cognitive psychologists question the merits of studying logical formalisms.

7 / 15

slide-29
SLIDE 29

Theory of reasoning

Dual-process theory: Two systems in one brain

  • System 1: implicit, automatic, unconscious
  • System 2: explicit, controlled, conscious

Discussion: In which contexts are you using either of these systems? Separately or in parallel? Some cognitive psychologists question the merits of studying logical formalisms. What do you think can be gained by studying how people reason wrt. logical rules? Would it seem more “scientific” to study intuitive reasoning?

7 / 15

slide-30
SLIDE 30

What about real life?

“Pure” logic is a structural description of what a valid statement is but...

8 / 15

slide-31
SLIDE 31

What about real life?

“Pure” logic is a structural description of what a valid statement is but... for the analysis of daily language and arguments, it lacks certain operators.

8 / 15

slide-32
SLIDE 32

What about real life?

“Pure” logic is a structural description of what a valid statement is but... for the analysis of daily language and arguments, it lacks certain operators. There are many sentences that you cannot express in classic logic

8 / 15

slide-33
SLIDE 33

What about real life?

“Pure” logic is a structural description of what a valid statement is but... for the analysis of daily language and arguments, it lacks certain operators. There are many sentences that you cannot express in classic logic but can be expressed in modal logic.

8 / 15

slide-34
SLIDE 34

What about real life?

“Pure” logic is a structural description of what a valid statement is but... for the analysis of daily language and arguments, it lacks certain operators. There are many sentences that you cannot express in classic logic but can be expressed in modal logic. Example: ”I may get burned if I lie in the sun for too long”.

8 / 15

slide-35
SLIDE 35

What about real life?

“Pure” logic is a structural description of what a valid statement is but... for the analysis of daily language and arguments, it lacks certain operators. There are many sentences that you cannot express in classic logic but can be expressed in modal logic. Example: ”I may get burned if I lie in the sun for too long”. In classic logic, you can say: ”I get burned if I lie in the sun for too long”

8 / 15

slide-36
SLIDE 36

What about real life?

“Pure” logic is a structural description of what a valid statement is but... for the analysis of daily language and arguments, it lacks certain operators. There are many sentences that you cannot express in classic logic but can be expressed in modal logic. Example: ”I may get burned if I lie in the sun for too long”. In classic logic, you can say: ”I get burned if I lie in the sun for too long” but not express the possibility of maybe getting burned.

8 / 15

slide-37
SLIDE 37

What about real life?

“Pure” logic is a structural description of what a valid statement is but... for the analysis of daily language and arguments, it lacks certain operators. There are many sentences that you cannot express in classic logic but can be expressed in modal logic. Example: ”I may get burned if I lie in the sun for too long”. In classic logic, you can say: ”I get burned if I lie in the sun for too long” but not express the possibility of maybe getting burned. Modal logic is an extension of classic propositional logic with modal operators

8 / 15

slide-38
SLIDE 38

What about real life?

“Pure” logic is a structural description of what a valid statement is but... for the analysis of daily language and arguments, it lacks certain operators. There are many sentences that you cannot express in classic logic but can be expressed in modal logic. Example: ”I may get burned if I lie in the sun for too long”. In classic logic, you can say: ”I get burned if I lie in the sun for too long” but not express the possibility of maybe getting burned. Modal logic is an extension of classic propositional logic with modal operators

  • riginally expressing possibility and necessity of a proposition.

8 / 15

slide-39
SLIDE 39

“Meta”-reasoning

9 / 15

slide-40
SLIDE 40

Modal logic

Propositional logic: p : it is raining ✜

atomic propositions

¯ p : it is not raining ✣ s : she is sad ¯ s : she is not sad p ⊃ s : if it is raining then she is sad p ∧ s : it is raining and she is sad p ∨ s : it is raining or she is sad

10 / 15

slide-41
SLIDE 41

Modal logic

Propositional logic: p : it is raining ✜

atomic propositions

¯ p : it is not raining ✣ s : she is sad ¯ s : she is not sad p ⊃ s : if it is raining then she is sad p ∧ s : it is raining and she is sad p ∨ s : it is raining or she is sad Modal logic:

10 / 15

slide-42
SLIDE 42

Modal logic

Propositional logic: p : it is raining ✜

atomic propositions

¯ p : it is not raining ✣ s : she is sad ¯ s : she is not sad p ⊃ s : if it is raining then she is sad p ∧ s : it is raining and she is sad p ∨ s : it is raining or she is sad Modal logic:

◇p

: it is possible that it is raining

10 / 15

slide-43
SLIDE 43

Modal logic

Propositional logic: p : it is raining ✜

atomic propositions

¯ p : it is not raining ✣ s : she is sad ¯ s : she is not sad p ⊃ s : if it is raining then she is sad p ∧ s : it is raining and she is sad p ∨ s : it is raining or she is sad Modal logic:

◇p

: it is possible that it is raining ◻s : it is necessary that she is sad

10 / 15

slide-44
SLIDE 44

Possible world semantics

✣ ✜ ✜

11 / 15

slide-45
SLIDE 45

Possible world semantics

Observed world

¯ p : it is not raining ✣ s : she is sad

✜ ✜

11 / 15

slide-46
SLIDE 46

Possible world semantics

Observed world

V (p) = 0 V (s) = 1 V (p ∧ s) = 0 V (p ∨ s) = 1

¯ p : it is not raining ✣ s : she is sad

✜ ✜

11 / 15

slide-47
SLIDE 47

Possible world semantics

Observed world

V (p) = 0 V (s) = 1 V (p ∧ s) = 0 V (p ∨ s) = 1 V (◻p) = V (◇s) =

¯ p : it is not raining ✣ s : she is sad

✜ ✜

11 / 15

slide-48
SLIDE 48

Possible world semantics

Observed world

V (p) = 0 V (s) = 1 V (p ∧ s) = 0 V (p ∨ s) = 1 V (◻p) = V (◇s) =

¯ p : it is not raining ✣ s : she is sad

Possible worlds

p : it is raining ✜ ¯ s : she is not sad p : it is raining ✜ s : she is sad

11 / 15

slide-49
SLIDE 49

Possible world semantics

◻p is true as for all possible worlds p is true Observed world

V (p) = 0 V (s) = 1 V (p ∧ s) = 0 V (p ∨ s) = 1 V (◻p) = 1 V (◇s) =

¯ p : it is not raining ✣ s : she is sad

Possible worlds

V (p) = 1 V (p) = 1

p : it is raining ✜ ¯ s : she is not sad p : it is raining ✜ s : she is sad

11 / 15

slide-50
SLIDE 50

Possible world semantics

◻p is true as for all possible worlds p is true

◇s is true as there exists a possible world such that s is true

Observed world

V (p) = 0 V (s) = 1 V (p ∧ s) = 0 V (p ∨ s) = 1 V (◻p) = 1 V (◇s) = 1

¯ p : it is not raining ✣ s : she is sad

Possible worlds

V (p) = 1 V (s) = 0 V (p) = 1 V (s) = 1

p : it is raining ✜ ¯ s : she is not sad p : it is raining ✜ s : she is sad

11 / 15

slide-51
SLIDE 51

Epistemic reasoning

The term modal logic also includes other extensions, for instance:

12 / 15

slide-52
SLIDE 52

Epistemic reasoning

The term modal logic also includes other extensions, for instance:

  • temporal logic for the expression of past or future truths;

12 / 15

slide-53
SLIDE 53

Epistemic reasoning

The term modal logic also includes other extensions, for instance:

  • temporal logic for the expression of past or future truths;
  • deontic logic for the expression of obligations;

12 / 15

slide-54
SLIDE 54

Epistemic reasoning

The term modal logic also includes other extensions, for instance:

  • temporal logic for the expression of past or future truths;
  • deontic logic for the expression of obligations;
  • epistemic logic for the expression of cognitive truth like belief and knowledge.

12 / 15

slide-55
SLIDE 55

Muddy children puzzle

http://sierra.nmsu.edu/morandi/coursematerials/MuddyChildren.html

13 / 15

slide-56
SLIDE 56

Deduction in modal logic

How do we reason about such structure?

14 / 15

slide-57
SLIDE 57

Deduction in modal logic

How do we reason about such structure? Inference rules: A

∨1 −

− − − − −

A ∨ B B

∨2 −

− − − − −

A ∨ B A B

∧ −

− − − − − − −

A ∧ B A ⇒ B

⊃ −

− − − − − − − − − −

A ⊃ B

14 / 15

slide-58
SLIDE 58

Deduction in modal logic

How do we reason about such structure? Inference rules: A

∨1 −

− − − − −

A ∨ B B

∨2 −

− − − − −

A ∨ B A B

∧ −

− − − − − − −

A ∧ B A ⇒ B

⊃ −

− − − − − − − − − −

A ⊃ B ? ◻ −

− −

◻A ?

◇ −

− −

◇A

14 / 15

slide-59
SLIDE 59

Questions?

15 / 15
