Random Generation of Nondeterministic Tree Automata Thomas Hanneforth 1 and Andreas Maletti 2 and Daniel Quernheim 2 1 Department of Linguistics University of Potsdam, Germany 2 Institute for Natural Language Processing University of Stuttgart,

slide-1
SLIDE 1

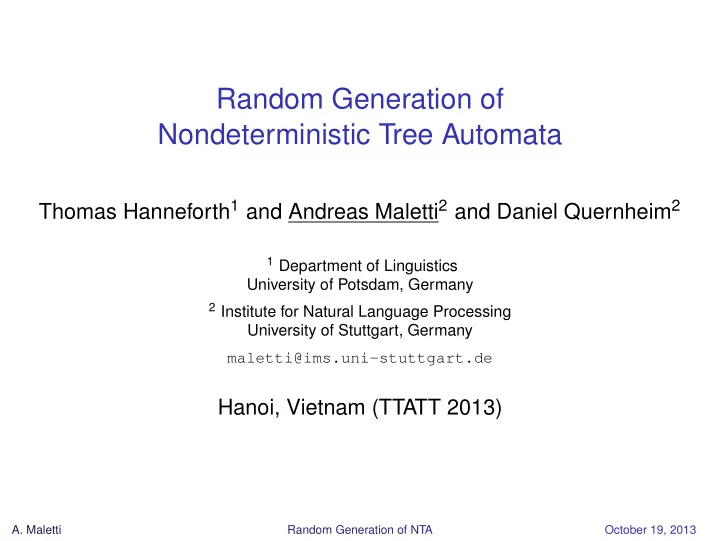

Random Generation of Nondeterministic Tree Automata

Thomas Hanneforth1 and Andreas Maletti2 and Daniel Quernheim2

1 Department of Linguistics

University of Potsdam, Germany

2 Institute for Natural Language Processing

University of Stuttgart, Germany maletti@ims.uni-stuttgart.de

Hanoi, Vietnam (TTATT 2013)

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-2
SLIDE 2

Outline

Motivation Nondeterministic Tree Automata Random Generation Analysis

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-3
SLIDE 3

Tree Substitution Grammar with Latent Variables

Experiment [SHINDO et al., ACL 2012 best paper]

F1 score grammar |w| ≤ 40 full CFG = LTL 62.7 TSG [POST, GILDEA, 2009] = xLTL 82.6 TSG [COHN et al., 2010] = xLTL 85.4 84.7 CFGlv [COLLINS, 1999] = NTA 88.6 88.2 CFGlv [PETROV, KLEIN, 2007] = NTA 90.6 90.1 CFGlv [PETROV, 2010] = NTA 91.8 TSGlv (single) = RTG 91.6 91.1 TSGlv (multiple) = RTG 92.9 92.4 Discriminative Parsers CARRERAS et al., 2008 91.1 CHARNIAK, JOHNSON, 2005 92.0 91.4 HUANG, 2008 92.3 91.7

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-4
SLIDE 4

Tree Substitution Grammar with Latent Variables

Experiment [SHINDO et al., ACL 2012 best paper]

F1 score grammar |w| ≤ 40 full CFG = LTL 62.7 TSG [POST, GILDEA, 2009] = xLTL 82.6 TSG [COHN et al., 2010] = xLTL 85.4 84.7 CFGlv [COLLINS, 1999] = NTA 88.6 88.2 CFGlv [PETROV, KLEIN, 2007] = NTA 90.6 90.1 CFGlv [PETROV, 2010] = NTA 91.8 TSGlv (single) = RTG 91.6 91.1 TSGlv (multiple) = RTG 92.9 92.4 Discriminative Parsers CARRERAS et al., 2008 91.1 CHARNIAK, JOHNSON, 2005 92.0 91.4 HUANG, 2008 92.3 91.7

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-5
SLIDE 5

Berkeley Parser

Example parse

S NP DT This VP VBZ is NP DT a JJ silly NN sentence

from http://tomato.banatao.berkeley.edu:8080/parser/parser.html

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-6
SLIDE 6

Berkeley Parser

Example productions

S-1 → ADJP-2 S-1 0.0035453455987323125 · 100 S-1 → ADJP-1 S-1 2.108608433271444 · 10−6 S-1 → VP-5 VP-3 1.6367163259885093 · 10−4 S-2 → VP-5 VP-3 9.724998692152419 · 10−8 S-1 → PP-7 VP-0 1.0686659961009547 · 10−5 S-9 → “ NP-3 0.012551243773149695 · 100

Formalism

Berkeley parser = CFG (local tree grammar) + relabeling (+ weights)

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-7
SLIDE 7

Typical NTA

Sizes

◮ English BERKELEY parser grammar

153 MB (1,133 states and 4,267,277 transitions)

◮ English EGRET parser grammar

107 MB

◮ Chinese EGRET parser grammar

98 MB

EGRET = HUI ZHANG’s C++ reimplementation of the BERKELEY parser (Java)

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-8
SLIDE 8

Algorithm testing

Observations

◮ even efficient algorithms run slow on such data ◮ often require huge amounts of memory ◮ impossible for inefficient algorithms

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-9
SLIDE 9

Algorithm testing

Observations

◮ even efficient algorithms run slow on such data ◮ often require huge amounts of memory ◮ impossible for inefficient algorithms ◮ realistic, but difficult to use as test data

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-10
SLIDE 10

Algorithm testing

Observations

◮ even efficient algorithms run slow on such data ◮ often require huge amounts of memory ◮ impossible for inefficient algorithms ◮ realistic, but difficult to use as test data

Testing on random NTA

◮ straightforward to implement ◮ straightforward to scale

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-11
SLIDE 11

Algorithm testing

Observations

◮ even efficient algorithms run slow on such data ◮ often require huge amounts of memory ◮ impossible for inefficient algorithms ◮ realistic, but difficult to use as test data

Testing on random NTA

◮ straightforward to implement ◮ straightforward to scale ◮ but what is the significance of the results?

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-12
SLIDE 12

Outline

Motivation Nondeterministic Tree Automata Random Generation Analysis

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-13
SLIDE 13

Tree automaton

Definition (THATCHER AND WRIGHT, 1965)

A tree automaton is a tuple A = (Q, Σ, I, R) with

◮ alphabet Q

states

◮ ranked alphabet Σ

terminals

◮ I ⊆ Q

final states

◮ finite set R ⊆ Σ(Q) × Q

rules

Remark

Instead of (ℓ, q) we write ℓ → q

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-14
SLIDE 14

Regular Tree Grammar

Example

◮ Q = {q0, q1, q2, q3, q4, q5, q6} ◮ Σ = {VP, S, . . . } ◮ F = {q0} ◮ and the following rules:

VP q5 q1 q3 → q4 S q1 q4 → q0 S q6 q2 → q0

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-15
SLIDE 15

Regular Tree Grammar

Definition (Derivation semantics)

Sentential forms: ξ, ζ ∈ TΣ(Q) ξ ⇒A ζ if there exist position w ∈ pos(ξ) and rule ℓ → q ∈ R

◮ ξ = ξ[ℓ]w ◮ ζ = ξ[q]w

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-16
SLIDE 16

Regular Tree Grammar

Definition (Derivation semantics)

Sentential forms: ξ, ζ ∈ TΣ(Q) ξ ⇒A ζ if there exist position w ∈ pos(ξ) and rule ℓ → q ∈ R

◮ ξ = ξ[ℓ]w ◮ ζ = ξ[q]w

Definition (Recognized tree language)

L(A) = {t ∈ TΣ | ∃f ∈ F : t ⇒∗

A f}

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-17
SLIDE 17

Outline

Motivation Nondeterministic Tree Automata Random Generation Analysis

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-18
SLIDE 18

Previous Approaches

HÉAM et al. 2009

◮ for deterministic tree-walking automata

(and deterministic top-down tree automata)

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-19
SLIDE 19

Previous Approaches

HÉAM et al. 2009

◮ for deterministic tree-walking automata

(and deterministic top-down tree automata)

◮ focus on generating automata uniformly at random

(for estimating average-case complexity)

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-20
SLIDE 20

Previous Approaches

HÉAM et al. 2009

◮ for deterministic tree-walking automata

(and deterministic top-down tree automata)

◮ focus on generating automata uniformly at random

(for estimating average-case complexity)

◮ generator used for evaluation of conversion from det. TWA to NTA

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-21
SLIDE 21

Previous Approaches

HUGOT et al. 2010

◮ for tree automata with global equality constraints

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-22
SLIDE 22

Previous Approaches

HUGOT et al. 2010

◮ for tree automata with global equality constraints ◮ focus on avoiding trivial cases

(removal of unreachable states, minimum height requirement)

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-23
SLIDE 23

Previous Approaches

HUGOT et al. 2010

◮ for tree automata with global equality constraints ◮ focus on avoiding trivial cases

(removal of unreachable states, minimum height requirement)

◮ generator used for evaluation of emptiness checker

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-24
SLIDE 24

Our Approach

Goals

◮ randomly generate non-trivial NTA ◮ generator (potentially) usable for all NTA algorithms

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-25
SLIDE 25

Our Approach

Goals

◮ randomly generate non-trivial NTA ◮ generator (potentially) usable for all NTA algorithms

When is an NTA non-trivial?

◮ large number of states ◮ large number of rules

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-26
SLIDE 26

Our Approach

Goals

◮ randomly generate non-trivial NTA ◮ generator (potentially) usable for all NTA algorithms

When is an NTA non-trivial?

◮ large number of states ◮ large number of rules

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-27
SLIDE 27

Our Approach

Goals

◮ randomly generate non-trivial NTA ◮ generator (potentially) usable for all NTA algorithms

When is an NTA non-trivial?

◮ large number of states ◮ large number of rules ◮ its language contains large trees

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-28
SLIDE 28

Our Approach

Goals

◮ randomly generate non-trivial NTA ◮ generator (potentially) usable for all NTA algorithms

When is an NTA non-trivial?

◮ large number of states ◮ large number of rules ◮ its language contains large trees

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-29
SLIDE 29

Our Approach

Goals

◮ randomly generate non-trivial NTA ◮ generator (potentially) usable for all NTA algorithms

When is an NTA non-trivial?

◮ large number of states ◮ large number of rules ◮ its language contains large trees ◮ its language has many MYHILL-NERODE congruence classes

→ canonical NTA has many states (canonical NTA = equivalent minimal deterministic NTA)

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-30
SLIDE 30

Our Approach

Restrictions

◮ binary trees

(all RTL can be such encoded with linear overhead)

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-31
SLIDE 31

Our Approach

Restrictions

◮ binary trees

(all RTL can be such encoded with linear overhead)

◮ each state is final with probability .5

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-32
SLIDE 32

Our Approach

Restrictions

◮ binary trees

(all RTL can be such encoded with linear overhead)

◮ each state is final with probability .5 ◮ uniform probability for binary/nullary rules

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-33
SLIDE 33

Our Approach

Restrictions

◮ binary trees

(all RTL can be such encoded with linear overhead)

◮ each state is final with probability .5 ◮ uniform probability for binary/nullary rules ◮ three parameters

  • 1. input binary ranked alphabet Σ = Σ2 ∪ Σ0
  • 2. number n of states of generated NTA

scaling

  • 3. nullary rule probability d0

for all nullary rules

  • 4. binary rule probability d2

for all binary rules

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-34
SLIDE 34

Our Approach

Algorithm

  • 1. Generate n states [n] = {1, . . . , n}
  • A. Maletti

Random Generation of NTA October 19, 2013

slide-35
SLIDE 35

Our Approach

Algorithm

  • 1. Generate n states [n] = {1, . . . , n}
  • 2. Make q final with probability 0.5

∀q ∈ [n]

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-36
SLIDE 36

Our Approach

Algorithm

  • 1. Generate n states [n] = {1, . . . , n}
  • 2. Make q final with probability 0.5

∀q ∈ [n]

  • 3. Add rule α → q with probability d0

∀α ∈ Σ0, q ∈ [n]

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-37
SLIDE 37

Our Approach

Algorithm

  • 1. Generate n states [n] = {1, . . . , n}
  • 2. Make q final with probability 0.5

∀q ∈ [n]

  • 3. Add rule α → q with probability d0

∀α ∈ Σ0, q ∈ [n]

  • 4. Add rule σ(q1, q2) → q with probability d2

∀σ ∈ Σ2, q, q1, q2 ∈ [n]

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-38
SLIDE 38

Our Approach

Algorithm

  • 1. Generate n states [n] = {1, . . . , n}
  • 2. Make q final with probability 0.5

∀q ∈ [n]

  • 3. Add rule α → q with probability d0

∀α ∈ Σ0, q ∈ [n]

  • 4. Add rule σ(q1, q2) → q with probability d2

∀σ ∈ Σ2, q, q1, q2 ∈ [n]

  • 5. Reject if it is not trim
  • A. Maletti

Random Generation of NTA October 19, 2013

slide-39
SLIDE 39

Our Approach

Algorithm

  • 1. Generate n states [n] = {1, . . . , n}
  • 2. Make q final with probability 0.5

∀q ∈ [n]

  • 3. Add rule α → q with probability d0

∀α ∈ Σ0, q ∈ [n]

  • 4. Add rule σ(q1, q2) → q with probability d2

∀σ ∈ Σ2, q, q1, q2 ∈ [n]

  • 5. Reject if it is not trim

Evaluation

  • 1. Determinize
  • 2. Minimize
  • 3. Number of obtained states

= complexity of the original random NTA

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-40
SLIDE 40

Outline

Motivation Nondeterministic Tree Automata Random Generation Analysis

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-41
SLIDE 41

Determinization

Definition (Power-set construction)

P(A) = (P(Q), Σ, F ′, R′) with

◮ F ′ = {S ⊆ Q | S ∩ F = ∅} ◮ α → {q ∈ Q | α → q ∈ R} ∈ R′

∀α ∈ Σ0

◮ σ(S1, S2) → {q ∈ Q | σ(q1, q2) → q ∈ R, q1 ∈ S1, q2 ∈ S2} ∈ R′

∀σ ∈ Σ2, S1, S2 ⊆ Q

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-42
SLIDE 42

Determinization

Definition (Power-set construction)

P(A) = (P(Q), Σ, F ′, R′) with

◮ F ′ = {S ⊆ Q | S ∩ F = ∅} ◮ α → {q ∈ Q | α → q ∈ R} ∈ R′

∀α ∈ Σ0

◮ σ(S1, S2) → {q ∈ Q | σ(q1, q2) → q ∈ R, q1 ∈ S1, q2 ∈ S2} ∈ R′

∀σ ∈ Σ2, S1, S2 ⊆ Q

Note

→ will be the guiding definition for the analytical analysis

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-43
SLIDE 43

Analytical Analysis

Intuition

◮ power-set construction should create each state S ⊆ Q ◮ given states S1, S2 selected uniformly at random, each

state q ∈ Q should occur in target of σ(S1, S2) with probability .5 (the same intuition is also used for string automata)

◮ this intuition will create large NTA after determinization

(but that they remain large after minimization is non-trivial)

◮ → we will confirm the intuition experimentally

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-44
SLIDE 44

Analytical Analysis

Theorem

If d2 = 4(1 −

n2

√ .5) and d0 = .5, then the intuition is met.

Proof.

Let S1, S2 ⊆ Q be selected uniformly at random σ ∈ Σ2, q ∈ Q π(q ∈ σ(S1, S2)) = 1 − π(q / ∈ σ(S1, S2)) = 1 −

  • q1,q2∈Q
  • 1 − π(q1 ∈ S1) · π(q2 ∈ S2) · π(σ(q1, q2) → q ∈ R)
  • = 1 −
  • 1 − d2

4 n2 = 1 −

  • 1 − 1 +

n2

√ .5 n2 = 1 − (

n2

√ .5)n2 = 1 2

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-45
SLIDE 45

Analytical Predictions

n d2 d′

2

CI n d2 d′

2

CI 2 .636 8 .043 3 .297 9 .034 4 .170 10 .028 5 .109 11 .023 6 .076 12 .019 7 .056 13 .016

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-46
SLIDE 46

Empirical Evaluation

Setup

◮ Σ = {σ(2), α(0)} ◮ evaluation for random NTA with various densities d2

(at least 40 random NTA per data point d2)

◮ logarithmic scale for d2

(enough datapoints on both sides of the spike)

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-47
SLIDE 47

Empirical Evaluation

20 40 60 80 100 120 140 160 180 200 0.001 0.01 0.1 1 mean # of states in DTA transition density 8 states

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-48
SLIDE 48

Empirical Evaluation

500 1000 1500 2000 2500 3000 3500 0.0001 0.001 0.01 0.1 1 mean # of states in DTA transition density 12 states

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-49
SLIDE 49

Empirical Evaluation

Observations

◮ (almost perfect) log-normal distributions ◮ we can determine the mean

(empirical and analytical)

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-50
SLIDE 50

Empirical Evaluation

Observations

◮ (almost perfect) log-normal distributions ◮ we can determine the mean

(empirical and analytical)

◮ → hardest instances

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-51
SLIDE 51

Empirical Evaluation

Observations

◮ (almost perfect) log-normal distributions ◮ we can determine the mean

(empirical and analytical)

◮ → hardest instances ◮ outside hardest instances: all trivial

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-52
SLIDE 52

Empirical Evaluation

Observations

◮ (almost perfect) log-normal distributions ◮ we can determine the mean

(empirical and analytical)

◮ → hardest instances ◮ outside hardest instances: all trivial ◮ only test on random NTA for hardest density

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-53
SLIDE 53

Analytical Predictions

n d2 d′

2

CI n d2 d′

2

CI 2 .636 8 .043 3 .297 9 .034 4 .170 10 .028 5 .109 11 .023 6 .076 12 .019 7 .056 13 .016

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-54
SLIDE 54

Analytical Predictions + Empirical Evaluation

n d2 d′

2

CI n d2 d′

2

CI 2 .636 .626 8 .043 .041 3 .297 .257 9 .034 .034 4 .170 .133 10 .028 .028 5 .109 .086 11 .023 .025 6 .076 .064 12 .019 .021 7 .056 .050 13 .016 .019

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-55
SLIDE 55

Analytical Predictions + Empirical Evaluation

n d2 d′

2

CI n d2 d′

2

CI 2 .636 .626 [.577,.680] 8 .043 .041 [.032,.053] 3 .297 .257 [.209,.316] 9 .034 .034 [.027,.043] 4 .170 .133 [.102,.174] 10 .028 .028 [.023,.034] 5 .109 .086 [.064,.114] 11 .023 .025 [.021,.030] 6 .076 .064 [.048,.085] 12 .019 .021 [.018,.025] 7 .056 .050 [.038,.066] 13 .016 .019 [.016,.022]

CI = confidence interval; 95% confidence level

  • A. Maletti

Random Generation of NTA October 19, 2013

slide-56
SLIDE 56

Conclusion

Use random NTA carefully!

  • A. Maletti

Random Generation of NTA October 19, 2013
