SLIDE 1

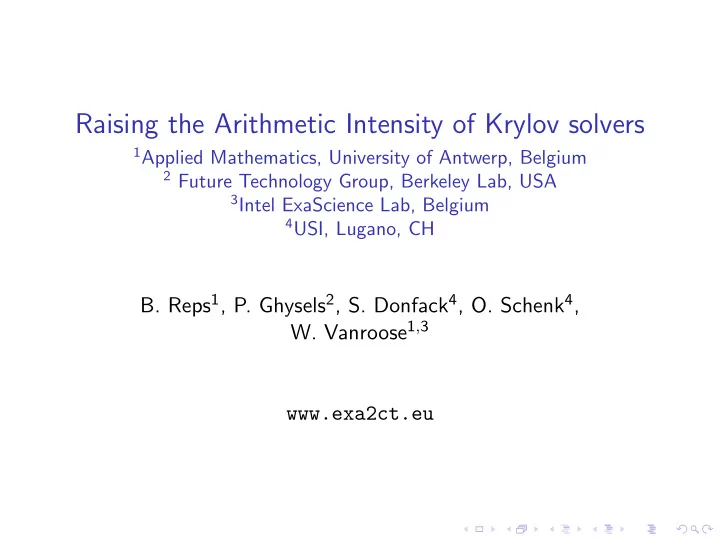

Raising the Arithmetic Intensity of Krylov solvers

1Applied Mathematics, University of Antwerp, Belgium 2 Future Technology Group, Berkeley Lab, USA 3Intel ExaScience Lab, Belgium 4USI, Lugano, CH

B. Reps1, P. Ghysels2, S. Donfack4, O. Schenk4,
W. Vanroose1,3

www.exa2ct.eu

SLIDE 2

Exa2ct EU project

SLIDE 3

GMRES, classical Gram-Schmidt

1: r0 ← b − Ax0 2: v0 ← r0/||r0||2 3: for i = 0, . . . , m − 1 do 4:

w ← Avi

5:

for j = 0, . . . , i do

6:

hj,i ← w, vj

7:

end for

8:

˜ vi+1 ← w − i

j=1 hj,ivj

9:

hi+1,i ← ||˜ vi+1||2

10:

vi+1 ← ˜ vi+1/hi+1,i

11:

{apply Givens rotations to h:,i }

12: end for 13: ym ←

argmin||Hm+1,mym − ||r0||2e1||2

14: x ← x0 + Vmym

Sparse Matrix-Vector product

◮ Only communication

with neighbors

◮ Good scaling but poor

bandwidth usage Dot-product

◮ Global communication ◮ Scales as log(P) and

suffers from jitter Scalar vector multiplication, vector-vector addition

◮ No communication

SLIDE 4

Performance of Kernel of dependent SpMV

◮ SIMD: SSE → AVX → mm512 on Xeon Phi. ◮ Similar with NEON on ARM.

Bandwidth is the bottleneck and will remain even with 3D stacked memory.

1 2 4 8 16 32 64 1/8 1/4 1/2 1 2 4 8 16 attainable GFLOP/sec Arithmetic Intensity FLOP/Byte peak memory BW peak floating-point with vectorization

Arithmetic intensity (Flop/byte)

S. Williams, A. Waterman and D. Patterson (2008)

SLIDE 5

PATUS (Spatial Blocking)

1 2 3 4 5 6 7 8 9 10 10 20 30 40 # of threads Performance in GFlop/s Intel Ivy Bridge (Xeon E5-2660v2) 1 2 3 4 5 6 7 8 9 10 10 20 30 40 ·1,000 Memory Bandwidth in GBytes/s.

gcc 4.8.2 PATUS 1.1 BW gcc 4.8.2 BW PATUS 1.1

1 2 3 4 5 6 7 8 9 10 10 20 30 40 # of threads Performance in GFlop/s Intel Ivy Bridge (Xeon E5-2660v2) 1 2 3 4 5 6 7 8 9 10 10 20 30 40 ·1,000 Memory Bandwidth in GBytes/s.

gcc 4.8.2 PATUS 1.1 BW gcc 4.8.2 BW PATUS 1.1

Figure : a. 7 point-stencil const coef., b. 25-point stencil var coef.

◮ PATUS leads to better results and lower bandwidth use. ◮ Good results, but Bandwidth saturation around 10 cores.

Difficult to do better with spatial blocking.

M. Christen, O. Schenk, and H. Burkhart. Patus: A code generation and autotuning framework for parallel

iterative stencil computations on modern microarchitectures. IPDPS’11.

M. Christen, O. Schenk, and C. Yifeng. Patus for convenient high-performance stencils: evaluation in earthquake

simulations.

SLIDE 6

Arithmetic intensity of k dependent SpMVs

1 SpMV k SpMVs k SpMVs in place flops 2nnz 2k · nnz 2k · nnz words moved nnz + 2n knnz + 2kn nnz + 2n q 2 2 2k

J. Demmel, CS 294-76 on Communication-Avoiding algorithms
M. Hoemmen, Communication-avoiding Krylov subspace
methods. (2010).

SLIDE 7

Increasing the arithmetic intensity

◮ Divide the domain in tiles which fit in the cache ◮ Ground surface is loaded in cache and reused k times ◮ Redundant work at the tile edges

s s + 1

us+1

i,j

us

i,j

us

i+1,j

us

i−1,j

us

i,j−1

us

i,j+1 B B 1 2 3 s

P. Ghysels, P. Klosiewicz, and W. Vanroose. ”Improving the

arithmetic intensity of multigrid with the help of polynomial smoothers.” Num. Lin. Alg. Appl. 19 (2012): 253-267.

SLIDE 8

Use the help of PLUTO

Pluto: an automatic parallelizer and locality optimizer for multicores that performs a source to source code transformation.

x

1 2 3 4 5 6 7 8 9 10 11 12 13 14 16 1 2 4 3

t

1 2 4 5 6 7 8 15

◮ Automatic loop

parallelization and vectorization.

◮ Locality optimizations

based on the polyhedral model.

◮ Important trade-off between parallelism and temporal locality.

U. Bondhugula, M. Baskaran, S. Krishnamoorthy, J. Ramanujam,
A. Rountev, and P. Sadayappan, Automatic Transformations for

Communication-Minimized Parallelization and Locality Optimization in the Polyhedral Model, Int. Conf. Compiler Construction (ETAPS CC), Apr 2008, Budapest, Hungary.

SLIDE 9

PLUTO (Temporal blocking)

Increase the arithmetic intensity based on the underlying stencils.

x

1 2 3 4 5 6 7 8 9 10 11 12 13 14 16 1 2 4 3

t

1 2 4 5 6 7 8 15

◮ Divide the domain in tiles

which fit in the cache.

◮ Reuse the data in the

tiles k times.

◮ Use compiler auto -

vectorization capabilities within each tiles.

◮ Increased parallelism and temporal data reuse. ◮ Inner-tiles suitable for external spatial blocking tools e.g

PATUS.

◮ Tiles representation suitable for most efficient scheduling

strategy e.g TBB.

SLIDE 10

Increasing the arithmetic intensity with a stencil compiler (Pluto)

16 32 64 128 256 0.25 0.5 1 2 4 8 16 32 64 GFlop/s arithmetic intensity (flop/byte) naive naive, no-vec pluto pluto, no-vec peak roofline fitted roofline 16 32 64 128 256 0.25 0.5 1 2 4 8 16 32 64 GFlop/s arithmetic intensity (flop/byte) naive naive, no-vec pluto pluto, no-vec peak roofline fitted roofline

Dual socket Intel Sandy Bridge, Intel Xeon Phi, 61 × 4 threads 16 × 2 threads

SLIDE 11

Stencil Compilers

◮ Pochoir: (MIT)

http://people.csail.mit.edu/yuantang/

◮ Patus: (USI) https://code.google.com/p/patus/ ◮ Pluto: http://pluto-compiler.sourceforge.net ◮ Ghost: (Erlangen) http://tiny.cc/ghost ◮ HHRT: (Tokyo) ◮ Modesto,

SLIDE 12

Krylov methods

◮ Classical Krylov

Kk(A, v) = span{v, Av, A2v, . . . , Ak−1v} the residual and error can then be written as r(k) = Pk(A)r(0) (1)

SLIDE 13

Krylov methods

◮ Classical Krylov

Kk(A, v) = span{v, Av, A2v, . . . , Ak−1v} the residual and error can then be written as r(k) = Pk(A)r(0) (1)

◮ Polynomial Preconditioning

Pm(A)x = q(A)Ax = q(A)b Kk(Pm(A), v) = span{v, Pm(A)v, Pm(A)2v, . . . , Pm(A)k−1v} where Pm(A) = (A − σ1)(A − σ2) · . . . · (A − σm) is a fixed low-order polynomial r(k) = Qk(Pm(A))r(0) (2)

SLIDE 14

Incomplete list of the literature on polynomial preconditioning

Y. Saad, Iterative methods for sparse linear systems Chapter

12, SIAM (2003).

D. O’Leary, Yet another polynomials preconditioner for the

Conjugate Gradient Algorithm, Lin. Alg. Appl. (1991) p377

A. van der Ploeg, Preconditioning for sparse matrices with

applications, (1994)

M. Van Gijzen, A polynomial preconditioner for the GMRES

algorithm J. Comp. Appl. Math 59 (1995): 91-107.

A. Basermann, B. Reichel, C. Schelthoff, Preconditioned CG

methods for sparse matrices on massively parallel machines, 23 (1997), 381398 . . .

SLIDE 15

Convergence of CG with different short Polynomials

SLIDE 16

Time to solution is reduced

SLIDE 17

Recursive calculation of wk+1 = pk+1(A)v

1: σ1 = θ/δ 2: ρ0 = 1/σ1 3: w0 = 0, w1 = 1

θAv

4: ∆w1 = w1 − w0 5: for k=1,. . . do 6:

ρk = 1/(2σ1 − ρk−1)

7:

∆wk+1 = ρk 2

δA(v − wk) + ρk−1∆wk

8:

wk+1 = wk + ∆wk+1

9: end for

SLIDE 18

Mangled with Pluto

SLIDE 19

Average cost for each matvec

0.005 0.01 0.015 0.02 0.025 0.03 0.035 0.04 0.045 0.05 2 4 6 8 10 12 14 16 18 20 averaged time for each matvec

rder of polynomial

total matvec dot-product axpy

2D 2024×2048 finite difference poisson problem on i7-2860QM

SLIDE 20

Patus and Pluto

SLIDE 21

Arithmetic Intensity Multigrid

MG = (I − I h

2h(. . .)I 2h h A)Sν1,

(3) where

◮ S is the smoother, for example ω-Jacobi where

S = I − ωD−1A,

◮ The interpolation I h 2h and restriction I 2h h .

These are all low arithmetic intensity.

SLIDE 22

Multigrid Cost Model

Increasing the number of smoothing steps per level

0.2 0.4 0.6 0.8 1 5 10 15 20 convergence rate smoothing steps 10 20 30 40 50 60 5 10 15 20 # V-cycles smoothing steps

MG iterations = log(10−8)/ log(ρ(V-cycle)) where ρ(V-cycle) is the spectral radius of the V-cycle, can be rounded to higher integer

SLIDE 23

Work Unit Cost model

◮ Work Unit cost model ignores memory bandwidth

1 WU = smoother cost = O(n)

◮

(9ν + 19)(1 + 1 4 + . . . ) log(tol) log(ρ) WU ≤ (9ν + 19) 4 3 log(tol) log(ρ) WU

10 20 30 40 50 60 5 10 15 20 # V-cycles smoothing steps 500 1000 1500 2000 2500 5 10 15 20 work units smoothing steps

SLIDE 24

200 400 600 800 1000 1200 5 10 15 20 avg perf (Gflop/s) # smoothing steps peak BW, peak Flops no SIMD stream BW

Attainable GFlop/sec

0.002 0.004 0.006 0.008 0.01 0.012 0.014 0.016 5 10 15 20 avg cost (s/Gflop) # smoothing steps peak BW, peak Flops no SIMD stream BW

Average cost in sec/GFlop ν1 × ω-Jac = flops (ν1 × ω-Jac) roof (q(ν1 × ω-Jac)) ≈ ν1flops (ω-Jac) roof (ν1q1(ω-Jac)) (4)

SLIDE 25

Roofline-based vs naive cost model

0.2 0.4 0.6 0.8 1 1.2 5 10 15 20 work units # smoothing steps roofline model naive model

SLIDE 26

Timings for 2D 81902 (Sandy Bridge)

5 10 15 20 25 2 4 6 8 10 12 14 16 18 20 time (s) smoothing steps naive pluto naive model roofline model

P. Ghysels and W. Vanroose, Modelling the performance of

geometric multigrid on many-core computer architectures, Exascience.com techreport 09.2013.1 Sept, 2013, to appear in SISC

SLIDE 27

3d results 5113 (Sandy Bridge)

SLIDE 28

Current Krylov Solvers

Krylov Solver User Matvec ◮ User provides a matvec

routine and selects Krylov method at command line.

◮ No opportunities to increase

arithmetic intensity.

SLIDE 29

Current Krylov Solvers

Krylov Solver User Matvec ◮ User provides a matvec

routine and selects Krylov method at command line.

◮ No opportunities to increase

arithmetic intensity. Future Krylov Solvers

◮ User provides a

stencil routine.

◮ Stencil compiler

increases arithmetic intensity.

Stencil Compiler (Pochoir, Pluto, ...) Krylov Solver User Stencil

W .Vanroose, P. Ghysels, D. Roose and K. Meerbergen, Position paper at DOE Exascale Mathematics workshop 2013.

SLIDE 30

Conclusions

◮ Two communication bottlenecks:

◮ limited BW in Av. No benefit from SIMD. ◮ Latencies in (u, v). Poor strong scaling.

SLIDE 31

Conclusions

◮ Two communication bottlenecks:

◮ limited BW in Av. No benefit from SIMD. ◮ Latencies in (u, v). Poor strong scaling.

◮ Replace Av with a Pm(A)v with a fixed coefficients.

◮ Execute with a stencil compiler. ◮ Combine with Multigrid. ◮ Opportunities in filters for eigensolvers. ◮ Many open question for unstructured matrices.

SLIDE 32

Conclusions

◮ Two communication bottlenecks:

◮ limited BW in Av. No benefit from SIMD. ◮ Latencies in (u, v). Poor strong scaling.

◮ Replace Av with a Pm(A)v with a fixed coefficients.

◮ Execute with a stencil compiler. ◮ Combine with Multigrid. ◮ Opportunities in filters for eigensolvers. ◮ Many open question for unstructured matrices.
