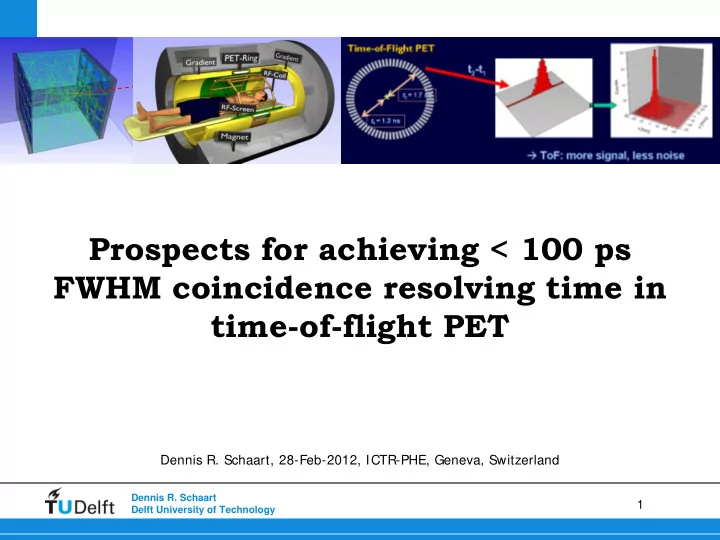

Prospects for achieving < 100 ps FWHM coincidence resolving time - - PowerPoint PPT Presentation

1

Dennis R. Schaart Delft University of Technology

Prospects for achieving < 100 ps FWHM coincidence resolving time in time-of-flight PET

Dennis R. Schaart, 28-Feb-2012, ICTR-PHE, Geneva, Switzerland

2

114 kg; BMI = 32.2 13.4 mCi; 2 hr post-inj

State-of-the-art clinical PET: coincidence resolving time (CRT) ≈ 500 ps

TOF (CRT ~650 ps) Non-TOF

Images: J. Karp, University of Pennsylvania

Time-of-flight PET

Colon cancer, left upper quadrant peritoneal node

3

Dennis R. Schaart Delft University of Technology

Silicon Photomultiplier (SiPM)

• Array of many self-quenched

Geiger-mode APDs (microcells) connected in parallel

• Increasingly interesting as

replacement for PMTs:

• high gain (~106)
• high PDE
• compact and rugged
• transparent to γ-photons
• fast response (ns)
• insensitive to magnetic fields

1 mm - 3 mm 20 µm – 100 µm

4

In lab, 100 ps barrier has been broken

D.R. Schaart et al, Phys Med Biol 55, N179-N189, 2010

100 ps FWHM = > 15 mm FWHM

Made possible by the combination of:

• Small LaBr3:Ce(5%) crystals (3 mm x 3 mm x 5 mm)
• Silicon Photomultipliers (Hamamatsu MPPC-S10362-33-050C)
• Digital Signal Processing (DSP)

5

Recent measurements with LSO:Ce,Ca

• 3 mm x 3 mm x 5 mm LSO:Ce,Ca (U Tennessee)
• 3 mm x 3 mm SiPM (MPPC-S10362-33-050C)

FWHM = 125 ps

• S. Seifert et al, NDIP 2011

6

Digital SiPMs

Photograph of Ca-codoped LSO:Ce crystal mounted on a dSiPM Time difference spectrum measured with a Na-22 point source. Measured CRT = 120 ps FWHM (for two detectors in coincidence).

SPADs, TDC and digital readout circuitry integrated on a single chip

120 ps FWHM D.R. Schaart et al, IEEE NSS-MIC 2011

What is the best possible timing resolution achievable with a given scintillation detector?

8

Dennis R. Schaart Delft University of Technology

Te = {te,1, te,2, …, te,Nsc} Td = {td,1, td,2, …, td,N} at t = Θ

γ emission γ absorption Emission of Nsc optical photons Detection of N optical photons

Scintillation photon counting statistics

N = η Nsc, where η is the photodetection efficiency (PDE)

Ξ (= estimate of Θ)

9

Dennis R. Schaart Delft University of Technology

• The Cramér–Rao inequality defines the lower bound
• n the CRT of a pair of scintillation detectors
• To calculate this lower bound (CRTLB) we need the

Fisher information I Td in the set Td

Fisher information and the Cramér–Rao lower bound ( )

d

LB

CRT 2.35 2 var( ) 2.35 2 /

T

I = ⋅ Ξ ≥ Θ

( )

d

1 var( )

T

I Ξ ≥ Θ

10

Dennis R. Schaart Delft University of Technology

Calculation of CRTLB

Parameters included in the calculation:

• Scintillation light yield Y
• Photodetection efficiency η
• Scintillation pulse shape,

→ For example, bi-exponential pulse with rise time constant τr and decay time constant τd

• Probability density function describing the single-photon timing uncertainty

→ comprises optical path length variations in crystal, transit time spread (TTS) of sensor, trigger jitter, etc. → for a very small crystal and near-perfect detector readout, this contribution is dominated by the photosensor TTS → here represented by a Gaussian with standard deviation σ The math involves order statistics, it can be found in:

• S. Seifert, H.T. van Dam, and D.R. Schaart, “The lower bound on the timing resolution
• f scintillation detectors,” Phys Med Biol 57, 1797-1814, 2012

r

τ

d

τ

What are the physical limits on the timing resolution

• f PET scintillation detectors?

12

Dennis R. Schaart Delft University of Technology

Transit Time Spread, σ (ps)

Lower bound on the CRT of LSO:Ce,Ca

Lower bound on the CRT of LSO:Ce,Ca + MPPC as a function of PDE and TTS Photodetection efficiency (PDE)

N = 7500, σ = 50 ps

Measured: ~125 ps CRTLB: ~110 ps

( ) ( )

d

1 var

T

I Ξ ≥ Θ

CRT < 100 ps seems feasible with further SiPM improvements (PDE and TTS)

13

Dennis R. Schaart Delft University of Technology

Density (g/cm3) Effective Z

• Atten. l. 511 keV (mm)

Decay time (ns) # photons /MeV Emission max. (nm) Hygroscopic 7.13 75 10.4 300 8,500 480 no 7.4 66 11.4 40-45 30,000 420 no NaI:Tl BGO LSO:Ce LSO:Ce,Ca LaBr3:Ce 3.67 51 29.1 230 40,000 410 yes 7.4 66 11.4 30-35 30,000 420 no 5.1 47 21.3 16 70,000 380 yes

PET scintillators

d LB sc

CRT N τ ∝

From our CR model:

14

Dennis R. Schaart Delft University of Technology

< 50 ps feasible ?

τr = 150 ps, σ = 50 ps, PDE = 0.5

• Faster scintillator: LaBr3:Ce(>10%)

In principle, a CRT of ~50 ps might be feasible using LaBr3:Ce with high Ce concentration and by increasing SIPM PDE to ~50% and TTS to ~50 ps Transit Time Spread, σ (ps) Rise Time Constant (ps)

( ) ( )

d

1 var

T

I Ξ ≥ Θ

15

Dennis R. Schaart Delft University of Technology

The holy grail: “10-picosecond PET”

detector 1 detector 2

Tube or Line of Response (LOR)

t1-t2 t1 t2

position x along LOR

d

/ 2 Aim: 2 / Clinical PET: 2 mm 4 mm 20 ps x c CRT x d CRT d c d CRT ∆ = ⋅ ∆ ≤ ⇒ ≤ ≤ ≤ ⇒ ≤

With a CRT less than ~20 ps events an be localized directly:

• image reconstruction no longer necessary!
• nly attenuation correction
• real-time image formation

16

Dennis R. Schaart Delft University of Technology

Ultrafast scintillators: example

If a sub-ns scintillator emitting at least several thousand photons per MeV around ~400 nm can be made, sub-20 ps PET may come within reach

CRT < 20 ps in principle feasible

Example: τd and τr equal to ZnO:Ga

Transit Time Spread, σ (ps) Light Yield (photons/MeV)

( ) ( )

d

1 var

T

I Ξ ≥ Θ

We have reported experimental CRTs close to CRTLB in small

• crystals. But how about larger ones?

18

Dennis R. Schaart Delft University of Technology

scintillation photon speed:

γ1

gamma photon speed:

WW Moses and SE Derenzo IEEE Trans. Nucl. Sci. 46, 474-478 (1999)

Depth-of-interaction (DOI) variations deteriorate timing resolution

DOI-dependent signal delay in crystal

γ2

19

Depth-of-interaction determination

Methods to determine DOI: (a) layered design, (b) single crystals with dual- sided readout, (c) phoswich design, (d) monolithic scintillator, (e) dual layer with offset, (f) dual layer with mixed shapes

From: Peng & Levin, Current Pharmaceutical Biotechnology 11, 555-571, 2010

20

Detector Module System

Images courtesy of Philips

Real-time signal processing Immediate digitization

Digital PET system

• Local position decoding and time-stamping

→ no limit on no. of channels, no loss of (Fisher) information

• Real-time DOI correction of timing and spatial information
• Fast, accurate & repeatable system calibration and time alignment

21

Dennis R. Schaart Delft University of Technology

Key enablers required:

• Bright (>> 103 ph/MeV), ultrafast

(~ 1 ns) scintillation materials

• Ultraprecise (<< 100 ps TTS),

highly efficient (PDE → 1) photon counters

• Detector design mitigating optical

transit time spread (<< 100 ps) while maintaining high gamma detection efficiency (→ 1) ⇒ None of these are available yet, but none are physically impossible

Conclusion

CRT < 20 ps in principle feasible

Transit Time Spread (ps) Light Yield (photons/MeV)

With existing scintillators and photosensors, CRT’s of ~100 ps FWHM are close to the lower bound imposed by photon counting statistics ⇒ further improvement only possible by decreasing the lower bound!

( ) ( )

d

1 var

T

I Ξ ≥ Θ

22

Dennis R. Schaart Delft University of Technology

Thank You

23

Dennis R. Schaart Delft University of Technology

Backup slides

24

Dennis R. Schaart Delft University of Technology

25

Dennis R. Schaart Delft University of Technology

∆x = uncertainty in position along LOR = c . CRT/2, where c is the speed of light. The accuracy of source position localization along line of response depends on the coincidence resolving time (CRT)

Time-of-flight PET

D ∆x The TOF benefit is proportional to ∆x/D, where D is the effective patient diameter. => The smaller the CRT, the better. State-of-the-art: CRT ≈ 500 ps ⇒ ∆x ≈ 7.5 cm.

26

Some essential findings

Lower bound on the FWHM coincidence resolving time (CRTLB) for 2 detectors, assuming Gaussian time difference spectra:

LB

1 CRT N ∝

( )

d

LB LB

CRT 2.35 2 var ( ) 2.35 2 /

T

I = ⋅ Ξ = Θ

r d d LB d

1 CRT τ τ σ τ τ << ∧ << ⇒ ∝

The latter 2 properties are due to the fact that most of the timing information is carried by the first detected photons, i.e. in the rising part of the pulse.

r LB

C RT τ ↓ ⇒ ↓

• S. Seifert et al, “The lower bound on the timing resolution of scintillation detectors,”

Phys Med Biol 57, 1797-1814, 2012

27

Dennis R. Schaart Delft University of Technology

n = 1 n = 5 n = 10 n = 15 n = 20

Order Statistics

Timestamp for the nth detected scintillation photon Exemplary probability density functions for the nth order statistic for LYSO:Ce on MPPC-S10362-33-050C

28

Lower bound for LYSO:Ce

Lower bound on the CRT for LYSO:Ce on MPPC-S10362-33-050C, using the nth, the first n, or all detected photons (“order statistics”) for timing

Parameters: τr = 90 ps τd = 44 ns σ = 120 ps Ndet = 4700

• S. Seifert et al, “The lower bound on the timing resolution of scintillation detectors,”

Phys Med Biol 57, 1797-1814, 2012

29

Lower bound for LYSO:Ce

• S. Seifert et al, IEEE Transactions on Nuclear Science 59, 190-204, 2012

Calculated lower bound Measured CRT It appears possible to closely approach the CR lower bound using a leading edge trigger set at the optimum threshold level

30

Comparison to measured values

• S. Seifert et al, “The lower bound on the timing resolution of scintillation detectors,”

Phys Med Biol 57, 1797-1814, 2012
