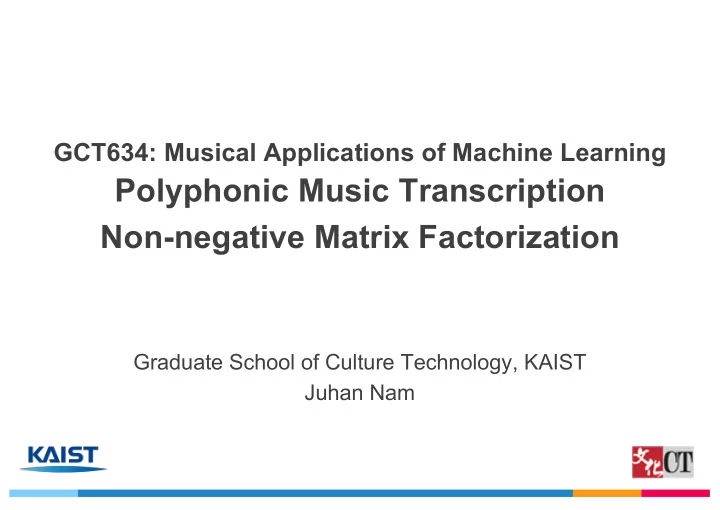

GCT634: Musical Applications of Machine Learning

Polyphonic Music Transcription Non-negative Matrix Factorization

Graduate School of Culture Technology, KAIST Juhan Nam

Outlines

• Introduction
• Score-Audio Alignment
• Multi-Pitch Estimation
• Non-negative Matrix Factorization (NMF)

Polyphonic Music Transcription

• Converting an acoustic musical signal into some form of music

notation

• MIDI piano roll, staff notation
• Note information: pitch, onset, offset, loudness

Model Input Output

Related Tasks

• Multi-pitch estimation
• Single source: piano, guitar
• Multiple source: quartet (woodwind, string)
• Predominant F0 estimation
• Melody extraction, singing melody
• Drum transcription
• Kick, snare, high-hat
• Let’s listen to a piece and try to transcribe (hum) the

Two Directions

• Performance transcription
• Detecting exact timing and dynamics of notes (micro-timing with 10ms

resolution or so)

• Frame-level: onset, offset, intensity
• Piano-roll notation is usually used (performance score)
• Score transcription
• Transform performance into staff notation
• Note-level: tempo, beat, downbeat
• Rhythmic transcription (tempo, beat, downbeat) à Temporal quantization
• Expression detection (pedal, articulation), often phrase-level
• Instrument identification
• Very challenging

Score and Performance

MIDI (score) Valentina Lisitsa Vladimir Horowitz

Where Are The Differences?

• Tempo
• Note-level, (note onset/offset timings), phrase-level, song-level
• Dynamics
• Note-level, (note velocity), phrase-level, song-level
• Different interpretation of musical expressions in score
• Temporal: ritardando, rubato
• Dynamics: piano, forte, crescendo, …
• Play techniques or articulation: legato, staccato
• Mood and emotion: dolce, grazioso

Score-to-Audio Alignment

• Temporal alignment between score and audio from a piece of

music

• Audio-to-audio and MIDI-to-MIDI (either one is performance) are possible
• Why do we synchronize them?
• Automatic page turning
• Performance analysis
• Score following
• Auto-accompaniment

[Müller]

Algorithm Overview

• Choose feature representations to compare
• Often, MIDI is convert to audio for alignment on the same feature space
• Compute a similarity matrix between two features sequences
• All possible combinations of local feature pairs
• Find a path that makes the best alignment on the similarity

matrix

• Dynamic Time Warping (DTW)

Dynamic Programming

Feature Seq. #1

Similarity Matrix

Feature Seq. #2

Compute the local similarity Find the best path

Feature Representations

• Audio feature representations
• Frequent choice for piano music is chroma

CENS : Normalized Chroma Features (Muller, 2005) MIDI Lisitsa

• Similarity between every pair of frame-level features
• Euclidean or cosine distance

Similarity Matrix

Finding the Optimal Path

• There are so many possible paths from one corner to another

Schumann−Traumerei−Lisitsa Schumann−Traumerei−MIDI

50 100 150 200 250 300 50 100 150 200 250

3D Surface Plot of Similarity Matrix

• Finding the optimal path is analogous to figuring out a trail route

that you can take with minimum efforts in hiking.

Dynamic Time Warping

• Finding an (N, M)-warped path of length L
• P = (p1, p2, p3, .. pL) where pi = (ni, mi)
• Three conditions
• Boundary condition: p1=(1,1), pL=(N,M)
• Monotonicity condition
• n1 <= n2 <= … <= nL
• m1 <=m2 <= .. <mL
• Step size condition
• Move only upward,

rightward, diagonal (upper-right)

[Müller]

Dynamic Time Warping : Bad Examples

[Müller]

Dynamic Programming for DTW

• Algorithm
• Initialization:

D(n,1) = sum(C(1:n,1)), n=1…N D(1,m) = sum(C(1,1:m)), n=1…M

• Recurrence Relation:

For each m = 1…M For each n = 1…N D(n-1,m) D(n,m)= C(n,m)+ min D(n,m-1) D(n-1,m-1)

• Termination:

D(N,M) is distance

Dynamic Programming for DTW

• Toy Example

[Müller] Similarity Matrix (C) Accumulated cost (D)

Score and Audio Alignment by DTW

C(i,j) D(i,j)

Limitations

• The optimal path is obtained after we arrive the destination (by

back-tracking)

• In other words, DTW works offline
• What if the sequences are very long?
• Online version of DTW?
• Every frame is equally important
• In general, human is more sensitive to note onsets
• Perceptually, every frame is not equally important

Online DTW

• Set a moving search window and

calculate the cost only within the window

• Time and space cost: quadratic à linear
• The movement is determined by the

position that gives a minimum cost within the current window. If the position is ...

• Corner: move both up and right (alternatively)
• Upper edge: move up
• Right edge: move right

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

Figure 2: An example of the on-line time warping algorithm with search window c = 4, showing the order of evaluation for a partic- ular sequence of row and column increments. The axes represent the variables t and j (see Figure 1) respectively. All calculated cells are framed in bold, and the optimal path is coloured grey.

[Dixon, 2005]

Automatic Page Turner (JKU, Austria)

Onset-sensitive Alignment

• We are sensitive to the time alignment
• n note onsets.
• The similarity matrix has no additional

weight to onsets

• DLNCO Features
• Decaying Locally-adapted Normalized

Chroma Onset

• Capture only onset strength on chroma

features

• Normalize onset energy and note length

(by artificially-created note tail)

[Ewert, 2009]

Demo: PerformScore

• https://jdasam.github.io/PerformScore/

Multi-pitch Estimation

• Two types of polyphonic settings
• Polyphonic instruments: piano, guitar
• Ensemble of monophonic instruments: woodwind quintet, string quartet,

chorale

• Three levels of subtasks
• First-level: frame-wise estimation of pitches and polyphony (number of

notes)

• Second-level: tracking pitch within a note based on temporal continuity
• Third-level: tracking notes for each sound source, usually for ensembles of

monophonic instruments

Challenges

• Many sources are mixed and played simultaneously
• They are likely to be harmonically related in music
• Some sources can be masked by others
• Content changes continuously by musical expressions (e.g. vibrato)
• Compromises
• Transcribe as many source sounds as possible
• Only dominant sources: melody, bass, drum

Frame-wise Multi-pitch Estimation

• Three categories of approaches
• Iterative F0 search: repeatedly finds predominant-F0 and removes its

related sources

• Joint source estimation: examines possible combinations of multiples

sources, e.g., NMF

• Classification-base approach: no prior knowledge of musical acoustics,
• nly relies on supervised learning

Iterative F0 estimation

• Based on repeated cancellation of harmonic overtones of

detected F0s (Klapuri, 2003)

• Procedure

1.

Set the original to the residual

2.

Detect predominant F0: based on the harmonic sieve method

3.

Spectral smoothing on harmonics on the detected F0

4.

Cancel the smoothed harmonics from the residual

5.

Repeat the step 2 & 3 until the residual is sufficiently flat

F0 detection Cancel sound From mixture

YR(k)← max(YR(k)− d YD(k),0) YR(k)

Iterative F0 estimation

Spectral Smoothness

ECE 477 - Computer Audition, Zhiyao Duan 2014

Spectral Smoothness Iterative Estimation

Iterative F0 estimation

• Advantages
• Deterministic: only by signal processing and no data-driven training
• Can handle inharmonicity (e.g. piano) and vibratio
• Limitations
• F0 estimation becomes unreliable as iteration increases
• Spectral smoothing is not accurate enough

Joint Source Estimation

• Based on a model for sound mixture
• All sources compete with each other to explain the mixture and find a

subset that are mostly likely

• The number of sources are limited
• Non-negative matrix factorization (NMF) has been most widely explored

Joint Source Estimation

• How many spectral templates can explain the source ?

Joint Source Estimation

• We can explain the spectrogram with three spectral basis (𝑋)

and corresponding activations (𝐼)

• Can we decompose 𝑊 into 𝑋 and 𝐼 automatically ?

𝑋

𝐼

𝑊 ≈ 𝑋𝐼

Non-negative Matrix Factorization (NMF)

• One of matrix factorization algorithms but all elements are non-

negative

• 𝑊(𝑁 x 𝑂 matrix): original data (e.g. spectrogram)
• 𝑋(𝑁 x 𝐿 matrix ): 𝐿 basis vectors (e.g. dictionary)
• 𝐼(𝐿 x 𝑂 matrix): activation matrix (e.g. weights or gains)
• Note that this provides a compressed representation.
• A low-rank approximation

! " # # # # $ % & & & & ≈ ! " # # # # $ % & & & & ! " # # # $ % & & &

𝑊 𝑋 𝐼

Algorithm for NMF

• 𝑊 is known, and 𝑋 and 𝐼 are unknown. How?
• Alternative the estimation (similar to the EM algorithm)
• Start with random 𝑋
• Estimate an 𝐼 given 𝑋
• Estimate a new 𝑋 given 𝐼
• Repeat until convergence

• If the distance is Euclidean, solve the following:
• Estimate 𝐼 given 𝑋: 𝐼 = (𝑋,𝑋)./𝑋,𝑊

(least squares!)

• Make 𝐼 non-negative: 𝐼 = max(𝐼, 0)
• Estimate 𝑋 given 𝐼: 𝑋 = 𝑊(𝐼,𝐼)./𝐼,(least squares!)
• Make 𝑋 non-negative: 𝑋 = max(𝑋, 0)
• Repeat until convergence
• The problems
• Require pseudoinverses every iteration: expensive and stability issue
• Gaussian assumption on the approximation

Algorithm for NMF

min

7,8,9:; <(𝑊 − 𝑋𝐼)> ?,@

𝑊 A = 𝑋𝐼

Algorithm for NMF

• Instead, we use a special distance
• A variant of Kullback-Leibler (KL-divergence)
• “Multiplicative” (magic) update rule
• Estimate 𝑋: 𝑋

?@ = 𝑋 ?@ ∑ 7CD (89)CD 𝐼 @E E

• Estimate 𝐼 : 𝐼

@E = 𝐼 @E ∑

𝑋

?@ 7CD (89)CD ?

• Repeat until convergence
• This is much faster and has no inversion!

min

7,8,9:; <(𝑊 ?@log

𝑊

?@

(𝑋𝐼)?@ 𝑊

?@ + (𝑋𝐼)?@) ?,@

(Lee and Seung, 2000)

Property of NMF

• The learned basis (𝑋) capture find parts
• An example is explained by a combination of the parts (e.g additive

synthesis)

• The basis are more structured and interpretable

Interpretation of NMF on spectrogram

• Columns of the spectrogram are a weighted sum of basis

vectors

≈

Interpretation of NMF on spectrogram

• The whole spectrogram is approximated as a sum of matrix

“layers”, each of which is explained by one spectral component.

= + +

Source Separation by NMF

• We can separate each source

= + +

Resynthesized results:

Supervised Learning

• Perform NMF separately for isolated training data of each

source in a mixture

• Pre-learn individual models of each source, e.g., W1 , W2 and W3
• Combine them into a single model W = [W1 W2 W3] that explain a mixture
• Given a mixture V, perform the NMF (Fix W and update H only)
• Then, the activation H indicates the strength of F0s
• Usually needs sparsity and temporal continuity on H (Virtanen, 2007)

Supervised Learning

NMF W1 NMF W2 NMF W=[W1 W2] H=[H1 H2] Throw away H1 and H2

Semi-supervised Learning

• Problem in supervised learning
• It is difficult to have training data of all individual sources.
• Unknown sources are mixed in the majority of real-time scenarios
• Semi-supervised Learning
• Learn spectral basis (i.e. dictionaries) for available sources, say, W1
• In testing phase, add new spectral basis W2 which explains the remaining

sources in the mixture

• Fix the trained W1 and update W2 only in the NMF iteration

Semi-supervised Learning

44

NMF W1 NMF W=[W1 W2] H=[H1 H2] Throw away H1 W2 is initialized with random numbers

Unsupervised Learning

• We have no information about individual source
• Update both W and H for the mixture sound
• Need additional constraints
• Spectral harmonicity and smoothness on W (Vincent, 2010)
• Very difficult!

Unsupervised Learning

Unsupervised NMF (adapted W) [Vincent, 2010] Supervised NMF (fixed W) Unsupervised NMF + Harmonicity & Smoothness constraint on W

Issues

• Number of basis vectors (K)
• Too small
• Reconstruction errors will increase
• The model gets under-estimated.
• Too large
• Do not learn parts (distribution of spectral basis vectors become sparse).
• The model becomes too general and so it can explain other sources well.
• Sparsity is often added to activation in order to learn “parts”. For example,

min

W,H≥0 D(V ||WH)+ H 1

Joint Source Estimation

• Advantages
• Compositional model: applicable to any mixture
• Models can be expended well with additional constraints: e.g. source-filter

model, inharmonicity

• Limitations
• Model can be computationally expensive: long inference time by iteration
• Modeled pitches are usually discrete

Classification-Based Transcription

• Train a binary classifier for each note
• Each classifier is trained with two groups of audio features: one including

the note and the other not including it

• 88 classifiers for polyphonic piano transcription

Classifier (C4 note)

• n/off

Audio features

Classifier (C#4 note)

• n/off

. . . . ..

Frames including C4 Frames not including C4 Feature Space

Classification-Based Transcription

• Often trained with real music data (not single notes)
• There are abundant MIDI files for classic piano music. It is easy to get

audio files from them: e.g. using software synthesizers or player pianos

MIDI Piano roll Audio Spectrogram

Classification-Based Transcription

• Audio features
• Auditory filter bank
• Spectrogram or Log-spectrogram
• Classifiers
• Support vector machines
• Neural Network
• Multi-label classification problem
• Approach #1: separated binary classification for each note: select

balanced sets for each note

• Approach #2: cross-entropy between the binary label vector and predicted
• utput (this is more commonly used)

r n

... ... ... ... ... ...

Output Input Hidden Layers

...

Viterbi Decoding

• Temporal smoothing of predicted outputs
• Separated HMM for each note: binary state (note on/off)
• 88 initial states distributions (2x1) and transition probability matrices (2x2)

Input (Spectrogram ) Hidden layer activation HMM output SVM output

• n

[Nam,2011]

References

• G. Widmer, “In search of the Horowitz Factor”, 2003
• S. Dixon, “Live Tracking Of Musical Performance Using On-line Time

Warping”, 2005

• S. Ewert, “High Resolution Audio Synchronization Using Chroma Onset

Features”, 2009

• A. Klapuri, “Multiple fundamental frequency estimation based on harmonicity

and spectral smoothness”, 2003

• T. Virtanen, “Monaural Sound Source Separation by Nonnegative Matrix

Factorization with Temporal Continuity and Sparseness Criteria”, 2007

• E. Vincent, “Adaptive Harmonic Spectral Decomposition for Multiple Pitch

Estimation”, 2010

• G. Poliner, “A Discriminative Model for Polyphonic Piano Transcription”, 2007
• J. Nam, “A Classification-Based Polyphonic Piano Transcription Approach

Using Learned Feature Representations”, 2011
