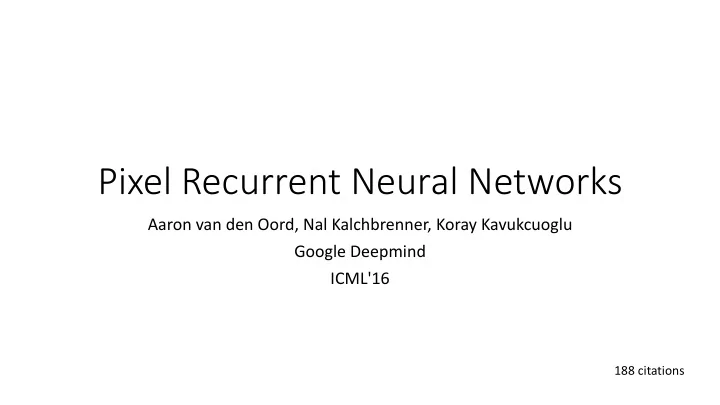

Pixel Recurrent Neural Networks

Aaron van den Oord, Nal Kalchbrenner, Koray Kavukcuoglu Google Deepmind ICML'16

188 citations

Pixel Recurrent Neural Networks

• 1. What is the task?
• 2. Other models: GAN, VAE, …
• 3. PixelCNN model
• 4. Results
• 5. Discussion & Conclusion
• 6. Extensions (preview of next coffeetalk)

Goal: learning the distribution of natural images

• Task:
• Input: training set of images
• Output: model that estimates p(x)

for any image x

• Evaluation: measure p(x) on testset.

Higher p(x) is better.

• Note: p(x) should be normalized
• Why learn p(x)?
• Image reconstruction / inpainting /

denoising: input corrupted image,

• utput fixed image
• Image colorization: input greyscale,
• utput color image
• Semi-supervised learning (low

density separation)

• Representation learning (find

manifold of natural images)

• Dimensionality reduction / finding

variations in data

• Clustering
• …

Other approaches

GAN Variational Autoencoder (VAE) Pixel CNN (This talk) Invertible models Real NVP Compute exact likelihood p(x)

 





Has latent variable z

   

Compute latent variable z (inference)

   

Stable training? (No mode collapse)

   ?

Sharp images?

   ?

Pixel CNN (1/2)

• Why is computing 𝑞(𝑦) so difficult?
• This is the reason why GANs avoid it, and VAE approximate it
• Answer: normalization of 𝑞(𝑦)
• We need to integrate the model output over all images x which is intractable
• Pixel CNN computes 𝑞(𝑦) using the chain rule of probability

𝑞 𝑦 = 𝑞 𝑦4 𝑦3, 𝑦2, 𝑦1 𝑞 𝑦3 𝑦2, 𝑦1 𝑞 𝑦2 𝑦1 𝑞 𝑦1

• The function 𝑞(𝑦𝑗|𝑦𝑗−1, … , 𝑦1) is modeled using a CNN
• This 1D function is easy to keep normalized
• If this conditional density is normalized, 𝑞(𝑦) is properly normalized as well!

Pixel CNN (2/2)

1. Order pixels 2. Imagine already generated pixels 1-6, want to predict pixel 7 3. Mask pixels 7-16 (set to 0) 4. CNN outputs normalized histogram for pixel 7 given pixel values 1-6 (maksed input)

• Maximize log likelihood w.r.t. CNN parameters

Image from trainset 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Masked image 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 CNN INPUT OUTPUT

Results (1/2)

Results of generating ‘new’ images

Results & Discussion

• Sampled images
• Good local coherence
• Incoherent global structure
• Sharp images!
• SOTA on likelihood CIFAR-10
• Discussion
• Slow generation (sequential)
• No latent representation
• (Teacher forcing)

CIFAR-10. NLL = Negative log likelihood in bits per dimension (lower is better)

Preview of next coffeetalk

• PixelCNN++ (faster), Conditional PixelCNN, PixelVAE, …
• Use a pyramid of pixel CNN models
• Go from low resolution to high resolution
• Improves global coherence of generated images
• Model becomes much faster
• Decomposition of likelihood (high level details, low level details)
• Next coffeetalk: “PixelCNN with Auxiliary Variables for Natural Image Modeling” C.H.

Lampert

• Want to know more?

https://www.cs.toronto.edu/~duvenaud/courses/csc2541/index.html Good course on Deep Generative Models (GAN, VAE, pixelCNN, Real NVP,…)
