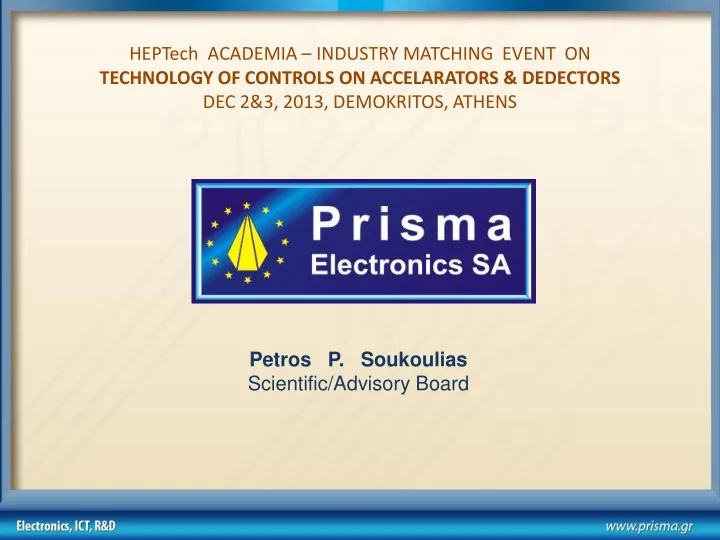

HEPTech ACADEMIA INDUSTRY MATCHING EVENT ON TECHNOLOGY OF CONTROLS ON ACCELARATORS & DEDECTORS DEC 2&3, 2013, DEMOKRITOS, ATHENS Petros P. Soukoulias Scientific/Advisory Board Prisma Electronics Established : 1991

SLIDE 1

Petros P. Soukoulias Scientific/Advisory Board HEPTech ACADEMIA – INDUSTRY MATCHING EVENT ON TECHNOLOGY OF CONTROLS ON ACCELARATORS & DEDECTORS DEC 2&3, 2013, DEMOKRITOS, ATHENS

SLIDE 2

Established

: 1991 Location : Alexandroupolis Personnel : 46 Fields of Activity : Electronics, ICT, R&D Turnover (2012) : 3,4 MEuro Quality System : ISO 9001:2008

Prisma Electronics

SLIDE 3

Komotini Alexandroupolis Athens I C T

Prisma Electronics

SLIDE 4

Member of : Microelectronics Inno Cluster : Space Inno Cluster

Prisma Electronics

CERN Manufacturer & R&D partner ESA Manufacturer

SLIDE 5

From row Data to .... Wisdom

Data

non-evaluated

bservations

Information

rganized

structured Data

Knowledge

built upon Information

Wisdom

synthesize Knowledge useful to humankind

Need for more ……….

Data

Information

Knowledge Wisdom

SLIDE 6

Row Data

One of the most reliable sources to acquire data are …

devices which measure physical quantity and convert it into a readable signal

S E O N R S S

SLIDE 7

A reliable and flexible communication platform operating

n specifically designed Hardware and Software.

Employing intelligent algorithms processes and evaluates data, collected via different types of sensors and instruments

PrismaSense / Technology

SLIDE 8

PrismaSense / Components

Sensors Gateways Routers Collectors I

S O S

SLIDE 9

PrismaSense / Sensors

Output delivered

Analog Voltage
4-20mA Analog Current
Serial
Digital
I2C

Embedded

Humidity
Τemperature
Accelerometers
Clinometers
Gyroscopes
Gas sensors (O2, CO2)

SLIDE 10

PrismaSense / Collectors (Quax)

Powered by : Battery or DC or AC or Photo Voltaic

16 Digital I/O
6 Inputs AC2DC Converter
2 Outputs DC2AC Converter
1 Uart Port
1 SCI/I2C Port
3 PWM Outputs

SLIDE 11

PrismaSense / Routers

Powered by : Battery or DC or AC or Photo Voltaic

SLIDE 12

PrismaSense / GATEWAY

Interfaces

Wifi 802.11 b/g Ethernet 10/100 GPRS/GSM Bluetooth USB RS232, RS485

SLIDE 13

PrismaSense / Architecture

SLIDE 14

Industry Maritime Transportation Smart Cities Agriculture & Forests Health & Medicine Environment & Meteo Building Management Aerospace Education & Training

Sensing & Control

SLIDE 15

Sensing & Control INDUSTRY

SLIDE 16

Sensing : Liquid-gas leakage, Temperature, Gas concentration, Water consumption, Vibration, Oil/Air pressure, …

Sensing & Control

SLIDE 17

Sensing : Temperature, Humidity, Liquid-Gas Leakage, Air quality, Power Consumption, ….

Sensing & Control

I N D U S T R Y

SLIDE 18

Assets management,
System productivity,
Production efficiency & cost reduction,
Elimination of unscheduled maintenances,
Environmental impact,
Personnel safety,
Product quality

Sensing & Control

SLIDE 19

Sensing & Control MARITIME

SLIDE 20

Sensors Collectors Routers Gateway Server Datacente r Control Interfaces V e s s e l E n v i r o n m e n t H Q s

Sensing & Control

SLIDE 21

Points of Interest

Main Engine
Generators
Torque Meter
Power Meter
Flow Meter
Turbo Charger
Boilers
Inclinometer
Speed Log, GPS
Wind Indicator
Exhaust Gas Economizer

Sensors

Analogue voltage
4–20mA
Serial
Resistive, Capacity
Pulses, Frequency
Digital input

Interfaces

RS232 / RS485
USB
ModBus, Huart
NMEA, PLCs

Sensing & Control

SLIDE 22

INCREASE / ENHANCE

efficiency,
operation awareness,
availability,
green shipping,
safety

REDUCE / LOWER

administrative cost,
fuel consumption,
repair time,
maintenance cost,
breakdowns frequency,
docking down time

Sensing & Control

SLIDE 23

Sensing & Control

P T U

Heart Beat Sensor Dosimete r Camera /Leds Speaker/Microphone Batteries Temperature Body Temperature Humidity Gas Sensors

WPSS ATLAS @ CERN

HELMET

SLIDE 24

Sensing & Control

ATLAS WPSS (Wireless Personal Supervising System)

Enhance safety of personnel working in

hazardous environments

Measure gas concentration (CO2, O2) and
ther environmental parameters
Continuous radiation dosimetry on field
Fall detection
Issue alerts in case of emergency
Monitor working procedures (supervisor)
Assist technical personnel using video /

audio communication

SLIDE 25

Sensing & Control

PrismaSense platform supports Bi-directional Communication

Commands to Collectors Data from Collectors

SLIDE 26

Sensing & Control

Request measurements (re)cornfiguration Request actions

SLIDE 27

Sensing & Control

Sensors measurements Action Reports Device Status

SLIDE 28

Industry Maritime Transportation Smart Cities Agriculture & Forests Health & Medicine Environment & Meteo Building Management Aerospace Education & Training

PrismaSense

communication platform A reliable and flexible

SLIDE 29

Petros P. Soukoulias Scientific/Advisory Board HEPTech ACADEMIA – INDUSTRY MATCHING EVENT ON TECHNOLOGY OF CONTROLS ON ACCELARATORS & DEDECTORS DEC 2&3, 2013, DEMOKRITOS, ATHENS

Thank you for your attention

SLIDE 30

WPSS Phase 2 – CERN 14/762012
