SLIDE 1
Matthew Hague
with Roland Meyer, Sebastian Muskalla,and Martin Zimmermann

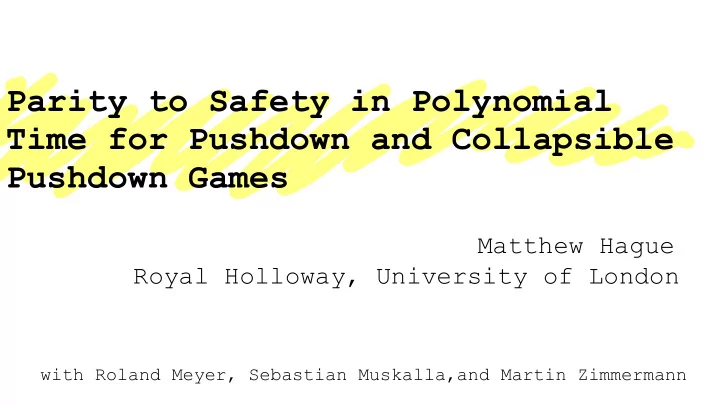

Parity to Safety in Polynomial Time for Pushdown and Collapsible - - PowerPoint PPT Presentation
Parity to Safety in Polynomial Time for Pushdown and Collapsible - - PowerPoint PPT Presentation
Parity to Safety in Polynomial Time for Pushdown and Collapsible Pushdown Games Matthew Hague Royal Holloway, University of London with Roland Meyer, Sebastian Muskalla,and Martin Zimmermann Abstract Safety games for pushdown systems:
SLIDE 2
SLIDE 3
Abstract
Safety games for pushdown systems: n-EXPTIME-complete Parity games for pushdown systems: n-EXPTIME-complete (for order-n collapsible pushdown) We give a "natural" parity->safety reduction
SLIDE 4
Abstract
Safety games for pushdown systems: n-EXPTIME-complete Parity games for pushdown systems: n-EXPTIME-complete (for order-n collapsible pushdown) We give a "natural" parity->safety reduction
(i.e. not parity algorithm -> TM -> safety)
SLIDE 5
Motivation
Safety is easy to reason about (Parity is hard) Parity is more expressive To know the relationship
SLIDE 6
Ideas We Start With
Finite-state parity to safety using counters (Bernet et al, 2002)
SLIDE 7
Ideas We Start With
Finite-state parity to safety using counters (Bernet et al, 2002) Pushdown parity to safety with large counters (Fridman and Zimmermann, 2012)
SLIDE 8
Ideas We Start With
Finite-state parity to safety using counters (Bernet et al, 2002) Pushdown parity to safety with large counters (Fridman and Zimmermann, 2012) Reduction order-n -> order-(n-1) Rank awareness (H, Murawski, Ong, Serre, 2008)
SLIDE 9
Ideas We Start With
Finite-state parity to safety using counters (Bernet et al, 2002) Pushdown parity to safety with large counters (Fridman and Zimmermann, 2012) Reduction order-n -> order-(n-1) Rank awareness (H, Murawski, Ong, Serre, 2008) Encoding large counters in a pushdown stack (Cachat and Walukiewicz, 2007)
SLIDE 10
Contributions
Generalise counter encoding to collapse Direct proof based on commutativity of Counters encoding Stack removal Counters behave like a stack
SLIDE 11
Parity Game
Elvis Anarchist 4 1 2 4
SLIDE 12
Parity Game
Elvis Anarchist 4 1 2 4 Play: 4
SLIDE 13
Parity Game
Elvis Anarchist 4 1 2 4 Play: 4 1
SLIDE 14
Parity Game
Elvis Anarchist 4 1 2 4 Play: 4 1 2
SLIDE 15
Parity Game
Elvis Anarchist 4 1 2 4 Play: 4 1 2 4
SLIDE 16
Parity Game
Elvis Anarchist 4 1 2 4 Play: 4 1 2 4 4
SLIDE 17
Parity Game
Elvis Anarchist 4 1 2 4 Play: 4 1 2 4 4 1 4 4 1 2 4...
SLIDE 18
Parity Game
Elvis Anarchist 4 1 2 4 Play: 4 1 2 4 4 1 4 4 1 2 4...
Winner: Elvis if least infinitely
- ccuring rank is even
SLIDE 19
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller)
SLIDE 20
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 21
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 22
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 23
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 24
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 25
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 26
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 27
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 28
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 29
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 30
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 31
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 32
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 33
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 34
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 35
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 36
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4:
SLIDE 37
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4: There is a loop! (Hit 1 five times over 4 states)
SLIDE 38
Parity with Counters
4 1 2 4 Count: number of each rank (without seeing anything smaller) Counters: 1: 2: 3: 4: There is a loop! (Hit 1 five times over 4 states) The smallest rank is odd: Elvis loses!
SLIDE 39
Parity to Safety
Reduce parity to safety game (Bernet et al): Keep counters in state (n * n^k states) Elvis loses if odd counter is high
SLIDE 40
Parity to Safety
Reduce parity to safety game (Bernet et al): Keep counters in state (n * n^k states) Elvis loses if odd counter is high Exponential blow up!
SLIDE 41
Pushdown Games
a a b b b b b b p1 c p2 c p3 c p4 c Each state has: Control state (from finite set) Stack of characters Model recursive programs
SLIDE 42
Pushdown Parity to Safety
Pushdown Parity Finite-state Parity Finite-State Safety Pushdown Safety
(Walukiewicz 1996)
SLIDE 43
Pushdown Parity to Safety
Pushdown Parity Finite-state Parity Finite-State Safety Pushdown Safety
(Walukiewicz 1996) (Bernet et al 2002)
SLIDE 44
Pushdown Parity to Safety
Pushdown Parity Finite-state Parity Finite-State Safety Pushdown Safety
(Walukiewicz 1996) (Bernet et al 2002) (Fridman and Zimmermann 2012)
SLIDE 45
Pushdown Parity to Safety
Pushdown Parity Finite-state Parity Finite-State Safety Pushdown Safety
(Walukiewicz 1996) (Bernet et al 2002) (Fridman and Zimmermann 2012) Commutes!
SLIDE 46
Pushdown Parity to Safety
a a b b b b b b p1 c p2 c p3 c p4 c (a, c1, c2) (b, c1, c2) (b, c1, c2') p1 (c, c1, c2) p2 (c, c1, c2) From: To:
SLIDE 47
Pushdown Parity to Safety
a a b b b b b b p1 c p2 c p3 c p4 c (a, c1, c2) (b, c1, c2) (b, c1, c2') p1 (c, c1, c2) p2 (c, c1, c2) From: To: Counters
SLIDE 48
Exponential Blow Up?
(a, c1, c2') p (b, c1, c2) Counter values: can be exponential (Pushdown->finite-state has 2^n states) Number of stack characters: (2^n)^k (For k ranks)
SLIDE 49
Exponential Blow Up?
(a, c1, c2') p (b, c1, c2) Counter values: can be exponential (Pushdown->finite-state has 2^n states) Number of stack characters: (2^n)^k (For k ranks)
SLIDE 50
Reducing Size
(a, c1, c2') p (b, c1, c2) a c2' c1 b c2 p c1 From: To:
SLIDE 51
Reducing Size
(a, c1, c2') p (b, c1, c2) a c2' c1 b c2 p c1 From: To: Number of characters: 2^n
SLIDE 52
Updating Counters
a c2' c1 b c2 p c1 Increment c1
SLIDE 53
Updating Counters
a c2' c1 b c2 p c1 Increment c1 ( , a)
SLIDE 54
Updating Counters
a c2' c1 b c2 p c1 Increment c1 ( , a)
SLIDE 55
Updating Counters
a c2' c1 b c2 p c1 Increment c1 ( , a) Lost c2' (It will be reset)
SLIDE 56
Updating Counters
a c2' c1 b c2 p c1 Increment c1 ( , a) Lost c2' (It will be reset)
'
SLIDE 57
Updating Counters
a c2' c1 b c2 p c1 Increment c1 ( , a) Lost c2' (It will be reset)
'
SLIDE 58
Updating Counters
a c2' c1 b c2 p c1 Increment c1 ( , a) Lost c2' (It will be reset)
'
a
SLIDE 59
Polynomial No. of Characters
a c2' c1 b c2 p c1 Counters up to 2^n Alphabet exponential
SLIDE 60
Polynomial No. of Characters
a c2' c1 b c2 p c1 Counters up to 2^n Alphabet exponential
a 1 1 1 . . p .
c2' in binary c1 in binary
SLIDE 61
Polynomial No. of Characters
a c2' c1 b c2 p c1 Counters up to 2^n Alphabet exponential
a 1 1 1 . . p .
c2' in binary c1 in binary Pushdowns handle length-n binary Alphabet polynomial!
SLIDE 62
Pushdown Parity to Safety
Pushdown parity game -> pushdown safety game Naively exponential Use stack discipline of counters Binary counter encoding of pushdowns Polynomial time reduction
SLIDE 63
Collapsible Pushdown Systems
Pushdown Systems = First-Order Recursion Collapsible Pushdown Systems = Higher-Order Recursion
SLIDE 64
Higher-Order Programming: Niche?
Almost all modern languages support it Scala, Go, JavaScript, Python, ... Retro-fitted to C++ and Java Asynchronous programs/callbacks Map/Reduce
SLIDE 65
Collapsible Pushdown Systems
Higher-order program: functions of functions Higher-order pushdown: stack of stacks a b p c
SLIDE 66
Collapsible Pushdown Systems
Higher-order program: functions of functions Higher-order pushdown: stack of stacks a b p c a b c
b c
d a c p
SLIDE 67
Collapsible Pushdown Systems
Higher-order program: functions of functions Higher-order pushdown: stack of stacks a b p c a b c
b c
d a c p a b b a a c c c b a b a a c c p
SLIDE 68
Collapsible Pushdown Systems
Higher-order program: functions of functions Higher-order pushdown: stack of stacks a b p c a b c
b c
d a c p a b b a a c c c b a b a a c c p (+links)
SLIDE 69
Generalising Parity->Safety
Collapsible Pushdown -> Finite-State (n-Exponential blow up) n-Exponential Counters Can encode in binary on order-n stack!
SLIDE 70
Summary
Parity -> Safety Counters look out for loops (Even with infinite states) Reduction to finite-state Counters behave like stacks Counter values match limits of system Polynomial-time encoding
