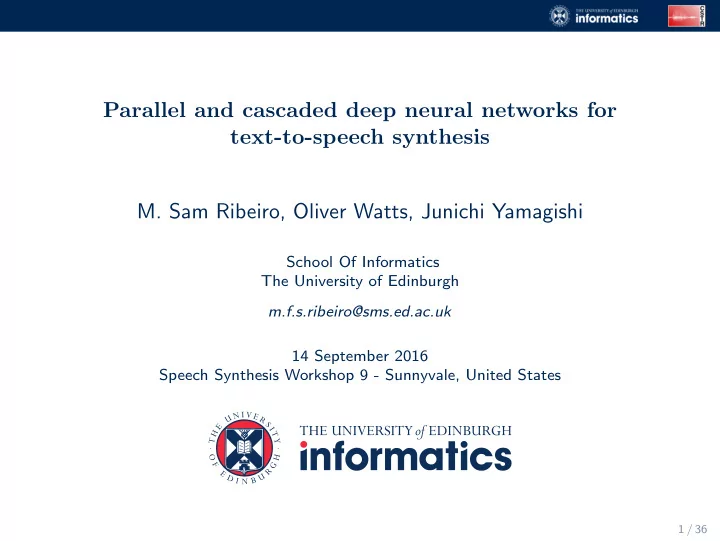

Parallel and cascaded deep neural networks for text-to-speech synthesis

• M. Sam Ribeiro, Oliver Watts, Junichi Yamagishi

School Of Informatics The University of Edinburgh m.f.s.ribeiro@sms.ed.ac.uk 14 September 2016 Speech Synthesis Workshop 9 - Sunnyvale, United States

1 / 36

Introduction

• Speech synthesis and Prosody
• Synthetic speech may sound bland and monotonous
• A good understanding and modelling of prosody is essential for

natural speech synthesis.

• Prosody is inherently suprasegmental
• Suprasegmental features are mostly associated with long-term

variation.

• Current features are very shallow (positional and POS/stress

related)

• Most systems operate at frame/state levels and rely heavily on

segmental features.

Ideally we would have a framework that has good representations

• f contexts, but also the ability to exploit them.

2 / 36

Introduction

• Speech synthesis and Prosody
• Synthetic speech may sound bland and monotonous
• A good understanding and modelling of prosody is essential for

natural speech synthesis.

• Prosody is inherently suprasegmental
• Suprasegmental features are mostly associated with long-term

variation.

• Current features are very shallow (positional and POS/stress

related)

• Most systems operate at frame/state levels and rely heavily on

segmental features.

Ideally we would have a framework that has good representations

• f contexts, but also the ability to exploit them.

3 / 36

Earlier work

• Hierarchical models
• Cascaded and parallel deep neural networks
• Superpositional model of f0 [Yin et al (2016)]
• Systems with hierarchical recurrences [Chen et al (1998)]
• Continuous representations of linguistic contexts
• Segmental-level [Lu et al (2013)] [Wu et al (2015)]
• Word-level [Watts et al (2014)] [Wang et al (2015)]
• Sentence-level [Watts et al (2015)]

Recent work Ribeiro et al (2016) Syllable-level representations of suprasegmental features for DNN-based text-to-speech synthesis. Proceedings of Interspeech 2016

4 / 36

Earlier work

• Hierarchical models
• Cascaded and parallel deep neural networks
• Superpositional model of f0 [Yin et al (2016)]
• Systems with hierarchical recurrences [Chen et al (1998)]
• Continuous representations of linguistic contexts
• Segmental-level [Lu et al (2013)] [Wu et al (2015)]
• Word-level [Watts et al (2014)] [Wang et al (2015)]
• Sentence-level [Watts et al (2015)]

Recent work Ribeiro et al (2016) Syllable-level representations of suprasegmental features for DNN-based text-to-speech synthesis. Proceedings of Interspeech 2016

5 / 36

Ribeiro et al (2016)

Contributions

1 A top-down hierarchical model at syllable-level (cascaded) 2 An investigation of its usefulness with additional features at

syllable and word-level Main Findings

1 Hierarchical approach performs best when segmental and

suprasegmental features are balanced.

2 Syllable-bag of phones give minor improvements on objective

scores

3 Text-based word embeddings have little effect 4 No significant results in terms of subjective evaluation, but

clear differences in terms of predicted f0 contours.

6 / 36

Ribeiro et al (2016)

Contributions

1 A top-down hierarchical model at syllable-level (cascaded) 2 An investigation of its usefulness with additional features at

syllable and word-level Main Findings

1 Hierarchical approach performs best when segmental and

suprasegmental features are balanced.

2 Syllable-bag of phones give minor improvements on objective

scores

3 Text-based word embeddings have little effect 4 No significant results in terms of subjective evaluation, but

clear differences in terms of predicted f0 contours.

7 / 36

Ribeiro et al (2016)

• Most improvements derive from the hierarchical framework
• This suggests it is working mostly as a feature extractor or

denoiser

Parallel and cascaded deep neural networks for text-to-speech synthesis

Ribeiro, M. S., Watts, O. & Junichi, Y. (2016) Parallel and cascaded deep neural networks for text-to-speech synthesis. In Proc. of SSW, Sunnyvale, 2016.

8 / 36

Baseline Network

• Feedforward deep neural

network

• 6-hidden layers, each with

1024 nodes

• Output features
• 60-dimensional MCCs, 25

band aperiodicities, 1 log-f0, 1 voicing decision (plus dynamic features)

... ...

input features frame-level acoustic parameters

...

9 / 36

Hierarchical Networks

• Input features
• Segmental: phone-level and below
• Suprasegmental: syllable-level and above
• Output features
• Frame-level acoustic parameters averaged over the entire

syllable

• Architecture
• 6-hidden layer triangular networks
• Top hidden layer used as bottleneck layer
• Integration strategies
• Cascaded strategy
• Parallel strategy

10 / 36

Cascaded Network

... ... ... ... ...

syllable-level acoustic parameters suprasegmental features segmental features hidden representation frame-level acoustic parameters

...

11 / 36

Parallel Network

... ... ... ... ...

syllable-level acoustic parameters suprasegmental features segmental features frame-level acoustic parameters

... ...

frame-level acoustic parameters 12 / 36

Linguistic Features

• Segmental-Features
• Constant for all systems
• Phone and state-level features (352 dimensions)
• Suprasegmental - Full Set
• Standard set of features used for HMM-based speech synthesis
• Derived from a common Front-End - Festival
• Syllable, word, phrase, utterance (roughly 1100 dimensions)
• Suprasegmental - Pruned Set
• Hand-selected set of features for DNN-based speech synthesis
• Higher-level context was removed
• Syllable, word (244 dimensions)

13 / 36

Database

• Expressive audiobook data
• Ideal for exploring higher-level prosodic phenomena
• A Tramp Abroad, available from Librivox, processed according

to

• [Braunschweiler et al (2010)]
• [Braunschweiler and Buchholz (2011)]
• Training, development, and test sets consisting of 4500, 300,

100 utterances, respectively.

14 / 36

Systems

• 3 network architectures,
• 2 sets of linguistic features
• 6 systems trained

1 Baseline - Hand-selected 2 Cascaded - Hand-selected 3 Parallel - Hand-selected 4 Baseline - Standard 5 Cascaded - Standard 6 Parallel - Standard

15 / 36

Hypotheses

Addition of noisy suprasegmental features

• Adding more (suprasegmental) features to a frame-level model

will degrade its performance Hierarchical Systems

• Hierarchical systems will outperform non-hierarchical systems
• Previous work has suggested hierarchical systems are

beneficial for speech synthesis Parallel and cascaded networks

• Parallel architectures will be preferred over cascaded

architectures

16 / 36

Hypotheses

Addition of noisy suprasegmental features

• Adding more (suprasegmental) features to a frame-level model

will degrade its performance Hierarchical Systems

• Hierarchical systems will outperform non-hierarchical systems
• Previous work has suggested hierarchical systems are

beneficial for speech synthesis Parallel and cascaded networks

• Parallel architectures will be preferred over cascaded

architectures

17 / 36

Hypotheses

Addition of noisy suprasegmental features

• Adding more (suprasegmental) features to a frame-level model

will degrade its performance Hierarchical Systems

• Hierarchical systems will outperform non-hierarchical systems
• Previous work has suggested hierarchical systems are

beneficial for speech synthesis Parallel and cascaded networks

• Parallel architectures will be preferred over cascaded

architectures

18 / 36

Listening tests

• MUSHRA test
• MUltiple Stimuli with Hidden Reference and Anchor
• Simultaneous comparison of multiple speech samples
• Listeners rank each system against all conditions and against a

reference

• Test setup
• 20 native English listeners
• Each rate 20 sets of stimuli
• Total of 400 parallel comparisons

19 / 36

Results

20 / 36

Results - additional features

21 / 36

Results - additional features

22 / 36

Results - hand-selected features

23 / 36

Results - hand-selected features

24 / 36

Results - hand-selected features

25 / 36

Results - standard features

26 / 36

Results - standard feature set

27 / 36

Results - standard features

28 / 36

Results - parallel networks

29 / 36

Results - parallel networks

30 / 36

Speech Samples

speech samples

31 / 36

Summary

Main Findings

1 Adding high-dimensional representations of context to

frame-level network may be harmful

2 Hierarchical systems (parallel or cascaded) can be useful if

using noisy suprasegmental features

• This suggests it may be operating as a feature extractor or

denoiser

3 Parallel networks outperform cascaded networks in all cases

• Consistent with findings of [Yin et al (2016)], although tested

under different circumstances

32 / 36

Future work

• Explore parallel approach with additional features
• Syllable bag-of-phones, text-based word embeddings

[Ribeiro et al (2016)]

• Can these frameworks leverage new information?
• Decoupling of linguistic-levels with parallel approach (similar

to [Yin et al (2016)])

• Hierarchical systems with recurrent layers
• Alternative acoustic features for suprasegmental network

33 / 36

Parallel and cascaded deep neural networks for text-to-speech synthesis

Thank you for listening

• M. Sam Ribeiro, Oliver Watts, Junichi Yamagishi

School of Informatics The University of Edinburgh m.f.s.ribeiro@sms.ed.ac.uk

14 September 2015 - Sunnyvale, California, United States

34 / 36

References I

[Braunschweiler and Buchholz (2011)] Braunschweiler, N. & Buchholz, S. (2011) Automatic Sentence Selection from Speech Corpora Including Diverse Speech for Improved HMM-TTS Synthesis Quality. Interspeech 2011 [Braunschweiler et al (2010)] Braunschweiler, N., Gales, M.J.F. & Buchholz, S. (2010) Lightly supervised recognition for automatic alignment of large coherent speech recordings. Interspeech 2010 [Chen et al (1998)] Chen, S.H., Hwang, S.H. & Wang, Y.R. (1998) An RNN-based prosodic information synthesizer for Mandarin text-to-speech IEEE Transactions on Speech and Audio Processing [Lu et al (2013)] Lu, H., King, S. & Watts, O. (2013) Combining a vector space representation of linguistic context with a deep neural network for text-to-speech synthesis Speech Synthesis Workshop 8 (2013) [Ribeiro et al (2016)] Ribeiro, M.S., Watts, O. & Yamagishi, J. (2016) Syllable-level representations of suprasegmental features for DNN-based text-to-speech synthesis. Proceedings of Interspeech. San Francisco, 2016 [Wang et al (2015)] Wang, P, Qian, Y., Soong, F.K, He, L. & Zhao, H. (2015) Word Embedding for Recurrent Neural Network Based TTS Synthesis ICASSP 2015 [Watts et al (2014)] Watts, O., Gangireddy, S., Yamagishi, K., King, S., Renals, S., Stan, A. & Giurgiu, M. (2014) Neural net word representations for phrase-break prediction without a part of speech tagger ICASPP 2014 35 / 36

References II

[Watts et al (2015)] Watts, O., Wu, Z & King, S. (2015) Sentence-level control vectors for deep neural network speech synthesis Interspeech 2015 [Wu et al (2015)] Wu, Z., Valentini-Botinhao, C., Watts, O. & King, S. (2015) Deep neural networks employing multi-task learning and stacked bottleneck features for speech synthesis ICASPP 2015 [Yin et al (2016)] Yin, X., Lei, M., Qian, Y., Soong, F., He, L., Ling, Z.H. & Dai, L.R. (2016) Modeling F0 trajectories in hierarchically structured deep neural networks Speech Communication 76. 36 / 36
