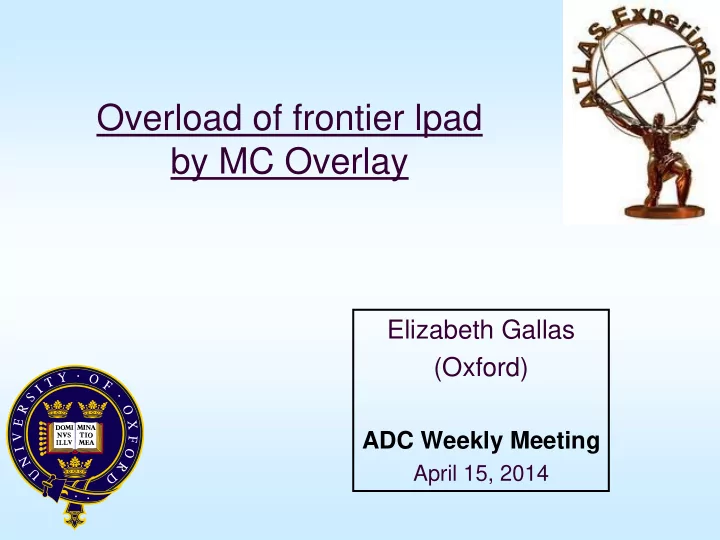

Overload of frontier lpad by MC Overlay

Elizabeth Gallas (Oxford)

ADC Weekly Meeting

April 15, 2014

Overview

• Problem:
• MC Overlay jobs cause Frontier overload on the grid
• Aspects of the issue:
• Conditions aspects of MC Overlay jobs
• Conditions folders of interest
• Conditions DB & COOL
• Conditions deployment on the grid (Frontier & DB Releases)
• MC Overlay Task deployment on the grid
• Reconstruction Software

 how these aspects, in combination, result in overload

Caveat … these are bits pieces

• which I am aware of and
• which seem relevant to the discussion
• Limited time to collect metrics

 This is an open discussion !

 Corrections, additions: welcome !

April 2014 E.Gallas 2

MC Overlay jobs

• Overlay real “zero bias” events on simulated events
• An exception to the norm wrt Conditions
• Access data from multiple Conditions Instances:
• COMP200 (Run 1 real data conditions)
• OFLP200 (MC conditions)

 This is not thought to contribute to the problem

• What seems exceptional and notable is that
• Conditions data volume needed by each job to reconstruct

these events

• Is much greater (10-200x) conditions volume of typical reco
• Estimates vary …
• Is greater than event data volume of each job
• Event volume: A few hundred events ? x 1.5MB

 the metadata is larger than the data itself …

April 2014 E.Gallas 3

Conditions deployment on the grid

• 2 modes of access (direct Oracle access demoted)
• DB Release files or Frontier
• MC Overlay can’t use just the default DB Release
• It doesn’t contain real data conditions
• So it is using Frontier
• Alastair: An unusual aspect to the overload is that it is actually bringing

down Frontier servers: reboot required !

•  try to understand cause of comatosis (more later on this)
• Could we use DB Release (for some/all conditions)? From Misha:
• Yes, sure it's possible to make DBRelease for these data
• DB access also could be mixed in any way (frontier + DB Release)
• Finding the folder list: main role of DBRelease-on-Demand system
• it's release and jobOption specific.
• Problem: is how distribute it.
• Before HOTDISK was used
• Now it should be CVMFS: requires new approach.
• DB Release size … can’t be known without studying
• Alastair:
• CVMFS likes small files, not large ones …

April 2014 E.Gallas 4

Conditions DB and Athena IOVDbSvc

• IOVDbSvc:
• gets conditions in a time window wider than the

actual request

• So each conditions retrieval contains probably a bit more

data than might be needed by the job

• This mechanism is generally very effective in reducing

subsequent queries in related time windows

 Unsure if this mechanism is helping here  It depends on if subsequent zero bias events in the

same job are in the Run/LB range of the retrieved conditions

April 2014 E.Gallas 5

MC Overlay task deployment

• Assumptions about how these tasks are deployed:
• Related jobs are (same MC process id) deployed to

specific sites (or clouds) and each requires a unique set of zero bias events over all the jobs

• Each of the “related” jobs
• Are in clouds using the same Squids and/or Frontier
• Accesses the conditions needed for the zero bias

events being overlayed

• The conditions being accessed is always distinct

 this completely undermines any benefit of Frontier

caching (queries are always unique)

• Multiply this by the hundred/thousand jobs in the

task, each retrieving distinct conditions

 obvious stress on the system

April 2014 E.Gallas 6

Query evaluation:

• Folder of interest: Identified via Frontier logs:
• ATLAS_COOLONL_TDAQ.COMP200_F0063_IOVS
• IOV: 1351385600000000000-1351390400000000000
• Evaluate this specific query:
• RunLB range: 213486 LB 612–700 (part of run 213486)
• Folder: COOLONL_TDAQ/COMP200

/TDAQ/OLC/BUNCHLUMIS

• IOV basis: TIME (not Run/LB)
• Channel Count: 4069
• channels retrieved generally less … depends on IOV
• Payload:
• RunLB (UInt63)
• AverageRawInstLum (Float)
• BunchRawInstLum (Blob64k) –> LOB !! Large Object !!
• Valid (UInt32)
• The query retrieves 2583 rows, each including LOBs
• number of rows >> number of LBs (~80)
• This is the nature of the folder being used

April 2014 E.Gallas 7

Bunch-wise Luminosity !

… more about LOBs …

Folder accessed has a LOB payload (Large Object)

• Back to COOL ( and via Frontier):
• LOB access from COOL
• not the same as access to other payload column types
• There is some more back/forth communication
• Between client (Frontier) and Oracle
• Rows are retrieved individually
• Always a question: can LOB access be improved ?
• Also: is there something about Frontier and LOBs
• Something that might cause the Frontier failure ?
• It doesn’t happen with single jobs
• Only seems to occur when loaded above a certain level

 no individual query in these jobs results in data

throughput beyond the system capacity

 it is somehow triggered by load

April 2014 E.Gallas 8

No system has infinite capacity

• General ATLAS Database Domain Goal:
• Develop and deploy systems which can deliver any

data in databases needed by jobs

• Even large volumes when needed
• In reality: Capacity, bandwidth, etc … are not infinite
• So consider ways to moderate requests but still satisfy

use cases

• This case, bunch-wise luminosity is being retrieved
• More channels are being retrieved than being used
• Inefficiency in the COOL callback mechanism
• Already planned improvement to folders for Run 2
• Thanks to Eric, Mika (lumi experts), Andy (MC

experts) for critical feedback

• I asked in email off-thread … answers on the next slide:
• Is bunch-wise luminosity really needed ?

April 2014 E.Gallas 9

Is bunch-wise lumi needed ?

• Andy:
• … not doing anything special for overlay for lumi info …

running standard reco … must be the default for standard reco of data as well … What's unusual for overlay is that each event can be from a different LB, whereas for data the events are mostly from the same LB within a job.

• Eric:
• Yes of course, and this could trigger the IOVDBSvc to

constantly reload this information for every event from COOL.

• … per-BCID luminosity … used by LAr as a part of

standard reco since (early) 2012 … used to predict the LAr noise as a function of position in the bunch train from

• ut of time pileup. I don't know exactly what happens in

the overlay job, but presumably it also accesses this information to find the right mix of events.

April 2014 E.Gallas 10

Attempt at a summary

Aspects of conditions implementation, usage and deployment all seem to conspire … no one smoking gun

• DB caching mechanisms:
• completely undermined by this pattern of access
• Software: using default reconstruction for luminosity
• Bunch-wise corrections needed for real data reco (Lar)
• NO problems with this in deployment – should not change !
• But is the default overkill for zero bias overlay ?
• Would the BCID average luminosity suffice (use different folder) ?
• Eliminates the need for LOB access in this use case
• Conditions DB/COOL and Frontier
• COOL side: no obvious culprit … BLOB sizes vary
• Frontier: Evaluate cause of failure w/ LOBs under high load
• Task deployment:
• DB Release option ? any other ideas ?
• Please be patient
• Must find the best overall long term solution for this case
• Without undermining software which is critical for other use cases
• Use this use case for studying the bottlenecks

April 2014 E.Gallas 11
