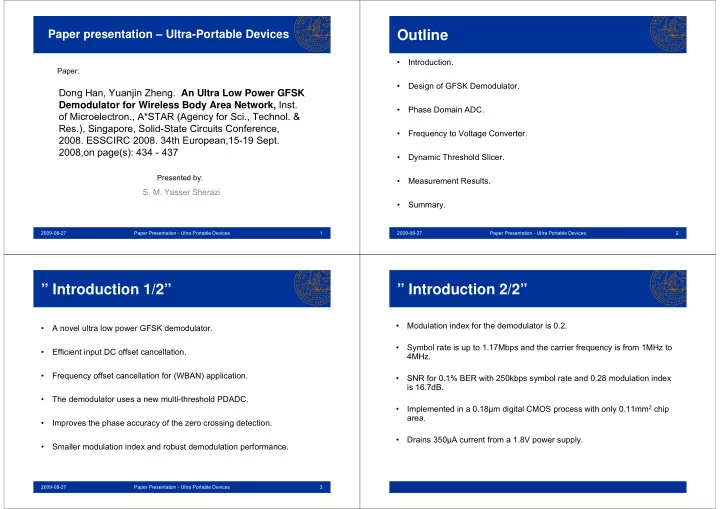

Paper presentation – Ultra-Portable Devices

Paper: Presented by:

Dong Han, Yuanjin Zheng. An Ultra Low Power GFSK Demodulator for Wireless Body Area Network, Inst.

  • f Microelectron., A*STAR (Agency for Sci., Technol. &

Res.), Singapore, Solid-State Circuits Conference,

  • 2008. ESSCIRC 2008. 34th European,15-19 Sept.

2008,on page(s): 434 - 437

  • S. M. Yasser Sherazi

2009-08-27 1 Paper Presentation - Ultra Portable Devices

Outline

  • Introduction.
  • Design of GFSK Demodulator.
  • Phase Domain ADC.
  • Frequency to Voltage Converter.
  • Dynamic Threshold Slicer.
  • Measurement Results.
  • Summary.

2009-08-27 2 Paper Presentation - Ultra Portable Devices

” Introduction 1/2”

  • A novel ultra low power GFSK demodulator.
  • Efficient input DC offset cancellation.
  • Frequency offset cancellation for (WBAN) application.
  • The demodulator uses a new multi-threshold PDADC.
  • Improves the phase accuracy of the zero crossing detection.
  • Smaller modulation index and robust demodulation performance.

2009-08-27 3 Paper Presentation - Ultra Portable Devices

” Introduction 2/2”

  • Modulation index for the demodulator is 0.2.
  • Symbol rate is up to 1.17Mbps and the carrier frequency is from 1MHz to

4MHz.

  • SNR for 0.1% BER with 250kbps symbol rate and 0.28 modulation index

is 16.7dB.

  • Implemented in a 0.18μm digital CMOS process with only 0.11mm2 chip

area.

  • Drains 350μA current from a 1.8V power supply.
slide-2
SLIDE 2

’’Design of GFSK’’

  • GFSK demodulator is a new kind of zero crossing based

demodulator.

  • Four main building blocks:

– The input PDADC, – One shot, – Low pass filter (LPF) and – Dynamic threshold slicer.

’Design of GFSK’’

  • PDAC

– Performs input DC offset cancellation – High accuracy zero crossing setection – Convets input differential analog FSK signal to high freq FSK pulse.

  • One Shot

– Regulates the width of the FSK pulse to a fixed value

’’Design of GFSK’’

  • LPF

– It averages the fixed width FSK pulse over the equal symbol period to produce the output voltage – Presenting the freq information of the carrier signal.

  • Threshold Slicer

– Makes binary decision on the LPF output to produce the demodulated data.

’’Design of GFSK”

  • The low-IF receiver front end and the GFSK demodulator.
slide-3
SLIDE 3

”The PDADC” ’’The Freq. to Voltage Converter’’

  • FVC consists of PDADC, one shot, and LPF.
  • PDADC has 60 degree phase accuracy and 3 thresholds.
  • High immunity to the input DC offset in PDADC.
  • Input freq 2MHz, output pulse train is 12MHz.
  • Input voltage range of 0.3V to 1.5V.
  • Cancels DC offset up to 550mV with 600MV peak to peak

signal swing.

’’The Freq. to Voltage Converter’’

  • One Shot circuit is a rising edge triggered pulse generator.
  • Pluse with can be turned from 5ns to 400ns.
  • For 2MHz input carrier frequency, TON is set to 50ns.
  • The LPF is a 2-stage 4th-order filter, bandwith of 800kHz.
  • The first stage is a 2nd-order passive RC LPF.
  • The second LPF is a single ended 2nd-order Gm-C

Butterworth low pass biquad

’’The Freq. to Voltage Converter’’

slide-4
SLIDE 4

’’The Dynamic Threshold Slicer’’

  • DTS is a single threshold SPADC without the output

combiner.

  • Transistors MR1,MR2, MS1, and MS2 are replaced by the high

threshold transistors to extend the holding time to 50μs.

  • DTS has a wide input range from 0.2V to 1.6V.
  • It can handle large DC offset of the LPF output.

’’Measurement Results’’

  • Measured carrier signal and demodulated data from DTS.

’’Measurement Results’’

  • Measured baseband data, Carrier, demodulated and

resampled data, and the extracted symbol rate (clk).

’’Measurement Results’’

  • Measured BER of the demodulator with 0.28 modulation

index.

slide-5
SLIDE 5

”Summary”

  • Due to multi thresolding in PDADC zero crossing is improved.
  • PDACD relaxes the LPF requirments for DC offset immunity.
  • Helps in achieving small area and low power.

2009-08-27 17 Paper Presentation - Ultra Portable Devices

”Papers to Look into”

  • Bo Xia, Chunyu Xin, Wenjun Sheng, Valero-Lopez A.Y., and

Sanchez- Sinencio E., "A GFSK demodulator for low-IF Bluetooth receiver,“ IEEE Journal of Solid-State Circuits, vol. 38, Aug. 2003, pp. 1397-1400.

  • Tai-Cheng Lee, and Chin-Chi Chen, "A mixed-signal GFSK

demodulator for Bluetooth," IEEE Transactions on Circuits and Systems–II, vol. 53, No. 3, Jun 2006, pp. 197-201.
