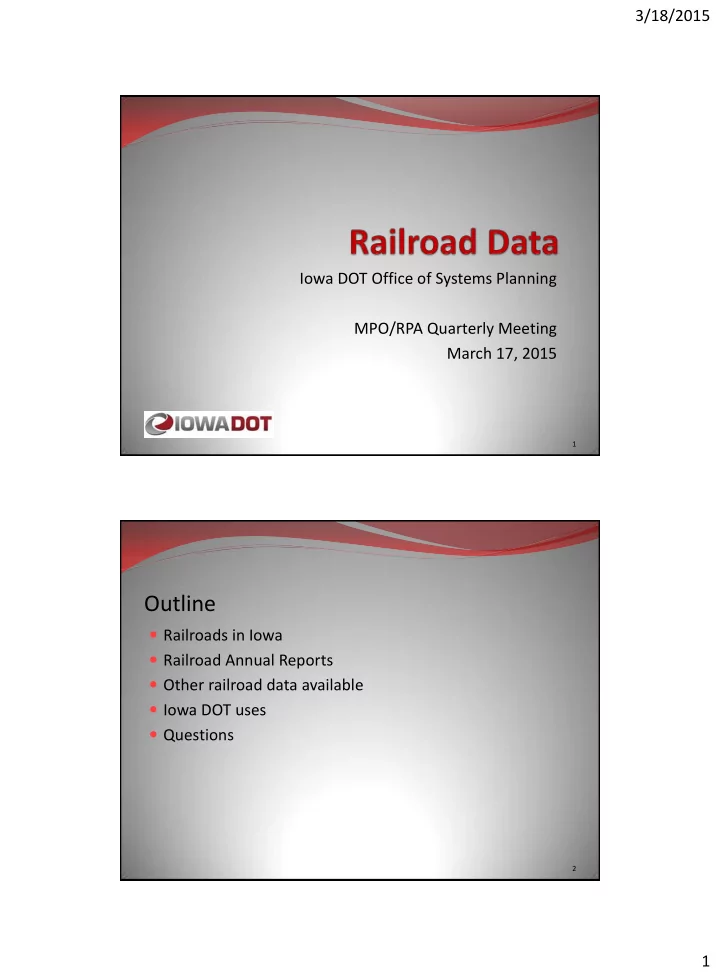

3/18/2015 1 Iowa DOT Office of Systems Planning MPO/RPA Quarterly Meeting March 17, 2015

1

Outline

 Railroads in Iowa  Railroad Annual Reports  Other railroad data available  Iowa DOT uses  Questions

2

3/18/2015 2

3

Railroad Companies in Iowa Total Miles Owned/ Leased Percent Of Total Miles Operated Under Trackage Rights Class I BNSF BNSF Railway 631 16.49 42 CC Chicago Central & Pacific Railroad* 522 13.64 CEDR Cedar River Railroad* 83 2.17 DME Dakota, Minnesota and Eastern Railroad** 654 17.09 2 NS Norfolk Southern Railway 7 0.18 37 UP Union Pacific Railroad 1,291 33.73 95 Subtotal 3,188 83.30 176 Class II IAIS Iowa Interstate Railroad 305 7.97 27 Subtotal 305 7.97 27 Class III APNC Appanoose County Community Railroad 35 0.91 BSV Boone & Scenic Valley Railroad 2 0.05 BJRY Burlington Junction Railway 5 0.13 CBEC CBEC Railway 6 0.16 CIC Cedar Rapids & Iowa City Railway 60 1.57 23 DAIR D & I Railroad 0.00 39 DWRV D& W Railroad 19 0.50 6 IANR Iowa Northern Railroad 145 3.79 35 IARR Iowa River Railroad 9 0.24 IATR Iowa Traction Railway 13 0.34 KJRY Keokuk Junction Railway 1 0.03 Subtotal 295 7.71 103 Other State of South Dakota 39 1.02 Total 3,825 100.00 306

4

3/18/2015 3

Railroad Annual Reports

 Iowa Code

 Chapter 800 ITEMS OF GENERAL APPLICATION TO RAILROADS  761-800.4(327C) Annual Reports

800.4(1) A railroad company submitting an annual report to the Surface Transportation Board under 49 CFR Part 1241 shall submit a copy of this report to the department no later than March 31 following the close of the calendar year. Included with this report shall be a “State Statistics” report which shall include the following: annual data on additions and deletions of mileage within the state; mileage operated within the state at the end of the year; railway operating revenues earned within the state; statistics on rail line

• perations within the state including locomotive unit-miles, car-miles and ton-miles; revenue freight

carried within the state by commodity class; and a freight density map showing gross ton-miles for the railroad company’s system within the state. 800.4(2) A railroad company not required to submit an annual report to the Surface Transportation Board under 49 CFR Part 1241 shall submit an annual report to the department on Form 010030 no later than March 31 following the close of the calendar year. This rule is intended to implement Iowa Code sections 327C.28, 327C.38, 327C.41 and 327C.43. 5

Form 010030

 Instructions sent

February 1st

 Due March 31st  Online tool

6

3/18/2015 4

Schedules

7

Schedule 400

Allocation Statistics

8

3/18/2015 5

Schedule 510

Operating Trackage - Iowa

9

Schedule 520

Recapitulation of Main Track Miles by County

10

3/18/2015 6

Schedule 600

Freight Density

11

Schedule 700 A

Freight Commodity Statistics

12

3/18/2015 7

Other data

 Rail line work  Rail facility information

 Grain elevators  Ethanol/biodiesel plants  Coal-burning power plants  Intermodal container facility

 Freight facility information

 Public warehousing  Barge terminals

 Other

 Bottleneck locations

 Future

 Transload locations

 iTRAM

13

iTRAM Statewide Model

 Update of original model  Passenger/freight rail model  Commodity freight flow model  Data is disaggregated to TAZ level  More to come

14

3/18/2015 8

DOT uses of the railroad data

 Databases  Annual railroad map updates

 Base  Service  Passenger service  Density  Biodiesel and ethanol facilities  Grain facilities  Chronology of abandonments

 Annual railroad trends document

15 16

3/18/2015 9

17 18

http://www.iowadot.gov/iowarail/railroads/industry/industry.htm

3/18/2015 10

19

1,000 2,000 3,000 4,000 5,000 6,000 7,000 8,000 9,000 10,000 11,000 12,000 Miles Year

Iowa Railway Mileage

Year Originated Tons in Millions Terminated Tons in Millions Farm Food Chem icals All Other Farm Food Chem icals Coal All Other 1995 21.4 11.7 1.6 5 9.4 2 3 18.3 5.1 1996 20.9 12.3 1.5 5.4 8.4 1.6 2.9 20.2 5.6 1997 14.2 11.9 1.7 5.3 6.3 1.9 3.1 18.2 5.8 1998 13.1 14 2.3 6.1 6.8 2.3 3.7 22.7 5.7 1999 15.8 14.8 2.3 6.1 7.8 2.2 3.7 24.4 6.4 2000 15.4 14.8 2.1 5.9 7 2 3.9 22.1 7 2001 17.5 16 1.8 4.3 5.5 2 3.8 22.8 6.2 2002 22 16 1.8 5 4.7 2.3 3.4 21.9 6.3 2003 23.4 17.3 2.4 5.9 3.7 2.3 3.6 22.8 6.6 2004 18.8 16.1 2.3 5.3 4.4 2.1 3.7 24.2 8.2 2005 20.8 18.3 2.7 5.5 4.3 2 4.1 21.9 7.7 2006 20.4 19.1 4.2 5.4 4.1 2 4 23.5 7.4 2007 18 17.9 5.1 6.5 3.1 1.9 4.4 26.4 7 2008 17.3 18.5 6.1 6.4 2.7 2 4.2 27.6 7.2 2009 13.4 19.4 6.1 4.6 3.8 2.3 3.2 25.4 5.1 2010 13.6 21.6 8.9 5.3 3.8 2.4 4.5 25.8 5.8 2011 13.2 22 9.3 5.5 4.1 2.6 5.4 25.6 5.2 2012 13.9 22.8 9.2 5.6 3.9 2.7 5 25.2 6.5 2013 6.3 21.9 9.5 11 4 2.4 4.8 20.3 6.1 5 10 15 20 25 30 35 40 45 50 55 60 65

Iowa Tonnage Movements

Originated Terminated 2008 2009 2010 2011 2012 2013 Tonnage 652,781 972,139 875,506 973,347 2,492,171 3,678,873

• 500,000

1,000,000 1,500,000 2,000,000 2,500,000 3,000,000 3,500,000 4,000,000

Tons

Crude Petroleum Tonnage Through Iowa

20

5,000 10,000 15,000 20,000 25,000 30,000 35,000 40,000 45,000 50,000 55,000 60,000 65,000 70,000 75,000 Total Passengers

Amtrak Ridership by Station

California Zephyr Burlington California Zephyr Mount Pleasant California Zephyr Ottumwa California Zephyr Osceola California Zephyr Creston Southwest Chief Fort Madison 10 20 30 40 50 Million Tons Year

Iowa Rail Movements Intrastate vs. Interstate

Within Iowa Iowa to Other States Other States to Iowa Employees by RR in Iowa Class Railroad Companies 2013 Class I Dakota, Minnesota & Eastern 318 Burlington Northern Santé Fe 830 Canadian National1 212 Chicago Central 191 Cedar River 212 Union Pacific 1,706 Norfolk Southern 18 Subtotal 3,084 Class II Iowa Interstate 182 Subtotal 182 Class III Appanoose County 5 Boone & Scenic Valley Railroad 4 Burlington Junction 17 CBEC Railway (b) Cedar Rapids & Iowa City 80 D & I Iowa Northern 101 Iowa River 1 Iowa Traction 3 Keokuk Junction 17 Subtotal 228 Total 3,494 Category Class I Class II Class III Number of Companies 33% 6% 61% Miles Operated 83% 8% 8% Tons Originated 72% 16% 12% Tons Terminated 88% 3% 9% Ton-Miles 91% 4% 5% Revenues Earned 94% 3% 3%
