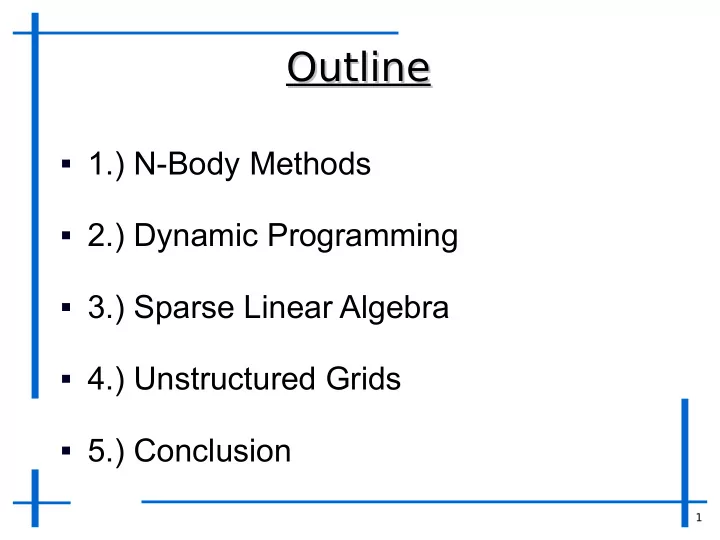

Outline Outline

 1.) N-Body Methods  2.) Dynamic Programming  3.) Sparse Linear Algebra  4.) Unstructured Grids  5.) Conclusion

N-Body Methods Overview

N-Body Methods

• Particle simulation

– Large number of simple entities – Each entity is dependent on each other – Regularly structured FP computations

• Xeon Phi offers acceptable performance

– Regularity leads to good auto-vectorization – Cache misses result in very high memory latency

• L1 misses mostly lead to L2 misses

N-Body platform comparison

Source: [3]

Dynamic Programming Overview

Dynamic Programming

• Problem is divided into smaller problems

– Each smaller (and simpler) problem is solved first – Results are combined to compute larger problems – Often used for sequence alignment algorithms

• Example: DNA Sequence Alignment

– Xeon Phi 5110P vs. 2 GPU configurations ( GeForce GTX 480, K20c )

• Outperforms GTX 480
• Reaches 74,3% performance compared to the K20c

– Computation heavily based on peak integer performance

• Xeon Phi has ~ 57,3 % peak integer performance of the K20c

Sparse Linear Algebra Overview

Sparse Linear Algebra

• Matrices with scattered non-zero entries
• Linear system solvers, Eigen solvers
• Different matrix structures

– Patterns can arise – Irregularities

• False predictions
• Vector registers contain zero entries

Case Study: Sparse MatrixVector Operations

• Large sparse matrix A
• Dense vector x
• Multiply-Add
• Simple instructions, large quantitiy
• Parallel execution
• Access patterns

Image Source: [2]

Bottleneck Considerations

Bandwidth limits Bandwidth limits

Memory bandwidth Memory bandwidth

SIMD efficiency

Vector register utilization

SIMD efficiency

Vector register utilization

Computation bandwidth Computation bandwidth

Core utilization Core utilization

Memory latency Memory latency

Algorithm Showcase

• CSR / SELLPACK

format

– Column blocks – Finite-Window sorting

• Adaptive load

balancing

Image Source: [1]

Evaluation: Effects of single improvements

Source: [1]

Evaluation: Platform comparison

Source: [1]

Matrices from the UFL Sparse Matrix Collection (/20)

Matrix 8 has much more non-zero entries than the rest.

Evaluation: Platform comparison

[Gflops/s] Based on data from [2]

Conclusion: Sparse Linear Algebra on Xeon Phi

• High potential in sparse linear algebra

– Wide vector registers – High number of cores

• Main problem points:

– Irregular access patterns – Sparse data structures – Memory latency high on L2 cache misses

• Performance extremely dependent on data

1 6

Unstructured Grids Unstructured Grids

Image Source: [4]

Image Source: [5]

Image Source: [6]

1 9

Unstructured Grids Unstructured Grids

• Partitioning the grid (few connections)
• Irregular acces-patterns

=> bad for auto-vectorization

• Software prefetching grid cells
• Ideal prefetch amount:

MM latency * MM bandwidth

2

Unstructured Grids Unstructured Grids

 Data races can not be determined

statically

 „loop over edges and accessing data on

edges“ => data races

2 1

Airfoil Benchmark Airfoil Benchmark

• 2D inviscid airfoil code
• considered bandwith bound
• 2,800,000 cell mesh

Image Source: [7]

2 2

Price $ # Cores Mem-Bandwidth double GFlops Last Level Cache

500 1000 1500 2000 2500 3000 3500

2 × Xeon E5-2680 Xeon Phi 5110P Tesla K40

Competitors Competitors

2 3

Airfoil on Xeon Phi Airfoil on Xeon Phi

 At the highest level:

Message Passing Protocol (MPI)

 At the lower level:

OpenMP + Vector intrinsics

2 4

Xeon Phi Benchmark graph Xeon Phi Benchmark graph

Image Source: [8]

2 5

Benchmark graph Benchmark graph

Image Source: [8]

2 6

Unstructured Grids conclusion Unstructured Grids conclusion

 Benchmark probably not fair (price)  DO manual Vectorization:

Speedup 1.7-1.82

 Use MPI +

+ OpenMP

2 7
