OpenStack performance optimization NUMA, Large pages & CPU pinning Daniel P. Berrang <berrange@redhat.com> About me Contributor to multiple virt projects Libvirt Developer / Architect 8+ years OpenStack contributor 2 years

slide-1
SLIDE 1

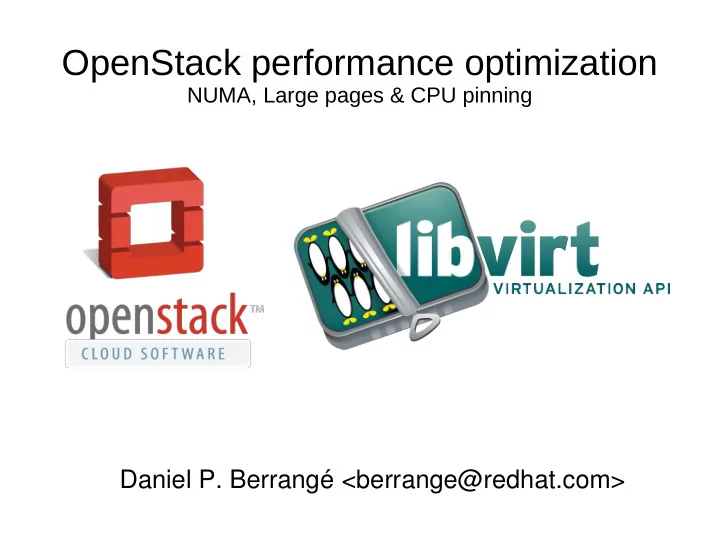

OpenStack performance optimization

NUMA, Large pages & CPU pinning

Daniel P. Berrangé <berrange@redhat.com>

slide-2
SLIDE 2

KVM Forum 2014: Düsseldorf

About me

  • Contributor to multiple virt projects
  • Libvirt Developer / Architect 8+ years
  • OpenStack contributor 2 years
  • Nova Core Team Reviewer
  • Focused on Nova libvirt + KVM integration
slide-3
SLIDE 3

KVM Forum 2014: Düsseldorf

Talk Structure

  • Introduction to OpenStack
  • NUMA config
  • Large page config
  • CPU pinning
  • I/O devices
slide-4
SLIDE 4

KVM Forum 2014: Düsseldorf

What is OpenStack ?

  • Public or private cloud
  • Multiple projects (compute, network, block

storage, image storage, messaging, ....)

  • Self-service user API and dashboard
slide-5
SLIDE 5

KVM Forum 2014: Düsseldorf

What is OpenStack Nova?

  • Execution of compute workloads
  • Virtualization agnostic

– Libvirt (KVM, QEMU, Xen, LXC), XenAPI, Hyper-V,

VMware ESX, Ironic (bare metal)

  • Concepts

– Flavours, instances, image storage, block storage,

network ports

slide-6
SLIDE 6

KVM Forum 2014: Düsseldorf

Nova approach

  • Cloud infrastructure administrators

– Flavours for VM instance policy – Minimal host provisioning / setup – No involvement in per-VM setup

  • Guest instance users

– Preferences via image metadata – No visibility of compute hosts / hardware

slide-7
SLIDE 7

KVM Forum 2014: Düsseldorf

Nova architecture (simplified)

nova-api AMQP nova-compute Libvirt+KVM nova-scheduler nova-conductor HTTP REST API Database

slide-8
SLIDE 8

KVM Forum 2014: Düsseldorf

Current VM scheduling

  • VM scheduler has multiple filters
  • Filters applied to pick compute host
  • Overcommit of RAM and CPUs
  • VMs float across shared resources
  • Assignment of I/O devices (PCI)
slide-9
SLIDE 9

KVM Forum 2014: Düsseldorf

Scheduling goals

  • Motivation: Network function virt (NFV)

– Support “dedicated resource” guest – Support predictable / low latency

  • Motivation: Maximise hardware utilization

– Avoid inefficient memory access on NUMA

slide-10
SLIDE 10

KVM Forum 2014: Düsseldorf

NUMA

  • Factors for placement

– Memory bandwidth & access latency – Cache efficiency – Locality of I/O devices

  • Goal – small guests

– Fit entirely within single host node

  • Goal – large guests

– Define virtual NUMA topology – Fit each guest node within single host node

slide-11
SLIDE 11

KVM Forum 2014: Düsseldorf

libvirt host resource info

<capabilities> <host> <topology> <cells num='2'> <cell id='0'> <memory unit='KiB'>4047764</memory> <pages unit='KiB' size='4'>999141</pages> <pages unit='KiB' size='2048'>25</pages> <distances> <sibling id='0' value='10'/> <sibling id='1' value='20'/> </distances> <cpus num='4'> <cpu id='0' socket_id='0' core_id='0' siblings='0'/> <cpu id='1' socket_id='0' core_id='1' siblings='1'/> <cpu id='2' socket_id='0' core_id='2' siblings='2'/> <cpu id='3' socket_id='0' core_id='3' siblings='3'/> </cpus> </cell> <cell id='1'>....

slide-12
SLIDE 12

KVM Forum 2014: Düsseldorf

Nova NUMA config

  • Property for number of guest nodes

– Default: 1 node – hw:numa_nodes=2

  • Property to assign vCPUS/RAM to guest nodes

– Assume symmetric by default – hw:numa_cpu.0=0,1 – hw:numa_cpu.1=2,3,4,5 – hw:numa_mem.0=500 – hw:numa_mem.1=1500

  • NO choice of host node assigment
slide-13
SLIDE 13

KVM Forum 2014: Düsseldorf

NUMA impl

  • Scheduling

– Hosts NUMA topology recorded in DB – VM Instance placement recorded in DB – Filter checks host load to identify target – Schedular records NUMA topology in DB – Compute node starts VM with NUMA config

slide-14
SLIDE 14

KVM Forum 2014: Düsseldorf

libvirt NUMA config

  • VCPUs pinned to specific host NUMA nodes
  • VCPUs float within host NUMA nodes
  • Emulator threads to union of vCPU threads

<vcpu placement='static'>6</vcpu> <cputune> <vcpupin vcpu="0" cpuset="0-1"/> <vcpupin vcpu="1" cpuset="0-1"/> <vcpupin vcpu="2" cpuset="4-7"/> <vcpupin vcpu="3" cpuset="4-7"/> <vcpupin vcpu="4" cpuset="4-7"/> <vcpupin vcpu="5" cpuset="4-7"/> <emulatorpin cpuset="0-1,4-7"/> </cputune>

slide-15
SLIDE 15

KVM Forum 2014: Düsseldorf

Libvirt NUMA config

  • VCPUS + RAM regions assigned to guest NUMA nodes
  • RAM in guest NUMA nodes pinned to host NUMA nodes

<memory>2048000</memory> <numatune> <memory mode='strict' nodeset='0-1'/> <memnode cellid='0' mode='strict' nodeset='0'/> <memnode cellid='1' mode='strict' nodeset='1'/> </numatune> <cpu> <numa> <cell id='0' cpus='0,1' memory='512000'/> <cell id='1' cpus='1,2,3,4' memory='1536000'/> </numa> </cpu>

slide-16
SLIDE 16

KVM Forum 2014: Düsseldorf

Large pages

  • Factors for usage

– Availability of pages on hosts – Page size vs RAM size – Lack of over commit

  • Goals

– Dedicated RAM resource – Maximise TLB efficiency

slide-17
SLIDE 17

KVM Forum 2014: Düsseldorf

Large page config

  • Property for page size config

– Default to small pages (for over commit)

– hw:mem_page_size=large|small|any|2MB|1GB

slide-18
SLIDE 18

KVM Forum 2014: Düsseldorf

Large page impl

  • Scheduling

– Cloud admin sets up host group – NUMA record augmented with large page info – Filter refines NUMA decision for page size

slide-19
SLIDE 19

KVM Forum 2014: Düsseldorf

libvirt large page config

  • Page size set for each guest NUMA node

<memoryBacking> <hugepages> <page size='2' unit='MiB' nodeset='0-1'/> <page size='1' unit='GiB' nodeset='2'/> </hugepages> </memoryBacking>

slide-20
SLIDE 20

KVM Forum 2014: Düsseldorf

CPU pinning

  • Factors for usage

– Efficiency of cache sharing – Contention for shared compute units

  • Goals

– Prefer hyperthread siblings for cache benefits – Avoid hyperthread siblings for workload

independence

– Dedicated CPU resource

slide-21
SLIDE 21

KVM Forum 2014: Düsseldorf

CPU pinning config

  • Property for dedicated resource

– hw:cpu_policy=shared|dedicated – hw:cpu_threads_policy=avoid|separate|isolate|

prefer

slide-22
SLIDE 22

KVM Forum 2014: Düsseldorf

CPU pinning impl

  • Scheduling

– Cloud admin sets up host group – NUMA info augmented with CPU topology – Filter refines NUMA decision with topology

slide-23
SLIDE 23

KVM Forum 2014: Düsseldorf

libvirt CPU pinning config

  • Strict 1-to-1 pinning of vCPUs <-> pCPUs
  • Emulator threads pinned to dedicated CPU

<cputune> <vcpupin vcpu="0" cpuset="0"/> <vcpupin vcpu="1" cpuset="1"/> <vcpupin vcpu="2" cpuset="4"/> <vcpupin vcpu="3" cpuset="5"/> <vcpupin vcpu="4" cpuset="6"/> <vcpupin vcpu="5" cpuset="7"/> <emulatorpin cpuset="2"/> </cputune>

slide-24
SLIDE 24

KVM Forum 2014: Düsseldorf

I/O devices

  • Factors for usage

– Locality of PCI device to NUMA node – Connectivity of PCI network interface

  • Goals

– Assign PCI device on local NUMA node

slide-25
SLIDE 25

KVM Forum 2014: Düsseldorf

Libvirt device info

<device> <name>pci_0000_80_16_7</name> <path>/sys/devices/pci0000:80/0000:80:16.7</path> <capability type='pci'> <domain>0</domain> <bus>128</bus> <slot>22</slot> <function>7</function> <product id='0x342c'>5520/5500/X58 Chipset QuickData Technology</product> <vendor id='0x8086'>Intel Corporation</vendor> <iommuGroup number='25'> <address domain='0x0000' bus='0x80' slot='0x16' function='0x0'/> </iommuGroup> <numa node='1'/> <pci-express/> </capability> </device>

slide-26
SLIDE 26

KVM Forum 2014: Düsseldorf

I/O device impl

  • Scheduling

– Hosts record locality of PCI devices in DB – Filter refines NUMA decision for device

  • Guest config

– TBD: Tell guest BIOS NUMA locality of PCI dev

slide-27
SLIDE 27

https://wiki.openstack.org/wiki/VirtDriverGuestCPUMemoryPlacement http://people.redhat.com/berrange/kvm-forum-2014/ http://libvirt.org - http://openstack.org
