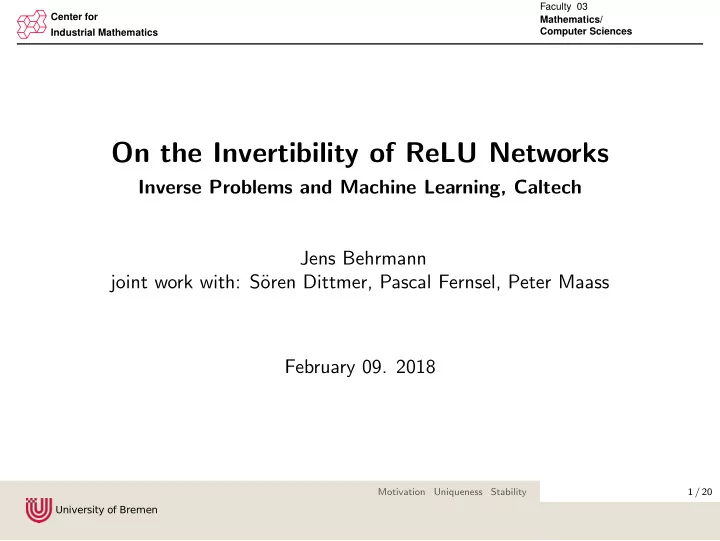

Faculty 03 Center for Mathematics/ Computer Sciences Industrial Mathematics On the Invertibility of ReLU Networks Inverse Problems and Machine Learning, Caltech Jens Behrmann joint work with: S oren Dittmer, Pascal Fernsel, Peter Maass

slide-1
SLIDE 1

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

On the Invertibility of ReLU Networks

Inverse Problems and Machine Learning, Caltech Jens Behrmann joint work with: S¨

  • ren Dittmer, Pascal Fernsel, Peter Maass

February 09. 2018

U

n i v e r s i t y

  • f

B re m e n 1 / 20 Motivation Uniqueness Stability

slide-2
SLIDE 2

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Motivation: Inverting a network

Reconstruct input x from features 1 z∗ ≈ F(x), F : Rd → RD, MLP or CNN x∗ ∈ Rd input z∗ ∈ RD features, z∗ = F(x∗)

600 800 1000 1200 1400 1600 1800 2000 2200 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 2.2 10 -3

Further applications: Inverse problems with learned forward operators Theoretical understanding ...

1Mahendran et al. 2015: Understanding deep image representations by inverting them

U

n i v e r s i t y

  • f

B re m e n 2 / 20 Motivation Uniqueness Stability

slide-3
SLIDE 3

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Main Questions

1 How is information lost during propagation?

Pre-images of ReLU layers

2 Is the inverse mapping stable/ instable?

Singular values of linearization

Related work: Invertibility via assumptions of random weights2,3 Injectivity and stability of ReLU and pooling4

2Giryes et al. 2016: DNN with Random Gaussian Weights: A Universal Classification Strategy? 3Arora et al. 2015: Why are deep nets reversible: a simple theory, with implications for training 4Bruna et al. 2014: Signal Recovery from Pooling Representations

U

n i v e r s i t y

  • f

B re m e n 3 / 20 Motivation Uniqueness Stability

slide-4
SLIDE 4

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Injectivity, Pre-images, Activation functions

Combinatorial conditions for injectivity under ReLU 5

Definition (Retrieval, singleton pre-images)

A ∈ Rm×n, b ∈ Rm. Then, (A, b) does retrieval under ReLU for x ∈ Rn if the pre-image of ReLU(Ax + b) is a singleton. Remark: Other activation functions like ELU, leakyReLU, tanh injective cReLU injective if A is frame 6

5Bruna et al. 2014: Signal Recovery from Pooling Representations 6Shang et al. 2016: Understanding and Improving Convolutional Neural Networks via

Concatenated Rectified Linear Units

U

n i v e r s i t y

  • f

B re m e n 4 / 20 Motivation Uniqueness Stability

slide-5
SLIDE 5

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Equality and Inequality Systems

A|y>0x + b|y>0 = y|y>0 A|y=0x + b|y=0 ≤ 0. Consider the two cases N(A|y>0) = {0} and N(A|y>0) = {0} A|y≤0(PN (A|y>0)⊥x + PN (A|y>0)x) + b|y≤0 ≤ 0 Rewrite it into: Ax + b ≤ 0

U

n i v e r s i t y

  • f

B re m e n 5 / 20 Motivation Uniqueness Stability

slide-6
SLIDE 6

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Definition (Omnidirectional)

A ∈ Rm×n is called omnidirectional if ∃!x : Ax ≤ 0.

Corollary

The following statements are equivalent:

1 A ∈ Rm×n is omnidirectional. 2 Every linear open halfspace contains a row of A. 3 Ax ≤ 0 implies x = 0, where x ∈ Rn.

U

n i v e r s i t y

  • f

B re m e n 6 / 20 Motivation Uniqueness Stability

slide-7
SLIDE 7

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Definition (Omnidirectional for point)

A ∈ Rm×n is called omnidirectional if ∃!x : Ax ≤ 0. A ∈ Rm×n and b ∈ Rm is called omnidirectional for the point p ∈ Rn if b = −Ap and A omnidirectional.

p

U

n i v e r s i t y

  • f

B re m e n 7 / 20 Motivation Uniqueness Stability

slide-8
SLIDE 8

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Theorem (Unique solutions of inequality system)

Let Ax + b ≤ 0 have a solution x0. Then this solution is unique iff there exists an index set, I, for the rows s.t. (A|I, b|I) is omnidirectional for x0. Realistic?

p

U

n i v e r s i t y

  • f

B re m e n 8 / 20 Motivation Uniqueness Stability

slide-9
SLIDE 9

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Pre-Image finite or infinite?

U

n i v e r s i t y

  • f

B re m e n 9 / 20 Motivation Uniqueness Stability

slide-10
SLIDE 10

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Pre-Image finite or infinite?

Theorem (Convex hull)

A ∈ Rm×n is omnidirectional iff 0 ∈ Conv(A)o, where Conv(A)o is the interior of the convex hull, spanned by the rows of A.

U

n i v e r s i t y

  • f

B re m e n 9 / 20 Motivation Uniqueness Stability

slide-11
SLIDE 11

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Singleton / Finite / Infinite

Setup: 2 layer MLP on MNIST, (3500, 784) neurons

1 Count number of positive outputs (> 784 singleton) 2 Projection onto Null-Space of equality system 3 Check for omnidirectionality via linear programming (convex hull as

side-condition)

U

n i v e r s i t y

  • f

B re m e n 10 / 20 Motivation Uniqueness Stability

slide-12
SLIDE 12

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Singleton / Finite / Infinite

Setup: 2 layer MLP on MNIST, (3500, 784) neurons

1 Count number of positive outputs (> 784 singleton) 2 Projection onto Null-Space of equality system 3 Check for omnidirectionality via linear programming (convex hull as

side-condition)

300 400 500 600 723 900 1,000 10 20 30 40 784 infinite singleton in-/finite # positive outputs # (in-)finite pre-image Finite Infinite

U

n i v e r s i t y

  • f

B re m e n 10 / 20 Motivation Uniqueness Stability

slide-13
SLIDE 13

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Stability - Locally Linear

Theorem (Linear functions on convex polytopes 7)

The input space Rd of a ReLU network F is partitioned into convex polytopes PF, where for P ∈ PF F(x) = APx + bP, ∀x ∈ P. (1)

7Raghu et al. 2017: On the Expressive Power of Deep Neural Networks

U

n i v e r s i t y

  • f

B re m e n 11 / 20 Motivation Uniqueness Stability

slide-14
SLIDE 14

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Stability - Simplifications

Assume: x ∈ P known (for reconstruction of x given a output z∗ of the network F) Analyze: Stability of linearization using singular values σmin, σmax: σminx − x′2 ≤ AP(x − x′)2 ≤ σmaxx − x′2, x, x′ ∈ P ∩ N(AP)⊥

Source: Raghu et al. 2017: On the Expressive Power of Deep Neural Networks

U

n i v e r s i t y

  • f

B re m e n 12 / 20 Motivation Uniqueness Stability

slide-15
SLIDE 15

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Stability - ReLU as Diagonal Matrix

Linearization AP of a network with L layers can be written as 8 AP = ALDI L−1AL−1 · · · DI 1A1, where Dii =

  • 1, i ∈ I

0, i ∈ I . → Removal of rows due to ReLU

  • x
  • 8Wang et al. 2016: Analysis of deep neural networks with extended data jacobian matrix
U

n i v e r s i t y

  • f

B re m e n 13 / 20 Motivation Uniqueness Stability

slide-16
SLIDE 16

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Lemma (Removal of weakly correlated rows)

A ∈ Rm×n with rows aj and I ⊆ [m]. For a fixed k ∈ I let ak ∈ N(DIA)⊥. Moreover, let ∀j ∈ I : |aj, ak| ≤ c ak2 √ M , where M = m − |I| and constant c > 0. Then for the singular values σl = 0 of DIA: 0 < σK = min{σl : σl = 0} ≤ c

  • x
  • U

n i v e r s i t y

  • f

B re m e n 14 / 20 Motivation Uniqueness Stability

slide-17
SLIDE 17

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Numerical Experiments

Convolutional Networks (CNN) fit the theoretical framework Linearization via backpropagation w.r.t. input Full SVD for different layers/ samples (nonlinear!) Small CNN on CIFAR10

Type kernel size stride # feature maps # output units Conv layer (3,3) (1,1) 32

  • Conv layer

(3,3) (2,2) 64

  • Conv layer

(3,3) (1,1) 64

  • Conv layer

(3,3) (1,1) 32

  • Conv layer

(3,3) (1,1) 32

  • Conv layer

(3,3) (2,2) 64

  • Dense layer
  • 512

Dense layer

  • 10
U

n i v e r s i t y

  • f

B re m e n 15 / 20 Motivation Uniqueness Stability

slide-18
SLIDE 18

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Effect of ReLU

500 1000 1500 2000 2500 3000 3500 Index of singular value 10−4 10−3 10−2 10−1 100 101 102 Singular value

Layer 3 Layer 4 Layer 9 Layer 10

U

n i v e r s i t y

  • f

B re m e n 16 / 20 Motivation Uniqueness Stability

slide-19
SLIDE 19

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Decay over Layers

500 1000 1500 2000 2500 3000 3500 Index of singular value 10−4 10−3 10−2 10−1 100 101 102 Singular value

Layer 1 Layer 2 Layer 3 Layer 4 Layer 5 Layer 6

U

n i v e r s i t y

  • f

B re m e n 17 / 20 Motivation Uniqueness Stability

slide-20
SLIDE 20

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Trade-off: Stability vs. Information Loss

5000 10000 15000 20000 25000 30000 35000 size of output 102 103 104 # singular values 1 2 3 4 5 6 7 8 9 10 11 # layers 100 101 102 103 104 105 106 condition

U

n i v e r s i t y

  • f

B re m e n 18 / 20 Motivation Uniqueness Stability

slide-21
SLIDE 21

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Conclusion and Outlook

Approach to better understand invertibility of deep ReLU networks Condition if pre-image of a layer is singleton, finite or infinite Stability analysis via SVD of linearization

U

n i v e r s i t y

  • f

B re m e n 19 / 20 Motivation Uniqueness Stability

slide-22
SLIDE 22

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Conclusion and Outlook

Approach to better understand invertibility of deep ReLU networks Condition if pre-image of a layer is singleton, finite or infinite Stability analysis via SVD of linearization Next steps: Theory for CNNs, residual connections, ... Dropping linearity assumption Connection to stability analysis in context of adversarial examples ...

U

n i v e r s i t y

  • f

B re m e n 19 / 20 Motivation Uniqueness Stability

slide-23
SLIDE 23

Center for Industrial Mathematics Faculty 03 Mathematics/ Computer Sciences

Thank you for your attention!

Joint work with: S¨

  • ren Dittmer

Pascal Fernsel Peter Maass

U

n i v e r s i t y

  • f

B re m e n 20 / 20 Motivation Uniqueness Stability
