NSF ATE National Center for Nanotechnology Applications and Career Knowledge NACK Center NMT Structure Terry Kuzma NMT Instructor Outline Program Mission Logistics / Schedule Key Technology Projects Questions? 2 Program

slide-1
SLIDE 1

Terry Kuzma NMT Instructor

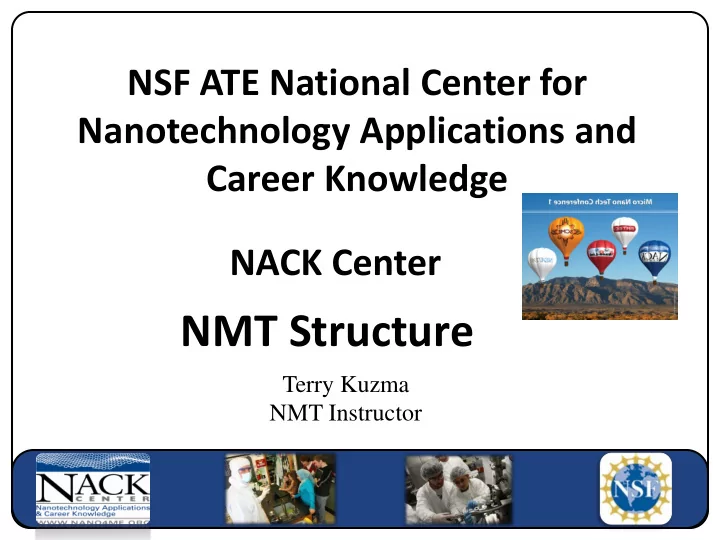

NSF ATE National Center for Nanotechnology Applications and Career Knowledge NACK Center

NMT Structure

slide-2
SLIDE 2

2

Outline

  • Program Mission
  • Logistics / Schedule
  • Key Technology
  • Projects
  • Questions?
slide-3
SLIDE 3

3

Program Mission

  • The objective of the NMT program is to develop the

knowledge base necessary for the manufacture of any micro- and nano-scale product.

  • A major focus is solving problems and projects in a

professional manor.

  • The students must be familiar with the materials,

processing equipment, characterization equipment, engineering strategy, scale, cost, and group problem solving techniques. If these goals are met, graduates are prepared for many career paths in nanofabrication.

slide-4
SLIDE 4

Basic Nanotechnology EHS Awareness

Basics of Chemical and Material Properties

Chemical and Materials Handling

Nanotechnology Health, Safety, and Environmental issues Nanotechnology Equipment and Processing Foundation Skills

Cleanroom Use, Design, and Maintenance

Pumps, Flow Control Systems, Scrubbers, Sensors: Use and Maintenance

Vacuum Systems: Use and Maintenance

Chemical Hoods and Glove Boxes: Use and Maintenance

Plasma Generating Systems: Use and Maintenance

Furnaces: Use and Maintenance

Chemical Reaction Systems: Use and Maintenance

Contamination Control

Process Integration

Introduction to Statistical Process Control Nanotechnology Pattern Transfer Foundation Skills

Optical, e-beam, stamping, and imprinting lithography

Block co-polymer and SAM techniques Nanotechnology Fabrication Skills

Top-down Fabrication

Reactive Ion, Sputter, and Wet Etching

Chemical Vapor and Physical Vapor Deposition Systems

Ion Beam, Plasma-Based, and Chemical Materials Modification

Bottom-up Fabrication

Chemical, Physical, and Biological Self-Assembly

Nanoparticles: Colloidal Chemistry

Nanoparticles: Plasma and Grinding/Milling Approaches

Nanoparticles: Chemical Vapor Deposition

Nanotechnology Characterization Skills

Optical Microscopy

Scanning Probe Microscopy

Atomic Force Microscopy

Electron Microscopy

Scanning Electron Microscopy (SEM and FE-SEM)

Transmission Electron Microscopy (TEM and FE-TEM)

Chemical Characterization

X-ray (EDS)

Secondary Ion Mass Spectroscopy

Auger Electron Spectroscopy

Fourier Transform Infrared Spectroscopy

Electrical Characterization

Current-Voltage Measurements

Capacitance Measurements

Opto-electronic Device Measurements

Physical Characterization

Spectrophotometer

Profilometer

X-ray Diffraction

Nanotechnology Professional Skills

Team Building

Problem Solving

Project Organization and Planning

Research Skills

Assessing Cost of Ownership

Presentation Skills

Technical Reporting and Documentation

NACK Nano-Technician Skills

slide-5
SLIDE 5

5

Program Mission

  • To integrate the diverse skills necessary for

nanofabrication, students regularly analyze cost effective engineering design strategies for nanoscale products.

  • Students are in lab for half of the contact hours
  • By integrating the diverse lectures, labs and projects,

the students can be productive in many disciplines.

slide-6
SLIDE 6

6

Outline

  • Program Mission
  • Logistics / Schedule
  • Key Technology
  • Projects
  • Questions?
slide-7
SLIDE 7

7

Logistics / Schedule

  • The students split their time in three distinct areas

for 18 credit hours, (16 weeks, 6+ hours per day)

  • Lab activities occur either in the morning or

afternoon and are approximately 3 hours in duration

– Lab time includes experiments, system demos, and

  • training. All labs have pre-lab quizzes, homework

questions, and addition references on the specific technology

  • Lecture everyday from noon – 3:00
  • Homework, research projects
slide-8
SLIDE 8

8

Outline

  • Program Mission
  • Logistics / Schedule
  • Key Technology
  • Projects
  • Questions?
slide-9
SLIDE 9

9

Key Technology

  • ESci 211/212

– These 2 courses provide an overview of the materials, safety, equipment, and processing sequences involved in “top down” and “bottom up” and hybrid nanofabrication – Safety, cleanroom protocol, contamination, vacuum technology, self assembly, process system design, materials, etch systems, deposition systems, cost of ownership, process flow for nanofabricated devices

slide-10
SLIDE 10

10

Key Technology

  • ESci 213/214

– Pattern generation, and material applications – Hands-on experience with colloidal chemistry, plasma etch and plasma deposition, and lithography techniques – Group research project on an unique subset of nanofabrication

slide-11
SLIDE 11

11

Key Technology

  • ESci 215/216

– Specific material properties and processes will be examined for their contribution to the field of composites, biotechnology, and energy applications – Characterization system design, and characterization techniques – Final design project on a specific product

  • This allows students to integrate and review

the technology

slide-12
SLIDE 12

12

Outline

  • Program Mission
  • Logistics / Schedule
  • Key Technology
  • Projects
  • Questions?
slide-13
SLIDE 13

13

Projects

  • One of the first questions from an industry partner

is; “Do they work in groups?”

  • The first project (211/212) is a short review paper
  • This project allows the students to meet, and

function in group problem solving. This project takes the least amount of time because the students are learning the critical basics

  • At this time, the students are building a technical

foundation, so this is the least intensive project

slide-14
SLIDE 14

14

Projects

  • The second project (213/214) is a randomly

assigned.

  • Typical topics are:

– Microfluidic channel physics, optical coatings, characterization equipment, colloids/self assembly, materials for data storage, purchase of process equipment, FESEM analysis, etc…………

slide-15
SLIDE 15

15

Projects

  • The 213/214 project allows students to analyze a

technical problem, develop group skills, and presentation format

  • The students are required to give a power point

presentation that is graded by their peers, they grade group members, and the written report is graded by the instructor

  • A key issue is the students ability to undertake

diverse topics with success. This instill confidence to tackle any nanofabrication project

slide-16
SLIDE 16

16

Projects

  • The final project is a design project that integrates

the labs experiences to develop a unique device

  • This allows the students to review completed labs.
  • Grading is done similarly to the second project
  • Currently the goal is to create a simulation of all the

process steps to create a DNA PCR chip, prosthetic device, hydrogen fuel cell, nano-sensors, or a PV cell

  • This project is the part of the “final exam” for

215/216

slide-17
SLIDE 17

17

Projects

  • To complete the final project, students satisfy the

goal of the program

  • The teams must be well versed in common

nanofabrication materials, processing equipment, characterization equipment, engineering strategy, scale, cost, and group problem solving techniques. This hands on view of the nanofabrication work environment allows graduates appreciate specific career paths

  • This set of integrated tasks and projects assures the

program goal is met

slide-18
SLIDE 18

18

Outline

  • Program Mission
  • Logistics / Schedule
  • Key Technology
  • Projects
  • Questions?
slide-19
SLIDE 19

NACK CONTACTS

Stephen J. Fonash Director 112 Lubert Building 814-865-4931 sfonash@psu.edu Osama Awadelkarim Associate Director 407D EES Building 814-863-7697

  • oaesm@engr.psu.edu

Terry Kuzma NMT Instructor 114 Lubert Building 814-863-5484 txk107@psu.edu Dave Johnson Laboratory Coordinator 114 Lubert Building 814-865-3019 duj123@psu.edu Sebastien Maeder Outreach / Research Associate 114 Lubert Building 814-867-2948 abm123@psu.edu Lisa Daub Administrative Assistant 112 Lubert Building 814-865-9635 ldaub@engr.psu.edu Susan Barger Administrative Support Assistant 112 Lubert Building 814-863-2955 sbarger@engr.psu.edu Robert Ehrmann Director of Education & Outreach 112 Lubert Building 814-865-7558 rke2@psu.edu Bringing Nanotechnology to Education & Industry! www.nano4me.org/PaNMT
