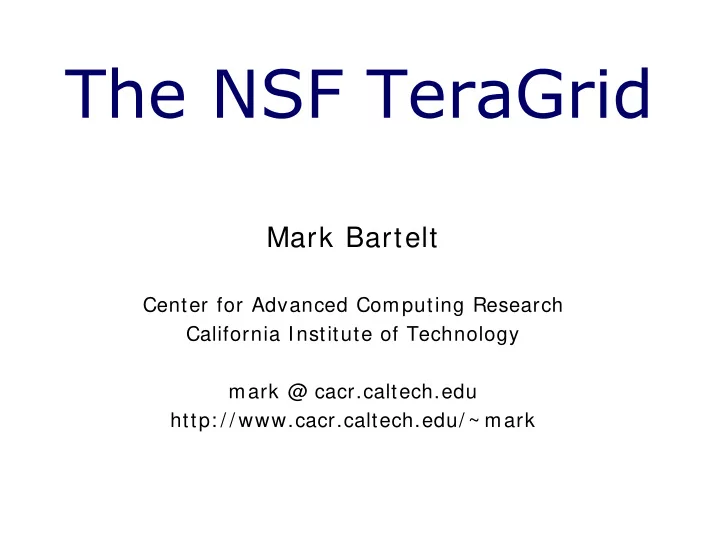

slide-1
SLIDE 1

Mark Bartelt

Center for Advanced Computing Research California Institute of Technology mark @ cacr.caltech.edu http: / / www.cacr.caltech.edu/ ~ mark

slide-2
SLIDE 2

Grid Computing: Hype? Or Buzzword?

slide-3
SLIDE 3

History Current Status Future Directions

slide-4
SLIDE 4

History

  • PACI (Partnerships for Advanced

Computational Infrastructure)

  • TCS (Terascale Computing

System)

  • DTF (Distributed Terascale Facility)
  • ETF (Extended Terascale Facility)
slide-5
SLIDE 5

PACI Program: NPACI (National Partnership for Advanced Computational Infrastructure)

  • San Diego Supercomputer Center

(SDSC)

  • University of Texas
  • University of Michigan
  • Caltech
  • (others …

)

slide-6
SLIDE 6

PACI Program: The Alliance (National Computational Science Alliance)

  • National Center for Supercomputing

Applications (NCSA)

  • Argonne National Laboratory
  • University of Wisconsin
  • Boston University
  • University of Tennessee, Knoxville
  • University of Kentucky
  • Caltech [ recently]
  • (many, many others …

)

slide-7
SLIDE 7

TCS (Terascale Computing System)

  • At Pittsburgh Supercomputing Center
  • Funded in 2000
  • Fully deployed in 2001
  • 6 Tflop system (750 quad-processor

Alpha nodes)

slide-8
SLIDE 8

Distributed TeraScale Facility (DTF)

  • Proposal submitted April 2001
  • Three-year program
  • Four DTF partners:

– NCSA – SDSC – Argonne National Laboratory (ANL) – Caltech

slide-9
SLIDE 9

DTF TeraGrid

  • IA64-based Linux clusters at four sites
  • Myrinet for intra-cluster connections
  • High-bandwidth inter-site interconnect

(10 Gbit between every pair of sites)

  • Lots of storage
  • Grid services based on Globus
slide-10
SLIDE 10

Future TeraGrid Authentication Mechanism?

slide-11
SLIDE 11

Goals (Measures of Success)

  • New Science

– Provide New Capabilities through:

  • Site capabilities that are more powerful than existing PACI resources
  • Combine site resources into a coordinated system

– To enable:

  • Existing PACI users to deepen their science
  • New users - problems not feasible with today’s PACI resources, require

a grid

  • Build an Extensible Grid

– Design principles assume heterogeneity and > 4 sites

  • A Grid hierarchy similar to Internet hierarchy

– multiple types, with smaller number of “tightly coupled” and large number of “loosely coupled”

  • Can be grow n, can be replicated, multiple copies can be com bined

– Formally documented design: protocols and specifications

  • “Implement this protocol” rather than “Install this magic software”
  • Leverage Global Grid Forum for technical input and dissemination
  • Provide a Pathway for Current Users

– Support evolutionary path

  • migration to linux clusters, simple “distributed machine room” model

– Provide exam ples, tools, training to exploit grid capabilities – User support, user support, and user support

slide-12
SLIDE 12

DTF Teragrid: Goals

  • Free computational scientists from

the “tyranny of distance”

  • Seed future cyberinfrastructure
slide-13
SLIDE 13

The Arpanet (1969)

slide-14
SLIDE 14

Arpanet (1971)

slide-15
SLIDE 15

Arpanet (1986)

slide-16
SLIDE 16

The Internet (1999)

slide-17
SLIDE 17

So … What was planned ?

  • IBM Linux clusters

– open source software and community

  • Intel/ HP Itanium Processor Family™ nodes

– “McKinley” processors for commodity leverage

  • Very high-speed network backbone

– bandwidth for rich interaction and tight coupling

  • Large-scale storage systems

– hundreds of terabytes for secondary storage

  • Grid middleware

– Globus, data management, …

  • Next-generation applications

– breakthrough versions of today’s applications – But also, reaching beyond “traditional” supercomputing

slide-18
SLIDE 18

DTF Network Topology

  • Full N-way mesh
  • OC192 links between each pair of

sites

slide-19
SLIDE 19

The TeraGrid Backbone

slide-20
SLIDE 20

So … What was planned ?

HPSS HPSS 574p IA-32 Chiba City 128p Origin HR Display & VR Facilities Myrinet Myrinet Myrinet Myrinet 1176p IBM SP Blue Horizon Sun E10K 1500p Origin UniTree 1024p IA-32 320p IA-64 HPSS 256p HP X-Class 128p HP V2500 92p IA-32

NCSA: Compute-Intensive ANL: Visualization Caltech: Data collection analysis SDSC: Data-Intensive

slide-21
SLIDE 21

Extended Terascale Facility (ETF)

  • Proposal submitted June 2002
  • New partner (PSC)
  • Revised network topology
  • Heterogeneity

– Alpha-based cluster at PSC – Power4-based cluster at SDSC

slide-22
SLIDE 22

ETF Network Topology

  • Major hubs in Los Angeles and

Chicago

  • 40 Gbit ( 4 x OC192 ) connection

between hubs

  • 3 x OC192 from each DTF site to

nearest hub

  • Facilitates addition of new sites
slide-23
SLIDE 23

ETF TeraGrid

Myrinet Myrinet Myrinet Myrinet

Chicago & LA DTF Core Switch/Routers

Sun Server

Federation

7.8 TF Power4 1 TF Itanium2

Fibre Channel Fibre Channel

2 TF Itanium2 9.2 TF Madison

0.5 TF Itanium2 90TB

1.5 TF Itanium2/Madison 20 TB

Datawulf IA-32

SDSC NCSA Caltech Argonne

Quadrics

PSC

6TF Alpha EV68 1.1 TF Alpha EV7

300 TB 300 TB 160 TB

Myrinet Myrinet Myrinet Myrinet

Chicago & LA DTF Core Switch/Routers

Sun Server

Federation

7.8 TF Power4 1 TF Itanium2

Fibre Channel Fibre Channel

2 TF Itanium2 9.2 TF Madison

0.5 TF Itanium2 90TB

1.5 TF Itanium2/Madison 20 TB

Datawulf IA-32

SDSC NCSA Caltech Argonne

Quadrics

PSC

6TF Alpha EV68 1.1 TF Alpha EV7

300 TB 300 TB 160 TB

slide-24
SLIDE 24

Nostradamus Speaks …

  • The technical challenges will be

difficult.

slide-25
SLIDE 25

Nostradamus Speaks …

  • The technical challenges will be

difficult.

  • But the sociopolitical issues will be

at least as challenging.

slide-26
SLIDE 26

How does it all work?

  • Many “working groups”

– Networking – Clusters – Performance evaluation – Etc. etc. etc …

slide-27
SLIDE 27

TeraGrid Management

Site Coordination Committee

Site Leads Project Director

Rick Stevens (UC/ANL)

Technical Coordination Committee

Project-wide Technical Area Leads Clusters

Pennington (NCSA)

Networking

Winkler (ANL)

Grid Software

Kesselman (ISI) Butler (NCSA)

Data

Baru (SDSC)

Applications

WIlliams (Caltech)

Visualization

Papka (ANL)

Performance Eval

Brunett (Caltech)

…

Chief Architect

Dan Reed (NCSA)

Executive Committee

Fran Berman, SDSC (Chair) Ian Foster, UC/ANL Paul Messina, CIT Dan Reed, NCSA Rick Stevens, UC/ANL Charlie Catlett, ANL

Technical Working Group

  • Are we creating an extensible

cyberinfrastructure?

External Advisory Committee

  • Are we enabling new science?
  • Are we pioneering the future?

External Advisory Committee

  • Are we enabling new science?
  • Are we pioneering the future?

Institutional Oversight Committee

Robert Conn, UCSD Richard Herman UIUC Dan Meiron, CIT (Chair) Robert Zimmer, UC/ANL

Institutional Oversight Committee

Robert Conn, UCSD Richard Herman UIUC Dan Meiron, CIT (Chair) Robert Zimmer, UC/ANL

User Advisory Committee

  • Are we effectively supporting

good science? NSF MRE Projects Internet-2

McRobbie

Alliance UAC

Sugar, Chair

NPACI UAC

Kupperman, Chair

NSF ACIR NSF ACIR NSF Review Panels NSF Review Panels

Policy Oversight Policy Oversight Objectives Architecture

Currently being formed

Executive Director / Project Manager

Charlie Catlett (UC/ANL)

ANL

Evard

CIT

Bartelt

NCSA

Pennington

SDSC

Andrews

PSC NCAR Operations

Sherwin (SDSC)

User Services

Wilkins-Diehr (SDSC) Towns (NCSA)

Implementation

slide-28
SLIDE 28

How does it all work?

  • Every working group includes

people from all TeraGrid sites.

slide-29
SLIDE 29

How does it all work?

  • Every working group includes

people from all TeraGrid sites.

  • How the heck do you coordinate all

these people?

slide-30
SLIDE 30

TeraGrid Management

Site Coordination Committee

Site Leads Project Director

Rick Stevens (UC/ANL)

Technical Coordination Committee

Project-wide Technical Area Leads Clusters

Pennington (NCSA)

Networking

Winkler (ANL)

Grid Software

Kesselman (ISI) Butler (NCSA)

Data

Baru (SDSC)

Applications

WIlliams (Caltech)

Visualization

Papka (ANL)

Performance Eval

Brunett (Caltech)

…

Chief Architect

Dan Reed (NCSA)

Executive Committee

Fran Berman, SDSC (Chair) Ian Foster, UC/ANL Paul Messina, CIT Dan Reed, NCSA Rick Stevens, UC/ANL Charlie Catlett, ANL

Technical Working Group

  • Are we creating an extensible

cyberinfrastructure?

External Advisory Committee

  • Are we enabling new science?
  • Are we pioneering the future?

External Advisory Committee

  • Are we enabling new science?
  • Are we pioneering the future?

Institutional Oversight Committee

Robert Conn, UCSD Richard Herman UIUC Dan Meiron, CIT (Chair) Robert Zimmer, UC/ANL

Institutional Oversight Committee

Robert Conn, UCSD Richard Herman UIUC Dan Meiron, CIT (Chair) Robert Zimmer, UC/ANL

User Advisory Committee

  • Are we effectively supporting

good science? NSF MRE Projects Internet-2

McRobbie

Alliance UAC

Sugar, Chair

NPACI UAC

Kupperman, Chair

NSF ACIR NSF ACIR NSF Review Panels NSF Review Panels

Policy Oversight Policy Oversight Objectives Architecture

Currently being formed

Executive Director / Project Manager

Charlie Catlett (UC/ANL)

ANL

Evard

CIT

Bartelt

NCSA

Pennington

SDSC

Andrews

PSC NCAR Operations

Sherwin (SDSC)

User Services

Wilkins-Diehr (SDSC) Towns (NCSA)

Implementation

slide-31
SLIDE 31

How does it all work?

  • Every working group includes

people from all TeraGrid sites.

  • How the heck do you coordinate all

these people?

  • We all seem to spend half our lives
  • n conference calls, and the other

half replying to e-mail.

slide-32
SLIDE 32

How does it all work?

  • Every working group includes

people from all TeraGrid sites.

  • How the heck do you coordinate all

these people?

  • We all seem to spend half our lives
  • n conference calls, and the other

half replying to e-mail.

  • The “herding cats” analogy is apt.
slide-33
SLIDE 33

TeraGrid Management

Site Coordination Committee

Site Leads Project Director

Rick Stevens (UC/ANL)

Technical Coordination Committee

Project-wide Technical Area Leads Clusters

Pennington (NCSA)

Networking

Winkler (ANL)

Grid Software

Kesselman (ISI) Butler (NCSA)

Data

Baru (SDSC)

Applications

WIlliams (Caltech)

Visualization

Papka (ANL)

Performance Eval

Brunett (Caltech)

…

Chief Architect

Dan Reed (NCSA)

Executive Committee

Fran Berman, SDSC (Chair) Ian Foster, UC/ANL Paul Messina, CIT Dan Reed, NCSA Rick Stevens, UC/ANL Charlie Catlett, ANL

Technical Working Group

  • Are we creating an extensible

cyberinfrastructure?

External Advisory Committee

  • Are we enabling new science?
  • Are we pioneering the future?

External Advisory Committee

  • Are we enabling new science?
  • Are we pioneering the future?

Institutional Oversight Committee

Robert Conn, UCSD Richard Herman UIUC Dan Meiron, CIT (Chair) Robert Zimmer, UC/ANL

Institutional Oversight Committee

Robert Conn, UCSD Richard Herman UIUC Dan Meiron, CIT (Chair) Robert Zimmer, UC/ANL

User Advisory Committee

  • Are we effectively supporting

good science? NSF MRE Projects Internet-2

McRobbie

Alliance UAC

Sugar, Chair

NPACI UAC

Kupperman, Chair

NSF ACIR NSF ACIR NSF Review Panels NSF Review Panels

Policy Oversight Policy Oversight Objectives Architecture

Currently being formed

Executive Director / Project Manager

Charlie Catlett (UC/ANL)

ANL

Evard

CIT

Bartelt

NCSA

Pennington

SDSC

Andrews

PSC NCAR Operations

Sherwin (SDSC)

User Services

Wilkins-Diehr (SDSC) Towns (NCSA)

Implementation

slide-34
SLIDE 34

Commercial Break

slide-35
SLIDE 35

Potholes on the Road to Production

  • Original timetable:

– Sep 2002: Initial delivery of phase-1 systems – Mar 2003: Friendly users – July 2003: Production

  • Hmm, what if there are

unexpected problems?

slide-36
SLIDE 36

Problem-free? Hah!

  • Hardware delivery behind

schedule.

– This should have come as a surprise?

slide-37
SLIDE 37

Problem-free? Hah!

  • Hardware delivery behind

schedule.

– This should have come as a surprise?

  • Gack! Numerical errors!

– Bug in floating-point software assist code.

slide-38
SLIDE 38

Problem-free? Hah!

  • Hardware delivery behind

schedule.

– This should have come as a surprise?

  • Gack! Numerical errors!

– Bug in floating-point software assist code. – Kernel bug: Floating-point registers sometimes not being saved/ restored properly on context switch.

slide-39
SLIDE 39

Problem-free? Hah!

  • Hardware delivery behind schedule.

– This should have come as a surprise?

  • Gack! Numerical errors!

– Bug in floating-point software assist code. – Kernel bug: Floating-point registers sometimes not being saved/ restored properly on context switch. – SUPERB support from IBM + Intel on first problem, and from IBM + SuSE on second.

slide-40
SLIDE 40

Problem-free? Hah!

  • Breaking news; this just in …

– Problem with Itanium2 processor (hit the trade press just yesterday) – { Intel| IBM} working on a solution

slide-41
SLIDE 41

Unsolved (or partially- solved) problems

  • Metascheduling
  • Coordinated advance reservation
  • On-demand computing
  • Very large datasets

– Even at 10 Gbit/ second, 100 TBytes takes approximately one day to move – Possible solutions: Datacutter and similar tools

slide-42
SLIDE 42

High-Bandwidth TeraGrid Transport Mechanism

slide-43
SLIDE 43

So … Where are we?

  • Target production date has slipped

three months (from beginning of July to beginning of October).

slide-44
SLIDE 44

So … Where are we?

  • Target production date has slipped

three months (from beginning of July to beginning of October).

  • Everybody is overworked and

stressed out.

slide-45
SLIDE 45

So … Where are we?

  • Target production date has slipped

three months (from beginning of July to beginning of October).

  • Everybody is overworked and

stressed out.

  • But …

We’re having LOADS of fun!

slide-46
SLIDE 46

Let us close with a prayer …

slide-47
SLIDE 47

Let us close with a prayer …

Anointed with oil,

  • n troubled waters,
  • h heavenly Grid,

help us bear up Thy standard,

  • ur chevron flashing bright

across the gulf of compromise.

slide-48
SLIDE 48

Remember: TeraGrid is …

slide-49
SLIDE 49

Questions ?

http: / / www.teragrid.org
