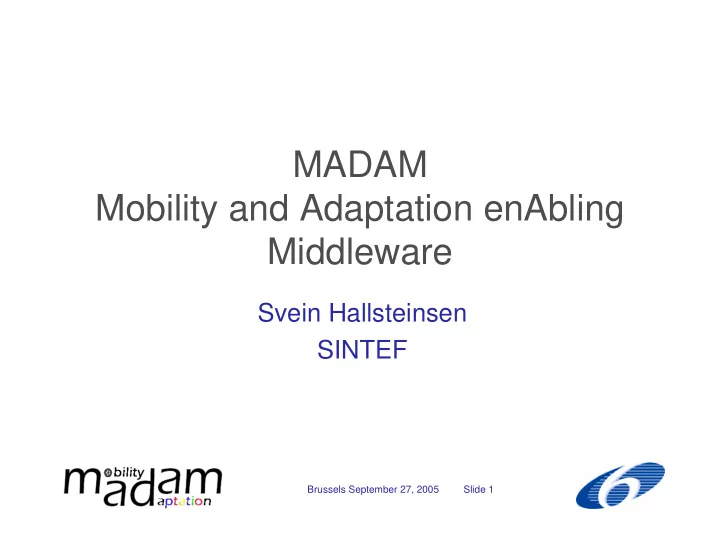

MADAM Mobility and Adaptation enAbling Middleware

Svein Hallsteinsen SINTEF

Brussels September 27, 2005 Slide 2

Background

Famous (NF)------------------ Families(EU) Qua (NF)---------------------- Madam (EU-IST)--- Osiris(EU)---------- Music(EU-IST)------------

2003 2004 2005 2006 2007 2008 2009 2010

Partners: 2 Univ. 2 Indep res inst 3 SMEs 1 Big company +1 +1

• 1 + 3 SMEs

+2 (big Telcom) +1 (Public transport)

Brussels September 27, 2005 Slide 3

Motivation

• Computing is going mobile, ubiquitous,

service oriented

• Mobile use means dynamic variation in

user needs and available computing and communication resources

• Applications must adapt to such changes

in order to sustain availability, usability and usefulness

Brussels September 27, 2005 Slide 4

Madam Objectives

• Provide support for the development of

applications that adapt dynamically to changes in context (at launch time and during use)

Brussels September 27, 2005 Slide 5

Approach

• Notation extensions

(UML profile)

• Modeling tool
• Transformation tool
• Middleware
• context monitoring
• context reasoning
• adaptation reasoning

& decision making

• (re)configuration
• application launch

and initial adaptation

• Application reference architecture

monitors MADAM Adaptation Middleware Design Models Application components runtime models

Mobile user Architects, application developers

Distributed Application instance builds, maintains & uses retrieves provides service to

position noise Distributed computing infrastructue battery needs

Context

builds & adapts Types & Plans

Application developers

develop

I mplement

use & refine

Components

Brussels September 27, 2005 Slide 6

Properties and utility

Service Provides service to Execution env Dynamically changing env. Mobile user Influence Properties Executes in Influence Offer Needs Needs Offer Describe Utility

Brussels September 27, 2005 Slide 7

Conceptual model

Port type Entity type Port Entity Resource Software component Property def Property annotation User environment entity User implements implements * * * * * * * 1 has * 1 has Interface * * connected to * * use * * use * * influence * * influence * * use * * use

Brussels September 27, 2005 Slide 8

Properties example

Handsfree operation yes, no haf Bandwidth 1:100 nbw Amount of memory 1:100 mem Response time 1:100 rsp Explanation Value range Name utility = ( ( if usr.rsp >= app.rsp then 1 else 1- (app.rsp-usr.rsp)/app.rsp) + ( if ((usr.haf and app.haf)

• r (!usr.haf and !app.haf) ) then 1

else 0) ) / 2 app

• n

n

cli

• usr

haf = no rsp = 30 mem = 30 haf = no rsp = f(nbw) mem = f(...) lnk

• srv
• nbw = 70

n n

nbw = ?

Property vocabulary

Brussels September 27, 2005 Slide 9

Adaptable services through component frameworks

Caching mgr UI Ctrl Db Cache Server db Basic mgr Server db S Impl Caching db Basic db S type Ctrl impl Handfree UI Normal UI Server db Cache Caching mgr Basic mgr = type = alternative implementations

• f a type

= implementation client server client = parameterised implementation

rsp = Db.rsp haf = UI.haf mem = Ui.mem+Ctrl.mem+Db.mem nbw = Db.nbw

Brussels September 27, 2005 Slide 10

Multiple applications

• Common vocabulary of properties

– use OMG std for QoS and FT

• Combined utility function

– weighted sum or product of differences – Weights represent user priorities

Brussels September 27, 2005 Slide 11

Mw architecture - overview

Context manager Configurator 2 Adaptation manager 1 3 Core

context change reconfigure to selected variant find implementations, derive and evaluate variants

Context model Framework architecture model Instance architecture model

Brussels September 27, 2005 Slide 12

Mw architecture - plugins

Adapt- ation mgr Config- urator Context mgr Planner Core Context access Instance mgmt Config- uration Context sensor Context listener Component mgmt Iteration Resource mgmt Context reasoner

Brussels September 27, 2005 Slide 13

Experimentation

• Prototype middleware implementation

(Java CDC/Personal)

• 2 Pilot services developed
• Tested on iPAQ pocket pc with

Windows mobile and Creme JVM

• Useful adaptation demonstrated
• Runtime overhead acceptable

(Mw footprint < 10% of program memory, adaptation time < 1sec)

Brussels September 27, 2005 Slide 14

Challenges

• Modeling variability is not trivial

– Leave to experts? – Learn from product line community – Tool support for testing and tuning – Need not be perfect

• Runtime overhead / Scalability

– Adaptation time grows exponentially with the no of variation points – Pre-runtime processing – Background processing

Brussels September 27, 2005 Slide 15

Challenges

• Context sensing & reasoning

– How to detect significant context changes? – Region maps?

• User in the loop

– How much can we bother the user asking for input? – To which extent does the user want to be involved?

• Distribution

– Centralized vs. decentralized control – Focusing on client side

Brussels September 27, 2005 Slide 16

Thank you!
