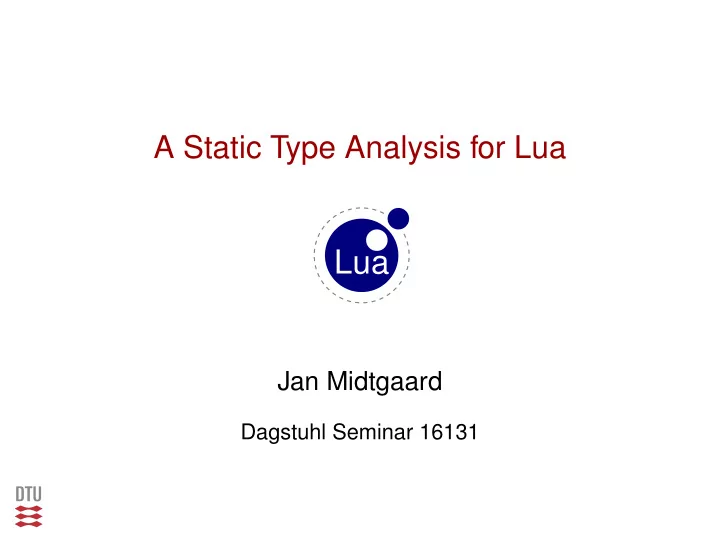

A Static Type Analysis for Lua

Lua

Jan Midtgaard

Dagstuhl Seminar 16131

State of affairs, PL-wise

2 / 30

Good news: Many of today’s popular programming languages (JavaScript, Python, Lua, . . . ) are dynamically typed:

• they enable rapid prototyping and
• flexible software development

Bad news: In terms of software guarantees, that means

• we don’t get many guarantees from the compiler
• bugs may surface late in the development cycle

Just for fun?

3 / 30

Just for fun?

3 / 30

This talk

4 / 30

More good news: Static analysis to the rescue! Today: Developing a static analysis (lattice) for inferring types of Lua programs

Lua

Result: A tool

Lua?

5 / 30 Lua games picture slide courtesy of Ierusalimschy, de Figueiredo, and Celes. The above company names and logos are trademarked.

Lua, in brief

6 / 30

• Developed in Brazil, hence the name (’lua’ = ’moon’)
• Similar to languages like Python and JavaScript
• Lightweight language (few, well-chosen features):

–

Imperative

–

Dynamically typed

–

Builtin tables (associative arrays)

–

First-class functions

–

. . .

• Multiparadigm (FP

, OO, . . . )

• Lightweight, cross-platform implementation
• Standalone and easily embeddable

Example: Sets of numbers (Ierusalimschy’13)

7 / 30

Set = {}

• - create a new set with the values of a given list

function Set.new (l) local set = {} for _, v in ipairs(l) do set[v] = true end return set end function Set.union (a, b) local res = Set.new {} for k in pairs(a) do res[k] = true end for k in pairs(b) do res[k] = true end return res end s1 = Set.new {10 ,20 ,30 ,50} s2 = Set.new {30 ,1} s3 = Set.union(s1,s2)

Example: Sets of numbers, desugared

8 / 30

Set = {}

• - create a new set with the values of a given list

Set.new = function (l) local set = {} for _, v in ipairs(l) do set[v] = true end return set end Set.union = function (a, b) local res = Set.new {} for k in pairs(a) do res[k] = true end for k in pairs(b) do res[k] = true end return res end s1 = Set.new {10 ,20 ,30 ,50} s2 = Set.new {30 ,1} s3 = Set.union(s1,s2)

Example: Sets of numbers, desugared

8 / 30

Set = {}

• - create a new set with the values of a given list

Set.new = function (l) local set = {} for _, v in ipairs(l) do set[v] = true end return set end Set.union = function (a, b) local res = Set.new {} for k in pairs(a) do res[k] = true end for k in pairs(b) do res[k] = true end return res end s1 = Set.new {10 ,20 ,30 ,50} s2 = Set.new {30 ,1} s3 = Set.union(s1,s2)

builtin tables

Example: Sets of numbers, desugared

8 / 30

Set = {}

• - create a new set with the values of a given list

Set.new = function (l) local set = {} for _, v in ipairs(l) do set[v] = true end return set end Set.union = function (a, b) local res = Set.new {} for k in pairs(a) do res[k] = true end for k in pairs(b) do res[k] = true end return res end s1 = Set.new {10 ,20 ,30 ,50} s2 = Set.new {30 ,1} s3 = Set.union(s1,s2)

tables as modules builtin tables

Example: Sets of numbers, desugared

8 / 30

Set = {}

• - create a new set with the values of a given list

Set.new = function (l) local set = {} for _, v in ipairs(l) do set[v] = true end return set end Set.union = function (a, b) local res = Set.new {} for k in pairs(a) do res[k] = true end for k in pairs(b) do res[k] = true end return res end s1 = Set.new {10 ,20 ,30 ,50} s2 = Set.new {30 ,1} s3 = Set.union(s1,s2)

tables as modules builtin tables lexical scope, block structure

Lua in a bit more detail. . .

9 / 30

To add PL spice it also includes:

• Metatables with events and metamethods:

–

These are used to model both OO-like inheritance and overriding

–

Python has similar constructions

• Proper tail calls
• Co-routines
• . . .

Example: Sets w/overriding (Ierusalimschy’13)

10 / 30

Set = {} local mt = {} -- metatable for sets

• - create a new set with the values of a given list

function Set.new (l) local set = {} setmetatable(set ,mt) for _, v in ipairs(l) do set[v] = true end return set end function Set.union (a, b) local res = Set.new {} for k in pairs(a) do res[k] = true end for k in pairs(b) do res[k] = true end return res end mt.__add = Set.union s1 = Set.new {10 ,20 ,30 ,50} s2 = Set.new {30 ,1} s3 = s1 + s2

Example: Sets w/overriding (Ierusalimschy’13)

10 / 30

Set = {} local mt = {} -- metatable for sets

• - create a new set with the values of a given list

function Set.new (l) local set = {} setmetatable(set ,mt) for _, v in ipairs(l) do set[v] = true end return set end function Set.union (a, b) local res = Set.new {} for k in pairs(a) do res[k] = true end for k in pairs(b) do res[k] = true end return res end mt.__add = Set.union s1 = Set.new {10 ,20 ,30 ,50} s2 = Set.new {30 ,1} s3 = s1 + s2

declare a metatable

Example: Sets w/overriding (Ierusalimschy’13)

10 / 30

Set = {} local mt = {} -- metatable for sets

• - create a new set with the values of a given list

function Set.new (l) local set = {} setmetatable(set ,mt) for _, v in ipairs(l) do set[v] = true end return set end function Set.union (a, b) local res = Set.new {} for k in pairs(a) do res[k] = true end for k in pairs(b) do res[k] = true end return res end mt.__add = Set.union s1 = Set.new {10 ,20 ,30 ,50} s2 = Set.new {30 ,1} s3 = s1 + s2

declare a metatable install metatable

Example: Sets w/overriding (Ierusalimschy’13)

10 / 30

Set = {} local mt = {} -- metatable for sets

• - create a new set with the values of a given list

function Set.new (l) local set = {} setmetatable(set ,mt) for _, v in ipairs(l) do set[v] = true end return set end function Set.union (a, b) local res = Set.new {} for k in pairs(a) do res[k] = true end for k in pairs(b) do res[k] = true end return res end mt.__add = Set.union s1 = Set.new {10 ,20 ,30 ,50} s2 = Set.new {30 ,1} s3 = s1 + s2

declare a metatable install metatable register metamethod for addition event

Example: Sets w/overriding (Ierusalimschy’13)

10 / 30

Set = {} local mt = {} -- metatable for sets

• - create a new set with the values of a given list

function Set.new (l) local set = {} setmetatable(set ,mt) for _, v in ipairs(l) do set[v] = true end return set end function Set.union (a, b) local res = Set.new {} for k in pairs(a) do res[k] = true end for k in pairs(b) do res[k] = true end return res end mt.__add = Set.union s1 = Set.new {10 ,20 ,30 ,50} s2 = Set.new {30 ,1} s3 = s1 + s2

declare a metatable install metatable register metamethod for addition event utilize overridden addition

A program analysis for types

11 / 30

• We’ll build a forward program analysis for

approximating the run-time values of Lua programs

• It’s not a type system (no rejected programs)
• Instead: an over-approximation over a suitable lattice

Our challenge is to design a lattice capable of expressing types for this kind of example Related work: . . .

A program analysis for types

11 / 30

• We’ll build a forward program analysis for

approximating the run-time values of Lua programs

• It’s not a type system (no rejected programs)
• Instead: an over-approximation over a suitable lattice

Our challenge is to design a lattice capable of expressing types for this kind of example Related work: . . . lots

Describing Lua values, take 1

12 / 30

Lua has a range of basic values:

nil, true, false, 42, 3.14, "hello", ’world’, . . . statelattice = Var − → valuelattice valuelattice = P(tag) tag = {nil, bool, number, string, userdata}

• We record the (over-approximate) state for each

program point

Describing Lua values, take 1

12 / 30

Lua has a range of basic values:

nil, true, false, 42, 3.14, "hello", ’world’, . . . statelattice = Var − → valuelattice valuelattice = P(tag) tag = {nil, bool, number, string, userdata}

• We record the (over-approximate) state for each

program point

• This can be understood as an outer function lattice

Describing Lua values, take 1

12 / 30

Lua has a range of basic values:

nil, true, false, 42, 3.14, "hello", ’world’, . . . analysislattice = pplabel − → statelattice statelattice = Var − → valuelattice valuelattice = P(tag) tag = {nil, bool, number, string, userdata}

• We record the (over-approximate) state for each

program point

• This can be understood as an outer function lattice

In Lua hashtables are everywhere!

13 / 30

In Lua even environments are hashtables:

for name ,val in pairs(_G) do print(name , type(val)) end

displays _G’s content (the global environment):

string table pairs function _G table type function arg table rawget function loadstring function ...

Tables double as modules (e.g., string.len), objects, and classes

Approximating Lua’s hashtables (1/6)

14 / 30

As a first step we will label all allocation sites:

Set = ℓ1{}

• - create a new set with the values of a given list

Set.new = function (l) local set = ℓ2{} for _, v in ipairs(l) do set[v] = true end return set end ...

An allocation site (a label) represents all table values

• riginating from there (Jones-Muchnick:POPL82).

A table’s contents is available in an approximate store.

Approximating Lua’s hashtables (2/6)

15 / 30

analysislattice = pplabel − → statelattice statelattice = storelattice × envlattice envlattice = tablelabel+ storelattice = tablelabel − → proplattice proplattice = (string − → valuelattice) × valuelattice valuelattice = P(tag) × P(tablelabel) tag = {nil, bool, number, string, userdata}

• A table value is approximated by its label
• storelattice and proplattice reveal the table content
• Environments reuse this representation:

We label each scope (scope chain is a label string)

Approximating Lua’s hashtables (3/6)

16 / 30

analysislattice = pplabel − → statelattice statelattice = storelattice × envlattice envlattice = tablelabel+ storelattice = tablelabel − → proplattice proplattice = (string − → valuelattice) × valuelattice valuelattice = P(tag) × P(tablelabel) tag = {nil, bool, number, string, userdata}

• An extra valuelattice works as a fall back for statically

unknown entries.

• This is good enough to model environments

(we know variable names statically)

• But t[x] = v to a string key could write to any entry

Approximating Lua’s hashtables (4/6)

17 / 30

analysislattice = pplabel − → statelattice statelattice = storelattice × envlattice envlattice = tablelabel+ storelattice = tablelabel − → proplattice proplattice = (string − → valuelattice) × valuelattice valuelattice = P(tag) × stringlattice × P(tablelabel) stringlattice= {⊥, ⊤} ∪ string tag = {nil, bool, number, userdata}

Solution:

• a better approximation of string values
• using a constant propagation lattice (∀s. ⊥ ⊑ s ⊑ ⊤)

Approximating Lua’s hashtables (5/6)

18 / 30

analysislattice = pplabel − → statelattice statelattice = storelattice × envlattice envlattice = tablelabel+ storelattice = tablelabel − → proplattice proplattice = (string − → valuelattice) × valuelattice valuelattice = P(tag) × stringlattice × P(tablelabel) stringlattice = {⊥, ⊤} ∪ string tag = {nil, bool, number, userdata}

Challenge:

• Lua’s hashtable keys can be any value (except nil)
• But the lattice loses track of non-string keys!

Approximating Lua’s hashtables (5/6)

18 / 30

analysislattice = pplabel − → statelattice statelattice = storelattice × envlattice envlattice = tablelabel+ storelattice = tablelabel − → proplattice proplattice = (string − → valuelattice) × valuelattice × valuelattice valuelattice = P(tag) × stringlattice × P(tablelabel) stringlattice = {⊥, ⊤} ∪ string tag = {nil, bool, number, userdata}

Challenge:

• Lua’s hashtable keys can be any value (except nil)
• But the lattice loses track of non-string keys!
• We over-approximate all keys with an additional

valuelattice

Approximating Lua’s hashtables (6/6)

19 / 30

analysislattice = pplabel − → statelattice statelattice = storelattice × envlattice envlattice = tablelabel+ storelattice = tablelabel − → proplattice proplattice = (string − → valuelattice) × valuelattice × valuelattice valuelattice = P(tag) × stringlattice × P(tablelabel) stringlattice = {⊥, ⊤} ∪ string tag = {nil, bool, number, userdata}

• Lua 5.1 has setfenv which manipulates the

environment at run time

Approximating Lua’s hashtables (6/6)

19 / 30

analysislattice = pplabel − → statelattice statelattice = storelattice × envlattice envlattice = P(tablelabel+) storelattice = tablelabel − → proplattice proplattice = (string − → valuelattice) × valuelattice × valuelattice valuelattice = P(tag) × stringlattice × P(tablelabel) stringlattice = {⊥, ⊤} ∪ string tag = {nil, bool, number, userdata}

• Lua 5.1 has setfenv which manipulates the

environment at run time

• We anticipate the issue and allow environment

approximation

Lua has first class functions

20 / 30

Which means we can pass around functions as values:

function apply (f, x) return f(x) end local tmp = apply(functionℓ (x) return x end , "foo") print(tmp , apply(type , tmp))

Again we use labels:

• A label represents all function values originating

from a function literal

• The labels can tell us where control transfers to
• This is known as a Control-Flow Analysis (CFA)

A Lua type analysis lattice

21 / 30

analysislattice = pplabel − → statelattice statelattice = storelattice × envlattice envlattice = P(tablelabel+) storelattice = tablelabel − → proplattice proplattice = (string − → valuelattice) × valuelattice × valuelattice valuelattice = P(tag) × stringlattice × P(funlabel) × P(tablelabel) stringlattice = {⊥, ⊤} ∪ string tag = {nil, bool, number, userdata}

• The extra label set tracks such function labels

A Lua type analysis lattice

21 / 30

analysislattice = pplabel − → statelattice statelattice = storelattice × envlattice envlattice = P(tablelabel+) storelattice = tablelabel − → proplattice proplattice = (string − → valuelattice) × valuelattice × valuelattice valuelattice = P(tag) × stringlattice × P(funlabel) × P(tablelabel) stringlattice = {⊥, ⊤} ∪ string tag = {nil, bool, number, userdata}

• The extra label set tracks such function labels
• This is a first reasonable version

A Lua type analysis lattice

21 / 30

analysislattice = pplabel − → statelattice statelattice = storelattice × envlattice envlattice = P(tablelabel+) storelattice = tablelabel − → proplattice proplattice = (string − → valuelattice) × valuelattice × valuelattice valuelattice = P(tag) × stringlattice × P(funlabel) × P(tablelabel) stringlattice = {⊥, ⊤} ∪ string tag = {nil, bool, number, userdata}

• The extra label set tracks such function labels
• This is a first reasonable version
• But there is (plenty) of room for improvement. . .

Room for improvement. . .

22 / 30

analysislattice = pplabel − → statelattice statelattice = storelattice × envlattice envlattice = P(tablelabel+) storelattice = tablelabel − → proplattice proplattice = (string − → valuelattice) × valuelattice × valuelattice valuelattice = P(tag) × stringlattice × P(funlabel) × P(tablelabel) stringlattice = {⊥, ⊤} ∪ string tag = {nil, bool, number, userdata}

Room for improvement. . .

22 / 30

analysislattice = pplabel − → statelattice statelattice = storelattice × envlattice envlattice = P(tablelabel+) storelattice = tablelabel − → proplattice proplattice = (string − → valuelattice) × valuelattice × valuelattice valuelattice = P(tag) × stringlattice × P(funlabel) × P(tablelabel) stringlattice = {⊥, ⊤} ∪ string tag = {nil, bool, number, userdata}

Problem:

• In proplattice entries may or may not be there
• This causes too many false positives (failed lookups)

Solution: track certainty of presence

23 / 30

analysislattice = pplabel − → statelattice statelattice = storelattice × envlattice envlattice = P(tablelabel+) storelattice = tablelabel − → proplattice proplattice = (string − → absencelattice × valuelattice) × valuelattice × valuelattice absencelattice = {⊥, ⊤} valuelattice = P(tag) × stringlattice × P(funlabel) × P(tablelabel) stringlattice = {⊥, ⊤} ∪ string tag = {nil, bool, number, userdata}

• ⊥ = “we are certain the table entry is present”
• ⊤ = “the table entry may be absent”
• Akin to TAJS lattice for JavaScript (Jensen-al:SAS09)

Tracking installed metatables

24 / 30

analysislattice = pplabel − → statelattice statelattice = storelattice × envlattice envlattice = P(tablelabel+) storelattice = tablelabel − → proplattice proplattice = ((string ∪ {metatable}) − → absencelattice × valuelattice) × valuelattice × valuelattice absencelattice = {⊥, ⊤} valuelattice = P(tag) × stringlattice × numberlattice × P(funlabel) × P(tablelabel) stringlattice = {⊥, ⊤} ∪ string numberlattice = {⊥, ⊤} tag = {nil, bool, userdata}

A special table entry models installed metatables

Modeling Lua program execution (1/2)

25 / 30

Transfer functions over this lattice now models Lua’s semantics. The manual specifies, e.g., events with interpreters:

function add_event (op1 , op2) local o1 , o2 = tonumber(op1), tonumber(op2) if o1 and o2 then

• - both operands are numeric?

return o1 + o2

• - ’+’ here is the primitive ’add

’ else

• - at least one of the operands is not numeric

local h = getbinhandler(op1 , op2 , "__add") if h then

• - call the handler with both operands

return (h(op1 , op2)) else

• - no handler available: default behavior

error(· · ·) end end end

Modeling Lua program execution (1/2)

25 / 30

Transfer functions over this lattice now models Lua’s semantics. The manual specifies, e.g., events with interpreters:

function add_event (op1 , op2) local o1 , o2 = tonumber(op1), tonumber(op2) if o1 and o2 then

• - both operands are numeric?

return o1 + o2

• - ’+’ here is the primitive ’add

’ else

• - at least one of the operands is not numeric

local h = getbinhandler(op1 , op2 , "__add") if h then

• - call the handler with both operands

return (h(op1 , op2)) else

• - no handler available: default behavior

error(· · ·) end end end

numeric add

Modeling Lua program execution (1/2)

25 / 30

Transfer functions over this lattice now models Lua’s semantics. The manual specifies, e.g., events with interpreters:

function add_event (op1 , op2) local o1 , o2 = tonumber(op1), tonumber(op2) if o1 and o2 then

• - both operands are numeric?

return o1 + o2

• - ’+’ here is the primitive ’add

’ else

• - at least one of the operands is not numeric

local h = getbinhandler(op1 , op2 , "__add") if h then

• - call the handler with both operands

return (h(op1 , op2)) else

• - no handler available: default behavior

error(· · ·) end end end

numeric add

• verridden add

Modeling Lua program execution (2/2)

26 / 30

Transfer functions over this lattice now models Lua’s semantics. We try to stick as close to the manual as possible:

and transfer_arith_event clab info op event op1 op2 = let o1 ,o2 = VL.coerce_tonum op1 , VL.coerce_tonum op2 in mvl_join (if VL.may_be_number (VL.meet o1 o2) (* -- both operands are numeric? *) then red_return (VL.binop op o1 o2) (* -- ’+’ here is the primitive ’add ’ *) else merror) (getbinhandler op1 op2 event >>= fun h -> if VL.may_be_proc h then (* -- call the handler with both operands *) transfer_calls clab h [op1;op2] info >>= adjust_to_single else (* -- no handler available: default behavior *) merror)

Modeling Lua program execution (2/2)

26 / 30

Transfer functions over this lattice now models Lua’s semantics. We try to stick as close to the manual as possible:

and transfer_arith_event clab info op event op1 op2 = let o1 ,o2 = VL.coerce_tonum op1 , VL.coerce_tonum op2 in mvl_join (if VL.may_be_number (VL.meet o1 o2) (* -- both operands are numeric? *) then red_return (VL.binop op o1 o2) (* -- ’+’ here is the primitive ’add ’ *) else merror) (getbinhandler op1 op2 event >>= fun h -> if VL.may_be_proc h then (* -- call the handler with both operands *) transfer_calls clab h [op1;op2] info >>= adjust_to_single else (* -- no handler available: default behavior *) merror)

numeric add

Modeling Lua program execution (2/2)

26 / 30

Transfer functions over this lattice now models Lua’s semantics. We try to stick as close to the manual as possible:

and transfer_arith_event clab info op event op1 op2 = let o1 ,o2 = VL.coerce_tonum op1 , VL.coerce_tonum op2 in mvl_join (if VL.may_be_number (VL.meet o1 o2) (* -- both operands are numeric? *) then red_return (VL.binop op o1 o2) (* -- ’+’ here is the primitive ’add ’ *) else merror) (getbinhandler op1 op2 event >>= fun h -> if VL.may_be_proc h then (* -- call the handler with both operands *) transfer_calls clab h [op1;op2] info >>= adjust_to_single else (* -- no handler available: default behavior *) merror)

numeric add

• verridden add

Utilizing the static analysis result

27 / 30

precise answer

this cannot happen Things outside the over-approximations are impossible, e.g., unreachable code (lets us emit a warning)

Prototype implementation

28 / 30

We’ve built a prototype implementation

• Functional, written in OCaml
• One module per lattice (with associated operations)
• AST walker, written monadically
• Approx. 5000 LOC + 2100 LOC tests
• Web-version thanks to js_of_ocaml

Prototype implementation

28 / 30

We’ve built a prototype implementation

• Functional, written in OCaml
• One module per lattice (with associated operations)
• AST walker, written monadically
• Approx. 5000 LOC + 2100 LOC tests
• Web-version thanks to js_of_ocaml

[ Very Quick Demo :-) ]

http://jmid.github.io/luata-quickcheck/

Future work

29 / 30

• Warnings: definitely non-existent table entries
• Lattice refinements:

–

to track array indices separately

–

for more precise type string tracking

–

to handle error idiom of Lua:

local function idiv(d1 , d2) if d2 == 0 then return nil , "division by zero" else local r = d1 % d2 local q = (d1 - r)/d2 return q, r end end

• More libraries (standard and others)

Summary, conclusion, and reflections

30 / 30

• We’ve taken a run-down of a non-trivial lattice
• The resulting analysis can handle a range of Lua

examples — but leaves room for improvement

• The analysis is exemplar of a range of type analysis

work (Aarhus U, IBM TJ Watson, KAIST, . . . ) In retrospect:

• a global heap approximation restricts scalability

(reconsider or do symbolic/modular analysis?)

• limited faith in magic constants for k-CFA context

sensitivity

• an ongoing quest for good, reusable abstractions

Summary, conclusion, and reflections

30 / 30

• We’ve taken a run-down of a non-trivial lattice
• The resulting analysis can handle a range of Lua

examples — but leaves room for improvement

• The analysis is exemplar of a range of type analysis

work (Aarhus U, IBM TJ Watson, KAIST, . . . ) In retrospect:

• a global heap approximation restricts scalability

(reconsider or do symbolic/modular analysis?)

• limited faith in magic constants for k-CFA context

sensitivity

• an ongoing quest for good, reusable abstractions

Thanks
