LoRa network a short introduction Irene de Ruijter, Erik Bruinzeel & Timme Hovinga KPN Internet of Everything 18 maart 2015 KPN LORA 1 Who are we? Erik Bruin inzeel el Technical Product Manager Internet of Everything Timme Hovin

SLIDE 1

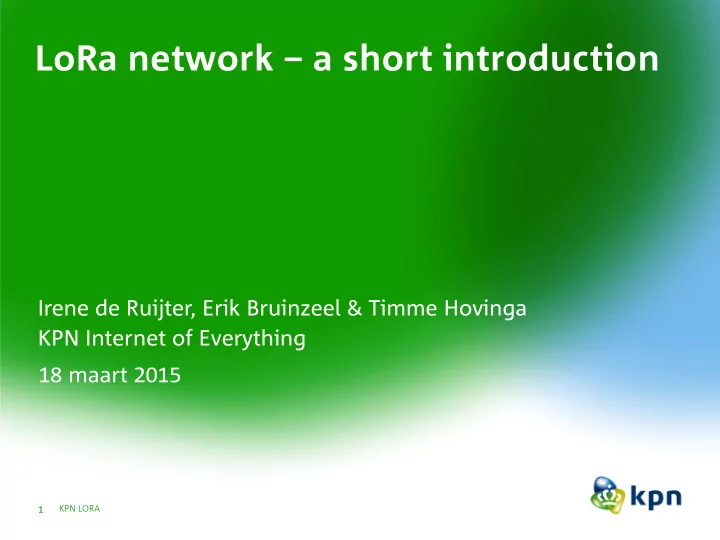

LoRa network – a short introduction

Irene de Ruijter, Erik Bruinzeel & Timme Hovinga KPN Internet of Everything 18 maart 2015

KPN LORA 1

SLIDE 2

KPN LORA 2

Who are we?

Erik Bruin inzeel el

Technical Product Manager Internet of Everything

Timme Hovin inga

Technical Product Manager Internet of Everything

Irene de Ruijte jter

Program Manager IoT Academy

Internet of Everything www.kpn.com/ioe Twitter: #kpnioe Linkedin: KPN IoE

SLIDE 3

LoRa is an open network technology comparable to wifi and bluetooth, but with a coverage of 3-15 km

KPN LORA 3

In 2015, KPN will start the national roll-

ut of LoRa, a new network technology

SLIDE 4

KPN LORA 4

With LoRa, devices can be connected to the internet over a long range

SLIDE 5

KPN LORA 5

With LoRa, it’s also possible for sensors to share relevant data

SLIDE 6

KPN LORA 6

Application examples

SLIDE 7

Pil ilot t case: e:

 Client:  Developer of LoRa applications.  Chal allenge:  Measuring and reporting on the contents of beertanks that are in cellars, from a distance with the aim to save costs.  Solution tion:  By connecting the beertanks to LoRa they

nly have to be refilled when necessary. The

result is less unnecessary kilometres and emergency deliveries on Saturday nights. Suppliers have realtime data on the temperature and bar owners cannot refill the tanks with a cheaper brand of beer without being noticed.

KPN LORA 7

SLIDE 8

Wh What is is Lo LoRa ex exactly ly?

LoRa is a wide area network for IoT devices

KPN LORA 8

Cellular technology
Energy efficient communication over long distances
Adaptive data rate based on signal strength
ETSI compliant ICM frequency band
KPN is a member of the LoRa Alliance

SLIDE 9

Cl Class A, A, B B & & C

Different classes for different usecases

 Bi Bi-dir directi ctiona

nal end-de

devices s (Class ass A): End-devices of Class A allow for bi-directional communications whereby each end-device's uplink transmission is followed by two short downlink receive windows. The transmission slot scheduled by the end-device is based on its own communication needs with a small variation based on a random time basis (ALOHA-type of protocol). This Class A operation is the lowest power end-device system for applications that only require downlink communication from the server shortly after the end-device has sent an uplink transmission. Downlink communications from the server at any other time will have to wait until the next scheduled uplink.  Bi Bi-dir directi ctiona

nal end-de

devices s with th scheduled d receive slots ts (Class ass B): In addition to the Class A random receive windows, Class B devices open extra receive windows at scheduled times. In order for the End-device to open its receive window at the scheduled time it receives a time synchronized Beacon from the gateway. This allows the server to know when the end-device is listening.  Bi Bi-dir directi ctiona

nal end-de

devices s with th maximal mal receive slot

s (Class ass C): End-devices of Class C have nearly continuously open receive windows, only closed when transmitting. Class C

KPN LORA 9

SLIDE 10

KPN LORA 10 10

LoRa is extremely energy efficient

Due to limited time windows and data usage

A LoRa device should work for up to 10 years on 1 AA battery The data provides insight

n the battery

status… …and the status

f the

connection

SLIDE 11

Ad Adaptive ive Da Data Rate. 2D case, flat landscape, 868 MHz

SLIDE 12

Un Unde derstand nding ing the he Lo LoRa ne network

Following the OneM2M architecture concept

SLIDE 13

Hig igh h le leve vel l Si Signa nalin ling

Keys (authentication & security) and data exchange

SLIDE 14

Mote AppR

Different layers

Semtech is the main driver behind the technology

LoRa Radio LoRaWAN devAddr Client Applicatie

Semtech` SX1272

Gate way

NwkSKey+AppE UI AppEUI+Apps Key

STM32L151 processor NwkS App Semtech SX1272 STM32L151 LoRaWAN LoRaRadio Applicatie KPN Network

SLIDE 15

KPN LORA 15 15

LoRa modules can be very small

SLIDE 16

KPN LORA 16 16

Roaming agreements are in progress with Belgium and France (2016)

SLIDE 17
