Logic as a Tool Chapter 3: Understanding First-order Logic 3.3 - - PowerPoint PPT Presentation

Goranko

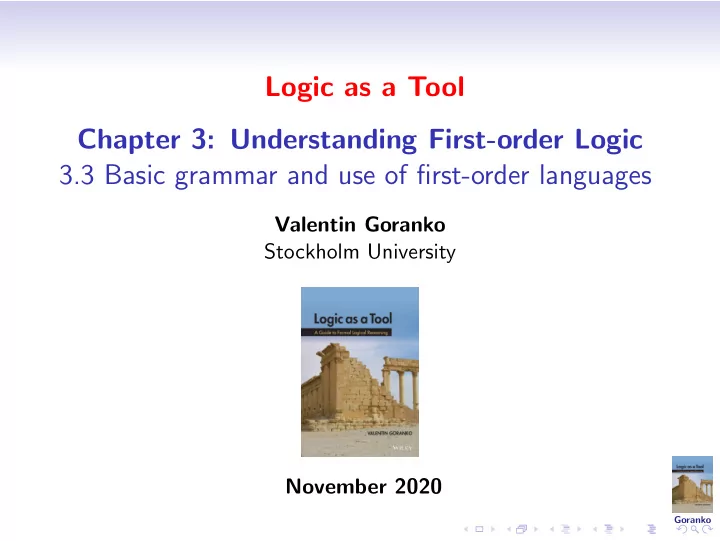

Logic as a Tool Chapter 3: Understanding First-order Logic 3.3 Basic grammar and use of first-order languages

Valentin Goranko Stockholm University November 2020

Goranko

Free and bound variables intuitively

Goranko

Free and bound variables intuitively

Two essentially different ways in which we use individual variables in first-order formulae:

Goranko

Free and bound variables intuitively

Two essentially different ways in which we use individual variables in first-order formulae:

• 1. Free variables: used to denote unknown or unspecified objects, as in

(5 < x) ∨ (x2 + x − 2 = 0)

Goranko

Free and bound variables intuitively

Two essentially different ways in which we use individual variables in first-order formulae:

• 1. Free variables: used to denote unknown or unspecified objects, as in

(5 < x) ∨ (x2 + x − 2 = 0)

• r L(m(x), x)

( “The mother of x loves x”)

Goranko

Free and bound variables intuitively

Two essentially different ways in which we use individual variables in first-order formulae:

• 1. Free variables: used to denote unknown or unspecified objects, as in

(5 < x) ∨ (x2 + x − 2 = 0)

• r L(m(x), x)

( “The mother of x loves x”)

• 2. Bound variables: used to quantify, as in

∃x((5 < x) ∨ (x2 + x − 2 = 0)) and ∀x((5 < x) ∨ (x2 + x − 2 = 0))

Goranko

Free and bound variables intuitively

Two essentially different ways in which we use individual variables in first-order formulae:

• 1. Free variables: used to denote unknown or unspecified objects, as in

(5 < x) ∨ (x2 + x − 2 = 0)

• r L(m(x), x)

( “The mother of x loves x”)

• 2. Bound variables: used to quantify, as in

∃x((5 < x) ∨ (x2 + x − 2 = 0)) and ∀x((5 < x) ∨ (x2 + x − 2 = 0)) and ∀xL(m(x), x) ( “Everybody is loved by his/her mother”)

Goranko

Scope of a quantifier. Bound and free occurrences of variables.

Goranko

Scope of a quantifier. Bound and free occurrences of variables.

Scope of (an occurrence of) a quantifier Q in a given formula A (where Q ∈ {∀, ∃}) is the unique subformula QxB beginning with that

• ccurrence of the quantifier Q in A.

Goranko

Scope of a quantifier. Bound and free occurrences of variables.

Scope of (an occurrence of) a quantifier Q in a given formula A (where Q ∈ {∀, ∃}) is the unique subformula QxB beginning with that

• ccurrence of the quantifier Q in A.

Some examples of scopes of quantifiers: ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))).

Goranko

Scope of a quantifier. Bound and free occurrences of variables.

Scope of (an occurrence of) a quantifier Q in a given formula A (where Q ∈ {∀, ∃}) is the unique subformula QxB beginning with that

• ccurrence of the quantifier Q in A.

Some examples of scopes of quantifiers: ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))). ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))).

Goranko

Scope of a quantifier. Bound and free occurrences of variables.

Scope of (an occurrence of) a quantifier Q in a given formula A (where Q ∈ {∀, ∃}) is the unique subformula QxB beginning with that

• ccurrence of the quantifier Q in A.

Some examples of scopes of quantifiers: ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))). ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))). ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))).

Goranko

Scope of a quantifier. Bound and free occurrences of variables.

Scope of (an occurrence of) a quantifier Q in a given formula A (where Q ∈ {∀, ∃}) is the unique subformula QxB beginning with that

• ccurrence of the quantifier Q in A.

Some examples of scopes of quantifiers: ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))). ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))). ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))). An occurrence of the quantifier Q followed by a variable x in a formula A is said to bind the variable x in A.

Goranko

Scope of a quantifier. Bound and free occurrences of variables.

Scope of (an occurrence of) a quantifier Q in a given formula A (where Q ∈ {∀, ∃}) is the unique subformula QxB beginning with that

• ccurrence of the quantifier Q in A.

Some examples of scopes of quantifiers: ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))). ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))). ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))). An occurrence of the quantifier Q followed by a variable x in a formula A is said to bind the variable x in A. An occurrence of a variable x in a formula A is bound if it is in the scope

• f an occurrence of a quantifier Q binding x in A.

Goranko

Scope of a quantifier. Bound and free occurrences of variables.

Scope of (an occurrence of) a quantifier Q in a given formula A (where Q ∈ {∀, ∃}) is the unique subformula QxB beginning with that

• ccurrence of the quantifier Q in A.

Some examples of scopes of quantifiers: ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))). ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))). ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))). An occurrence of the quantifier Q followed by a variable x in a formula A is said to bind the variable x in A. An occurrence of a variable x in a formula A is bound if it is in the scope

• f an occurrence of a quantifier Q binding x in A.

Otherwise, that occurrence of x is free in A.

Goranko

Which quantifiers binds which occurrences of variables?

Goranko

Which quantifiers binds which occurrences of variables?

A bound occurrence of a variable x in a given formula A is bound by the innermost occurrence of a quantifier Qx in A, in the scope of which it

• ccurs.

Goranko

Which quantifiers binds which occurrences of variables?

A bound occurrence of a variable x in a given formula A is bound by the innermost occurrence of a quantifier Qx in A, in the scope of which it

• ccurs.

For example, the first occurrence of ∀ in the following formula binds the first 3 occurrences of x: ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))),

Goranko

Which quantifiers binds which occurrences of variables?

A bound occurrence of a variable x in a given formula A is bound by the innermost occurrence of a quantifier Qx in A, in the scope of which it

• ccurs.

For example, the first occurrence of ∀ in the following formula binds the first 3 occurrences of x: ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))), whereas the occurrence of ∃ binds the last 2 occurrences of x: ∀x((x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3)))).

Goranko

Bound and free variables in a formula

Goranko

Bound and free variables in a formula

A variable x is bound in the formula A if it has at least one bound

• ccurrence in A.

Goranko

Bound and free variables in a formula

A variable x is bound in the formula A if it has at least one bound

• ccurrence in A. Then x is said to be a bound variable of A.

Goranko

Bound and free variables in a formula

A variable x is bound in the formula A if it has at least one bound

• ccurrence in A. Then x is said to be a bound variable of A.

A variable x is free in the formula A if it has at least one free occurrence in A.

Goranko

Bound and free variables in a formula

A variable x is bound in the formula A if it has at least one bound

• ccurrence in A. Then x is said to be a bound variable of A.

A variable x is free in the formula A if it has at least one free occurrence in A. Then x is said to be a free variable of A.

Goranko

Bound and free variables in a formula

A variable x is bound in the formula A if it has at least one bound

• ccurrence in A. Then x is said to be a bound variable of A.

A variable x is free in the formula A if it has at least one free occurrence in A. Then x is said to be a free variable of A. For instance, in the formula A = (x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3))). the first two occurrences of x are free, while all other occurrences of variables are bound. Thus, the only free variable in A is x, while both x and y are bound in A.

Goranko

Bound and free variables in a formula

A variable x is bound in the formula A if it has at least one bound

• ccurrence in A. Then x is said to be a bound variable of A.

A variable x is free in the formula A if it has at least one free occurrence in A. Then x is said to be a free variable of A. For instance, in the formula A = (x > 5) → ∀y(y < 5 → (y < x ∧ ∃x(x < 3))). the first two occurrences of x are free, while all other occurrences of variables are bound. Thus, the only free variable in A is x, while both x and y are bound in A. Note that the same variable can be both free and bound in the same formula.

Goranko

The sets of bound and free variables in a formula

Goranko

The sets of bound and free variables in a formula

Definition (The set of free variables in a formula)

Let L be any first-order language. The mapping FVAR : FOR(L) → P(VAR) (where P(VAR) is the powerset of VAR) is defined recursively on the structure of formulae in L as follows.

Goranko

The sets of bound and free variables in a formula

Definition (The set of free variables in a formula)

Let L be any first-order language. The mapping FVAR : FOR(L) → P(VAR) (where P(VAR) is the powerset of VAR) is defined recursively on the structure of formulae in L as follows.

• 1. For every atomic formula A = p(t1, ..., tn),

FVAR(A) := VAR(t1) ∪ . . . ∪ VAR(tn).

Goranko

The sets of bound and free variables in a formula

Definition (The set of free variables in a formula)

Let L be any first-order language. The mapping FVAR : FOR(L) → P(VAR) (where P(VAR) is the powerset of VAR) is defined recursively on the structure of formulae in L as follows.

• 1. For every atomic formula A = p(t1, ..., tn),

FVAR(A) := VAR(t1) ∪ . . . ∪ VAR(tn).

• 2. If A is a formula in L then FVAR(¬A) := FVAR(A).

Goranko

The sets of bound and free variables in a formula

Definition (The set of free variables in a formula)

Let L be any first-order language. The mapping FVAR : FOR(L) → P(VAR) (where P(VAR) is the powerset of VAR) is defined recursively on the structure of formulae in L as follows.

• 1. For every atomic formula A = p(t1, ..., tn),

FVAR(A) := VAR(t1) ∪ . . . ∪ VAR(tn).

• 2. If A is a formula in L then FVAR(¬A) := FVAR(A).
• 3. If A and B are formulae in L and • ∈ {∧, ∨, →, ↔} then

FVAR(A • B) := FVAR(A) ∪ FVAR(B)

Goranko

The sets of bound and free variables in a formula

Definition (The set of free variables in a formula)

Let L be any first-order language. The mapping FVAR : FOR(L) → P(VAR) (where P(VAR) is the powerset of VAR) is defined recursively on the structure of formulae in L as follows.

• 1. For every atomic formula A = p(t1, ..., tn),

FVAR(A) := VAR(t1) ∪ . . . ∪ VAR(tn).

• 2. If A is a formula in L then FVAR(¬A) := FVAR(A).
• 3. If A and B are formulae in L and • ∈ {∧, ∨, →, ↔} then

FVAR(A • B) := FVAR(A) ∪ FVAR(B)

• 4. If A is a formula in L and x is an individual variable, then

FVAR(∀xA) = FVAR(∃xA) = FVAR(A) \ {x} .

Goranko

The sets of bound and free variables in a formula

Definition (The set of free variables in a formula)

Let L be any first-order language. The mapping FVAR : FOR(L) → P(VAR) (where P(VAR) is the powerset of VAR) is defined recursively on the structure of formulae in L as follows.

• 1. For every atomic formula A = p(t1, ..., tn),

FVAR(A) := VAR(t1) ∪ . . . ∪ VAR(tn).

• 2. If A is a formula in L then FVAR(¬A) := FVAR(A).
• 3. If A and B are formulae in L and • ∈ {∧, ∨, →, ↔} then

FVAR(A • B) := FVAR(A) ∪ FVAR(B)

• 4. If A is a formula in L and x is an individual variable, then

FVAR(∀xA) = FVAR(∃xA) = FVAR(A) \ {x} . Exercise: define similarly the set of bound variables BVAR(A) for every formula A.

Goranko

Open and closed formulae

Goranko

Open and closed formulae

Theorem

The truth of a formula A in a given structure S only depends on the assignment of values to the free variables occurring in A.

Goranko

Open and closed formulae

Theorem

The truth of a formula A in a given structure S only depends on the assignment of values to the free variables occurring in A. That is, if v1, v2 are variable assignments in S such that v1 |FVAR(A)= v2 |FVAR(A), then S, v1 | = A iff S, v2 | = A.

Goranko

Open and closed formulae

Theorem

The truth of a formula A in a given structure S only depends on the assignment of values to the free variables occurring in A. That is, if v1, v2 are variable assignments in S such that v1 |FVAR(A)= v2 |FVAR(A), then S, v1 | = A iff S, v2 | = A. Proof: by structural induction of formulae, using the recursive definition

• f FVAR(A). Exercise.

Goranko

Open and closed formulae

Theorem

The truth of a formula A in a given structure S only depends on the assignment of values to the free variables occurring in A. That is, if v1, v2 are variable assignments in S such that v1 |FVAR(A)= v2 |FVAR(A), then S, v1 | = A iff S, v2 | = A. Proof: by structural induction of formulae, using the recursive definition

• f FVAR(A). Exercise.

An open formula is a formula with no bound variables, i.e. not containing any occurrences of quantifiers.

Goranko

Open and closed formulae

Theorem

The truth of a formula A in a given structure S only depends on the assignment of values to the free variables occurring in A. That is, if v1, v2 are variable assignments in S such that v1 |FVAR(A)= v2 |FVAR(A), then S, v1 | = A iff S, v2 | = A. Proof: by structural induction of formulae, using the recursive definition

• f FVAR(A). Exercise.

An open formula is a formula with no bound variables, i.e. not containing any occurrences of quantifiers. A closed formula, or a sentence is a formula with no free variables.

Goranko

Open and closed formulae

Theorem

The truth of a formula A in a given structure S only depends on the assignment of values to the free variables occurring in A. That is, if v1, v2 are variable assignments in S such that v1 |FVAR(A)= v2 |FVAR(A), then S, v1 | = A iff S, v2 | = A. Proof: by structural induction of formulae, using the recursive definition

• f FVAR(A). Exercise.

An open formula is a formula with no bound variables, i.e. not containing any occurrences of quantifiers. A closed formula, or a sentence is a formula with no free variables. Thus, the truth of a sentence in a structure does not depend on the variable assignment.

Goranko

Using bound and free variables in a formula

Goranko

Using bound and free variables in a formula

Free variables have their own values in a given formula (determined by a variable assignment)

Goranko

Using bound and free variables in a formula

Free variables have their own values in a given formula (determined by a variable assignment), while bound variables only play a dummy role and can be replaced (with care!) by one another.

Goranko

Using bound and free variables in a formula

Free variables have their own values in a given formula (determined by a variable assignment), while bound variables only play a dummy role and can be replaced (with care!) by one another. For instance, the sentence ∃x(5 < x ∧ x2 + x − 2 = 0) means exactly the same as ∃y(5 < y ∧ y2 + y − 2 = 0), in the sense that both formulae always have the same truth value.

Goranko

Using bound and free variables in a formula

Free variables have their own values in a given formula (determined by a variable assignment), while bound variables only play a dummy role and can be replaced (with care!) by one another. For instance, the sentence ∃x(5 < x ∧ x2 + x − 2 = 0) means exactly the same as ∃y(5 < y ∧ y2 + y − 2 = 0), in the sense that both formulae always have the same truth value. Likewise, ∀x(5 < x ∨ x2 + x − 2 = 0) means the same as ∀y(5 < y ∨ y2 + y − 2 = 0).

Goranko

Using bound and free variables in a formula

Free variables have their own values in a given formula (determined by a variable assignment), while bound variables only play a dummy role and can be replaced (with care!) by one another. For instance, the sentence ∃x(5 < x ∧ x2 + x − 2 = 0) means exactly the same as ∃y(5 < y ∧ y2 + y − 2 = 0), in the sense that both formulae always have the same truth value. Likewise, ∀x(5 < x ∨ x2 + x − 2 = 0) means the same as ∀y(5 < y ∨ y2 + y − 2 = 0). On the other hand, the meaning of 5 < x ∧ x2 + x − 2 = 0 is essentially different from the meaning of 5 < y ∧ y2 + y − 2 = 0.

Goranko

Using bound and free variables in a formula

Free variables have their own values in a given formula (determined by a variable assignment), while bound variables only play a dummy role and can be replaced (with care!) by one another. For instance, the sentence ∃x(5 < x ∧ x2 + x − 2 = 0) means exactly the same as ∃y(5 < y ∧ y2 + y − 2 = 0), in the sense that both formulae always have the same truth value. Likewise, ∀x(5 < x ∨ x2 + x − 2 = 0) means the same as ∀y(5 < y ∨ y2 + y − 2 = 0). On the other hand, the meaning of 5 < x ∧ x2 + x − 2 = 0 is essentially different from the meaning of 5 < y ∧ y2 + y − 2 = 0. Both formulae state the same, but about different individuals.

Goranko

Reusing variables as free and bound in a formula

Goranko

Reusing variables as free and bound in a formula

The same variable can occur both free and bound in a formula: x > 5 → ∀x(2x > x).

Goranko

Reusing variables as free and bound in a formula

The same variable can occur both free and bound in a formula: x > 5 → ∀x(2x > x). However, the free occurrence of x is unrelated to the bound occurrences

• f x:

x > 5 → ∀x(2x > x).

Goranko

Reusing variables as free and bound in a formula

The same variable can occur both free and bound in a formula: x > 5 → ∀x(2x > x). However, the free occurrence of x is unrelated to the bound occurrences

• f x:

x > 5 → ∀x(2x > x). Thus, the formula above has the same meaning as x > 5 → ∀y(2y > y),

Goranko

Reusing variables as free and bound in a formula

The same variable can occur both free and bound in a formula: x > 5 → ∀x(2x > x). However, the free occurrence of x is unrelated to the bound occurrences

• f x:

x > 5 → ∀x(2x > x). Thus, the formula above has the same meaning as x > 5 → ∀y(2y > y), but not the same meaning as y > 5 → ∀x(2x > x).

Goranko

Binding a variable by different quantifiers in a formula

Goranko

Binding a variable by different quantifiers in a formula

Different occurrences of the same variable can be bound by different quantifiers: ∃x(x > 5) ∨ ∀x(2x > x).

Goranko

Binding a variable by different quantifiers in a formula

Different occurrences of the same variable can be bound by different quantifiers: ∃x(x > 5) ∨ ∀x(2x > x). Again, the occurrences of x, bound by the first quantifier, have nothing to do with those bound by the second one.

Goranko

Binding a variable by different quantifiers in a formula

Different occurrences of the same variable can be bound by different quantifiers: ∃x(x > 5) ∨ ∀x(2x > x). Again, the occurrences of x, bound by the first quantifier, have nothing to do with those bound by the second one. For instance, the two x’s claimed to exist in the formula ∃x(x > 5) ∧ ∃x(x < 3). need not (and, in fact, cannot) be the same.

Goranko

Binding a variable by different quantifiers in a formula

Different occurrences of the same variable can be bound by different quantifiers: ∃x(x > 5) ∨ ∀x(2x > x). Again, the occurrences of x, bound by the first quantifier, have nothing to do with those bound by the second one. For instance, the two x’s claimed to exist in the formula ∃x(x > 5) ∧ ∃x(x < 3). need not (and, in fact, cannot) be the same. Thus, the formula above has the same meaning as each of ∃y(y > 5) ∧ ∃x(x < 3),

Goranko

Binding a variable by different quantifiers in a formula

Different occurrences of the same variable can be bound by different quantifiers: ∃x(x > 5) ∨ ∀x(2x > x). Again, the occurrences of x, bound by the first quantifier, have nothing to do with those bound by the second one. For instance, the two x’s claimed to exist in the formula ∃x(x > 5) ∧ ∃x(x < 3). need not (and, in fact, cannot) be the same. Thus, the formula above has the same meaning as each of ∃y(y > 5) ∧ ∃x(x < 3), ∃x(x > 5) ∧ ∃z(z < 3),

Goranko

Binding a variable by different quantifiers in a formula

Different occurrences of the same variable can be bound by different quantifiers: ∃x(x > 5) ∨ ∀x(2x > x). Again, the occurrences of x, bound by the first quantifier, have nothing to do with those bound by the second one. For instance, the two x’s claimed to exist in the formula ∃x(x > 5) ∧ ∃x(x < 3). need not (and, in fact, cannot) be the same. Thus, the formula above has the same meaning as each of ∃y(y > 5) ∧ ∃x(x < 3), ∃x(x > 5) ∧ ∃z(z < 3), ∃y(y > 5) ∧ ∃z(z < 3).

Goranko

Nested bindings of a variable in a formula

Goranko

Nested bindings of a variable in a formula

Different bindings of the same variable can be nested, e.g.: ∀x(x > 5 → ∃x(x < 3)).

Goranko

Nested bindings of a variable in a formula

Different bindings of the same variable can be nested, e.g.: ∀x(x > 5 → ∃x(x < 3)). Again, the occurrences of x in the subformula ∃x(x < 3) are bound by ∃ and not related to the first two occurrences of x, bound by ∀: ∀x(x > 5 → ∃x(x < 3)).

Goranko

Nested bindings of a variable in a formula

Different bindings of the same variable can be nested, e.g.: ∀x(x > 5 → ∃x(x < 3)). Again, the occurrences of x in the subformula ∃x(x < 3) are bound by ∃ and not related to the first two occurrences of x, bound by ∀: ∀x(x > 5 → ∃x(x < 3)). Thus, the formula above has the same meaning as each of ∀x(x > 5 → ∃y(y < 3)),

Goranko

Nested bindings of a variable in a formula

Different bindings of the same variable can be nested, e.g.: ∀x(x > 5 → ∃x(x < 3)). Again, the occurrences of x in the subformula ∃x(x < 3) are bound by ∃ and not related to the first two occurrences of x, bound by ∀: ∀x(x > 5 → ∃x(x < 3)). Thus, the formula above has the same meaning as each of ∀x(x > 5 → ∃y(y < 3)), ∀z(z > 5 → ∃x(x < 3)),

Goranko

Nested bindings of a variable in a formula

Different bindings of the same variable can be nested, e.g.: ∀x(x > 5 → ∃x(x < 3)). Again, the occurrences of x in the subformula ∃x(x < 3) are bound by ∃ and not related to the first two occurrences of x, bound by ∀: ∀x(x > 5 → ∃x(x < 3)). Thus, the formula above has the same meaning as each of ∀x(x > 5 → ∃y(y < 3)), ∀z(z > 5 → ∃x(x < 3)), ∀z(z > 5 → ∃y(y < 3)).

Goranko

Renaming of a bound variable in a formula

Goranko

Renaming of a bound variable in a formula

Using the same variable for different purposes in a formula can be confusing, and is often unwanted, so we may want to eliminate it.

Goranko

Renaming of a bound variable in a formula

Using the same variable for different purposes in a formula can be confusing, and is often unwanted, so we may want to eliminate it. Renaming of the variable x in a formula A is the substitution of all

• ccurrences of x bound by the same occurrence of a quantifier in A with

another variable, not occurring in A.

Goranko

Renaming of a bound variable in a formula

Using the same variable for different purposes in a formula can be confusing, and is often unwanted, so we may want to eliminate it. Renaming of the variable x in a formula A is the substitution of all

• ccurrences of x bound by the same occurrence of a quantifier in A with

another variable, not occurring in A. E.g., a possible renaming of (x > 5) ∧ ∀x(x > 5 → ¬∃x(x < y))

Goranko

Renaming of a bound variable in a formula

Using the same variable for different purposes in a formula can be confusing, and is often unwanted, so we may want to eliminate it. Renaming of the variable x in a formula A is the substitution of all

• ccurrences of x bound by the same occurrence of a quantifier in A with

another variable, not occurring in A. E.g., a possible renaming of (x > 5) ∧ ∀x(x > 5 → ¬∃x(x < y)) is the formula (x > 5) ∧ ∀x(x > 5 → ¬∃z(z < y))

Goranko

Renaming of a bound variable in a formula

Using the same variable for different purposes in a formula can be confusing, and is often unwanted, so we may want to eliminate it. Renaming of the variable x in a formula A is the substitution of all

• ccurrences of x bound by the same occurrence of a quantifier in A with

another variable, not occurring in A. E.g., a possible renaming of (x > 5) ∧ ∀x(x > 5 → ¬∃x(x < y)) is the formula (x > 5) ∧ ∀x(x > 5 → ¬∃z(z < y)) However, neither of the following formulae is a correct renaming:

Goranko

Renaming of a bound variable in a formula

Using the same variable for different purposes in a formula can be confusing, and is often unwanted, so we may want to eliminate it. Renaming of the variable x in a formula A is the substitution of all

• ccurrences of x bound by the same occurrence of a quantifier in A with

another variable, not occurring in A. E.g., a possible renaming of (x > 5) ∧ ∀x(x > 5 → ¬∃x(x < y)) is the formula (x > 5) ∧ ∀x(x > 5 → ¬∃z(z < y)) However, neither of the following formulae is a correct renaming: (z > 5) ∧ ∀x((x > 5) → ¬∃x(x < y)),

Goranko

Renaming of a bound variable in a formula

Using the same variable for different purposes in a formula can be confusing, and is often unwanted, so we may want to eliminate it. Renaming of the variable x in a formula A is the substitution of all

• ccurrences of x bound by the same occurrence of a quantifier in A with

another variable, not occurring in A. E.g., a possible renaming of (x > 5) ∧ ∀x(x > 5 → ¬∃x(x < y)) is the formula (x > 5) ∧ ∀x(x > 5 → ¬∃z(z < y)) However, neither of the following formulae is a correct renaming: (z > 5) ∧ ∀x((x > 5) → ¬∃x(x < y)), (x > 5) ∧ ∀z((z > 5) → ¬∃z(z < y)),

Goranko

Renaming of a bound variable in a formula

Using the same variable for different purposes in a formula can be confusing, and is often unwanted, so we may want to eliminate it. Renaming of the variable x in a formula A is the substitution of all

• ccurrences of x bound by the same occurrence of a quantifier in A with

another variable, not occurring in A. E.g., a possible renaming of (x > 5) ∧ ∀x(x > 5 → ¬∃x(x < y)) is the formula (x > 5) ∧ ∀x(x > 5 → ¬∃z(z < y)) However, neither of the following formulae is a correct renaming: (z > 5) ∧ ∀x((x > 5) → ¬∃x(x < y)), (x > 5) ∧ ∀z((z > 5) → ¬∃z(z < y)), (x > 5) ∧ ∀x(x > 5 → ¬∃y(y < y)).

Goranko

Renaming of a bound variable in a formula

Using the same variable for different purposes in a formula can be confusing, and is often unwanted, so we may want to eliminate it. Renaming of the variable x in a formula A is the substitution of all

• ccurrences of x bound by the same occurrence of a quantifier in A with

another variable, not occurring in A. E.g., a possible renaming of (x > 5) ∧ ∀x(x > 5 → ¬∃x(x < y)) is the formula (x > 5) ∧ ∀x(x > 5 → ¬∃z(z < y)) However, neither of the following formulae is a correct renaming: (z > 5) ∧ ∀x((x > 5) → ¬∃x(x < y)), (x > 5) ∧ ∀z((z > 5) → ¬∃z(z < y)), (x > 5) ∧ ∀x(x > 5 → ¬∃y(y < y)). Claim: The result of renaming a variable in a formula A always has the same truth value as A

Goranko

Renaming of a bound variable in a formula

Using the same variable for different purposes in a formula can be confusing, and is often unwanted, so we may want to eliminate it. Renaming of the variable x in a formula A is the substitution of all

• ccurrences of x bound by the same occurrence of a quantifier in A with

another variable, not occurring in A. E.g., a possible renaming of (x > 5) ∧ ∀x(x > 5 → ¬∃x(x < y)) is the formula (x > 5) ∧ ∀x(x > 5 → ¬∃z(z < y)) However, neither of the following formulae is a correct renaming: (z > 5) ∧ ∀x((x > 5) → ¬∃x(x < y)), (x > 5) ∧ ∀z((z > 5) → ¬∃z(z < y)), (x > 5) ∧ ∀x(x > 5 → ¬∃y(y < y)). Claim: The result of renaming a variable in a formula A always has the same truth value as A, so it is logically equivalent to A.

Goranko

Clean formulae

Goranko

Clean formulae

A formula A is clean if no variable occurs both free and bound in A and every two occurrences of quantifiers bind different variables.

Goranko

Clean formulae

A formula A is clean if no variable occurs both free and bound in A and every two occurrences of quantifiers bind different variables. Thus, ∃x(x > 5) ∧ ∃y(y < z) is clean,

Goranko

Clean formulae

A formula A is clean if no variable occurs both free and bound in A and every two occurrences of quantifiers bind different variables. Thus, ∃x(x > 5) ∧ ∃y(y < z) is clean, while ∃x(x > 5) ∧ ∃y(y < x)

Goranko

Clean formulae

A formula A is clean if no variable occurs both free and bound in A and every two occurrences of quantifiers bind different variables. Thus, ∃x(x > 5) ∧ ∃y(y < z) is clean, while ∃x(x > 5) ∧ ∃y(y < x) and ∃x(x > 5) ∧ ∃x(y < x) are not.

Goranko

Clean formulae

A formula A is clean if no variable occurs both free and bound in A and every two occurrences of quantifiers bind different variables. Thus, ∃x(x > 5) ∧ ∃y(y < z) is clean, while ∃x(x > 5) ∧ ∃y(y < x) and ∃x(x > 5) ∧ ∃x(y < x) are not. Claim: Every formula can be transformed into a clean formula by means of several consecutive renamings of variables.

Goranko

Clean formulae

A formula A is clean if no variable occurs both free and bound in A and every two occurrences of quantifiers bind different variables. Thus, ∃x(x > 5) ∧ ∃y(y < z) is clean, while ∃x(x > 5) ∧ ∃y(y < x) and ∃x(x > 5) ∧ ∃x(y < x) are not. Claim: Every formula can be transformed into a clean formula by means of several consecutive renamings of variables. E.g., (x > 5) ∧ ∀x((x > 5) → ¬∃x(x < y))

Goranko

Clean formulae

A formula A is clean if no variable occurs both free and bound in A and every two occurrences of quantifiers bind different variables. Thus, ∃x(x > 5) ∧ ∃y(y < z) is clean, while ∃x(x > 5) ∧ ∃y(y < x) and ∃x(x > 5) ∧ ∃x(y < x) are not. Claim: Every formula can be transformed into a clean formula by means of several consecutive renamings of variables. E.g., (x > 5) ∧ ∀x((x > 5) → ¬∃x(x < y)) can be transformed into a clean formula as follows:

Goranko

Clean formulae

A formula A is clean if no variable occurs both free and bound in A and every two occurrences of quantifiers bind different variables. Thus, ∃x(x > 5) ∧ ∃y(y < z) is clean, while ∃x(x > 5) ∧ ∃y(y < x) and ∃x(x > 5) ∧ ∃x(y < x) are not. Claim: Every formula can be transformed into a clean formula by means of several consecutive renamings of variables. E.g., (x > 5) ∧ ∀x((x > 5) → ¬∃x(x < y)) can be transformed into a clean formula as follows: (x > 5) ∧ ∀x1((x1 > 5) → ¬∃x(x < y)),

Goranko

Clean formulae

A formula A is clean if no variable occurs both free and bound in A and every two occurrences of quantifiers bind different variables. Thus, ∃x(x > 5) ∧ ∃y(y < z) is clean, while ∃x(x > 5) ∧ ∃y(y < x) and ∃x(x > 5) ∧ ∃x(y < x) are not. Claim: Every formula can be transformed into a clean formula by means of several consecutive renamings of variables. E.g., (x > 5) ∧ ∀x((x > 5) → ¬∃x(x < y)) can be transformed into a clean formula as follows: (x > 5) ∧ ∀x1((x1 > 5) → ¬∃x(x < y)), (x > 5) ∧ ∀x1((x1 > 5) → ¬∃x2(x2 < y)).

Goranko

Substitution of a term for a variable in a formula

Goranko

Substitution of a term for a variable in a formula

Unform substitution of a term t for a variable x in a formula A means that all free occurrences x in A are simultaneously replaced by t. The result of the substitution is denoted A[t/x].

Goranko

Substitution of a term for a variable in a formula

Unform substitution of a term t for a variable x in a formula A means that all free occurrences x in A are simultaneously replaced by t. The result of the substitution is denoted A[t/x]. Example: given the formula A = ∀x(P(x, y) → (¬Q(y) ∨ ∃yP(x, y)))

Goranko

Substitution of a term for a variable in a formula

Unform substitution of a term t for a variable x in a formula A means that all free occurrences x in A are simultaneously replaced by t. The result of the substitution is denoted A[t/x]. Example: given the formula A = ∀x(P(x, y) → (¬Q(y) ∨ ∃yP(x, y))) we have A[f (y, z)/y] = ∀x(P(x, f (y, z)) → (¬Q(f (y, z)) ∨ ∃yP(x, y))),

Goranko

Substitution of a term for a variable in a formula

Unform substitution of a term t for a variable x in a formula A means that all free occurrences x in A are simultaneously replaced by t. The result of the substitution is denoted A[t/x]. Example: given the formula A = ∀x(P(x, y) → (¬Q(y) ∨ ∃yP(x, y))) we have A[f (y, z)/y] = ∀x(P(x, f (y, z)) → (¬Q(f (y, z)) ∨ ∃yP(x, y))), while A[f (y, z)/x] = A because x does not occur free in A.

Goranko

Substitution of a term for a variable in a formula

Unform substitution of a term t for a variable x in a formula A means that all free occurrences x in A are simultaneously replaced by t. The result of the substitution is denoted A[t/x]. Example: given the formula A = ∀x(P(x, y) → (¬Q(y) ∨ ∃yP(x, y))) we have A[f (y, z)/y] = ∀x(P(x, f (y, z)) → (¬Q(f (y, z)) ∨ ∃yP(x, y))), while A[f (y, z)/x] = A because x does not occur free in A. Intuitively, A[t/x] is supposed to say about the individual denoted by t the same as what A says about the individual denoted by x.

Goranko

Substitution of a term for a variable in a formula

Unform substitution of a term t for a variable x in a formula A means that all free occurrences x in A are simultaneously replaced by t. The result of the substitution is denoted A[t/x]. Example: given the formula A = ∀x(P(x, y) → (¬Q(y) ∨ ∃yP(x, y))) we have A[f (y, z)/y] = ∀x(P(x, f (y, z)) → (¬Q(f (y, z)) ∨ ∃yP(x, y))), while A[f (y, z)/x] = A because x does not occur free in A. Intuitively, A[t/x] is supposed to say about the individual denoted by t the same as what A says about the individual denoted by x. Question: is that always the case?

Goranko

Substitution of a term for a variable in a formula

Unform substitution of a term t for a variable x in a formula A means that all free occurrences x in A are simultaneously replaced by t. The result of the substitution is denoted A[t/x]. Example: given the formula A = ∀x(P(x, y) → (¬Q(y) ∨ ∃yP(x, y))) we have A[f (y, z)/y] = ∀x(P(x, f (y, z)) → (¬Q(f (y, z)) ∨ ∃yP(x, y))), while A[f (y, z)/x] = A because x does not occur free in A. Intuitively, A[t/x] is supposed to say about the individual denoted by t the same as what A says about the individual denoted by x. Question: is that always the case? Is a substitution of a term for a formula always ’safe’?

Goranko

Capture of a variable in substitution

Goranko

Capture of a variable in substitution

The formula A = ∃y(x < y) is true in N for any value of x.

Goranko

Capture of a variable in substitution

The formula A = ∃y(x < y) is true in N for any value of x. However, A[(y + 1)/x] = ∃y(y + 1 < y), which is false in N.

Goranko

Capture of a variable in substitution

The formula A = ∃y(x < y) is true in N for any value of x. However, A[(y + 1)/x] = ∃y(y + 1 < y), which is false in N. Therefore, the formula A[(y + 1)/x] does not say about the term y + 1 the same as what A says about x.

Goranko

Capture of a variable in substitution

The formula A = ∃y(x < y) is true in N for any value of x. However, A[(y + 1)/x] = ∃y(y + 1 < y), which is false in N. Therefore, the formula A[(y + 1)/x] does not say about the term y + 1 the same as what A says about x. What went wrong?

Goranko

Capture of a variable in substitution

The formula A = ∃y(x < y) is true in N for any value of x. However, A[(y + 1)/x] = ∃y(y + 1 < y), which is false in N. Therefore, the formula A[(y + 1)/x] does not say about the term y + 1 the same as what A says about x. What went wrong? The occurrence of y in the term y + 1 got captured by the quantifier ∃y, because we mixed the free and the bound uses of y.

Goranko

Capture of a variable in substitution

The formula A = ∃y(x < y) is true in N for any value of x. However, A[(y + 1)/x] = ∃y(y + 1 < y), which is false in N. Therefore, the formula A[(y + 1)/x] does not say about the term y + 1 the same as what A says about x. What went wrong? The occurrence of y in the term y + 1 got captured by the quantifier ∃y, because we mixed the free and the bound uses of y. Capture: when new occurrences of a variable y are introduced in the scope of a quantifier Qy occurring in the formula A as a result of substitution of a term t containing y for another variable x in A.

Goranko

Terms free for substitution for a variable in a formula

Goranko

Terms free for substitution for a variable in a formula

A term t is free for (substitution for) a variable x in a formula A, if no variable in t is captured by a quantifier when t is substituted for x in A.

Goranko

Terms free for substitution for a variable in a formula

A term t is free for (substitution for) a variable x in a formula A, if no variable in t is captured by a quantifier when t is substituted for x in A. Examples:

Goranko

Terms free for substitution for a variable in a formula

A term t is free for (substitution for) a variable x in a formula A, if no variable in t is captured by a quantifier when t is substituted for x in A. Examples: The term f (x, y) is free for substitution for y in the formula A = ∀x(P(x, z) ∧ ∃yQ(y)) → P(y, z),

Goranko

Terms free for substitution for a variable in a formula

A term t is free for (substitution for) a variable x in a formula A, if no variable in t is captured by a quantifier when t is substituted for x in A. Examples: The term f (x, y) is free for substitution for y in the formula A = ∀x(P(x, z) ∧ ∃yQ(y)) → P(y, z), resulting in A[f (x, y)/y] = ∀x(P(x, z) ∧ ∃yQ(y)) → P(f (x, y), z),

Goranko

Terms free for substitution for a variable in a formula

A term t is free for (substitution for) a variable x in a formula A, if no variable in t is captured by a quantifier when t is substituted for x in A. Examples: The term f (x, y) is free for substitution for y in the formula A = ∀x(P(x, z) ∧ ∃yQ(y)) → P(y, z), resulting in A[f (x, y)/y] = ∀x(P(x, z) ∧ ∃yQ(y)) → P(f (x, y), z), but it is not free for substitution for z in A,

Goranko

Terms free for substitution for a variable in a formula

A term t is free for (substitution for) a variable x in a formula A, if no variable in t is captured by a quantifier when t is substituted for x in A. Examples: The term f (x, y) is free for substitution for y in the formula A = ∀x(P(x, z) ∧ ∃yQ(y)) → P(y, z), resulting in A[f (x, y)/y] = ∀x(P(x, z) ∧ ∃yQ(y)) → P(f (x, y), z), but it is not free for substitution for z in A, resulting in A[f (x, y)/z] = ∀x(P(x, f (x, y)) ∧ ∃yQ(y)) → P(y, f (x, y)),

Goranko

Terms free for substitution for a variable in a formula

A term t is free for (substitution for) a variable x in a formula A, if no variable in t is captured by a quantifier when t is substituted for x in A. Examples: The term f (x, y) is free for substitution for y in the formula A = ∀x(P(x, z) ∧ ∃yQ(y)) → P(y, z), resulting in A[f (x, y)/y] = ∀x(P(x, z) ∧ ∃yQ(y)) → P(f (x, y), z), but it is not free for substitution for z in A, resulting in A[f (x, y)/z] = ∀x(P(x, f (x, y)) ∧ ∃yQ(y)) → P(y, f (x, y)), because a capture occurs: A[f (x, y)/z] = ∀x(P(x, f (x, y)) ∧ ∃yQ(y)) → P(y, f (x, y)).

Goranko

Terms free for substitution for a variable in a formula

A term t is free for (substitution for) a variable x in a formula A, if no variable in t is captured by a quantifier when t is substituted for x in A. Examples: The term f (x, y) is free for substitution for y in the formula A = ∀x(P(x, z) ∧ ∃yQ(y)) → P(y, z), resulting in A[f (x, y)/y] = ∀x(P(x, z) ∧ ∃yQ(y)) → P(f (x, y), z), but it is not free for substitution for z in A, resulting in A[f (x, y)/z] = ∀x(P(x, f (x, y)) ∧ ∃yQ(y)) → P(y, f (x, y)), because a capture occurs: A[f (x, y)/z] = ∀x(P(x, f (x, y)) ∧ ∃yQ(y)) → P(y, f (x, y)). Note that every ground term (not containing variables), in particular every constant symbol, is always free for substitution.

Goranko

Renamings and substitutions in a formula

Goranko

Renamings and substitutions in a formula

NB: renaming and substitution are different operations: – renaming always acts on bound variables, – whereas substitution always acts on free variables.

Goranko

Renamings and substitutions in a formula

NB: renaming and substitution are different operations: – renaming always acts on bound variables, – whereas substitution always acts on free variables. Also, renamings preserve the formula up to logical equivalence, while substitutions do not.

Goranko

Renamings and substitutions in a formula

NB: renaming and substitution are different operations: – renaming always acts on bound variables, – whereas substitution always acts on free variables. Also, renamings preserve the formula up to logical equivalence, while substitutions do not. On the other hand, a suitable renaming of a formula can prepare it for a substitution, by rendering the term, which is to be substituted, free for such substitution in the renamed formula.

Goranko

Renamings and substitutions in a formula

NB: renaming and substitution are different operations: – renaming always acts on bound variables, – whereas substitution always acts on free variables. Also, renamings preserve the formula up to logical equivalence, while substitutions do not. On the other hand, a suitable renaming of a formula can prepare it for a substitution, by rendering the term, which is to be substituted, free for such substitution in the renamed formula. For instance, the term f (x, y) is not free for substitution for y in A = ∀x(P(x, y) ∧ ∃yQ(y)),

Goranko

Renamings and substitutions in a formula

NB: renaming and substitution are different operations: – renaming always acts on bound variables, – whereas substitution always acts on free variables. Also, renamings preserve the formula up to logical equivalence, while substitutions do not. On the other hand, a suitable renaming of a formula can prepare it for a substitution, by rendering the term, which is to be substituted, free for such substitution in the renamed formula. For instance, the term f (x, y) is not free for substitution for y in A = ∀x(P(x, y) ∧ ∃yQ(y)), but it becomes free for such substitution after renaming of A to A′ = ∀x′(P(x′, y) ∧ ∃yQ(y)).
