SLIDE 1

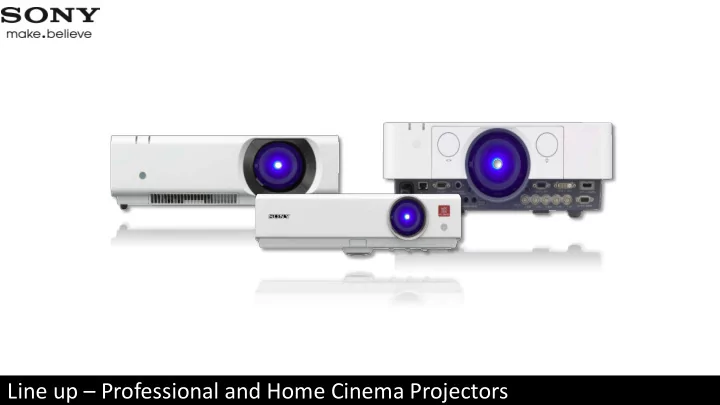

Line up – Professional and Home Cinema Projectors

SLIDE 2

Some figures

Website: http://pro.sony.eu/projectors

NEW FROM SONY – DON’T MISS THESE!

VPL-FHZ700L

The new 7000 lumens laser projector

See page 9

VPL-SW235

3000 lumens short throw full featured projector

See page 7

VPL-SW630C

3200 lumens projector, perfect for education

See page 5

Summary - June 2014

Corporate & SMB Projectors 3 Education Projectors 4 Installation Projectors 7 Home Cinema Projectors 11 Warranties and extensions 12

42%

Savings on operating costs compared to other traditional projectors

10000 hrs

Standard lamp life for new 2014 Education short throw models

3 years

Standard warranty for all Education projectors/lamps from Sony

SLIDE 3

Common Features:

3LCD, ECO Mode, Off and Go, Image Freeze, Distance Control, Auto light control

Line up – Corporate & SMB Projectors (PJA)

XGA (1024x768)
2600 lm
Contrast 3000:1
Zoom x1,3
Lamp 10000h
HDMI-VGA
30dB
ECO mode
Carrying case
Auto lamp mode

+ 3200 lm

VPL-DX122 VPL-DX142 VPL-DX127

+ 2600 lm + RJ45 + Wi-Fi + USB Viewer + Tablet connectivity iPad / Android

LMP-D213

Lamp 210W

RM-PJ8 PAM-200

Remote

Commander

Ceiling Bracket
WXGA (1280x800)
2600 lm
Contrast 3000:1
Zoom x1,3
Lamp 10000h
HDMI-VGA
30 dB
ECO mode
Carrying case
Auto lamp mode

VPL-DX147 VPL-DW122 VPL-DW127

+ 2600 lm + RJ45 + Wi-Fi + USB Viewer + Tablet connectivity iPad / Android

Common Features:

3LCD, ECO Mode, Off and Go, Image Freeze, Distance Control, Auto light control

+ 3200 lm

Prime Support Warranty: The Sony Professional projectors below all come supplied with a 2 year

PrimeSupport warranty from the date of purchase, and 1 year or 1000 hrs. (first reached) lamp warranty

Helpdesk: (price of a local call) 00800 78 98 78 98
Extension of Prime Support, Prime Support Plus, available: 3 years warranty,

5 years warranty

Warranty

Carrying bag

A carrying case is included with all DX/DW projectors.

SLIDE 4

Common Features:

3LCD, ECO Mode, Off and Go, Image Freeze, Distance Control, Auto light control

Line up – Education Projectors (PJF)

XGA (1024x768)
2800 lm
Contrast 3300:1
Throw Ratio :

1,37-1,80:1

Zoom x1,3
Diagonal: 0,76-7,62m
Lamp 7000h
HDMI, USB, 2xVGA,

RJ45, Optional Wi-Fi

Audio 1x16W
30dB
3,9 kg
Auto lamp Mode
Black Board projection

+ 3300 lm + Contrast 3300:1 + Throw Projection: 1,4-2,27:1

VPL-EX235 VPL-EX255 VPL-EX295

+ 3800 lm + Contrast 3800:1 + Audio 1x10W

LMP-E212

Lamp 210W

RM-PJ8 PAM-200

Remote

Commander

Ceiling Bracket
WXGA (1280x800)
2700 lm
Contrast 2700:1
Throw Ratio :

1,37-1,80:1

Zoom x1,3
Diagonal : 0,76-7,62m
Lamp 10000h
HDMI, USB, 2xVGA,

RJ45, Optional Wi-Fi

Audio 1x16W
38 dB
3,9 kg
Auto lamp Mode
Black Board projection

+ 3200 lm + Contrast 2700:1 + Throw Ratio : 1,4-2,27:1

VPL-EW235 VPL-EW255 VPL-EW295

+ 3800 lm + Contrast 3700:1 + Throw Ratio: 1,1-1,79:1

USB WiFI Module

Common Features: 3LCD, ECO Mode, Off and Go, Image Freeze, Distance Control, Auto light control

Prime Support Warranty: The Sony Professional projectors below all come supplied with a 3 year

PrimeSupport warranty from the date of purchase, and 3 years or 3000 hrs. (first reached) lamp warranty

Helpdesk: (price of a local call) 00800 78 98 78 98
Extension of Prime Support, Prime Support Plus, available: 3 years with product loan,

2 years extension, 5 years with product loan

Warranty IFU-WLN3

Presentation via Network

Connect up to 8 simultaneous users

n the same projector!

iPad / Android Compatible iPad / Android Compatible

SLIDE 5

Prime Support Warranty: The Sony Professional projectors below all come supplied with a 3 year

PrimeSupport warranty from the date of purchase, and 3 years or 3000 hrs. (first reached) lamp warranty

Helpdesk: (price of a local call) 00800 78 98 78 98
Extension of Prime Support, Prime Support Plus, available: 3 years with product loan,

2 years extension, 5 years with product loan

Common Features: 3LCD, 3 brightness mode, Off and Go, Picture muting and picture freeze

Line up – Education Projectors (PJF)

VPL-SX630 VPL-SW620

XGA (1024x768)
3200 lm
Contrast 3000:1
Throw Ratio: 0.27:1
Diagonal : 1,5-2,8m
Lens shift : V: +/-3.1%, H:

+/-2.3% manual

Keystone correction
Zoom x1,03
HDMI, USB, 2xVGA, RJ45,

Optional Wi-Fi

ECO Mode
Lamp 8000h
Audio 1x16W
6 kg
Auto adjustment of

brightness

Wall bracket included

+ WXGA (1200x800) + 2600 lm + Contrast 3000:1 + Throw Ratio: 0.27:1 + Diagonal: 1,8-3,3m

LMP-E220

Lamp 225W for

UST Range

RM-PJ8

Remote

commander for UST Range

Warranty VPL-SW630

+ WXGA (1200x800) + 3100 lm + Contrast 3000:1

iPad / Android Compatible

Common Features: 3LCD, 3 brightness mode, Off and Go, Picture muting and picture freeze, interactive VPL-SW620C VPL-SW630C

WXGA (1200x800)
2600 lm
Contrast 3000:1
Throw Ratio: 0.27:1
Diagonal : 1,8-3,3m
Lens shift : V: +/-3.1%, H: +/-2.3%

manual

Keystone correction
Zoom x1,03
HDMI, USB, 2xVGA, RJ45,

Optional Wi-Fi

ECO mode , lamp 8000h
Audio 1x16W
6 kg
Auto adjustment of brightness
Wall bracket included
2 interactive pens included

+ 3100 lm + Contrast 3000:1

Wall mount

Wall mount

supplied with the projector

Interactive Pens

Interactive pens

included (IFU- PN250M, IFU- PN250S) for VPL- SW620C, VPL- SW630C)

These projectors are equipped with interactive features allowing greater flexibility for the user, such as the possibility to enter notes and record live.

SLIDE 6

iPad / Android Compatible Common Features: 3LCD, ECO Mode, Off and Go, Image Freeze, Distance Control, Auto light control

Line up – Corporate & SMB Projectors (PJA)

XGA (1024x768)
2700 lm
Contrast 3000:1
Lamp 10,000h
Throw Ratio: 0.46:1
Keystone correction
Screen Size (diagonal):

1,5-2,8m

30dB
HDMI, USB, 2xVGA,

RJ45, Optional Wi-Fi

ECO Mode
Audio 1x1W
4,4 kg

+ 3200 lm

VPL-SX225 VPL-SX235 LMP-E212

Lamp 210W

RM-PJ8 PAM-200

Remote Commander
Ceiling Bracket

VPL-SW225 VPL-SW235

+ 3000 lm

Common Features:

3LCD, ECO Mode, Off and Go, Image Freeze, Distance Control, Auto light control Common Features:

3LCD, ECO Mode, Off and Go, Image Freeze, Distance Control, Auto light control

10,000 hrs lamp life

66% better than conventional models Better TCO

75cm / 79cm Throw Distance

Shadow-less projection, no light in teacher’s eyes.

WXGA (1200x800)
2600 lm
Contrast 3000:1
Lamp 10,000h
Throw Ratio: 0.46:1
Keystone correction
Screen Size (diagonal):

1,45-2,6m

30dB
HDMI, USB, 2xVGA,

RJ45, Optional Wi-Fi

ECO Mode
Audio 1x1W
4,4 kg

iPad / Android Compatible

Prime Support Warranty: The Sony Professional projectors below all come supplied with a 3 year

PrimeSupport warranty from the date of purchase, and 3 years or 3000 hrs. (first reached) lamp warranty

Helpdesk: (price of a local call) 00800 78 98 78 98
Extension of Prime Support, Prime Support Plus, available: 3 years with product loan,

2 years extension, 5 years with product loan

Warranty

SLIDE 7

Line up – Installation Projectors (PJB)

LMP-C240

210W Lamp for

VPL-CX235, CW255 & CW275

RM-PJ7

Remote for the

VPL-CX235, CW255 & CW275

These projectors are equipped with advanced features that allow great flexibility for users.

Common Features: 3LCD, 3 brightness mode, Picture muting and pict. freeze, security pack VPL-CX235 VPL-CW255 Automatic brightness adjustment*

Adjusting the corners and sides of the image is simple

Warping

*VPL-CW275 only Adjusts brightness depending on picture, the darker the picture, the less energy for lamp.

VPL-CW275 PAM-300

Ceiling mount
XGA (1024x768)
4100 lm
Contrast 3100:1
Throw Ratio :

1,66-2,41:1

Zoom x1,5
Lens shift
Keystone correction
Diagonal: 1,02-15,2m
ECO Mode
Lamp 5000h
Audio 1x10W
5,5 kg

+ WXGA (1200x800) + 4500 lm + Contrast 3700:1 + Throw Ratio: 1,32-1,91:1 + 1 HDMI + WXGA (1200x800) + 5100 lm + Contrast 3000:1 + Auto adjustment of brightness

Prime Support Warranty: The Sony Professional projectors below all come supplied with a 3 year

PrimeSupport warranty from the date of purchase, and 1 years or 1000 hrs. (first reached) lamp warranty

Helpdesk: (price of a local call) 00800 78 98 78 98
Extension of Prime Support, Prime Support Plus, available: 3 years with product loan,

2 years extension, 5 years with product loan

Warranty

SLIDE 8

Common Features: 3LCD, 2 brightness mode, Picture muting and pict. freeze, security pack

Line up – Installation Projectors (PJB)

VPL-FH31

WUXGA (1920x 1200)
4300 lm
Contrast 2000:1
Throw ratio:

1,4-2,3:1

Zoom x1,6
Lens shift : V:+51%, H:

+/-33%

Warping
Edge Blending
Keystone correction
Diagonal :

1,02-15,2m

ECO Mode
Lamp 5000h
8 kg

+ 5200 lm

VPL-FH36 VPL-FH500L

+ 7000 lm + Contrast 2500:1 + Lens shift max: V:+/-113%, H:+/- 63% + High resolution lens - optional + Twin lamps + Lamp 8000h

Prime Support Warranty: The Sony Professional projectors below all come supplied with a 3 year

PrimeSupport warranty from the date of purchase, and 1 years or 1000 hrs. (first reached) lamp warranty

Helpdesk: (price of a local call) 00800 78 98 78 98
Extension of Prime Support, Prime Support Plus, available: 3 years with product loan,

2 years extension, 5 years with product loan

Warranty These projectors are equipped with advanced features that allow great flexibility for users.

*VPL-FH31 & VPL-FH36 only

Side by Side

Optional Lenses – Page 10

Edge Blending*

Common Features:

3LCD, ECO Mode, Off and Go, Image Freeze, Distance Control, Auto light control VPL-CH375 VPL-CH355

WUXGA (1920x 1200)
4100 lm
Contrast 3100:1
Throw ratio:

1,5-2,2:1

Zoom x1,45
Lens shift : V:+5%, H:

+/-4%

Warping
Edge Blending
Keystone correction
Diagonal :

1,02-7,62m

ECO Mode
Lamp 5000h
5.5 kg

+ 4500 lm +Contrast 3700:1

SLIDE 9

Common Features: 3LCD, 2 brightness mode, Picture muting and pict. freeze, security pack

The World’s brightest 3LCD Laser Projector!

Common Features: 3LCD, 2 brightness mode, Picture muting and pict. freeze, security pack

Line up – Installation Projectors (PJB)

Edge Blending*

*VPL-FH31, VPL-FH36, VPL-FHZ55 only

Side by Side VPL-FHZ55

WUXGA (1920x 1200)
4000 lm
Contrast 8000:1
Throw ratio: 1,4-2,3:1
Zoom x1,6
Lens shift : V:+51%, H: +/-

33%

Warping
Edge Blending
Keystone correction
Diagonal: 1,02-15,2m
ECO Mode
20000hrs maintenance

free

8 kg

Simple and intuitive adjustment of image sides and corners

Warping

Prime Support Warranty: The VPL-FHZ55 below comes supplied with a 5 year

PrimeSupport warranty from the date of purchase. The VPL-FHZ700L support package is under discussion.

Helpdesk: (price of a local call) 00800 78 98 78 98

Warranty VPL-FHZ700L

WUXGA (1920x 1200)
7000 lm
Throw ratio: depends on lens
Zoom: depends on lens
Lens shift : powered
Keystone correction
Diagonal: 1,02-15,2m
ECO Mode
Edge Blending
HDBaseT : optional
20000hrs maintenance free

Optional Lenses – next page

360°orientation

SLIDE 10

Lens for VPL-FX30, VPL- FX35, VPL-FH31, VPL-FH35 and VPL-FHZ55 Lamps and brackets for VPL-CX235, CW255, FX30, FX35, FX500, FH30, FH35 and FH500

Line up – Installation Projectors - Accessories

PAM-300

Ceiling Bracket for

VPL-CX235, CW255, FX30, FX35, FH30 and FH35

PSS-630

Ceiling Bracket for

VPL-FX500 and VPL-FH500

LMP-F330

Lamp 330W (filter

included) for VPL- FX500 and VPL- FH500

LMP-F230

Lamp 230W for

VPL-FX30

LMP-F272

Lamp 275W for VPL-

FX35 and VPL-FH30

LMP-F331

Lamp 330W for VPL-

FH35

LMP-C240

Lamp 245W for VPL-

CX235 and CW255

VPLL-Z1024PK

2,34-3,19:1

VPLL-Z1032PK

3,18-4,84:1

PK-F30LA1

Lens Adaptor

VPLL-Z4008

1,08:1

VPLL-Z4015

2,02-2,67:1

VPLL-Z4019 VPLL-Z4025 VPLL-Z4045

2,61-3,36:1
3,30-6,11:1
6,08-10,52:1

VPLL-ZM102PK

3,28-4,83:1

VPLL-ZM42PK

1,82-2,32:1

VPLL-ZM32PK

1,45-1,59:1

VPLL-FM22PK

0,87:1

VPLL-ZM101PK¹

4,47-6,58:1

Premium Lens(series Z40) and Economic (series ZP and ZM) for VPL-FX500 and VPL-FH500

Premium Economical

¹ VPL-FX500L only

VPLL-1008

0.8:1

VPLL-Z2009

0.85 – 1.0:1

VPLL-Z4011

1,38-2,01:1

LMP-C280

Lamp 280W for vpl-CW275

SLIDE 11

VPL-HW55ES/B VPL-HW55ES/W

Full HD (1920x1080)
1700 lm
Reality Creation
Zoom 1,6 manual
Throw Ratio: 1.36 – 2.16:1
Lens shift : V:+/-71%,

H: +/-25% manual

Diagonal : 1,02-7,6m
Lamp 5000h
21 dB
9,6 kg
2 colors : Black / White
3D transmitter built in
Prime Support Warranty: All Sony Professional’s projectors come supplied with a 3 year

PrimeSupport warranty from the date of purchase, and 1 years or 1000 hrs. (first reached) lamp warranty

Helpdesk: (price of a local call) 00800 78 98 78 98
Support, repair and delivery service including a loan product if repairs take in excess of 10 days.

Warranty Common Features:

SXRD Panels - 3D active - 2D/3D Conversion - Motionflow 240Hz - Advanced Iris 3 RCP (*not HW40ES) –Panel Alignments – Lamp Dynamic Control - BraviaSync - 2 HDMI

Line up – Home Cinema Projectors (PJE - PJH)

TDG-PJ1 TMR-PJ1

3D active

glasses for all 3D models

3D IR

transmitter for all 3D models

LMP-H202 LMP-H330 PSS-H10

Lamp 200W for

VPL-HW30ES and VPL-VW95ES

Lamp 330W

for VPL- VW1000ES

RM-PJ20/RM-PJ21/RM-PJ22

Remote Commander for

VPL-HW30ES, VW95ES and VW1000ES respectively

Ceiling bracket for

VPL-HW30ES, VW95ES and VW1000ES

TDG-BT500A

3D glasses, RF

connectivity for VPL-VW500ES

VPL-HW40ES/B VPL-HW40ES/W

+ Contrast 120 000:1 + 2 3D glasses included

SLIDE 12

VPL-VW500ES VPL-VW1100ES

Prime Support Warranty: All Sony Professional’s projectors come supplied with a 3 year

PrimeSupport warranty from the date of purchase, and 1 years or 1000 hrs. (first reached) lamp warranty

Helpdesk: (price of a local call) 00800 78 98 78 98
Support, repair and delivery service including a loan product if repairs take in excess of 10 days.

Warranty

4K (4096x2160)
2000 lm
Contrast 1 000 000:1
Reality Creation
Image Position Memory
2.35:1 Mode
Zoom 2,1 motorized
Throw Ratio:

1,27-2,73:1

Lens shift : V:+/-80%,

H: +/-31% Motorized

Diagonal : 1,5-7,6m
Lamp 2500h
22 dB
20 kg
3D RF compatible with

wireless HDMI

2 3D glasses included

Common Features:

SXRD Panels - 3D active - 2D/3D Conversion - Motionflow 240Hz - Advanced Iris 3 RCP (*not HW40ES) – Panel Alignments – Lamp Dynamic Control - BraviaSync - 2 HDMI

Line up – Home Cinema Projectors (PJE - PJH)

TDG-PJ1 TMR-PJ1

3D active

glasses for all 3D models

3D IR

transmitter for all 3D models

LMP-H330

Lamp 330W

for VPL- VW1000ES

RM-PJ20/RM-PJ21/RM-PJ22

Remote Commander for

VPL-HW30ES, VW95ES and VW1000ES respectively

Ultra HD 4K (4096x2160)
1700 lm
Contrast 200 000:1
Reality Creation
HDMI 2.0
Triluminos
Autocalibration
Image position memory
Mode 2:35
Zoom 2,1 motorized
Lens shift : V:+/-85%,

H: +/-31% motorized

Diagonal : 1,5-7,6m
26 dB
14 kg
3D RF transmitter built in
Wireless HDMI compatible

TDG-BT500A

3D glasses, RF

connectivity for VPL-VW500ES

IFU-WH1

Wireless HD

unit for VPL- VW500ES

LMP-H260

Lamp for 4K

VPL- VW500ES

VPL-VW300ES

Ultra HD 4K (4096x2160)
1500 lm
Reality Creation
HDMI 2.0
Triluminos
Autocalibration
Image position memory
Mode 2:35
Zoom 2,1 motorized
Lens shift : V:+/-85%,

H: +/-31% motorized

Diagonal : 1,5-7,6m
26 dB
14 kg
3D RF transmitter built in
Wireless HDMI compatible

SLIDE 13

13 Call: 00800 78 98 78 98 Email: primesupport@eu.sony.com

Contact for all products

Service Support

Warranty Products Reference Coverage Repair Swap¹ Loan Unit Helpdesk Logistics

PROJECTORS

PrimeSupport Included PJA, PJX Standard 2 years      PrimeSupport Plus Optional

(additional to PrimeSupport)

PJA, PJX PS.VPL.DSERIES.1Y +1 (3 years)      PJA, PJX PS.VPL.DSERIES.3Y +3 (5 years)      PrimeSupport Included PJB, PJF, PJE, PJH Standard 3 years²      PrimeSupport Plus Optional PJB PJF PS.VPL.FC SERIES.3YL PS.VPL.SESERIES.3YL + Loan unit (3Y with loan unit)      PJB PJF PS.VPL.FC SERIES.2Y PS.VPL.SESERIES.2Y + 2 (5 years)      PJB PJF PS.VPL.FCSERIES.5YL PS.VPL.SESERIES.5YL + 2 years, + Loan (5Y with loan unit)     

LAMPS

PrimeSupport Included PJA, PJX, PJB, PJE, PJH Standard 1 year or 1000 hours      PrimeSupport Plus Optional PJA, PJX PJB PS.LMP.DSERIES.2Y PS.LMP.FCSERIES.2Y +2 (3 years / 3000 hours)      PrimeSupport Included PJF (Education) Standard 3 years or 3000 hours     

¹ Swap: If customer wants their original unit back, we can offer a bespoke repair contract ² PJH : Via accredited dealers (otherwise 1 year) PJF : For UK 3 year de/re install service is standard for units sold to education customers) FHZ Series have 5 year warranty as standard

Warranty and Prime Support – Projectors and Professional Displays

SLIDE 14

14

Service Support

Warranty Products Reference Coverage Repair Swap Loan Unit Helpdesk Logistics

PROFESSIONAL DISPLAYS – PUD & BRAVIA B2B

PrimeSupport Included PUD, FSA, FSH, FSB Standard 3 years      PrimeSupport Plus Optional PUD PSP.FWD32XX.53 PSP.FWD42X.46X.53 PSP.FWD55XX.53 +2 (5 years)      FSA, FSB PSP.FWD42W800XX.53 PSP.FWD47W800XX.53 PSP.FWD55W800XX.53 PSP.FWD65XX.53 +2 (5 years)      FSH PSP.FWD84X9005.5 +2 (5 years)     

VIDEO CONFERENCING

PrimeSupport Included UCA Standard 3 Years     

EVI CAMERAS

PrimeSupport Included UCB Standard 3 years      3 ‘X’ or ‘XX’ is in place of model version (for example B1 or EX650P ) or in place of the tuner/no-tuner classification (P/T)

EOL FSA models should use code with closest screen size (for example FWD-40EX650P > PSP.FWD42W800XX.5)

Warranty and Prime Support – Projectors and Professional Displays

Call: 00800 78 98 78 98 Email: primesupport@eu.sony.com
