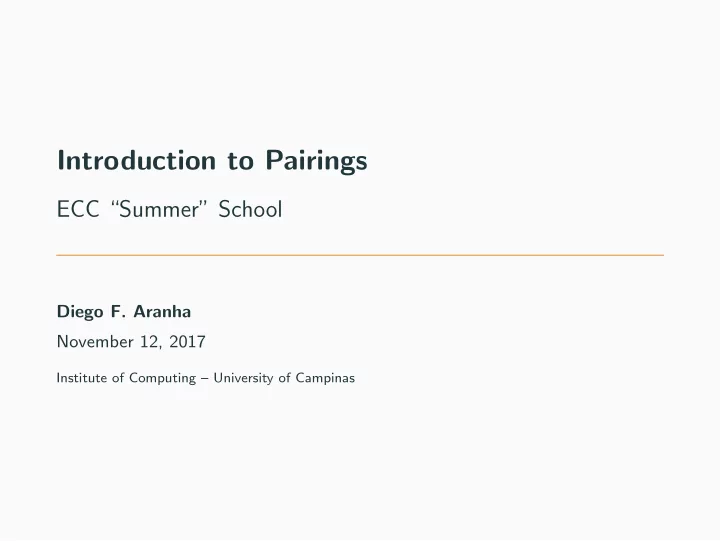

Introduction to Pairings

ECC “Summer” School

Diego F. Aranha November 12, 2017

Institute of Computing – University of Campinas

What is a pairing?

1

Why a bilinear pairing?

e(P + R, Q) = e(P, Q) · e(R, Q) and e(P, Q + S) = e(P, Q) · e(P, S) .

2

Introduction

Elliptic Curve Cryptography (ECC):

• Underlying problem harder than integer factoring (RSA)
• Same security level with smaller parameters
• Efficiency in storage (short keys) and execution time

Pairing-Based Cryptography (PBC):

• Initially destructive
• Allows for innovative protocols
• Makes curve-based cryptography more flexible

3

Introduction

Pairing-Based Cryptography (PBC) enables many elegant solutions to cryptographic problems:

• Implicit certification schemes (IBC, CLPKC, etc.)
• Short signatures (in group elements, BLS, BBS)
• More efficient key agreements (Joux’s 3DH, NIKDS)
• Low-depth homomorphic encryption (BGN and variants)
• Isogeny-based cryptography (although not postquantum)

Pairing computation is the most expensive operation in PBC. Net week: State-of-the art techniques to make it faster!

4

Elliptic curves

An elliptic curve is the set of solutions (x, y) ∈ Fqm × Fqm that satisfy the Weierstrass equation E : y 2 = x3 + ax + b where a, b ∈ Fqm with ∆ = 0, and a point at infinity ∞. A degree d twist E ′ of E is a curve isomorphic to E over the algebraic closure of Fqm. The only possible degrees for elliptic curves are d ∈ {2, 3, 4, 6}. Important: Very convenient mathematical setting where pairings can be constructed and evaluated efficiently.

5

Elliptic curves

Definitions The order n of the curve is the number of points that satisfy the curve equation. The Hasse condition states that n = qm + 1 − t, |t| ≤ 2√qm. The curve is supersingular when q divides t. More definitions The order of point P is the smallest integer r such that rP = ∞. We always have r|n. The r-torsion subgroup (E(Fqm)[r]) is the set of points P in which their order divides r.

6

Bilinear pairings

Let G1 = P and G2 = Q be additive groups and GT be a multiplicative group such that |G1| = |G2| = |GT| = prime r. Definition An efficiently-computable map e : G1 × G2 → GT is an admissible bilinear map if the following properties are satisfied:

• 1. Bilinearity: given (V , W ) ∈ G1 × G2 and (a, b) ∈ Z∗

r :

e(aV , bW ) = e(V , W )ab = e(abV , W ) = e(V , abW ) = e(bV , aW ).

• 2. Non-degeneracy: e(P, Q) = 1GT , where 1GT in GT.

7

Bilinear pairings

A general pairing e : G1 × G2 → GT

• G1 is typically a subgroup of E(Fq).
• G2 is typically a subgroup of E(Fqk).
• GT is a multiplicative subgroup of F∗

qk.

Hence pairing-based cryptography involves arithmetic in Fqk. Problem: In practice, we want small k for computable pairing!

8

Pairing-friendly curves

Definitions The embedding degree of the curve is the smallest integer k such that r|(qk − 1). In other words, it is the smallest extension of Fq in which we can embed the r-torsion group. For efficiency, we want the largest d such that d|k. Random curves have k ≈ q, but supersingular curves have k ≤ 6 and there are families of ordinary curves with k < 50.

9

Pairing operations

A general pairing e : G1 × G2 → GT Cryptographic schemes require multiple operations in pairing groups:

• 1. Scalar multiplication, membership, compression in G1 and G2.
• 2. Exponentiation, membership, compression in GT.
• 3. Hashing strings into groups G1, G2, GT.
• 4. Efficient maps between G1 and G2.
• 5. Efficient pairing computation.

Problem: No concrete instantiation supports last three simultaneously!

10

Pairing types

If G1 = G2, the pairing is symmetric (or Type-1) and defined over a supersingular curve equipped with a distortion map ψ : E(Fq)[r] → E(Fqk)[r]. If G1 = G2, the pairing is asymmetric (or Type-3) and G2 is chosen as the group of points in the twist that is isomorphic to a subgroup of E(Fqk)[r]. There is no efficient map ψ : G2 → G1. Important: Supersingular curves over small characteristic (q = 2, 3) are broken by quasi-polynomial algorithm by [Barbulescu et al. 2014]!

11

Security of pairings

A general pairing e : G1 × G2 → GT Classical problems:

• DLP: Recover a from g, g a
• CDHP: Compute g ab from g, g a, g b

Underlying problems:

• ECDLP: Recover a from P, aP
• BCDHP: Compute e(P, Q)abc from P, aP, bP, cP, Q, aQ, bQ, cQ

12

Security of pairings

There are multiple security requirements to satisfy:

• The (EC)DLP problem must be hard in G1, G2 and GT.
• Parameters in G1, G2 should be large enough.
• Good balance can be found by choosing the right k.

The value ρ = log q

log r describes how good the balance is (ρ = 1 is optimal)

for a certain set of parameters. Important: Plenty research into suitable curves for good values of k.

13

Applications

The first cryptographic application of pairings was attacking ECDLP! The Menezes-Okamoto-Vanstone (MOV) attack Given P and Q = aP on curve E, find a:

• 1. Find point S of order n such that e(P, Q) = 1GT .
• 2. Compute e(P, S) = g.
• 3. Compute e(Q, S) = e(aP, S) = e(P, S)a = g a.
• 4. Solve the DLP on g, g a in GT.

Best general known algorithms for ECDLP run in O(√n), but there are subexponential methods such as index calculus for DLP in GT. Note: this attacked killed the faster supersingular curves in the 90s.

14

Applications

Conventional paradigm (PKI):

• Three-party key agreement [Joux 2000]
• Short signatures [Boneh et al. 2001]

Alternate paradigms:

• Non-interactive identity-based AKE [Sakai et al. 2001]
• Identity-based encryption [Boneh et al., Sakai et al. 2001]

15

Applications

Joux’s one-round Tripartite Diffie-Hellman [Joux 2000]:

• Key generation:
• 1. Parties A, B, C generate short-lived secrets a, b, c ∈ Z∗

r respectively

• 2. Parties A, B, C broadcast aG, bG, cG to the other parties
• Key sharing:
• 1. A computes KA = e(bG, cG)a
• 2. B computes KB = e(aG, cG)b
• 3. C computes KC = e(aG, bG)c

Correctness: Shared key is K = KA = KB = KC = e(G, G)abc.

16

Applications

Boneh-Lynn-Schacham (BLS) short signatures in the conventional PKI paradigm [Boneh et al. 2001]:

• Key generation:
• 1. Select a private key x ∈ Z∗

r

• 2. Compute the public key V ← xP
• Signature:
• 1. Compute H ← h(M) ∈ G1
• 2. Sign S ← xH
• Verification:
• 1. Compute H ← h(M)
• 2. Verify if e(P, S) = e(V , H)

Correctness: Works because e(P, S) = e(P, xH) = e(xP, H) = e(V , H).

17

Applications

Identity-based encryption facilitates certification of public keys. If Alice wants to encrypt a message to Bob, she must be sure that an adversary did not replace his public key. Conventional: Employ a Certificate Authority (CA) to compute a signature linking Bob and his public key. Alice can check the signature and learns Bob’s public key. However, certificates are expensive to manage (procedures, audits, revocation), thus Alice could use some trivially authentic information about Bob (e-mail address?). Solution: Introduce authority to generate and distribute private keys.

18

Applications

Non-interactive identity-based AKE [Sakai et al. 2001]:

• Initialization:
• 1. Central authority generates master key s ∈ Z∗

r .

• Key generation:
• 1. User with identity IDi computes Pi = H(IDi)
• 2. Central authority generates private key Si = sPi
• Key derivation:
• 1. Users A e B compute shared key e(SA, PB) = e(SB, PA)

Correctness: e(SA, PB) = e(sPA, PB) = e(PA, sPB) = e(SB, PA).

19

Applications

Identity-based encryption [Boneh and Franklin 2001]:

• Initialization:
• 1. Authority (PKG) generates master key s ∈ Z∗

r and computes its

public key Ppub = sP

• 2. Fix hash functions H1 : {0, 1}∗ → G1 and H2 : GT → {0, 1}m.
• Key generation:
• 1. User with identity IDi computes public key Pi = H1(IDi)
• 2. Central authority generates private key Si = sPi
• Encryption:
• 1. To encrypt m, Bob selects random ℓ and computes R = ℓP and

c = m ⊕ H2(e(PA, Ppub)ℓ).

• 2. Bob sends (R, c) to Alice.
• Decryption:
• 1. Alice uses her private key to compute

c ⊕ H2(e(SA, R)) = c ⊕ H2(e(sPA, ℓP)) = c ⊕ H2(e(PA, Ppub)ℓ) = m.

20

Pairing computation

A general pairing e : G1 × G2 → GT Many moving parts (parameters):

• What choice of curve?
• What is an appropriate embedding degree k?
• How to balance hardness of DLP among different groups?

Note: Hardness of GT is given by k · |q|. Problem: How to build and compute map e?

21

Pairing computation

Definitions A divisor is a formal sum of points and integer coefficients: D =

• P∈E

dP(P) The degree of a divisor is the sum of integer coefficients: deg(D) =

• P∈E

dP The support of a divisor is the set of points P with dP = 0.

22

Pairing computation

The set of divisors forms an abelian group:

• P∈E

aP(P) +

• P∈E

bP(P) =

• P∈E

(aP + bP)(P) Repeated addition of a divisor to itself is given by: nD =

• P∈E

(ndP)(P)

23

Pairing computation

Divisors are a mathematical device convenient to store poles and zeroes

• f rational functions and their multiplicities.

The divisor of a non-zero rational function f : E(Fqk) → Fqk is called principal divisor and defined as div(f ) =

P∈E ordP(P), where ordP is

the multiplicity of P. If D is a principal divisor, then deg(D) = 0 and

• P∈E

dPP = ∞. Two divisors C and D are equivalent (C ∼ D) is their difference (C − D) is a principal divisor.

24

Pairing computation

When div(f ) and D have disjoint support: f (D) =

• P∈E

f (P)dP Let P ∈ E(Fqk)[r] and D a divisor equivalent to (P) − (∞). Since rP = ∞ and deg(D) = 0, the divisor rD is principal and there is a function fr,P such that div(fr,P) = rD = r(P) − r(∞). Pairings are defined by the evaluation of fr,P on divisors. Problem: How to construct and compute fr,P?

25

Pairing computation

Let P, Q be r-torsion points. The pairing e(P, Q) is defined by the evaluation of fr,P at a divisor related to Q. [Miller 1986] constructed fr,P in stages combining Miller functions evaluated at divisors. [Barreto et al. 2002] showed how to evaluate fr,P at Q using the final exponentiation employed by the Tate pairing.

26

Pairing computation

Let gU,V be the line equation through points U, V ∈ E(Fqk) and gU the shorthand for gU,−U. For any integers a and b, we have:

• 1. fa+b,P(D) = fa,P(D) · fb,P(D) · gaP,bP(D)

g(a+b)P(D)

• 2. f2a,P(D) = fa,P(D)2 · gaP,aP(D)

g2aP(D)

• 3. fa+1,P(D) = fa,P(D) ·

g(a)P,P(D) g(a+1)P(D) 27

Miller’s algorithm

Algorithm 1 Miller’s Algorithm [Miller 1986, Barreto et al. 2002]. Input: r = log2 r

i=0 ri2i, P, Q.

Output: er(P, Q).

1: T ← P 2: f ← 1 3: for i = ⌊log2(r)⌋ − 1 downto 0 do 4:

T ← 2T

5:

f ← f 2 · gT,T (D)

g2T (D)

6:

if ri = 1 then

7:

T ← T + P

8:

f ← f · gT,P(D)

gT+P(D)

9:

end if

10: end for 11: return f

28

Miller’s algorithm

Let l be the line equation that passes through T and P in the addition T + P. Let v be the vertical line that passes through T and −T. Recall that: f (D) =

• P∈E

f (P)dP We can replace:

• 1. gT,P(D) = lT,P((Q + R) − (R)) = lT,P(Q+R)

lT,P(R) ;

• 2. gT(D) = vT((Q + R) − (R)) = vT (Q+R)

vT (R) . 29

Miller’s algorithm

Algorithm 2 Miller’s Algorithm [Miller, 1986]. Input: r = log2 r

i=0 ri2i, P, Q.

Output: er(P, Q).

1: T ← P 2: f ← 1 3: for i = ⌊log2(r)⌋ − 1 downto 0 do 4:

T ← 2T

5:

f ← f 2 · lT,T (Q+R)v2T (R)

v2T (Q+R)lT,T (R)

6:

if ri = 1 then

7:

T ← T + P

8:

f ← f · lT,P(Q+R)vT+P(R)

vT+P(Q+R)lT,P(R)

9:

end if

10: end for 11: return f

30

Weil pairing

Let P, Q divisors equivalent to (P) − (∞), (Q) − (∞), respectively. The Weil pairing is the map: wr : E(Fq)[r] × E(Fqk)[r] → F∗

qk

wr(P, Q) = (−1)r · fr,P(Q) fr,Q(P). It turns out that we can evaluate the functions over points instead of divisors [Miller 1986].

31

Tate pairing

The reduced Tate pairing is the map: er : E(Fq)[r] × E(Fqk)[r] → F∗

qk

er(P, Q) = fr,P(D)(qk−1)/r. The final exponentiation by (qk − 1)/r allows [Barreto et al. 2002]:

• Choosing R with coordinates in a subfield to eliminate l(R), v(R)
• Choosing R as ∞ and evaluate f on Q instead of D
• Using a distortion map to eliminate v(Q)
• Choosing k even and construct a quadratic extension such that the

coordinates of Q are in a subfield to eliminate v(Q)

32

Miller’s algorithm

Algorithm 3 Miller’s Algorithm [Miller, 1986]. Input: r = log2 r

i=0 ri2i, P, Q.

Output: er(P, Q).

1: T ← P 2: f ← 1 3: for i = ⌊log2(r)⌋ − 1 downto 0 do 4:

T ← 2T

5:

f ← f 2 · lT,T (Q+R)v2T (R)

v2T (Q+R)lT,T (R)

6:

if ri = 1 then

7:

T ← T + P

8:

f ← f · lT,P(Q+R)vT+P(R)

vT+P(Q+R)lT,P(R)

9:

end if

10: end for 11: return f

33

Tate pairing

Algorithm 4 Tate pairing [Barreto et al. 2002]. Input: r = log2 r

i=0 ri2i, P, Q.

Output: er(P, Q).

1: T ← P 2: f ← 1 3: s ← r − 1 4: for i = ⌊log2(s)⌋ − 1 downto 0 do 5:

T ← 2T

6:

f ← f 2 · lT,T(Q)

7:

if ri = 1, i = 0 then

8:

T ← T + P

9:

f ← f · lT,P(Q)

10:

end if

11: end for 12: return f (qk−1/r)

34

Pairing computation

Important: How can we optimize it? The main optimization is to reduce the length of the loop keeping the Hamming weight of r small. There are several ways of doing this: Ate, Ate i, R-ate, χ − ate. The optimal pairing construction reduces the loop iterations by a factor

• f φ(k).

We can observe that Miller’s Algorithm employs:

• Extension field arithmetic
• Elliptic curve arithmetic
• Base field arithmetic.

35

Tate pairing

Algorithm 5 Tate pairing [Barreto et al. 2002]. Input: r = log2 r

i=0 ri2i, P, Q.

Output: er(P, Q).

1: T ← P 2: f ← 1 3: s ← r − 1 4: for i = ⌊log2(s)⌋ − 1 downto 0 do 5:

T ← 2T

6:

f ← f 2 · lT,T(Q)

7:

if si = 1 then

8:

T ← T + P

9:

f ← f · lT,P(Q)

10:

end if

11: end for 12: return f (qk−1/r)

36

Arithmetic levels

Protocols Low-level backend

37

Curve families

BN curves: k = 12, ρ ≈ 1 p(x) = 36x4 + 36x3 + 24x2 + 6x + 1 r(x) = 36x4 + 36x3 + 18x2 + 6x + 1, t(x) = 6z2 + 1 BLS12 curves: k = 12, ρ ≈ 1.5 p(x) = (x − 1)2(x4 − x2 + 1)/3 + x, r(x) = x4 − x2 + 1, t(x) = x + 1 KSS18 curves: k = 18, ρ ≈ 4/3 p(x) = (x8 + 5x7 + 7x6 + 37x5 + 188x4 + 259x3 + 343x2 + 1763x + 2401)/21 r(x) = (x6 + 37x3 + 343)/343, t(x) = (x4 + 16z + 7)/7 BLS24 curves: k = 24, ρ ≈ 1.25 p(x) = (x − 1)2(x8 − x4 + 1)/3 + x, r(x) = x8 − x4 + 1, t(x) = x + 1

38

Barreto-Naehrig curves

Let x be an integer such that p(x) and r(x) below are prime:

• p(x) = 36x4 + 36x3 + 24x2 + 6x + 1
• r(x) = 36x4 + 36x3 + 18x2 + 6x + 1

Then y 2 = x3 + b, b ∈ Fp is a curve of order r and embedding degree k = 12 [Barreto and Naehrig 2012]. Important: BN curves used to be optimal at the 128-bit security level.

39

Optimal ate pairing

aopt : G2 × G1 → GT (Q, P) → (fr,Q(P) · lrQ,πp(Q)(P) · lrQ+πp(Q),−π2

p(Q)(P))(p12−1)/n

with r = 6x + 2, G1 = E(Fp), G2 = E(Fp2)[n]. Fix x = −(262 + 255 + 1) and b = 2. Since p ≡ 3 (mod 4), the towering can be:

• Fp2 = Fp[i]/(i2 − β), where β = −1
• Fp4 = Fp2[s]/(s2 − ǫ), where ξ = 1 + i
• Fp6 = Fp2[v]/(v 3 − ξ), where ξ = 1 + i
• Fp12 = Fp4[v]/(t3 − s) or Fp6[w]/(w 2 − v)

Important: Choice of representation changes formulas (and costs)!

40

Software libraries

There are many different software implementations of pairings:

• 1. RELIC: UNICAMP, flexible and state-of-the-art.
• 2. Ate-pairing: CINVESTAV, used to be state-of-the-art.
• 3. mcl: new library at “new” 128-bit level by Shigeo Mitsunari.
• 4. MIRACL: special support for constrained platforms.
• 5. Panda: not as efficient, but constant-time.
• 6. PBC: on top of GMP, horribly outdated.

41

Questions?

Code, documentation and tests at the pairings branch of my private OpenSSL fork: https://github.com/dfaranha/openssl Recommended further reading: Pairings for Beginners, by Craig Costello, and the early papers by Mike Scott for the optimization techniques.

42

Questions?

• D. F. Aranha

dfaranha@ic.unicamp.br @dfaranha

42

References

[1] Victor S. Miller: The Weil Pairing, and Its Efficient Calculation.

• J. Cryptology 17(4): 235-261 (2004)

[2] Dan Boneh, Matthew K. Franklin: Identity-Based Encryption from the Weil Pairing. SIAM J. Comput. 32(3): 586-615 (2003) [3] Paulo S. L. M. Barreto, Hae Yong Kim, Ben Lynn, Michael Scott: Efficient Algorithms for Pairing-Based Cryptosystems. CRYPTO 2002: 354-368 [4] Ryuichi Sakai, Masao Kasahara: ID based Cryptosystems with Pairing on Elliptic Curve. IACR Cryptology ePrint Archive 2003: 54 (2003)

43

References

[5] Antoine Joux: A One Round Protocol for Tripartite Diffie-Hellman. J. Cryptology 17(4): 263-276 (2004) [6] Paulo S. L. M. Barreto, Michael Naehrig: Pairing-Friendly Elliptic Curves of Prime Order. Selected Areas in Cryptography 2005: 319-331 [7] Diego F. Aranha, Koray Karabina, Patrick Longa, Catherine H. Gebotys, Julio L´

• pez: Faster Explicit Formulas for Computing

Pairings over Ordinary Curves. EUROCRYPT 2011: 48-68 [8]Razvan Barbulescu, Pierrick Gaudry, Antoine Joux, Emmanuel Thom?: A Heuristic Quasi-Polynomial Algorithm for Discrete Logarithm in Finite Fields of Small Characteristic. EUROCRYPT 2014: 1-16

44
