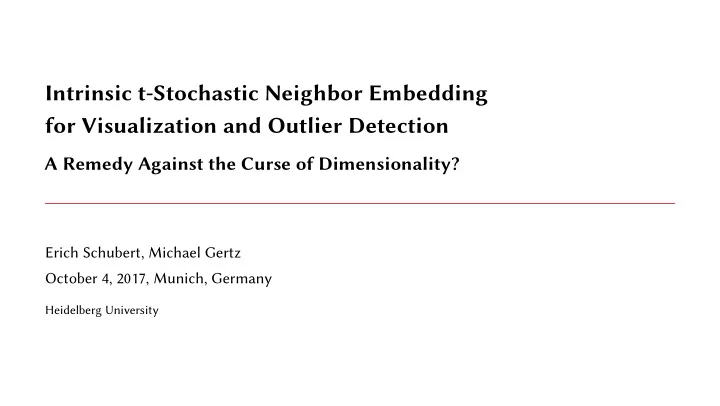

Intrinsic t-Stochastic Neighbor Embedding for Visualization and Outlier Detection

A Remedy Against the Curse of Dimensionality?

Erich Schubert, Michael Gertz October 4, 2017, Munich, Germany

Heidelberg University

t-Stochastic Neighbor Embedding

t-SNE [MH08], based on SNE [HR02] is a popular “neural network” visualization technique using stochastic gradient descent (SGD)

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.2 0.4 0.6 0.8 1

• 60
• 50
• 40
• 30
• 20
• 10

10 20 30 40 50

• 50
• 40
• 30
• 20
• 10

10 20 30 40 50 60 70

10 dimensional space 2 dimensional space Tries to preserve the neighbors – but not the distances.

1

t-Stochastic Neighbor Embedding

t-SNE [MH08], based on SNE [HR02] is a popular “neural network” visualization technique using stochastic gradient descent (SGD)

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.2 0.4 0.6 0.8 1

• 60
• 50
• 40
• 30
• 20
• 10

10 20 30 40 50

• 50
• 40
• 30
• 20
• 10

10 20 30 40 50 60 70

10 dimensional space 2 dimensional space Tries to preserve the neighbors – but not the distances.

1

t-Stochastic Neighbor Embedding

SNE [HR02] and t-SNE [MH08] are popular “neural network” visualization techniques using stochastic gradient descent (SGD)

10 20 30 40 50 60 70 80 90 100 10 20 30 40 50 60 70 80 90 100

• 11-10 -9 -8 -7 -6 -5 -4 -3 -2 -1

1 2 3 4 5 6 7 8 9 10 11

• 13
• 10
• 7
• 4
• 1

2 5 8 11 14

SNE SNE/t-SNE do not preserve density / distances. Can get stuck in a local optimum!

2

t-Stochastic Neighbor Embedding

SNE [HR02] and t-SNE [MH08] are popular “neural network” visualization techniques using stochastic gradient descent (SGD)

10 20 30 40 50 60 70 80 90 100 10 20 30 40 50 60 70 80 90 100

• 50
• 40
• 30
• 20
• 10

10 20 30 40 50

• 60
• 50
• 40
• 30
• 20
• 10

10 20 30 40 50

t-SNE SNE/t-SNE do not preserve density / distances. Can get stuck in a local optimum!

2

t-Stochastic Neighbor Embedding

SNE and t-SNE use a Gaussian kernel in the input domain: pj|i =

exp(−xi−xj2/2σ2

i )

• k=i exp(−xi−xk2/2σ2

i )

where each σ2

i is optimized to have the desired perplexity

(Perplexity ≈ number of neighbors to preserve) Asymmetric, so they simply use: pij := (pi|j + pj|i)/2 (We suggest to prefer pij = pi|j · pj|i for outlier detection) In the output domain, as qij, SNE uses a Gaussian (with constant σ), t-SNE uses a Student-t-Distribution.

Kullback-Leibler divergence can be minimized using stochastic gradient descent to

make input and output affinities similar.

3

SNE vs. t-SNE

Gaussian weights in the output domain as used by SNE vs. t-SNE:

0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.5 1 1.5 2 Gaussian Weight, σ²=1 Student-t Weight t=1

t-SNE has more emphasis on separating points.

even neighbors will be “fanned out” a bit “beter” separation of far points (SNE has 0 weight on far points)

4

The Curse of Dimensionality

Loss of “discrimination” of distances [Bey+99]: lim

dim→∞ E

maxy=x d(x,y)−miny=x d(x,y)

miny=x d(x,y)

• → 0.

Distances to near points and to far points become similar.

5

The Curse of Dimensionality

Loss of “discrimination” of distances [Bey+99]: lim

dim→∞ E

maxy=x d(x,y)−miny=x d(x,y)

miny=x d(x,y)

• → 0.

Distances to near points and to far points become similar.

The Gaussian kernel uses relative distances: exp(−xi − xj2/2σ2

i )

Distance Expected Distance With high-dimensional data, all pij become similar!

We cannot find a “good” σi anymore.

5

Distribution of Distances

On the short tail distance distributions ofen look like this:

0.2 0.4 0.6 0.8 1 0.2 0.4 0.6 0.8 1 Neighbor Density, 3D Neighbor Density, 10D Neighbor Density, 50D

In high-dimensional data, almost all nearest neighbors concentrate on the right hand side of this plot.

6

Distribution of Distances

Gaussian weights as used by SNE / t-SNE:

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.2 0.4 0.6 0.8 1 Gaussian Weight, σ²=0.3 Gaussian Weight, σ²=1 Gaussian Weight, σ²=2

For low-dimensional data, Gaussian weights work good. For high-dimensional data: almost the same weight for all points.

7

Distribution of Distances

Gaussian kernels adjusted for intrinsic dimensionality:

0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.2 0.4 0.6 0.8 1 Gaussian Weight, id=3, σ²=1 Gaussian Weight, id=10, σ²=1 Gaussian Weight, id=50, σ²=1

In theory, they behave like Gaussian kernels in low dimensionality.

8

Distance Power Transform

Let X be a random variable (“of distances”) as in [Hou15], For constants c and m, use the transformation Y = g(X) with g(x):=c · xm Let FX, FY be the cumulative distribution of X, Y . Then IDFX(x) = m · IDFY (c · xm) [Hou15, Table 1]. By choosing m = IDFX(x)/t for any t > 0, one therefore obtains: IDFY (c · xm) = IDFX(x)/m = t where one can choose c > 0 as desired, e.g., for numerical reasons.

We can transform distances to any desired ID = t!

9

Distance Power Transform

For each point p:

• 1. Find k′ nearest neighbors of p (should be k′ > 100, k′ > k)
• 2. Estimate ID at p
• 3. Choose m = IDFX(x)/t, t = 2, c = k-distance
• 4. Transform distances:

d′(p, q) := c · d(p, q)m

• 5. Use Gaussian kernel, perplexity, t-SNE, ...

Can we defeat the curse this easily?

10

Distance Power Transform

For each point p:

• 1. Find k′ nearest neighbors of p (should be k′ > 100, k′ > k)
• 2. Estimate ID at p
• 3. Choose m = IDFX(x)/t, t = 2, c = k-distance
• 4. Transform distances:

d′(p, q) := c · d(p, q)m

• 5. Use Gaussian kernel, perplexity, t-SNE, ...

Can we defeat the curse this easily? Probably not: this is a hack to cure one symptom. Qestion: is our definition of ID too permissive?

10

Experimental Results: it-SNE

Projections of the ALOI outlier data set (as available at [Cam+16]): PCA t-SNE it-SNE Data set: Color histograms of 50.000 photos of 1000 objects Each class: same object, different angles & different light Labeled outliers: classes reduced to 1-3 objects — May contain other “true” outliers!

11

Experimental Results: it-SNE

Projection of the ALOI outlier data set with t-SNE:

11

Experimental Results: it-SNE

Projection of the ALOI outlier data set with it-SNE:

Labeled & Unlabeled Outliers!

11

Experimental Results: it-SNE

On the well-known MNIST data set t-SNE:

12

Experimental Results: it-SNE

On the well-known MNIST data set it-SNE: Outliers!

12

Outlier Detection: ODIN

ODIN (Outlier Detection using Indegree Number) [HKF04]:

• 1. Find the k nearest neighbors of each object.
• 2. Count how ofen each object was returned.

= in-degree of the k nearest neighbor graph

• 3. Objects with no (or fewest) occurrences are outliers.

Works, but many objects will have the exact same score. Which k to use? Can change abruptly with k. Can we make a continuous (“smooth”) version of this idea?

13

Outlier Detection: SOS

SOS (Stochastic Outlier Selection) [JPH13] Idea: assume every object can link to one neighbor randomly. Inliers: likely to be linked to, outliers: likely to be not linked to.

• 1. Compute pj|i of SNE / t-SNE for all i, j:

pj|i =

exp(−xi−xj2/2σ2

i )

• k=i exp(−xi−xk2/2σ2

i )

use Gaussian weights to prefer near neighbors.

• 2. The SOS outlier score is then:

SOS(xj) :=

• i=j 1 − pj|i

= probability that no neighbor links to object j.

14

KNNSOS and ISOS Outlier Detection

We propose two variants of this idea:

• 1. Since most pj|i will be zero, use only the k nearest neighbors.

Reduces runtime from O(n2) to possibly O(n log n), O(n4/3). KNNSOS(xj) :=

• i∈kNN(xj) 1 − pj|i
• 2. Estimate ID(xi), and use transformed distances for pj|i.

ISOS: Intrinsic-dimensionality Stochastic Outlier Selection Note: The t-SNE author, van der Maaten, already proposed an approximate and index-based variant of t-SNE: Barnes-Hut t-SNE, which also uses the kNN only [Maa14].

15

Experimental Results: Outlier Detection

1 2 5 10 20 50 100 200 −0.05 0.00 0.05 0.10 0.15 0.20

• ●
• ● ● ● ●●●●●●●
• ALOI_withoutdupl_norm

Neighborhood size Adjusted AP

• ISOS

kNNSOS ODIN kNN kNNW LOF SimplifiedLOF LoOP INFLO KDEOS

16

Experimental Results: Outlier Detection

1 2 5 10 20 50 100 200 −0.04 −0.02 0.00 0.02 0.04

• ● ● ● ● ● ●●●●●●●
• Annthyroid_withoutdupl_norm_02_v01

Neighborhood size Adjusted AP

• ISOS

kNNSOS ODIN kNN kNNW LOF SimplifiedLOF LoOP INFLO KDEOS

16

Experimental Results: Outlier Detection

1 2 5 10 20 50 100 200 0.00 0.01 0.02 0.03 0.04 0.05

• ● ● ● ● ● ●●●●●●●
• Pima_withoutdupl_norm_02_v01

Neighborhood size Adjusted AP

• ISOS

kNNSOS ODIN kNN kNNW LOF SimplifiedLOF LoOP INFLO KDEOS

16

Experimental Results: Outliers in MNIST

0 (33.4%) 5 (33.1%) 8 (32.7%) 7 (32.3%) 1 (32.3%) 8 (32.2%) 8 (32.1%) 6 (31.9%) 8 (31.7%) 9 (31.6%) 7 (31.5%) 5 (31.4%) 4 (31.3%) 1 (31.1%) 9 (31.1%) 8 (31.0%) 9 (30.7%) 3 (30.7%) 5 (30.5%) 4 (30.4%) 1 (30.3%) 7 (30.3%) 2 (30.2%) 7 (30.1%)

8 (30.1%) 0 (30.1%) 9 (30.0%) 0 (30.0%) 0 (29.9%) 0 (29.8%) 2 (29.8%) 1 (29.7%) 7 (29.6%) 9 (29.6%) 5 (29.6%) 2 (29.5%) 2 (29.5%) 3 (29.2%) 8 (29.2%) 4 (29.2%) 7 (29.0%) 1 (29.0%) 4 (28.9%) 7 (28.9%) 2 (28.8%) 6 (28.8%) 8 (28.8%) 8 (28.7%) 0 (28.7%) 4 (28.6%)

17

Conclusions

◮ We can “reduce” intrinsic dimensionality to ID = t using:

m = IDFX(x)/t But is this more than a cure for a symptom (for our estimate)?

◮ t-SNE benefits from this adjustment:

We get more difference in neighbor weights. (We can also use SNE, but we did not experiment with this.)

◮ t-SNE tends to hide outliers, unless we use

pij = pi|j · pj|i instead of pij = 1

2(pi|j + pj|i) ◮ We can make SOS outlier faster using the KNN only ◮ ISOS improves SOS by adjusting for ID. 18
