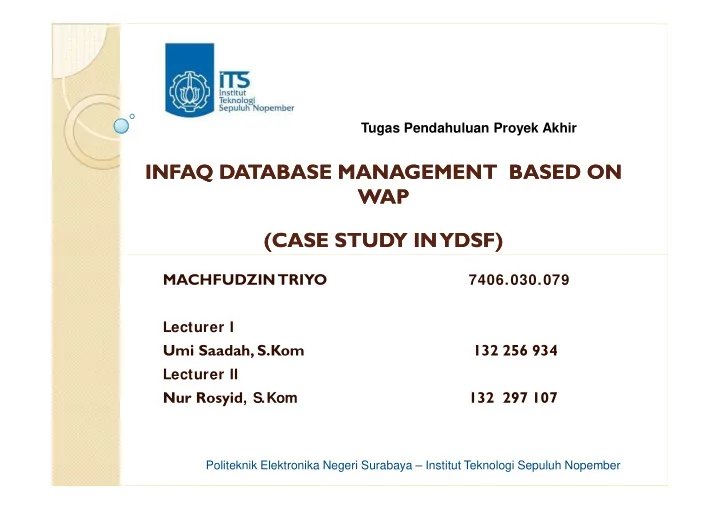

INFAQ DATABASE INFAQ DATABASE MANAGEMENT BASED ON MANAGEMENT BASED ON WAP WAP (CASE (CASE STUDY STUDY IN YDSF) IN YDSF)

Tugas Pendahuluan Proyek Akhir

MACHFUDZIN TRIYO

7406.030.079 Lecturer I

Umi Saadah, S.Kom 132 256 934

Lecturer II

Nur Rosyid, S.Kom 132 297 107

Politeknik Elektronika Negeri Surabaya – Institut Teknologi Sepuluh Nopember

Introduction Introduction

— Technology increasement in database management and

moblie technology’s user has been increasing in a society. Then make us able to aplicate it into a mobile by using WAP, WML, and PHP. One of the technology increasement is Database Management about infaq.

— In this Information System, it have 3 moduls : — Donatur and Donasi Management — Donatur and Donasi Management

This modul is manage the donatur and all of transaction or it service about donatur donasi, monthly donasi

— Mustahik Management

This modul is manage some information about mustahik

— Donation Management

This modul is manage all of the donations from the donatur through available post programs

Problem’s Formula Problem’s Formula

— 1.

How to create and design the basis of data that implements to the system.

— 2.

How that application can be created into WAP and can be accessed through mobile.

— 3.

How this application can run optimally and can be useful for the users.

Problem’s Limitations Problem’s Limitations

— In this case, we only get the data from YDSF (Yayasan

Dana Sosial Al-Falah).

— The system’s implementation designed into WAP selular

network.

— We use MySQL software for the database.

Final Project’s Purpose Final Project’s Purpose

— To give some information about

infaq management through selular phone network to the user. That is donatur. donatur.

Reference Reference

• 1. Information System
• 2. PHP
• 3. MySQL
• 4. WAP
• 4. WAP

Final Project’s Method Final Project’s Method

— Studi Literatur Literature Study

In this step, will be held a literature study about WAP , we need it through internet browsing and library and also technology in hardware or software we need. Use MySQL as the database.

— Collecting Data

Data and reference of this project’s got from :

ü Browse on the internet about sites of WAP ü Real Data from YDSF

S ystem’s Design

S ystem’s Design

— When we’re connected to wireless network and asking for

access to a website that support with WAP, sellular phone will send it into radio signal into the nearest cell and routed into internet directly through a gateway server. Gateway server

• Creating WAP System

internet directly through a gateway server. Gateway server translate a request to a HTTP standart format and continue it into a website. If that site give a respons, so it will send a HTML document to gateway server then connected to WML and route it to the nearest antenna. The antenna will send via radio signal to your WAP equipment and finally the micro browser will display that page.

S ystem’s Design

DFD level 0

DONATUR ADMIN pengelolaan data memberikan info mengakses informasi memanipulasi database laporan data memberikan infaq report infaq 1 MANAGEMEN DATABASE INFAQ

+

PEGAWAI USER

System’s Design System’s Design

— DFD LEVEL 1

infaq input data pengelolaan data memberikan infaq DONATUR PEGAWAI 2 pemberian infaq 5 pengelolaan data 6 data donatur data transaksi laporan data donatur info data data infaq laporan data donasi manipulasi data informasi data transaksi mengakses informasi memberikan info memanipulasi database laporan data report infaq DONATUR ADMIN ADMIN USER PEGAWAI 1 report 3 pelaporan data 4 pengolahan data 6 pemberian info 7 akses informasi data donasi data transaksi data infaq

System’s Design System’s Design

donatur membayar id telp alamat jenis kelamin nama tanggal

ERD

profesi tgl_lahir infaq penerima jenis id jumlah disalurkan alamat kategori nama id tanggal jumlah

S ystem’s Implementations

— Design of information that sent by WAP usually using WML format — WML is a HTML variant that used for displaying the content of web

Screen shot Screen shot

Via mobile Via mobile

Thank You Thank You
