Improving Electric fraud detection using class imbalance strategies - - PowerPoint PPT Presentation

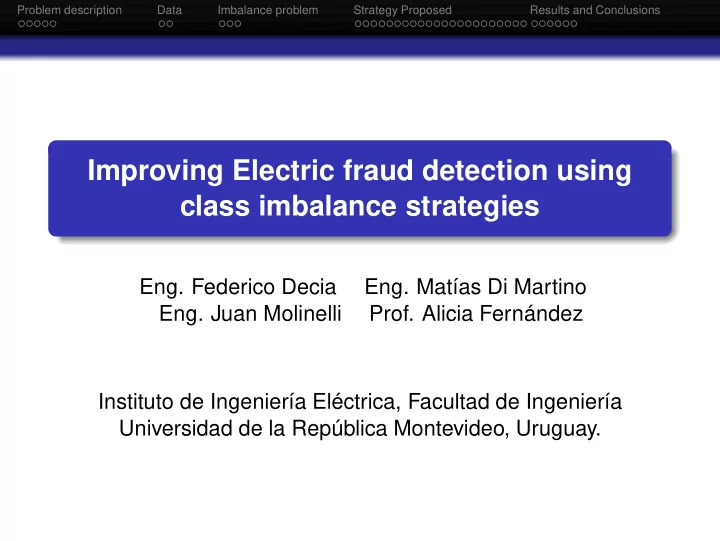

Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Improving Electric fraud detection using class imbalance strategies Eng. Federico Decia Eng. Matas Di Martino Eng. Juan Molinelli Prof. Alicia
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions
Instituto de Ingeniería Eléctrica, Facultad de Ingeniería Universidad de la República Montevideo, Uruguay.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Problem description
Nontechnical losses represent a very high cost to power supply companies. Background Research in different countries has been made to tackle this problem Ramos et al., 2010 ← Brazil Nagi and Mohamad, 2010 ← Malaysia Muniz et al., 2009 ← Rio de Janeiro, Brazil Uruguay In Uruguay the national electric power company (henceforth call UTE) faces the problem by manually monitoring a group of customers.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Problem description
Difficulties Big number of customers (only in the capital city there are 500.000) Wide variety of scams and ways to alter consumption meters.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Problem description
Other factors: Fraud history. Building address and dimensions. Counter type.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Problem description
Objective Develop an automatic tool that, based on manually labeled data, detect new suspect customers.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Problem description
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Data
DATASET 1 1504 industrial profiles (October 2004- September 2009) Each profile is represented by the customers monthly consumption. Labels for each customer are provided by UTE. Used for training and theoretical evaluation DATASET 2 3300 industrial profiles (January 2008 - January 2011 ) Each profile is represented by the customers monthly consumption. Used for on field evaluation
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Data
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Class imbalance problem
The class imbalance problem When working on fraud detection field, one can not assume that the number of people who commit fraud are the same than those who do not, usually there are fewer elements from the class who commit fraud.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Class imbalance problem
The class imbalance problem When working on fraud detection field, one can not assume that the number of people who commit fraud are the same than those who do not, usually there are fewer elements from the class who commit fraud. Strategies Under-Sampling
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Class imbalance problem
The class imbalance problem When working on fraud detection field, one can not assume that the number of people who commit fraud are the same than those who do not, usually there are fewer elements from the class who commit fraud. Strategies Under-Sampling One Class SVM and Cost Sensitive SVM
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Class imbalance problem
The class imbalance problem When working on fraud detection field, one can not assume that the number of people who commit fraud are the same than those who do not, usually there are fewer elements from the class who commit fraud. Strategies Under-Sampling One Class SVM and Cost Sensitive SVM Recall, Precision and F-Value
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Class imbalance problem
Recallp = TP TP + FN Recalln = TN TN + FP Precision = TP TP + FP Fvalue = (1 + β2)Recallp × Precision β2 Recallp + Precision Labeled as Positive Negative Positive TP (True Positive) FN (False Negative) Negative FP (False Positive) TN (True Negative)
Table: Confusion matrix
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Class imbalance problem
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Block diagram
Block Diagram
Figure: Block Diagram
The system input corresponds to the last three years of the monthly consumption curve of each costumer.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Block diagram
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Features
Consumption ratio for the last 3, 6 and 12 months and the average consumption.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Features
Norm of the difference between the expected consumption and the actual consumption.
Figure: Consumptions are estimate based on the consumption of the same month of the previous year multiplied by the ratio between the mean consumption of each year.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Features
Difference between Fourier and Wavelets coefficients from the last and previous years.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Features
Difference between the coefficients of the polynomial
Figure: Difference in the coefficients of the polynomial that best fits the consumption curve.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Features
Distance to the mean customer
Figure: We compare each consumption curve with the mean curve.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Features
Variance
Figure: Changes in the variance value Figure: Comparison with the variance normal value
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Features
Global Characteristic
Figure: Module of the first five Fourier coefficients. Figure: Slope of the straight line that best fits the consumption curve.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Features Selection
Features Selection Evaluation methods used Filter → CfsSubsetEval (Weka) Wrapper aiming to improve the F-Value on the different classifiers considered. Search methods used Exhaustive search (only for CfsSubsetEval) Best First (for all other methods)
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Features Selection
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Classifiers
Classifiers Classifiers used Classifiers considered to tackle this problem were: One Class Support Vector Machine (O-SVM) Cost-Sensitive Support Vector Machine (CS-SVM) Optimum Path Forest (OPF) Tree C4.5
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Classifiers
SVM Parameters Compromise: O-SVM → ν ; CS-SVM → C Kernel: Gaussian → γ Optimal parameters were found using 10-fold cross validation. The performance was measure by F-value.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Classifiers
Optimum Path Forest Euclidean distance was used as the distance function. Raw input vectors (instead of the features here proposed). Under-sample the majority class (during the training step
F-value sense).
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Classifiers
C4.5 The fourth classifier used is a decision tree proposed by Ross Quinlan: C4.5 As with OPF, we under-sample the majority class (during the training step of the algorithm) to improve the final performance (in the F-value sense).
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Classifiers
Combination
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Classifiers
Combination Why? Improve final performance More robust and general solution Decision rule gp(x) = λp
cs dp cs + λp OPF dp OPF + λp Tree dp Tree
(1) gn(x) = λn
cs dn cs + λn OPF dn OPF + λn Tree dn Tree
(2) di
j (x) = 1 if j labels the sample as i and 0 otherwise.
gp(x) > gn(x) → x labeled as positive gp(x) < gn(x) → x labeled as negative
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Classifiers
Weight Traditional Case (Kuncheva, 2004), weighted majority vote rule: Hypothesis: independence Objective: maximize overall accuracy λj = log
1 − Accuracyj
classifier.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Classifiers
Example Fist and second classifier
Fist Label as Clase Positive Negative Positive 100 Negative 9900 Second Label as Clase Positive Negative Positive 100 Negative 9900
Third classifier
Third Label as Clase Positive Negative Positive 50 50 Negative 150 9750
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Classifiers
Weight With this in mind, but taking into account that we want to find a solution with good balance between Recall and Precision, some weights λp,n
j
were proposed: λi
j = log
j +1
Recallp
j −1
j = log
Fvaluej −1
j = log
1−Accuracyj
j = Recalln j and λn j = Recallp j
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Classifiers
Optimal Weights λi ∈ [0 : 0.05 : 1] Exhaustive search F-value maximization (10 fold c.v.) Results All the alternatives to combine classifiers outputs, improved individual classifiers performance.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Classifiers
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Results
Labeling Results Labeling Results on DATASET1
Description Acc.(%) Rec.(%) Pre.(%) F-val.(%) O-SVM 84,9 54,9 50,8 52,8 CS-SVM 84,5 62,8 49,7 55,5 OPF 80,1 62,2 40,5 49 Tree (C4.5) 79 64,6 39 48,6 Combination 86,2 64 54,4 58,8 Table: Data Set 1 Labeling Results
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Results
On Field Results Tests were done in the following way:
1
Train the classification algorithm using DATASET 1.
2
Classify samples from DATASET 2. Lets call DATASET 2P the samples of DATASET 2 labelled as positive (associated to abnormal consumption behaviour).
3
Inspect customers on DATASET 2P .
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Results
On Field Results Results 340 samples of DATASET2P (340/560) 11 fraudulent activities detected 4 suspect activities detected (are being analyzed)
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Results
On Field Results Results 340 samples of DATASET2P (340/560) 11 fraudulent activities detected 4 suspect activities detected (are being analyzed)
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Results
On Field Results Results 340 samples of DATASET2P (340/560) 11 fraudulent activities detected 4 suspect activities detected (are being analyzed) Results analysis Results show that the automatic framework has a hit rate between 3.3% and 4.4%. Manual fraud detection performed by UTE’s experts during 2010 had a hit rate of about 4%.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Conclusions
Conclusions Results are promising. Specially taking into account that manual detection considers more information than just the consumption curve, such as fraud history, building dimension and contracted power, among others. Our software could complement and improve experts knowledge.
Problem description Data Imbalance problem Strategy Proposed Results and Conclusions Future work
Future work Future work Improving final performance and monitor bigger customer sets aiming to reach all customers in Uruguay. Example: Adding more features to out learning algorithm, such as:
Counter type (digital or analog). Customer type (dwelling or industrial). Contracted power.
