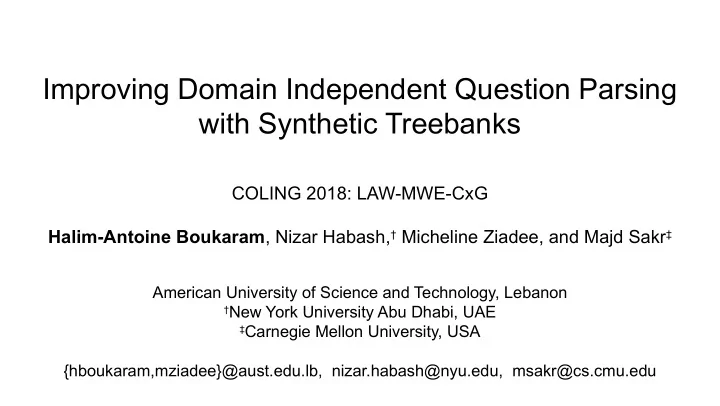

Improving Domain Independent Question Parsing with Synthetic Treebanks

COLING 2018: LAW-MWE-CxG Halim-Antoine Boukaram, Nizar Habash,† Micheline Ziadee, and Majd Sakr‡

American University of Science and Technology, Lebanon

†New York University Abu Dhabi, UAE ‡Carnegie Mellon University, USA

{hboukaram,mziadee}@aust.edu.lb, nizar.habash@nyu.edu, msakr@cs.cmu.edu

Problem & Solution

• Automatic parsers do not perform well on question

constructions

○ Most treebanks used for training are in the news domain which lacks question constructions

• Our proposed solution is to synthetically create

syntactic trees of questions on which to train parsers

• We present our results on Standard Arabic, a

morphologically rich and relatively low-resource language

1

Example of Question Parsing Errors

Automatically Parsed To where do I go to submit the application? Human Parsed

؟ بلطلا مداق هجا نًا ىلا

2

Example of Question Parsing Errors

What time will the celebration start? Automatically Parsed Human Parsed

؟ لافتاقا اهيف أدبيس ةعاس يأ

3

Research Questions

• We explore two effective and low-cost techniques to

add more annotated questions to the training corpus

○ Automatically Generating Questions from Existing Treebanks ○ Automatically Generating Questions from Question Templates

• Research questions:

○ How do these techniques compare with manual annotation of additional questions? ○ Do combinations of synthetic and manual data improve accuracy?

4

Technique #1: QGen

• Automatically transform an annotated sentence into a

number of annotated questions (4.75 on average)

○ (S (NP-SPJ the boy) (VP ate (NP-OBJ the apple))) ○ → (SBARQ (WHNP who) (S (VP ate (NP-OBJ the apple)))) ○ → (SQ (VP did) (NP-SPJ the boy) (VP eat (NP-OBJ the apple)))

5

Technique #1: QGen

• Words of the input tree are modified morphologically

depending on the type of generated question

○ Arabic Who questions ■ Sentences with gender- and number-specific verbs → Questions with masculine-singular verbs

6

QGen Examples

Original phrase structure Simple SQ Structure 7

QGen Examples

Original phrase structure Simple SBARQ Structure 8

QGen Examples

Original phrase structure Modified SQ Structure 9

QGen Examples

Original phrase structure Modified SBARQ Structure 10

QGen Examples

Original phrase structure Modified SBARQ Structure (who) 11

Limitations of QGen

• Errors in the resulting synthetic data due to
• vergeneration resulting in nonsensical synthetic

questions

• Limited coverage of modeled question structures
• Input domain might be different from desired question

domain

12

Technique #2: QTemp

• Generate question templates

in a desired domain ○ Where is %place%?

• Annotate question templates
• Fill the template by filling the

placeholder elements ○ Where is the bathroom? ○ Where is a bathroom? ○ Where is the dean’s office? ○ Where is the finance office? ○ Where is ...?

13

QTemp Examples

+ = Annotated question template Annotated token Annotated question 14

QTemp Examples

Annotated question template Annotated token Annotated question + = 15

Experimental Setup

• Baseline Treebank is Penn Arabic Treebank (PATB)
• Two Synthetic Treebanks

○ QGen and QTemp

• Two Manually Annotated Treebanks

○ TalkShow and Chatbot

• Test accuracy of parser trained using:

○ Synthetic vs Manual ○ Combined vs Synthetic or Manual

16

Data Sets

Treebank Domain Train # Sentences (# Words) Test # Sentences (# Words) PATB (part3) News articles 10,836 (320,998) 794 (12,884) PATBQ News articles N/A 67 (1,054) TalkShow Political talk show 544 (2,691) 143 (692) Chatbot Conversational 239 (1,505) 62 (441) QGENPATB News articles (Synthetic) 962 (8,140) N/A QTemp Conversational (Synthetic) 1,607 (13,099) N/A 17

Results

Corpus Baseline +Synthetic Manual All Train PATB QGENPATB + QTemp TalkShow + Chatbot Test PATB 80.6 80.6 80.6 80.9 PATBQ 73.8 74.0 74.9 75.9 TalkShow 88.2 87.3 91.4 92.9 Chatbot 90.5 93.6 93.3 94.1 Macro Average Q 84.2 84.9 86.5 87.6 18

Results

Corpus Baseline +Synthetic Manual All Train PATB QGENPATB + QTemp TalkShow + Chatbot Test PATB 80.6 80.6 80.6 80.9 PATBQ 73.8 74.0 74.9 75.9 TalkShow 88.2 87.3 91.4 92.9 Chatbot 90.5 93.6 93.3 94.1 Macro Average Q 84.2 84.9 86.5 87.6 19

Results

Corpus Baseline +Synthetic Manual All Train PATB QGENPATB + QTemp TalkShow + Chatbot Test PATB 80.6 80.6 80.6 80.9 PATBQ 73.8 74.0 74.9 75.9 TalkShow 88.2 87.3 91.4 92.9 Chatbot 90.5 93.6 93.3 94.1 Macro Average Q 84.2 84.9 86.5 87.6 20

Results

Corpus Baseline +Synthetic Manual All Train PATB QGENPATB + QTemp TalkShow + Chatbot Test PATB 80.6 80.6 80.6 80.9 PATBQ 73.8 74.0 74.9 75.9 TalkShow 88.2 87.3 91.4 92.9 Chatbot 90.5 93.6 93.3 94.1 Macro Average Q 84.2 84.9 86.5 87.6 21

Results

Corpus Baseline +Synthetic Manual All Train PATB QGENPATB + QTemp TalkShow + Chatbot Test PATB 80.6 80.6 80.6 80.9 PATBQ 73.8 74.0 74.9 75.9 TalkShow 88.2 87.3 91.4 92.9 Chatbot 90.5 93.6 93.3 94.1 Macro Average Q 84.2 84.9 86.5 87.6 22

Conclusions and Future Work

• Synthetic question treebanks are useful for improving

question parsing

• The domain of the synthetic treebanks must match the

desired domain of questions we are interested in parsing

• We will investigate how applicable the synthetic techniques

are to other languages

• We will write more question generating procedures
• The Manual and Synthetic Treebanks will be published

through the Linguistic Data Consortium

23
