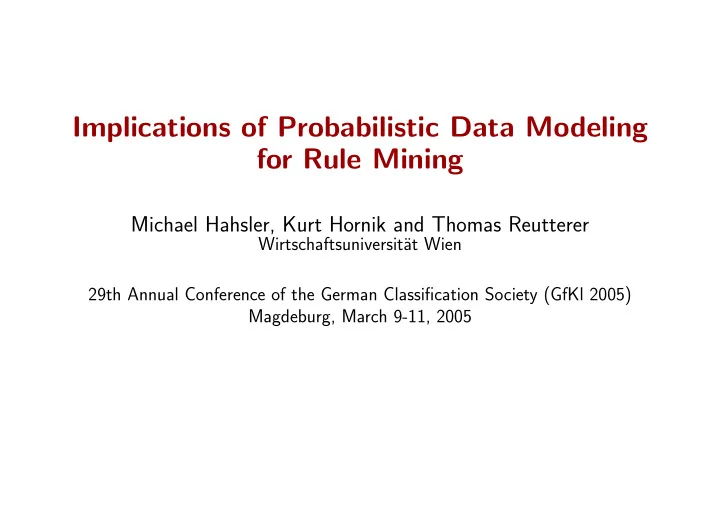

Implications of Probabilistic Data Modeling for Rule Mining

Michael Hahsler, Kurt Hornik and Thomas Reutterer

Wirtschaftsuniversit¨ at Wien 29th Annual Conference of the German Classification Society (GfKl 2005) Magdeburg, March 9-11, 2005

Motivation

• Mining association rules is an important technique for discovering

meaningful patterns in transaction databases. – Example: diapers ⇒ beer – Applications: product assortment decisions, adapting promotional activities, personalized product recommendations, adaptive user interfaces

• Current literature focuses on the properties of algorithms.
• We will discuss properties of

– transaction data sets and – interest measures from a probabilistic point of view.

• M. Hahsler, K. Hornik and T. Reutterer

2 Magdeburg, March 9-11, 2005

Outline

• 1. Association rules
• 2. Probabilistic model for transaction data
• 3. Simulation with R
• 4. Implications for confidence and lift
• 5. New measure: hyperlift
• 6. Conclusion
• M. Hahsler, K. Hornik and T. Reutterer

3 Magdeburg, March 9-11, 2005

Association Rules

An association rule is a rule of the form X ⇒ Y , where X and Y are two disjoint sets of items (itemsets). Rule selection with threshold on interest measures:

• Support: fraction of transactions containing an itemset
• Confidence: probability of seeing Y under the condition that the

transactions also contain X Found rules are often ranked by:

• Lift: how many times more often X and Y occur together than

expected if they where statistically independent

• M. Hahsler, K. Hornik and T. Reutterer

4 Magdeburg, March 9-11, 2005

A simple probabilistic framework for transaction data

Transactions occur following a Poisson process

time Tr1Tr2 Tr3 Tr4 Tr5 Trm-2 Trm-1 Trm t

We analyze transactions which are recorded in a fixed time interval of length t. The number of transactions m in the time interval is then poisson distributed with parameter θt:

P(M = m) = e−θt(θt)m m!

(1)

• M. Hahsler, K. Hornik and T. Reutterer

5 Magdeburg, March 9-11, 2005

A simple probabilistic framework (cont’d)

• n independent items L = {l1, l2, . . . , ln},
• with each having a fixed success probabilities to occur in a transaction

given by the vector p = (p1, p2, . . . , pn). Following the framework: ci, the observed number of transactions item

li is contained in, can be interpreted as a realization of a random variable Ci.

Under the condition of a fixed number of transactions m this random variable has a binomial distribution:

P(Ci = ci|M = m) = m ci

• pci

i (1 − pi)m−ci

(2)

• M. Hahsler, K. Hornik and T. Reutterer

6 Magdeburg, March 9-11, 2005

A simple probabilistic framework (cont’d)

Since for a fixed time interval t the number of transactions m is not fixed, the unconditional distribution gives:

P(Ci = ci) =

∞

• m=ci

P(Ci = ci|M = m) · P(M = m) =

∞

• m=ci

m ci

• pci

i (1 − pi)m−ci e−θt(θt)m

m! = e−θt(piθt)ci ci!

∞

• m=ci

((1 − p)θt)m−ci (m − ci)! = e−piθt(piθt)ci ci!

(3)

which has a Poisson distribution with parameter λi = piθt.

• M. Hahsler, K. Hornik and T. Reutterer

7 Magdeburg, March 9-11, 2005

A simple probabilistic framework (cont’d)

Representation of transaction data as a binary incidence matrix:

items transactions l1 l2 l3 ... ln Tr1 0 1 0 ... 1 Tr2 0 1 0 ... 1 Tr3 0 1 0 ... 0 Tr4 0 0 0 ... 0 . . . . . . . . . . . . . . . Trm-1 1 0 0 ... 1 Trm 0 0 1 ... 1 . . . c 99 201 7 ... 411 p 0.005 0.01 0.0003 ... 0.025

• M. Hahsler, K. Hornik and T. Reutterer

8 Magdeburg, March 9-11, 2005

Simulation

For simplicity we will assume for the following simulation that the parameters in λ are chosen from a single gamma distribution with parameters k = 0.75 and a = 250. We will simulate the counts ci, for n = 200 different items over a t = 30 day period with transaction intensity θ = 300 transactions per day.

> m <- rpois(1, theta * t) [1] 8885 > p <- sort(rgamma(n, shape = k, scale = a)/m, + decreasing = TRUE)

Now we can simulate the transactions in the database by m Bernoulli trials for each of the n items and calculate the count vector c.

> Tr <- matrix(rbinom(m * n, 1, p), ncol = n, byrow = TRUE) > c <- (apply(Tr, 2, sum))

• M. Hahsler, K. Hornik and T. Reutterer

9 Magdeburg, March 9-11, 2005

Simulation (cont’d)

We can directly calculate the support of each item from the transaction counts. > supp1 <- c/m > plot(supp1, type = "h", xlab = "items", + ylab = "support")

• M. Hahsler, K. Hornik and T. Reutterer

10 Magdeburg, March 9-11, 2005

• M. Hahsler, K. Hornik and T. Reutterer

11 Magdeburg, March 9-11, 2005

Simulation (cont’d)

Next, we extend the framework to the occurrences of 2-itemsets with a symmetric n × n count matrix c2 and a support matrix (supp2): > c2 <- sapply(1:n, function(i) { + apply(Tr[, i] & Tr[, 1:n], 2, sum)}) > diag(c2) <- NA > supp2 <- c2/m > persp(supp2, expand = 0.5, ticktype = "detailed", + border = 0, shade = 1, zlab = "support", + xlab = "items", ylab = "items")

• M. Hahsler, K. Hornik and T. Reutterer

12 Magdeburg, March 9-11, 2005

• M. Hahsler, K. Hornik and T. Reutterer

13 Magdeburg, March 9-11, 2005

Implications for confidence

Confidence is defined by

conf(X ⇒ Y ) = supp(X + Y ) supp(X) .

(4) From our 2-itemsets we can generate rules of the from li ⇒ lj, where

i, j = 1, 2, . . . , n and i = j. We calculate confidence for the n(n − 1)

possible rules in the data set. > conf2 <- supp2/supp1 > persp(conf2, expand = 0.5, ticktype = "detailed", + border = 0, shade = 1, zlab = "confidence", + xlab = "items", ylab = "items")

• M. Hahsler, K. Hornik and T. Reutterer

14 Magdeburg, March 9-11, 2005

• M. Hahsler, K. Hornik and T. Reutterer

15 Magdeburg, March 9-11, 2005

Implications for confidence (cont’d)

• Confidence values are generally very low which reflect the fact that

there are no associations in the data.

• Some rules with confidence of one. However, left-hand-sides (X) have

low support.

• Confidence increases with the item in the right-hand-side Y of the rule

getting more frequent. The fact that confidence systematically favors some rules makes the measure problematic when it comes to ranking rules.

• M. Hahsler, K. Hornik and T. Reutterer

16 Magdeburg, March 9-11, 2005

Implications for lift

Typically, rules mined using minimum support (and confidence) are filtered or

• rdered using their lift value. The measure lift is defined as:

lift(X ⇒ Y ) = conf(X ⇒ Y ) supp(Y )

(5) A lift value close to 1 indicates that the items are co-occurring in the database as expected under independence. > lift <- conf2/matrix(supp1, ncol = n, nrow = n, + byrow = TRUE) > persp(lift, expand = 0.5, ticktype = "detailed", + border = 0, shade = 1, zlab = "lift", + xlab = "items", ylab = "items") > length(which(lift > 2)) [1] 3424

• M. Hahsler, K. Hornik and T. Reutterer

17 Magdeburg, March 9-11, 2005

• M. Hahsler, K. Hornik and T. Reutterer

18 Magdeburg, March 9-11, 2005

Implications for lift (cont’d)

To counter the problem with extremely high lift values, we discard all 2-itemsets which do not satisfy a minimum support of 0.1%. > min_supp <- 0.001 > length(lift[supp2 >= min_supp]) [1] 7096 > lift[supp2 < min_supp] <- 1 > persp(lift, expand = 0.5, ticktype = "detailed", + border = 0, shade = 1, zlab = "lift", + xlab = "items", ylab = "items") > length(which(lift > 2)) [1] 130

• M. Hahsler, K. Hornik and T. Reutterer

19 Magdeburg, March 9-11, 2005

• M. Hahsler, K. Hornik and T. Reutterer

20 Magdeburg, March 9-11, 2005

Implications for lift (cont’d)

• Lift performs poorly to filter random noise in transaction data

especially if for relatively rare items.

• Lift has a tendency to produce higher values for rules with items close

to minimum support. This makes using lift problematic for ranking discovered rules.

• M. Hahsler, K. Hornik and T. Reutterer

21 Magdeburg, March 9-11, 2005

New measure: hyperlift

• The n × n co-occurrence matrix can be modeled by n2 random

variables Ci,j.

• The framework results in hypergeometric distributions for the Ci,js

(urn model).

• Using the expected value of Ci,j lift can be rewritten as:

lift(li ⇒ lj) = P(li + lj) P(li)P(lj) = ci,j E[Ci,j]

(6)

• As a more conservative approach we use quantile Qδ[Ci,j] instead of

the expected value.

hyperlift(li ⇒ lj) = ci,j Qδ[Ci,j].

(7)

• M. Hahsler, K. Hornik and T. Reutterer

22 Magdeburg, March 9-11, 2005

New measure: hyperlift (cont’d)

Calculating hyperlift for δ = 0.99: > calc_hyperbase <- function(ci, cj) { + qhyper(0.99, m = cj, n = m - cj, k = ci)} > hyperlift <- c2/outer(c, c, FUN = calc_hyperbase) > hyperlift[is.infinite(hyperlift)] <- NA > persp(hyperlift, shade = 1, ticktype = "detailed", + border = 0, expand = 0.5, zlab = "hyperlift", + xlab = "items", ylab = "items") > length(which(hyperlift > 2)) [1] 2

• M. Hahsler, K. Hornik and T. Reutterer

23 Magdeburg, March 9-11, 2005

• M. Hahsler, K. Hornik and T. Reutterer

24 Magdeburg, March 9-11, 2005

New measure: hyperlift (cont’d)

• Generally smaller than 1 and more evenly distributed than lift.

Indicates that hyperlift filters the random co-occurrences better than lift.

• Hyperlift shows a weak systematic dependency to favor rules with

more frequent items.

• M. Hahsler, K. Hornik and T. Reutterer

25 Magdeburg, March 9-11, 2005

Comparing lift and hyperlift on a grocery database

• 1 month of real-world point-of-sale transaction data from a local

grocery outlet with

• m = 9835 transaction and
• n = 169 categories.
• Support, confidence and lift distributions look almost identical to the

simulated data.

• M. Hahsler, K. Hornik and T. Reutterer

26 Magdeburg, March 9-11, 2005

Lift for 2-itemsets for items with support of 0.1% in the grocery database

• M. Hahsler, K. Hornik and T. Reutterer

27 Magdeburg, March 9-11, 2005

Hyperlift for 2-itemsets for items in the grocery database

• M. Hahsler, K. Hornik and T. Reutterer

28 Magdeburg, March 9-11, 2005

Comparing lift and hyperlift (cont’d)

Top 10 rules (ordered by lift, support = 0.001) l_i l_j supp lift 20 mayonnaise mustard 0.001423 12.965 8 Instant food products hamburger meat 0.003050 11.421 15 softener detergent 0.001118 10.600 16 liquor red/blush wine 0.002135 10.025 6 flour sugar 0.004982 8.463 4 popcorn salty snack 0.002237 8.192 11 processed cheese ham 0.003050 7.071 9 sauces hamburger meat 0.001220 6.684 3 meat spreads cream cheese 0.001118 6.605 14 house keeping products detergent 0.001017 6.346

• M. Hahsler, K. Hornik and T. Reutterer

29 Magdeburg, March 9-11, 2005

Comparing lift and hyperlift (cont’d)

Top 10 rules (ordered by hyperlift, no support)

l_i l_j supp hyperlift lift 11 Instant food products hamburger meat 0.0030 4.286 11.421 9 flour sugar 0.0049 4.083 8.463 15 liquor red/blush wine 0.0021 3.500 10.025 * 17 cooking chocolate baking powder 0.0007 3.500 15.826 18 mayonnaise mustard 0.0014 3.500 12.965 6 processed cheese white bread 0.0041 3.154 5.975 7 popcorn salty snack 0.0022 3.143 8.192 13 processed cheese ham 0.0030 3.000 7.071 3 liquor bottled beer 0.0046 2.875 5.241 14 softener detergent 0.0011 2.750 10.600 8 baking powder sugar 0.0032 2.667 5.432

• M. Hahsler, K. Hornik and T. Reutterer

30 Magdeburg, March 9-11, 2005

Comparing lift and hyperlift (cont’d)

• All rules for lift (with support) and hyperlift make intuitively sense.
• Rules with high hyperlift have potentially also high lift.
• Hyperlift selects rules with support varying from very rare to relatively

frequent (the tendency of hyperlift to favors rules with more frequent items seems not too strong).

• Hyperlift is also able to deal with very infrequent rules.
• M. Hahsler, K. Hornik and T. Reutterer

31 Magdeburg, March 9-11, 2005

Conclusion

• Interest measures are systematically influenced by the frequencies of

items in the corresponding itemsets or rules.

• Lift performs poorly to filter random noise.
• The presented framework provides many possibilities for further

research: – Adapt hyperlift to finding substitutes (instead of complements). – Analyze systematic influence of the occurrence frequency of items

• n the hyperlift measure.

– Use p-value instead of hyperlift. – Expand model to itemsets of size > 2. – Model dependencies between items.

• M. Hahsler, K. Hornik and T. Reutterer

32 Magdeburg, March 9-11, 2005
