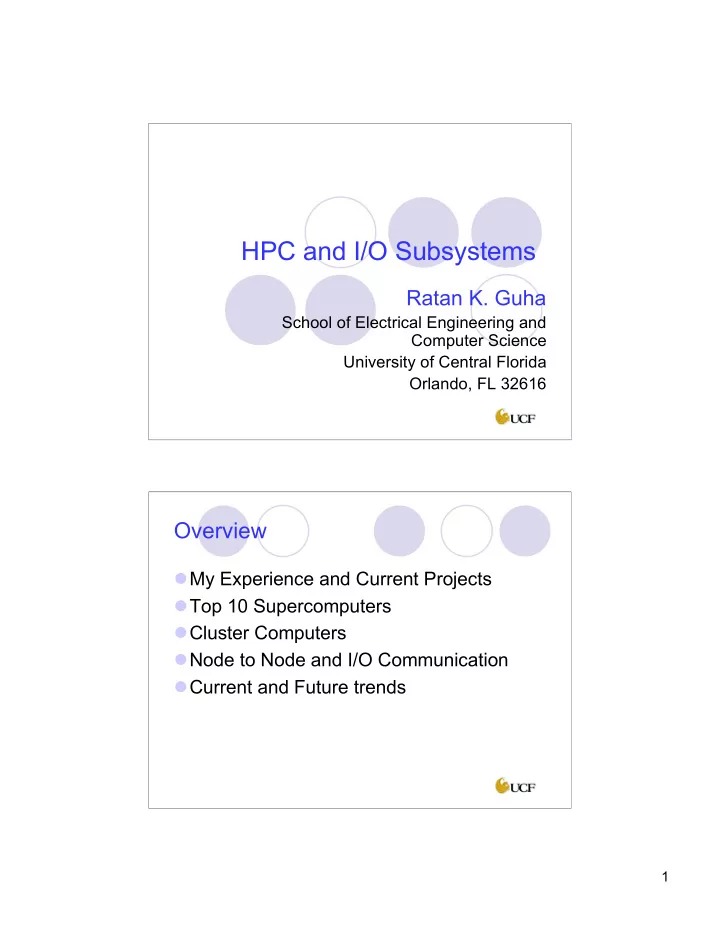

HPC and I/O Subsystems

Ratan K. Guha

School of Electrical Engineering and Computer Science University of Central Florida Orlando, FL 32616

Overview

My Experience and Current Projects Top 10 Supercomputers Cluster Computers Node to Node and I/O Communication Current and Future trends

2

My Experience

1990 - 1997- BBN Butterfly, DEC Mpp NSF Grant 2004 – Sun Cluster – ARO Grant W911NF04110100

Cluster Computing Facilities

 # Nodes : 48 (Sun Fire V20z)  CPU : Dual AMD Opteron 242 1.6GHz processors  Memory : 2 GB  Network : Gigabit Ethernet  2x36 GB internal disk  OS : SunOS 5.9

Ariel

3

Current Projects

 Composite cathodes for Intermediate Temperature SOFCs: A comprehensive approach to designing materials for superior functionality, PIs. N. Orlovskaya, A. Sleiti, J. Kapat (MMAE), A. Masunov (NSTC), R. Guha (CS) [CPMD, Fluent] NASA Grant  VCluster: A Thread-Based Java Middleware for SMP and Heterogeneous Clusters – Ph. D. Dissertation Work  Parallel Simulation ARO Grants DAAD19-01-1-0502, W911NF04110100

Top 5 Supercomputers

• 1. DOE/NNSA/LLNL USA BlueGene/L - eServer Blue

Gene Solution IBM

• 2. NNSA/Sandia National Laboratories USA -Red Storm
• Sandia/ Cray Red Storm, Opteron 2.4 GHz dual core

Cray Inc.

• 3. IBM Thomas J. Watson Research Center USA BGW -

eServer Blue Gene Solution, IBM

• 4. DOE/NNSA/LLNL – USA ASC Purple - eServer

pSeries p5 575 1.9 GHz, IBM

• 5. Barcelona Supercomputing Center, Spain,

MareNostrum - BladeCenter JS21 Cluster, PPC 970, 2.3 GHz, Myrinet, IBM

4

Top 6 -10 Supercomputers

6. NNSA/Sandia National Laboratories USA Thunderbird - PowerEdge 1850, 3.6 GHz, Infiniband Dell 7. Commissariat a l'Energie Atomique (CEA) FranceTera-10 - NovaScale 5160, Itanium2 1.6 GHz, Quadrics, Bull SA 8. NASA/Ames Research Center/NAS USA Columbia - SGI Altix 1.5 GHz, Voltaire Infiniband, SGI 9. GSIC Center, Tokyo Institute of Technology, Japan, TSUBAME Grid Cluster - Sun Fire x4600 Cluster, Opteron 2.4/2.6 GHz and ClearSpeed Accelerator, InfinibandNEC/Sun

• 10. Oak Ridge National Laboratory USA Jaguar - Cray

XT3, 2.6 GHz dual Core, Cray Inc.

Some Statistics

261 Intel processors, 113 AMD Operton family  93 IBM Power processors

5

Cluster Computing

 Become popular with the availability of

High performance microprocessors High speed networks Distributed computing tools

 Provide performance comparable to supercomputers with a much lower price

Cluster Computing

 To run a parallel program on a cluster

Processes must be created on every machine in the cluster Processes must be able to communicate with each other

Process 1 Process 2 Process 3 Process 4 Ethernet

6

Communications

Fiber Channel Gigabit Ethernet Myrinet InfiniBand

Myrinet

 Designed by Myricom  High-speed LAN used to interconnect machines

Lightweight protocol (2Gb/s) Low latency for short messages Sustained data rate for large messages

7

Gigabit Ethernet

Standardized by IEEE 802.3 Data rates in Gigabits/s Deployed in high-capacity backbone network links High end-to-end throughput and less expensive as compared to Myrinet Four physical layer standards:

optical fiber, twisted pair cable, or balanced copper cable

Fiber Channel

 Gigabit-speed network technology used for storage networking

 Runs on both twisted pair Cu and fiber optic

 Reliable and scalable  4 Gb/s BW  Supports many topologies and protocols  Efficient  Cons

 Although initially used for supercomputing, more popular now in storage markets  More standard definitions are increasing complexity of the protocol

8

InfiniBand (IB)

 High performance, low latency I/O Interconnect architecture for channel-based, switched fabric servers

Replacement for PCI shared-bus

 First version released in Oct 2000 by InfiniBand Trade Association (ITA) formed

Compaq, Dell, HP, IBM, Intel, MS, Sun responsible for compliance and interoperability testing of commercial products June 2001 – Version 1.0a released

Why is it different?

 Unlike present I/O subsystem, IB is a network

Uses IPv6 with its 128-bit address

 IB’s revolutionary approach:

Instead of sending data in parallel across the backplane bus (data path), IB uses a serial (bit-at-a-time) bus Fewer pins saves cost and adds reliability Serial bus can multiplex a signal Supports multiple memory areas, which can be accessed by processors and storage devices

9

Advantages of InfiniBand

 High performance

20Gb/s node-to-node 60Gb/s switch-to-switch IB has defined roadmap to 120Gb/s (fastest specification for any interconnect)

 Reduced complexity

Multiple I/Os on one cable Consolidates clustering transmissions, communications, storage and management data types over a single connection

Advantages Contd.

 Efficient interconnect

Communication processing in HW, not CPU, so full resource utilization at each node Employs Remote DMA (efficient data transfer protocol)

 Reliability, stability, scalability

Reliable end-to-end data connections Virtualizations allow multiple apps to run on the same interconnect IB fabrics have multiple paths and fault is limited to a link Can support tens of thousands of nodes in single subnet

10

Integrating into a data center

 Connecting Fiber Channel storage fabrics to an IB infrastructure:  Bridges

Somewhat costly Create a bottleneck that gates the Fiber Channel access to speeds less than the array is typically capable of delivering

 Native interconnects

More cost-effective, easier-to-manage solution Integrate the arrays directly to the IB fabric

InfiniBand and Gigabit Ethernet?

IB is complimentary to GE or Fiber

• Channel. Cost of FC is quite high

GE and Fiber Channel are expected to connect into the IB fabric to access IB- enabled compute resources

Helps IT managers to better balance I/O and processing resources within an IB fabric Allows applications to use IB’s RDMA to fetch data, computer and put intermediate results, good for HPC

11

12

Current and Future Trends

HPC and I/O Subsystem communication will be faster and easier to manage HPC scientific applications will continue New multidisciplinary work will increase Financial business will use HPC systems

13

References

 http://www.infinibandta.org  http://www.cray.com  http://www.myri.com  http://www.fibrechannel.org/  Jens Mache, "An Assessment of Gigabit Ethernet as Cluster Interconnect," iwcc , p. 36, 1999.  http://www.supercomp.org/sc2002/paperpdfs/pap.pap207.pdf

 http://compnetworking.about.com/cs/clustering/g/bldef_infiniban.htm

 InfiniBand today, Article by Dave Ellis http://www.wwpi.com/index.php?option=com_content&task=view&id=1163& Itemid=44  http://www.mellanox.com/pdf/presentations/Top500_Nov_06.pdf  http://www.mellanox.com/applications/top_500.php  Fiber Channel vs. InfiniBand vs. Ethernet http://www.processor.com/editorial/article.asp?article=articles%2Fp2911%2 F31p11%2F31p11%2Easp&guid=934C81176D3D40969DF5ABA3E28DC8 CF&searchtype=&WordList=&bJumpTo=True
