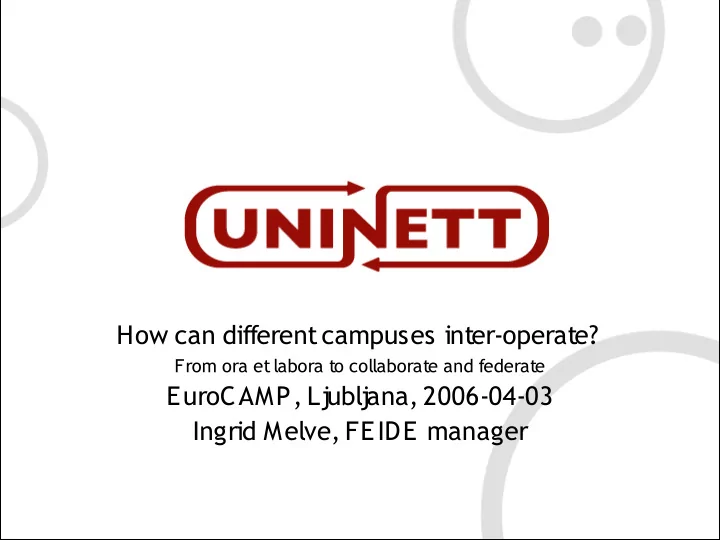

How can different campuses inter-operate?

From ora et labora to collaborate and federate

EuroCAMP, Ljubljana, 2006-04-03 Ingrid Melve, FEIDE manager

2

From S S O to a federated solution

 Campus Identity Management  Collaborations  Applications  Case: FEIDE  Federating for applications

3

Application types

 Web: apache, IIS , python, php, .NET  Web services: Java  Legacy applications:

i.e. S AP, ePhorte, Agresso

 Network access: wireless (802.1X),

radius

 Proxies: web, Citrix  Agents acting on behalf of the user: web

services or legacy/ special applications

4

Important applications

 S hared apps  self service

interfaces

 library services  administrative

services

 reporting

systems

 National apps  Government

security portal

 Local apps  e-learning  portals  wireless access  Local apps with

• utside users

 All of the above  Project

workspace



5

Applications need to change

 Move login out of the service itself  Application does not see password  Need to add module or filter in

application

 How to integrate with FEIDE  Moria2: operational until spring 2007  Liberty Alliance standards chosen as

future integration path

 Conformance testing ensures multi-

vendor support

 S un Access Manager in demo June

2006

6

Norwegian universities and university colleges and how to ICT

 4 big, 6 medium,

28 small institutions

 Collaboration

normal and useful

 NREN has strong

campus presence

 CIMS user groups  Novell  Microsoft  Cerebrum  Multi-vendor

environment

 S hare

administrative applications

 S tudent registry  Payroll system  Financial system  Electronic

invoice

 Archive system

7

FEIDE – Federated Electronic Identity for Norwegian Education

 FEIDE is a non-commercial identity

management federation for people in education

 FEIDE is technology and plattform agnostic  FEIDE offers guidelines and policy for campus

identity management

 FEIDE-names are valid for all education

services, and may be used internally, for community services and with educational related services

8

A solution for whom?

 Higher ed: 230000

person, 53 institutions

 (Lower ed: 780000)  Total: 20% of

population

 Tradition of sharing

work

 Dugnad

 Many shared services

 Common software  Application S ervice

Providers

 Common interfaces

9

FEIDE – the players

End user person with FEIDE-name Home organization - IdP university or school with end user affiliation S ervice Provider S ervices and applications for end users

10

FEIDE for Norwegian education

 Operational campus (start 2003)  Universities: 2003 - early 2006  University Colleges: 2004 - 2006  Lower education: phasing in from fall

2006

 Operational service providers  S hared services in higher ed: 2003 -

2006

 Community web services in lower

education: 2006 – 2007

 Local university services: 2003 – 200X

11

FEIDE – identity management for education

Identity management consists of:

 Information model  Login service  Chain of trust  Policy issues  Collaboration between educational

institutions, service providers and vendors

12

FEIDE information model

 Identity providers (=campus)  Authoritative data flows to LDAP-

directory

 Information on standard format

 eduPerson, eduOrg  norEduPerson, norEduOrg, norEduOrgUnit

 S tandardized import/

export

 Provisioning  S ervice Provider integration  Requirements for campus identity

management

13

Campus Identity Management

 Authoritative data sources  BAS (CIMS ) is hub in information flow  All updates and changes flows through

BAS

 CIMS is a neccessary component

14

Campus Identity Provider benefits

 Authoritative quality and control of information

flow for all affiliated users

 Enhanced user management simplifies and

automates

 Federated login provides access to services

15

CleanIT, the BAS /CIMS process

 Identify key data  Identify who is reponsible for

 Initial data  Data updates  Data removal  Organizational process  Move data maintenance out of the IT

department

 Enable Human Resource and S tudent

Management staff to do their j

• bs better

16

What is Campus Identity Management S ystems (CIMS )?

 Routines and policy for data updates  Data quality, well-defined requirements  Quality assurance (identity)  Not really an «application»  Technical solutions:  Cerebrum  Novell  S tover's Microsoft-based  Incoming: Oracle and IBM  (In-house ad-hoc solutions are

• perational)

17

Campus Identity Management S ystems

 S everal systems are operational, pick

• ne for your campus

 Integration with local systems decide

which one to chose, dialogue with vendor

 Not cost-effective to have many  Federating across different systems is

relatively painless

 Interfaces are important in bottom-up

design

 Collaboration, work with vendors

18

Campus status

Organisasjon Type BAS Status i innføringsprosessen Studenter Ansatte Andre FEIDE NTNU BDB 22000 Universitetet i Bergen SEBRA 20000 Universitetet i Oslo Cerebrum 36000 Universitetet i Stavanger ? 7300 2007 Universitetet i Tromsø Cerebrum 6100 2006 UMB Egenutv. 2800 2006 Høgskolen i Agder Cerebrum 8000 Høgskolen i Akershus ? 3500 2006 Høgskolen i Bergen Microsoft 6000 2006 Høgskolen i Bodø Microsoft 4700 2006 Høgskolen i Buskerud Novell 2800 2006? Høgskolen i Finnmark Novell 2100 Høgskolen i Gjøvik Novell (?) 2100 2006? Høgskolen i Harstad ? 1600 Høgskolen i Hedmark Novell 5600 Høgskolen i Lillehammer Novell 3700 Høgskolen i Molde Microsoft 1600 Høgskolen i Narvik Microsoft 1200 April 2006 Høgskolen i Nesna ? 1000 Høgskolen i Nord-Trøndelag Microsoft 5000 2006 Høgskolen i Oslo egenutviklet 11200 Høgskolen i Sogn og Fjordane Novell 3000 2006 Høgskolen Stord/Haugesund Microsoft 2500 2006/2007 Høgskolen i Sør-Trøndelag Cerebrum 8100 April 2006 Høgskolen i Telemark Novell 6600 2006 Høgskolen i Vestfold Novell 3400 2006 Høgskolen i Volda Novell 4000 April 2006 Høgskolen i Østfold Cerebrum 4200 2006 Høgskolen i Ålesund Microsoft 1800 Samisk Høgskole ? 180 Norges Handelshøgskole Microsoft 2600 2006 190680 Antall FEIDE

• navn

19

Future directions, campus IdM

 Responsibility placed outside IT

department

 Consolidating BAS for user

management

 Technical solutions  Policy and regulations  Giving access to someone I do not

control?

 Interfaces  XML definitions for import/

export

 LDAP based on eduPerson/

noredu*

 Available software is improving

20

Proposed Educational ID engine

 Purpose of an publicly available ID

engine

 Unique user name for the entire

educational lifecycle

 Easy integration for school owners  Quality control in CIMS  Report to be published in April 2006  Discussion spring/

summer 2006

 Expected to be operational late 2006

21

Provisioning

 Campus Identity

Management S ystem (CIMS ) import and export

 CIMS is core  Groups  Roles  Bulk and/

• r event

driven data transfer

 Various

• perational

solutions

 S tandardization  S haring schema  Exploring issues  Formal

collaboration work

 Universities  Vendors  FEIDE  Education

22

CIMS long term work

 Existing solutions will live until 2008  Work is starting on specification of

integration with shared/ common applications, provisioning is important

 FS , Frida/

Forskdok, Agresso, S AP, HR, eBusiness S uite, ePhorte, BIBS YS

 Collaboration on CIMS specification

 Look at available systems, development of

Cerebrum or development of new system

 Common/

shared solution, modular architecture

23

S haring and Federating Identities

 National Identity

Number

 Basis for ID in CIMS  Required for some

services

 Used by

government

 norEduPersonNIN  FEIDE-name  eduPerson

PrincipalName

 Federated ID

(as in Liberty Alliance)

 One per user per

service provider

 Controled by Identity

Provider

 eduPersonTargetedI

D

24

Why federate?

 Users and home

• rganizations and

service providers need to exchange information

 Trust

establishment

 Information

exchange

 Policy  Technology

25

FEIDE federates education

Federations:

 authenticate  enforce information

flow policy

 privacy control  security  trust establishment

26

FEIDE – trust chain

 FEIDE regulates

service providers and home

• rganizations

 Formal contractual

agreements

 Transitive trust from

end user to service provider via identity provider

27

FEIDE login

1)User tries to access service 2)S ervice transfer user to FEIDE login 3)Authentication is done at campus 4)Authentication is confirmed with the service, possibly with attribute release

28

Federating FEIDE, next try

 Federating with  federations  portals  local login

servers

 S tandards  S AML 2.0  S AML 1.1

+extensions

 ID-FF 1.2 ?

29

Liberty Alliance framework

 Moving on with authentication services  Who do we need to integrate with?

 eduGAIN, Government S ecurity Portal,

S hibboleth, private identity services

 Where do we find support for XYZ?  Chose one of many LA-compliant

vendors

 Industry grade solutions  We can buy support  Easy to integrate with public and private

sector and their ID services (federations)

30

S un Access Manager in FEIDE

 Liberty Alliance-support  Conformance testing mandatory  Integrates in multi-vendor environment  Part of Identity Management S uite  Progress plan  Technical requirements November 27

2005

 Vendor chosen March 10 2006  Demo with crossfederation June 20

2006

 Operational (formal) S eptember 1 2006  First ID-FF1.2, then look at other

standards

31

Future directions, federation

 Distributed federation (S AML, ID-FF)  Cross-federating  eduGAIN  Government PKI-portal  Non-education federations  S ervices for both higher and lower

education

 Outreach program

32

S ummary

 Campus identity management

 Not an IT issue  Move responibility to where it belongs  Provide technical solutions  Federated identity management  Collaboration is the key  Trust  Policy  S ome technology  S upport the Liberty Alliance work  What will happen with WS -Federation?

33

More information

 http:/

/ www.feide.no/ index.en.html

 Email for FEIDE:  administrasjon@ feide.no  Questions for Ingrid  ingrid.melve@ uninett.no

Collaborate and federate!
