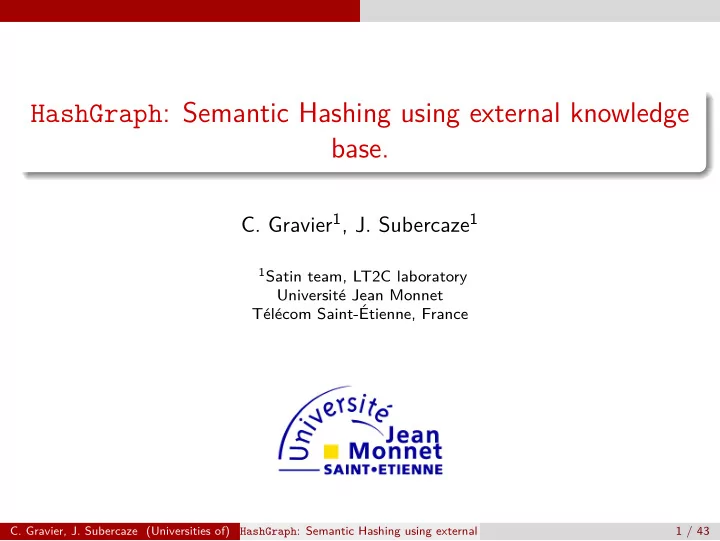

HashGraph: Semantic Hashing using external knowledge base.
1Satin team, LT2C laboratory
Universit´ e Jean Monnet T´ el´ ecom Saint-´ Etienne, France
HashGraph: Semantic Hashing using external knowledge base. 1 / 43
Preambule
Outline
1
Preambule
2
Semantic Hashing Introduction Existing solutions
3
HashGraph User profile : graph of terms Graph to binary footprint Evaluation
4
HashGraph and HashWordnet On hashing node values Using an exertnal is-a taxonomy
5
Demos
HashGraph: Semantic Hashing using external knowledge base. 2 / 43
Preambule
References
This presentation is based on :
◮ [BambaCIKM12]: Bamba P., Subercaze J., Gravier C., Benmira N.,
Fontaine J., The Twitaholic Next Door, Proc. of 21st ACM International Conference on Information and Knowledge Management (CIKM’12), pp.2275–2278, Maui, Hawai’i, USA, October, 30th 2012
◮ [SubercazeWI13]: Subercaze J., Gravier C., HashGraph : an
expressive and scalable Twitter users profile for recommendation, 2013 IEEE/WIC/ACM International Conference on Web Intelligence (WI’13), Atlanta, USA, November 17th–20th, 2013 .. with a different agenda, additional informations and thoughts.
HashGraph: Semantic Hashing using external knowledge base. 3 / 43
Preambule
Who are we ?
◮ Christophe Gravier
◮ Associate Professor in Computer Science ◮ Working at T´
el´ ecom Saint-´ Etienne (Universit´ e Jean Monnet)
◮ Julien Subercaze
◮ Researcher in Computer Science ◮ Working at T´
el´ ecom Saint-´ Etienne (Universit´ e Jean Monnet)
◮ Contacts :
◮ mail:
{julien.subercaze,christophe.gravier}@univ-st-etienne.fr
◮ homepage :
http://satin-ppl.telecom-st-etienne.fr/cgravier/ and http://satin-ppl.telecom-st-etienne.fr/jsubercaze/
◮ twitter : @chgravier and @JulienSubercaze
HashGraph: Semantic Hashing using external knowledge base. 4 / 43
Semantic Hashing
Outline
1
Preambule
2
Semantic Hashing Introduction Existing solutions
3
HashGraph User profile : graph of terms Graph to binary footprint Evaluation
4
HashGraph and HashWordnet On hashing node values Using an exertnal is-a taxonomy
5
Demos
HashGraph: Semantic Hashing using external knowledge base. 5 / 43
Semantic Hashing Introduction
Hashing techniques for Information Retrieval
◮ Methods for embedding high dimensional data into a
similarity-preserving low-dimensional Hamming space [Kim and Choi, 2011].
◮ Usually the hash space is an ”absolute partitioning of the space of
document representation” [Stein and Potthast, 2007]
HashGraph: Semantic Hashing using external knowledge base. 6 / 43
Semantic Hashing Introduction
Hashing techniques for Information Retrieval
◮ Methods for embedding high dimensional data into a
similarity-preserving low-dimensional Hamming space [Kim and Choi, 2011].
◮ Usually the hash space is an ”absolute partitioning of the space of
document representation” [Stein and Potthast, 2007]
Figure: Hashing for information retrieval (From [Stein and Potthast, 2007])
Historically, learn hφ that partitions the Hamming space so that two documents that are at least close to θ threshold of similarity in the original space, are associated to the same bucket in the Hamming space.
HashGraph: Semantic Hashing using external knowledge base. 6 / 43
Semantic Hashing Introduction
Semantic hashing
Similarity Search
◮ In similarity search, a document is used as the query ◮ This is fundamentally different with the standard keyword search
paradigm, e.g., in TREC [Zhang et al., 2010].
HashGraph: Semantic Hashing using external knowledge base. 7 / 43
Semantic Hashing Introduction
Semantic hashing
Similarity Search
◮ In similarity search, a document is used as the query ◮ This is fundamentally different with the standard keyword search
paradigm, e.g., in TREC [Zhang et al., 2010]. Semantic Hashing Semantic hashing is about providing the hφ function(s) for providing an index in the Hamming space for fast similarity search.
HashGraph: Semantic Hashing using external knowledge base. 7 / 43
Semantic Hashing Introduction
kNN and ǫ−kNN problems
◮ We use a document q as a query: hash it to identify its bucket and
then we use the bucket value to address the two problems below1 :
1as coined by the founding paper on Semantic Hashing [Gionis et al., 1999]
HashGraph: Semantic Hashing using external knowledge base. 8 / 43
Semantic Hashing Introduction
kNN and ǫ−kNN problems
◮ We use a document q as a query: hash it to identify its bucket and
then we use the bucket value to address the two problems below1 :
Hamming space (aka top-K search).
1as coined by the founding paper on Semantic Hashing [Gionis et al., 1999]
HashGraph: Semantic Hashing using external knowledge base. 8 / 43
Semantic Hashing Introduction
kNN and ǫ−kNN problems
◮ We use a document q as a query: hash it to identify its bucket and
then we use the bucket value to address the two problems below1 :
Hamming space (aka top-K search).
where d(q,P) is the distance of q to the its closest point in P (Hamming ball of size ǫ)
1as coined by the founding paper on Semantic Hashing [Gionis et al., 1999]
HashGraph: Semantic Hashing using external knowledge base. 8 / 43
Semantic Hashing Introduction
kNN and ǫ−kNN problems
◮ We use a document q as a query: hash it to identify its bucket and
then we use the bucket value to address the two problems below1 :
Hamming space (aka top-K search).
where d(q,P) is the distance of q to the its closest point in P (Hamming ball of size ǫ) Remark on Perfect Semantic Hashing It is possible to provide a perfect hashing scheme [Linial et al., 1995], but at a prohibitive code length cost. All semantic hashing schemes try to provide either an approximation (which means hashing with semantic-relatedness preservation guarantees) or a heuristic.
1as coined by the founding paper on Semantic Hashing [Gionis et al., 1999]
HashGraph: Semantic Hashing using external knowledge base. 8 / 43
Semantic Hashing Introduction
A ”good” Semantic Hashing function ?
HashGraph: Semantic Hashing using external knowledge base. 9 / 43
Semantic Hashing Introduction
A ”good” Semantic Hashing function ?
the set of 2l binary strings of length l.
HashGraph: Semantic Hashing using external knowledge base. 9 / 43
Semantic Hashing Introduction
A ”good” Semantic Hashing function ?
the set of 2l binary strings of length l.
computational complexity as low as possible.
HashGraph: Semantic Hashing using external knowledge base. 9 / 43
Semantic Hashing Introduction
A ”good” Semantic Hashing function ?
the set of 2l binary strings of length l.
computational complexity as low as possible.
the increase of bits dedicated to the array of bits.
HashGraph: Semantic Hashing using external knowledge base. 9 / 43
Semantic Hashing Introduction
A ”good” Semantic Hashing function ?
the set of 2l binary strings of length l.
computational complexity as low as possible.
the increase of bits dedicated to the array of bits.
approaches relies on embedding a high dimensional space of dimension d into a Hamming space of dimension d′, the semantic hashing strategy should scale well w.r.t. to the increase of d.
HashGraph: Semantic Hashing using external knowledge base. 9 / 43
Semantic Hashing Introduction
A ”good” Semantic Hashing function ?
the set of 2l binary strings of length l.
computational complexity as low as possible.
the increase of bits dedicated to the array of bits.
approaches relies on embedding a high dimensional space of dimension d into a Hamming space of dimension d′, the semantic hashing strategy should scale well w.r.t. to the increase of d.
differences between the semantic similarity of documents in the
HashGraph: Semantic Hashing using external knowledge base. 9 / 43
Semantic Hashing Introduction
Applications of Semantic Hashing
◮ It’s a trade-off: you gain a massive speedup at the cost of a
precision/recall.
◮ It is therefore interesting in applications with large datasets (textual,
images, . . . ).
◮ Main applications so far is near-duplicate detection. Examples
includes :
◮ Webpage crawls [Manku et al., 2007], ◮ Social Networks (microposts), ◮ Book collections, ◮ . . .
HashGraph: Semantic Hashing using external knowledge base. 10 / 43
Semantic Hashing Existing solutions
Main existing solutions
◮ Locality-senstive hash function [Gionis et al., 1999]: A LSH h is a
combination of k functions h ∈ H where each use a random vector
◮ Fuzzy fingerprint [Stein, 2005]: After learning the a priori probabilities
to be hashed is used in the hash function.
◮ Self-Taught Hashing [Zhang et al., 2010]: For l-bit binary codes,
train l classifiers to predict each of the l bits for any query document.
◮ Spec hashing [Lin et al., 2010]: Using sparse affinity matrix of items
in the original space, train l classifiers that minize the Kullback-Leibler divergence.
HashGraph: Semantic Hashing using external knowledge base. 11 / 43
Semantic Hashing Existing solutions
Remarks on existing solutions
◮ Learning-based approaches and/or near-duplicates oriented. ◮ Pros:
◮ Near-dupliccate detection (this is the learning objective), ◮ Entropy maximising for some of them (mainly
[Lin et al., 2010, Zhang et al., 2010])
◮ Demonstrates the usefullness of this research for pratical problems.
◮ Cons:
◮ Data-dependency (cold start, generalization, . . . ), ◮ Online learning is difficult for many of these solutions, ◮ Term and frequency term matching is concept-oblivious, ◮ Few propositions
([Zhang et al., 2010, Weiss et al., 2008, Lin et al., 2010]) consider poviding a similarity distance preserving scheme (additionaly to increase collisions chances for similar items).
HashGraph: Semantic Hashing using external knowledge base. 12 / 43
HashGraph
Outline
1
Preambule
2
Semantic Hashing Introduction Existing solutions
3
HashGraph User profile : graph of terms Graph to binary footprint Evaluation
4
HashGraph and HashWordnet On hashing node values Using an exertnal is-a taxonomy
5
Demos
HashGraph: Semantic Hashing using external knowledge base. 13 / 43
HashGraph
Our contribution is HashGraph
◮ We present HashGraph, a Semantic Hashing scheme that addresses
some of the previous limitations.
◮ It will be illustrated on a use case where the documents are
microposts, but remember this can be any documents (as we will showcase in the demos).
◮ We choose microposts as the first application of HashGraph as we
were inspired by [Wilson et al., 2009] who showed that content and user interactions prevail over social graph.
◮ However computation time of content and semantic based model
prevent from scalability, therefore calling for Semantic Hashing !
HashGraph: Semantic Hashing using external knowledge base. 14 / 43
HashGraph
Two steps approach
HashGraph for microposts is a two-steps approach:
◮ Each user document is the corpus of his/her microposts.
queries.
HashGraph: Semantic Hashing using external knowledge base. 15 / 43
HashGraph User profile : graph of terms
Computing user model
User profile as graph of terms Inspired by [2], very successful into keyphrase extraction, we adapted the approach to generate a user profile as a graph of terms based on the user generated content.
HashGraph: Semantic Hashing using external knowledge base. 16 / 43
HashGraph User profile : graph of terms
Computing user model
User profile as graph of terms Inspired by [2], very successful into keyphrase extraction, we adapted the approach to generate a user profile as a graph of terms based on the user generated content. Process We consider a tweet as the unity in term of performative speech act.
HashGraph: Semantic Hashing using external knowledge base. 16 / 43
HashGraph User profile : graph of terms
Example I
Let’s consider the following co-occurrence table
a b c d e Total a 3 4 2 1 10 b 3 2 5 c 4 4 8 d 2 4 6 12 e 1 2 6 9
HashGraph: Semantic Hashing using external knowledge base. 17 / 43
HashGraph User profile : graph of terms
Example I
Let’s consider the following co-occurrence table
a b c d e Total a 3 4 2 1 10 b 3 2 5 c 4 4 8 d 2 4 6 12 e 1 2 6 9
Co-Occurrence Frequency
a b c d e Total frequency 3 4 2 1 10 probability 0.3 0.4 0.2 0.1 1
HashGraph: Semantic Hashing using external knowledge base. 17 / 43
HashGraph User profile : graph of terms
Example II
Term distance To determinate if two terms are close, we compute the Jensen-Shannon divergence (similarity measure) of their co-occurrence distributions.
HashGraph: Semantic Hashing using external knowledge base. 18 / 43
HashGraph User profile : graph of terms
Example II
Term distance To determinate if two terms are close, we compute the Jensen-Shannon divergence (similarity measure) of their co-occurrence distributions. Resulting graph
a b c d e 0.86 0.26 0.72 0.44 0.77 0.21 0.40 0.45 0.81 0.69
HashGraph: Semantic Hashing using external knowledge base. 18 / 43
HashGraph User profile : graph of terms
Example III
Unrelated terms [2] showed that O.95×log(2) is a good threshold for related/unrelated terms.
HashGraph: Semantic Hashing using external knowledge base. 19 / 43
HashGraph User profile : graph of terms
Example III
Unrelated terms [2] showed that O.95×log(2) is a good threshold for related/unrelated terms. Resulting graph
a b c d e 0.86 0.72 0.77 0.81 0.69
HashGraph: Semantic Hashing using external knowledge base. 19 / 43
HashGraph User profile : graph of terms
Summary of first part : User profile as graph of terms
Twitter username : How many friends : @user k Search friends Tweet querier + Text preprocessing (Stopwords, POS) @user Twitter API @user {tweets} Co-occurencer (Jensen-Shannon divergence threshold s = 0.3) {cleaned tweets} Graph Builder 0.3 a b c d a b 0.6 0.7 0.9 < s < s c d a,b,c,d : terms from cleaned tweets co-occurence matrix a c b d 0.3 0.6 0.7 0.9 in-memory graph model Step 1HashGraph: Semantic Hashing using external knowledge base. 20 / 43
HashGraph User profile : graph of terms
Summary of first part : User profile as graph of terms
Twitter username : How many friends : @user k Search friends Tweet querier + Text preprocessing (Stopwords, POS) @user Twitter API @user {tweets} Co-occurencer (Jensen-Shannon divergence threshold s = 0.3) {cleaned tweets} Graph Builder 0.3 a b c d a b 0.6 0.7 0.9 < s < s c d a,b,c,d : terms from cleaned tweets co-occurence matrix a c b d 0.3 0.6 0.7 0.9 in-memory graph model Step 1We finished the first step which was to create a user-profile (a weighted graph of terms in our case). The next step is about hashing this profile while preserving ”user-relatedness” based on their microposts textual content.
HashGraph: Semantic Hashing using external knowledge base. 20 / 43
HashGraph Graph to binary footprint
Hashing a graph
Existing to hash a graph SimHash [3] is a method that allows to hash a document splitted into weighted tokens.
HashGraph: Semantic Hashing using external knowledge base. 21 / 43
HashGraph Graph to binary footprint
Hashing a graph
Existing to hash a graph SimHash [3] is a method that allows to hash a document splitted into weighted tokens. Example
Token Weight Hash a 3 1 0 1 1 0 1 b 2 0 1 1 0 0 1 c 1 1 0 0 1 1 1
HashGraph: Semantic Hashing using external knowledge base. 21 / 43
HashGraph Graph to binary footprint
Hashing a graph
Existing to hash a graph SimHash [3] is a method that allows to hash a document splitted into weighted tokens. Example - Set bit value to +/- weight
Token Weight Hash a 3 3 -3 3 3 -3 3 b 2
c 1 1 -1 -1 1 1 1
HashGraph: Semantic Hashing using external knowledge base. 21 / 43
HashGraph Graph to binary footprint
Hashing a graph
Existing to hash a graph SimHash [3] is a method that allows to hash a document splitted into weighted tokens. Example - Sum the values
Token Weight Hash a 3 3 -3 3 3 -3 3 b 2
c 1 1 -1 -1 1 1 1 total 2 -2 4 2 -4 6
HashGraph: Semantic Hashing using external knowledge base. 21 / 43
HashGraph Graph to binary footprint
Hashing a graph
Existing to hash a graph SimHash [3] is a method that allows to hash a document splitted into weighted tokens. Example - Final hash
Token Weight Hash a 3 3 -3 3 3 -3 3 b 2
c 1 1 -1 -1 1 1 1 total 2 -2 4 2 -4 6 hash 1 0 1 1 0 1
HashGraph: Semantic Hashing using external knowledge base. 21 / 43
HashGraph Graph to binary footprint
SimHash for Top-K computation
Very fast computation Pairwise comparison of the user’s hash vs the database : Hamming distance. Very fast with current processors intrinsics, XOR and POPCNT. Possible optimisations using bitshift indexing.
HashGraph: Semantic Hashing using external knowledge base. 22 / 43
HashGraph Graph to binary footprint
Hashing our graph
◮ Our graph includes weighted edges and no weights on vertices.
HashGraph: Semantic Hashing using external knowledge base. 23 / 43
HashGraph Graph to binary footprint
Hashing our graph
◮ Our graph includes weighted edges and no weights on vertices. ◮ But :
◮ SimHash can hash any weigthed graph information, e.g. vertices. ◮ We can introduce a weight on the vertices using the freshness of the
information: the more recent this term was used, the higher the weight.
HashGraph: Semantic Hashing using external knowledge base. 23 / 43
HashGraph Graph to binary footprint
Hashing our graph
◮ Our graph includes weighted edges and no weights on vertices. ◮ But :
◮ SimHash can hash any weigthed graph information, e.g. vertices. ◮ We can introduce a weight on the vertices using the freshness of the
information: the more recent this term was used, the higher the weight.
◮ And finally we could just apply SimHash to our graph (the user
profile) which will result in a binary footprint associated to a user.
HashGraph: Semantic Hashing using external knowledge base. 23 / 43
HashGraph Graph to binary footprint
Global overview
Twitter username : How many friends : @user k Search friends Tweet querier @user Twitter API @user {tweets} Text preprocessing (Stopwords, POS) Co-occurencer {tweets} Graph Builder (Jensen-Shannon divergence threshold s = 0.3) 3 a b c d a b 6 7 9 5 2 c d a,b,c,d : terms from cleaned tweets co-occurence matrix a c b d 0.3 0.6 0.7 0.9 in-memory graph model Graph Signature SimHash()) node N bits hash depending on method a b c 1100101010001...................... 01101111 0100100010111...................... 11000000 0000011110100...................... 00101011 (result of Simhash() applied to values of a,b,c) 1110101.... 0101011 Hash of the graph ArgMax (top-k users closest to @user) k 1110101.... 0101011 possible friends dataset 25.000 users 1 million of tweets user profiles : precomputed hashes R = {user} / |R| ≤ k You may want to follow : @user1 Tweets Follow ! @user2 Tweets Follow ! @userk Tweets Follow ! .... WI attendee Querying using in-house API Step 1 Step 2HashGraph: Semantic Hashing using external knowledge base. 24 / 43
HashGraph Evaluation
Dataset
Crawling Twitter First crawl to setup limits. Start with up to 1K tweets for 5 users.
HashGraph: Semantic Hashing using external knowledge base. 25 / 43
HashGraph Evaluation
Dataset
Crawling Twitter First crawl to setup limits. Start with up to 1K tweets for 5 users. Distribution Average tweets per user ≈ 120 Standard deviation of tweets per user ≈ 212 Average interval between two tweets ≈ 6 days Standard deviation between two tweets ≈ 240 days
HashGraph: Semantic Hashing using external knowledge base. 25 / 43
HashGraph Evaluation
Dataset
Crawling Twitter First crawl to setup limits. Start with up to 1K tweets for 5 users. Distribution Average tweets per user ≈ 120 Standard deviation of tweets per user ≈ 212 Average interval between two tweets ≈ 6 days Standard deviation between two tweets ≈ 240 days Final crawl around 1 million tweets for 25K users. Stored in a three machines Cassandra-cluster.
HashGraph: Semantic Hashing using external knowledge base. 25 / 43
HashGraph Evaluation
Experimental Setup
Hashing the tokens To hash the nodes of the user’s graph, we used several methods
◮ MD5 ◮ SHA-256 ◮ SH1-512
Measures
◮ Precision : 1-RMSE vs Lucene’s TF/IDF ◮ Precomputation time ◮ Computation time
HashGraph: Semantic Hashing using external knowledge base. 26 / 43
HashGraph Evaluation
Experimental results : Precision
103 104 105 0.4 0.45 0.5 0.55 0.6 Frequent terms in the TF/IDF Precision
HashGraphMD5 HashGraphSHA256 HashGraphSHA512
HashGraph: Semantic Hashing using external knowledge base. 27 / 43
HashGraph Evaluation
Experimental results : Precomputation time
TF/IDF 1K TF/IDF 50K HashGraphMD5 HashGraphSHA256 HashGraphSHA512
104.5 105 Computation Time (ms)
Figure: Precomputation time
HashGraph: Semantic Hashing using external knowledge base. 28 / 43
HashGraph Evaluation
Experimental results : Computation time
0.2 0.4 0.6 0.8 1 1.2 ·107 102 103 104 105 Comparisons Computation Time (ms)
TF/IDF1K TF/IDF10K HashGraphMD5 HashGraphSHA-256 HashGraphSHA-512
HashGraph: Semantic Hashing using external knowledge base. 29 / 43
HashGraph and HashWordnet
Outline
1
Preambule
2
Semantic Hashing Introduction Existing solutions
3
HashGraph User profile : graph of terms Graph to binary footprint Evaluation
4
HashGraph and HashWordnet On hashing node values Using an exertnal is-a taxonomy
5
Demos
HashGraph: Semantic Hashing using external knowledge base. 30 / 43
HashGraph and HashWordnet On hashing node values
A key step left unspoken
◮ “To hash the nodes of the user’s graph, we used several methods”. ◮ This means that this is a frequency term-based approach, like most
(all ?) semantic hashing scheme.
◮ The primary objective of HashGraph is to go beyond :
concept-sensitive search in sublinear time !
HashGraph: Semantic Hashing using external knowledge base. 31 / 43
HashGraph and HashWordnet On hashing node values
A key step left unspoken
◮ “To hash the nodes of the user’s graph, we used several methods”. ◮ This means that this is a frequency term-based approach, like most
(all ?) semantic hashing scheme.
◮ The primary objective of HashGraph is to go beyond :
concept-sensitive search in sublinear time !
◮ Basically, for pair of sentences like :
◮ ”The doctor is presenting his research at the seminar” ◮ ”The scientist offers a talk on computer science at the group
conference”
◮ We expect the hash function to preserve the semantic relatedness,
although no terms match in both sentences, but in the HashGraph version presented so far, this is not the case.
HashGraph: Semantic Hashing using external knowledge base. 31 / 43
HashGraph and HashWordnet On hashing node values
How ?
◮ As for now, the nodes in the graph (the user profile), are labelled
using a cryptogrpahic hash function (MD5, SHA-256, . . . ) applied on the node string value for its term.
HashGraph: Semantic Hashing using external knowledge base. 32 / 43
HashGraph and HashWordnet On hashing node values
How ?
◮ As for now, the nodes in the graph (the user profile), are labelled
using a cryptogrpahic hash function (MD5, SHA-256, . . . ) applied on the node string value for its term.
◮ However, two nodes having strings that are conceptually related,
should have a hash value that is within a similar Hamming distance.
◮ doctor should have a hash value close to researcher ◮ research should have a hash value close to computer science ◮ . . .
HashGraph: Semantic Hashing using external knowledge base. 32 / 43
HashGraph and HashWordnet On hashing node values
How ?
◮ As for now, the nodes in the graph (the user profile), are labelled
using a cryptogrpahic hash function (MD5, SHA-256, . . . ) applied on the node string value for its term.
◮ However, two nodes having strings that are conceptually related,
should have a hash value that is within a similar Hamming distance.
◮ doctor should have a hash value close to researcher ◮ research should have a hash value close to computer science ◮ . . .
◮ Under this assumption, the SimHash algorithm we use will favour
relatedness of hash values for nodes having similar hash values (hence similar meaning !).
◮ In order to do this, we rely on an external is-a taxonomy. . .
HashGraph: Semantic Hashing using external knowledge base. 32 / 43
HashGraph and HashWordnet Using an exertnal is-a taxonomy
External is-a taxonomy (example)
Things NotLiving Vehicules Planes Boats Trucks Cars Furnitures Living animals humans
HashGraph: Semantic Hashing using external knowledge base. 33 / 43
HashGraph and HashWordnet Using an exertnal is-a taxonomy
External is-a taxonomy (example)
Things NotLiving Vehicules Planes Boats Trucks Cars Furnitures Living animals humans The proposal is as follows :
◮ To associate to each node a binary string that is close to the parent
node binary string,
◮ Replace each node in the user profile not by its SHA/MD5/. . . hash
value but hash value from the matching term in the taxonomy
HashGraph: Semantic Hashing using external knowledge base. 33 / 43
HashGraph and HashWordnet Using an exertnal is-a taxonomy
Strategy to hash the is-a taxonomy
◮ Building a strategy to hash each node in the is-a taxonomy is not
trivial (could be a talk by itself !)
◮ Let us assume that we choose to hash the taxonmomy using grey
codes and Breadth-first search graph traversal.
HashGraph: Semantic Hashing using external knowledge base. 34 / 43
HashGraph and HashWordnet Using an exertnal is-a taxonomy
Strategy to hash the is-a taxonomy
◮ Building a strategy to hash each node in the is-a taxonomy is not
trivial (could be a talk by itself !)
◮ Let us assume that we choose to hash the taxonmomy using grey
codes and Breadth-first search graph traversal.
Things (00000000) NotLiving (00100000) Vehicules (00101000) Planes (00101100) Boats (00101011) Trucks (00101010) Cars (00101001) Furnitures (00110000) Living (01000000) animals (01000001) humans (01000010)
HashGraph: Semantic Hashing using external knowledge base. 34 / 43
HashGraph and HashWordnet Using an exertnal is-a taxonomy
Using HashWordnet in HashGraph
◮ We apply this strategy to the Wordnet taxonomy (limited to nouns
synsets)
◮ The list of all terms (actually bag of terms) associated to a single hash
values using the process described previously is called hashwordnet
HashGraph: Semantic Hashing using external knowledge base. 35 / 43
HashGraph and HashWordnet Using an exertnal is-a taxonomy
Using HashWordnet in HashGraph
◮ We apply this strategy to the Wordnet taxonomy (limited to nouns
synsets)
◮ The list of all terms (actually bag of terms) associated to a single hash
values using the process described previously is called hashwordnet
◮ Then, when substituting the string value of a node in the user profile
by a hash value, we substitute it for the matching hash value in hashwordnet
◮ SimHash does the rest. . .
HashGraph: Semantic Hashing using external knowledge base. 35 / 43
HashGraph and HashWordnet Using an exertnal is-a taxonomy
Advantages
◮ Goes beyong term matching: concept-sensitive hashing. ◮ No machine learning step involved: no cold start, no assumption of
the distribution of items needed, no dataset dependency.
◮ Can be tuned to use different is-a taxonomies, e.g. domain
taxonomies for better results !
◮ Online learning by default, ◮ Provides a metric in the Hamming space : interesting indexing for
Top-k and ǫ−kNN problems.
HashGraph: Semantic Hashing using external knowledge base. 36 / 43
HashGraph and HashWordnet Using an exertnal is-a taxonomy
Current shortcomings and pending works
◮ Wordnet provide several nodes with the same terms (term have
different meanings),
◮ Need to provide formal guarantees on the approximation, ◮ One top-level Hashed taxonomy per language, ◮ Implementation limited to nouns after the POS tagging process for
concept-sensitivity.
HashGraph: Semantic Hashing using external knowledge base. 37 / 43
Demos
Outline
1
Preambule
2
Semantic Hashing Introduction Existing solutions
3
HashGraph User profile : graph of terms Graph to binary footprint Evaluation
4
HashGraph and HashWordnet On hashing node values Using an exertnal is-a taxonomy
5
Demos
HashGraph: Semantic Hashing using external knowledge base. 38 / 43
Demos
Some live demos
HashGraph: Semantic Hashing using external knowledge base. 39 / 43
Demos
Baluja, S. and Covell, M. (2008). Learning to hash: forgiving hash functions and applications. Data Mining and Knowledge Discovery, 17(3):402–430. Gionis, A., Indyk, P., Motwani, R., et al. (1999). Similarity search in high dimensions via hashing. In VLDB, volume 99, pages 518–529. Kim, S. and Choi, S. (2011). Semi-supervised discriminant hashing. In Data Mining (ICDM), 2011 IEEE 11th International Conference on, pages 1122–1127. Lin, R.-S., Ross, D. A., and Yagnik, J. (2010). Spec hashing: Similarity preserving algorithm for entropy-based coding. In Computer Vision and Pattern Recognition (CVPR), 2010 IEEE Conference on, pages 848–854. IEEE.
HashGraph: Semantic Hashing using external knowledge base. 41 / 43
Demos
Linial, N., London, E., and Rabinovich, Y. (1995). The geometry of graphs and some of its algorithmic applications. Combinatorica, 15(2):215–245. Manku, G. S., Jain, A., and Das Sarma, A. (2007). Detecting near-duplicates for web crawling. In Proceedings of the 16th international conference on World Wide Web, pages 141–150. ACM. Stein, B. (2005). Fuzzy-fingerprints for text-based information retrieval. In Proceedings of the 5th international conference on knowledge management (I-KNOW 05), Graz, Journal of Universal Computer Science, pages 572–579.
HashGraph: Semantic Hashing using external knowledge base. 42 / 43
Demos
Stein, B. and Potthast, M. (2007). Applying hash-based indexing in text-based information retrieval. In Proceedings of the 7th Dutch-Belgian Information Retrieval Workshop (DIR 07), pages 29–35. Weiss, Y., Torralba, A., and Fergus, R. (2008). Spectral hashing. In NIPS, volume 9, page 6. Wilson, C., Boe, B., Sala, A., Puttaswamy, K. P., and otehrs (2009). User interactions in social networks and their implications. In EuroSys’09, pages 205–218. Zhang, D., Wang, J., Cai, D., and Lu, J. (2010). Self-taught hashing for fast similarity search. In Proceedings of the 33rd international ACM SIGIR conference on Research and development in information retrieval, pages 18–25. ACM.
HashGraph: Semantic Hashing using external knowledge base. 43 / 43
