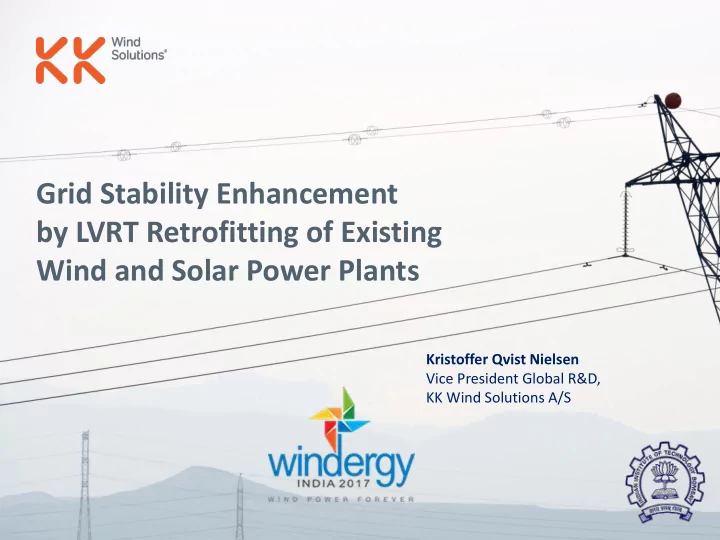

Grid Stability Enhancement by LVRT Retrofitting of Existing Wind and Solar Power Plants Kristoffer Qvist Nielsen Vice President Global R&D, KK Wind Solutions A/S 1 Contents 1. Introduction 2. Grid codes: why grid codes 3. Impact on grid

slide-1
SLIDE 1

1

Grid Stability Enhancement by LVRT Retrofitting of Existing Wind and Solar Power Plants

Kristoffer Qvist Nielsen Vice President Global R&D, KK Wind Solutions A/S

slide-2
SLIDE 2

Contents

  • 1. Introduction
  • 2. Grid codes: why grid codes
  • 3. Impact on grid stability
  • 4. Possible solutions
  • 5. Conclusions
  • 6. Acknowledgments

2

slide-3
SLIDE 3

Specialised systems supplier

for wind power solutions Years of experience

Building on more than 35 years of experience, KK Wind Solutions is a strong partner in electrical systems for wind turbines

+35

slide-4
SLIDE 4

Grid Code regulation for wind

Grid code determines how a generator or a customer load should react to a grid disturbance, with its objective being secure and stable operation of power system

Grid code in the past

  • Old technology, limited controllability

and no observability

  • Allowed simple ON/OFF operation

Impact at higher peneteration

  • A severe fault in the grid can lead to
  • utage of significant wind power

generation, potentially leading to a blackout

  • Due to a sudden frequency event,

generation of as high as 50% can trip

4

Time(s) V(pu) 0.5 0.4 0.3 0.2 0.1 1.0 2 3 0.9 0.8 0.7 0.6 1.0 0.5 1.5 2.5 WTG may disconnect fault Dynamic reactive power compensation Steady state operation

LVRT Requirement

slide-5
SLIDE 5

5

Impact on grid stability

A Danish Case Study

4 4.5 5 5.5 6 6.5 7 7.5 0.2 0.4 0.6 0.8 1 Time (sec) Voltage (pu) Fault at Vester Hassing substation

Onshore capacity per technology Impact on grid security

slide-6
SLIDE 6

6

Possible solutions

to address diminishing reactive power

  • 1. Must run conventional power

plants (interim measure)

  • Short circuit power
  • Dynamic voltage control
  • Reactive power consumption from old wind

turbines and commutation of HVDC LCC

  • Continuous voltage control

(Active power reserves are bought in separate markets and do not give rise to must-run)

Source: Energinet.dk (Danish TSO)

Must-run is costly

  • 2. Synchronous condensers

(new and refurbished)

  • 3. FACTS devices (STATCOM, SVC etc)
  • 4. More stringent grid code regulation
  • 5. Retrofitting of wind turbines
  • Help in LVRT grid code compliance
  • Dynamic reactive power support
  • Ancillary services
slide-7
SLIDE 7

Retrofitting of wind turbines

7

DFIG/ SCIG Transformer

Blades/Drivetrain Wind Turbine

Retrofit Unit Grid

slide-8
SLIDE 8

8

Dynamic voltage stability

considering dynamic reactive power compensation

4 4.5 5 5.5 6 6.5 7 7.5 0.5 0.6 0.7 0.8 0.9 1 1.1 Time (sec) Voltage (pu) Fault at Vester Hassing substation

4 4.5 5 5.5 6 6.5 7 7.5 0.2 0.4 0.6 0.8 1 Time (sec) Voltage (pu) Fault at Vester Hassing substation
slide-9
SLIDE 9

Conclusions

Wind integration leads to diminishing sources of dynamic reactive power in the grid thus voltage instability/insecurity Retrofitting of wind turbines can be a potential cost effective solution to address the grid stability issue by:

  • Grid code compliance of wind turbines, particularly old ones
  • Supplying dynamic reactive power beyond grid code requirement
  • Supplying grid support ancillary services (steady state and dynamic reactive

power)

9

slide-10
SLIDE 10

Thank you for your attention

Learn more at kkwindsolutions.com

Acknowledgements:

Zakir Rather (IIT Bombay); Bjørn Rannestad, Kenneth Damm Hansen, Rene Balle (KK Wind Solutions); Flemming Abrahamsen (PowerCon) Energinet.dk (Danish TSO); Aalborg University Denmark; ALSTOM GRID (UK)
