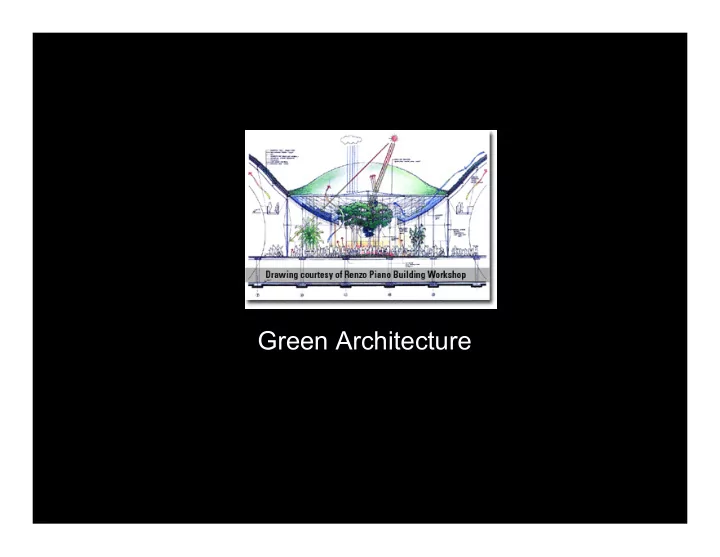

SLIDE 1
Green Architecture
SLIDE 2 Strategies for Sustainability: Integrating Landscape and Architecture to make cities
- delightful. The more livable our cities, the more sustainable they can be.
1. Conserve Energy 1. Cities: Reduce automobile use, Build compact cities, Public transit, pedestrian environment 2. Buildings : Insulation, orientation, passive and active solar energy.
- Daylighting. Shading, Sustainable sources of materials
2. Reduce Heat Island effect 1. Bring landscape into city for shade, air quality and delight. Plant trees for shade, green roofs, green corridors, reduce paving 3. Reduce Pollution 1.
- Recycle. Control sources for pollution, Regulate emissions, find
alternatives to polluting substances. 4. Conserve Water 1. Return rainwater to ground (permeable paving). Native landscaping requires less irrigation. Reuse gray water. Treat sewage to high degree. 5. Conserve Wildlife 1. Protect wildlife habitat. Habitat corridors through city. Design habitats for native wildlife (parks for animals and people)
SLIDE 3 Native trees of South Florida support diverse wildlife. Trees are the foundation
Live Oak, Florida Pond Apple, Florida
SLIDE 4 Emilio Ambasz, ENI Headquarters: The Palace of Vertical Gardens Competition, 2nd Place
SLIDE 5 Emilio Ambasz Fukoka, Japan Prefectural International Hall, 2000
SLIDE 6 Wildlife corridors bring native ecosystem into city. Tukwila, Washington, Wildlife Corridors, University of Washington
SLIDE 7 Tukwila, Washington, Wildlife Corridors, University of Washington Educational Environments
SLIDE 8 Ken Yeang, Project for Elephant and Cast.e, London, Why can’t wildlife corridors climb buildings too?
SLIDE 9 Ken Yeang,. Project for Elephant and Cast;e London
SLIDE 10 Strategies for Sustainability: Integrating Landscape and Architecture to make cities
- delightful. The more livable our cities, the more sustainable they can be.
1. Conserve Energy 1. Cities: Reduce automobile use, Build compact cities, Public transit, pedestrian environment 2. Buildings : Insulation, orientation, passive and active solar energy.
- Daylighting. Shading, Sustainable sources of materials
2. Reduce Heat Island effect 1. Bring landscape into city for shade, air quality and delight. Plant trees for shade, green roofs, green corridors, reduce paving 3. Reduce Pollution 1.
- Recycle. Control sources for pollution, Regulate emissions, find
alternatives to polluting substances. 4. Conserve Water 1. Return rainwater to ground (permeable paving). Native landscaping requires less irrigation. Reuse gray water. Treat sewage to high degree. 5. Conserve Wildlife 1. Protect wildlife habitat. Habitat corridors through city. Design habitats for native wildlife (parks for animals and people)
SLIDE 11
Village Homes, Davis California Energy conservation Water retention Pedestrian community Narrow Streets Pedestrian paths, Surface swales for water retention, Park corridors Passive solar heating
SLIDE 12
Streets for multiple uses: Pedestrian, bicycle, cars Lyngby High Street near Copenhagen Designed by Bjarne Winterberg (Ramboll Nyvig)
SLIDE 13
Haren, near Groningen, Germany Hamilton Baillie Architects, UK Copenhagen, Denmark
SLIDE 14
New High-density housing, Rijevijk, The Netherlands
Residential streets for Pedestrians
Hamilton Baillie Architects, UK Copenhagen, Denmark
SLIDE 15
Streets for kids Woonerf Fijsvijk, The Netherlands Hamilton Baillie Architects, UK
SLIDE 16 Strategies for Sustainability: Integrating Landscape and Architecture to make cities
- delightful. The more livable our cities, the more sustainable they can be.
1. Conserve Energy 1. Cities: Reduce automobile use, Build compact cities, Public transit, pedestrian environment 2. Buildings : Insulation, orientation, passive and active solar energy.
- Daylighting. Shading, Sustainable sources of materials
2. Reduce Heat Island effect 1. Bring landscape into city for shade, air quality and delight. Plant trees for shade, green roofs, green corridors, reduce paving 3. Reduce Pollution 1. Control sources for pollution, Regulate emissions, find alternatives to polluting substances. Recycle. 2. Plant buffers between highways and populated areas 4. Conserve Water 1. Return rainwater to ground (permeable paving). Native landscaping requires less irrigation. Reuse gray water. Treat sewage to high degree. 5. Conserve Wildlife 1. Protect wildlife habitat. Habitat corridors through city. Design habitats for native wildlife (parks for animals and people)
SLIDE 17 Ken Yeang Menara Boustead Malaysia
SLIDE 18 Location of Core, Central vs. Flanking core on East and West Shading Screens
Recessed Balconies Shared Green Spaces Ken Yeang, Principles of Green Highrise Design in the Tropics
SLIDE 19 Raised Base Green Walls Wind Scoops Cross-Ventilation Ken Yeang, Principles of Green Highrise Design in the Tropics
SLIDE 20 Ken Yeang, Principles of Green High-rise Design in the Tropics Solar Shading Solar Collectors Insulation on East and West in humid climates Mass on East and West in arid climates
SLIDE 21 Ken Yeang Bioclimatic Skyscraper Studies
SLIDE 22 Morphosis, New federal Building San Francisco, CA 2007 This is how it works
SLIDE 23 Morphosis, New federal Building San Francisco, CA 2007
SLIDE 24 Double Skin Design
SLIDE 25 Renzo Piano Debis Tower, Berlin, 1999
SLIDE 26 Renzo Piano, Debis Tower, Berlin 1999
SLIDE 27 Norman Foster, Reichstag Dome, Berlin, 2001
SLIDE 28 Norman Foster, Reichstag Dome, Berlin, 1999
SLIDE 29 Norman Foster, Reichstag Dome, Berlin, 1999
SLIDE 30
SLIDE 31 Norman Foster, Reichstag Dome, Berlin, 1999 This is how it works
SLIDE 32 Strategies for Sustainability: Integrating Landscape and Architecture to make cities
- delightful. The more livable our cities, the more sustainable they can be.
1. Conserve Energy 1. Cities: Reduce automobile use, Build compact cities, Public transit, pedestrian environment 2. Buildings : Insulation, orientation, passive and active solar energy.
- Daylighting. Shading, Sustainable sources of materials
2. Reduce Heat Island effect 1. Bring landscape into city for shade, air quality and delight. Plant trees for shade, green roofs, green corridors, reduce paving 3. Reduce Pollution 1.
- Recycle. Control sources for pollution, Regulate emissions, find
alternatives to polluting substances. 4. Conserve Water 1. Return rainwater to ground (permeable paving). Native landscaping requires less irrigation. Reuse gray water. Treat sewage to high degree. 5. Conserve Wildlife 1. Protect wildlife habitat. Habitat corridors through city. Design habitats for native wildlife (parks for animals and people)
SLIDE 33
Urban Heat Island Hotter in city because of pavement and buildings that absorb heat during day and re-radiate it at night.
SLIDE 34
Urban Heat Island Thermal photo from plane NASA
SLIDE 35
Wind Tunnel Testing, Cardiff University Buildings can funnel wind to make very high velocities at ground level. Awnings and trees can dampen the wind at ground Wind Velocity Profile
SLIDE 36
City is hard on trees
SLIDE 37
Street Canyon, Effects of sun and wind David Perlmutter, Univ of Arizona
SLIDE 38 Ken Yeang Menara Boustead Tropical Green building
SLIDE 39 Ken Yeang, Menara Mesininaga, 1996
SLIDE 40 Ken Yeang, Menara Mesininaga, 1996
SLIDE 41 Ken Yeang, Menara Mesininaga, 1996
SLIDE 42 Green Roofs Now accepted by building code in Miami
SLIDE 43 Strategies for Sustainability: Integrating Landscape and Architecture to make cities
- delightful. The more livable our cities, the more sustainable they can be.
1. Conserve Energy 1. Cities: Reduce automobile use, Build compact cities, Public transit, pedestrian environment 2. Buildings : Insulation, orientation, passive and active solar energy.
- Daylighting. Shading, Sustainable sources of materials
2. Reduce Heat Island effect 1. Bring landscape into city for shade, air quality and delight. Plant trees for shade, green roofs, green corridors, reduce paving 3. Reduce Pollution 1.
- Recycle. Control sources for pollution, Regulate emissions, find
alternatives to polluting substances. 4. Conserve Water 1. Return rainwater to ground (permeable paving). Native landscaping requires less irrigation. Reuse gray water. Treat sewage to high degree. 5. Conserve Wildlife 1. Protect wildlife habitat. Habitat corridors through city. Design habitats for native wildlife (parks for animals and people)
SLIDE 44 Concrete Plant, Barcelona, 1973
SLIDE 45 Same concrete plant reused Offices, Ricardo Bofil Taller de Arquitectura, 1975
SLIDE 46 Ricardo Bofill, Taller de Arquitetura, 1975
SLIDE 47 Ricardo Bofill, Taller de Arquitetura, 1975, gallery
SLIDE 48 Strategies for Sustainability: Integrating Landscape and Architecture to make cities
- delightful. The more livable our cities, the more sustainable they can be.
1. Conserve Energy 1. Cities: Reduce automobile use, Build compact cities, Public transit, pedestrian environment 2. Buildings : Insulation, orientation, passive and active solar energy.
- Daylighting. Shading, Sustainable sources of materials
2. Reduce Heat Island effect 1. Bring landscape into city for shade, air quality and delight. Plant trees for shade, green roofs, green corridors, reduce paving 3. Reduce Pollution 1.
- Recycle. Control sources for pollution, Regulate emissions, find
alternatives to polluting substances. 4. Conserve Water 1. Return rainwater to ground (permeable paving). Native landscaping requires less irrigation. Reuse gray water. Treat sewage to high degree. 5. Conserve Wildlife 1. Protect wildlife habitat. Habitat corridors through city. Design habitats for native wildlife (parks for animals and people)
SLIDE 49 Plenetary Coral Reef Foundation Field Station Akumal, Mexico Waste is food This garden is supported by waste water from building Water is precious resource
SLIDE 50 Rocky Mountain Institute, Solar Power, 1970s Passive Solar design in cold climate
SLIDE 51 Here’s how it works
SLIDE 52 Solar Umbrella House, Pugh + Scarpa 2002, Venice, California Solar panels provide shade for roof terraces
SLIDE 53 Solar Umbrella House, Pugh + Scarpa
SLIDE 54 Solar Umbrella House, Pugh + Scarpa Nice place, very expensive
SLIDE 55 Solar Umbrella House, Pugh + Scarpa
SLIDE 56 Shops, Jamaica No solar panels, but here are same principles of shading,
- pen terraces, social space and trees make a nice place,
built by people who have very little money.
SLIDE 57 Ken Yeang Proposal for promenade in Netherlands
SLIDE 58 Intersection
the Snapper Creek Expressway in South Miami
SLIDE 59 Here are immediate
this most unhospitable carscape Blue = Rooftop available for solar panels or green roof Light Green= grass area available for wildlife habitat: native shrub planting Dark Green= parking areas available for shade trees in strips of permeable paving
SLIDE 60 We can do it if we try
