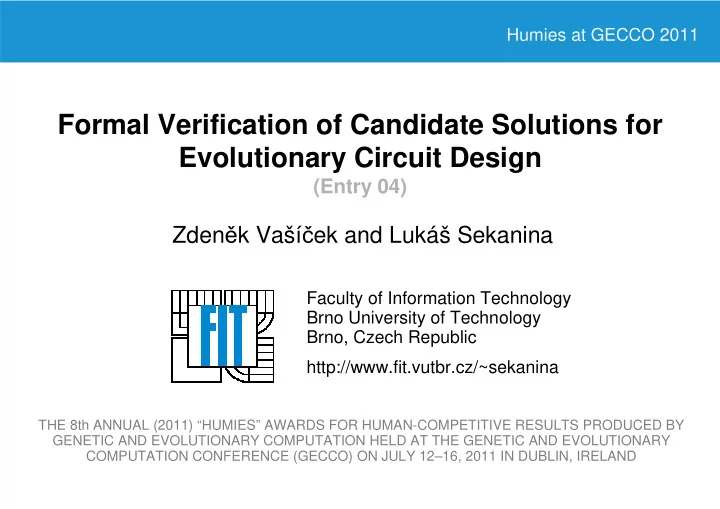

• Formal Verification of Candidate Solutions for

Evolutionary Circuit Design

(Entry 04)

Zdeněk Vašíček and Lukáš Sekanina

Faculty of Information Technology Brno University of Technology Brno, Czech Republic http://www.fit.vutbr.cz/~sekanina Humies at GECCO 2011

THE 8th ANNUAL (2011) “HUMIES” AWARDS FOR HUMAN-COMPETITIVE RESULTS PRODUCED BY GENETIC AND EVOLUTIONARY COMPUTATION HELD AT THE GENETIC AND EVOLUTIONARY COMPUTATION CONFERENCE (GECCO) ON JULY 12–16, 2011 IN DUBLIN, IRELAND

• Outline

Outline Outline

• A brief description of the submitted result.
• Vasicek Z., Sekanina L.: Formal Verification of Candidate Solutions for Post-Synthesis

Evolutionary Optimization in Evolvable Hardware. Genetic Programming and Evolvable Machines, Spec. Issue on Evolvable Hardware Challenges, Vol. 12, 2011, in press

• Vasicek Z., Sekanina L.: A Global Postsynthesis Optimization Method for

Combinational Circuits. In: Proc. of the Design, Automation and Test in Europe Conference - DATE 2011, Grenoble, EDAA, 2011, p. 1525-1528

• Why our result qualifies as “human-competitive”.
• Why we should win a prize.

• Evolution of combinational circuits

Evolution of combinational circuits Evolution of combinational circuits

• 1993 – Higuchi et al. evolved a 6-input

multiplexer

• 2000 – Miller et al. showed that the number
• f gates can be reduced using Cartesian

GP w.r.t. the best-known implementations (max. 4-bit multipliers)

• Scalability problem – the evaluation time

grows exponentially as 2n test vectors have to be applied to evaluate n-input circuit.

• The state of the art
• The evolutionary design approach works for

circuits up to approx. 10 – 20 inputs and

• approx. 100 gates (depending on circuit).
• Improvements w.r.t. the best-known

implementations reported only in a few cases. a b c fp 0 0 0 0 0 0 1 1 0 1 0 1 0 1 1 0 1 0 0 1 1 0 1 0 1 1 0 0 1 1 1 1

n = 3

• A new fitness function for large circuits

A new fitness function for large circuits A new fitness function for large circuits

Reference circuit is created according to the specification and converted to Conjunctive Normal Form (CNF). Every candidate circuit is converted to CNF.

The MiniSAT solver decides whether a candidate solution and reference circuit are functionally equivalent. If so, fitness = the number of gates.

Miter is created and converted to CNF.

• Another improvement of the fitness function

Another improvement of the fitness function Another improvement of the fitness function

• Exploiting the similarity of the parent and offspring ⇒

⇒ ⇒ ⇒ reduction

• f the CNF size ⇒

⇒ ⇒ ⇒ faster equivalence checking

The mean evaluation time [ms] in evolution of w-bit multipliers tcgp – standard CGP tsat – fitness with MiniSAT timp – improved eq. checking Ng – seed size (SIS) PI(PO) – primary inputs (outputs)

reference circuit candidate circuit

mutation

a small comparator

Y/N a very small CNF

• CGP vs. academic and commercial tools

CGP vs. academic and commercial tools CGP vs. academic and commercial tools

CGP ES(1+1), 1 mut/chrom, seed: SIS, Gate set: {AND, OR, NOT, NAND, NOR, XOR}, 100 runs (each 12 hours) ABC, SIS – conventional open academic synthesis tools C1, C2, C3 – commercial synthesis tools

LGSynth93 benchmarks – the best obtained number of gates

Average reduction: 25%

• Convergence curves

Convergence curves Convergence curves

The min, mean and max number of gates out of 50 12-hour runs.

max mean min

• Why our result is

Why our result is Why our result is “ “ “human human human-

• competitive

competitive competitive” ” ”

• D: The result of our method is an optimized implementation of a digital circuit (e.g. ALU4)

which is typically much smaller than the best result obtained from a conventional synthesis tool. Such solution is publishable in its own right as a new scientific result - independent of the fact that the result was mechanically created - because a clear improvement in the area on a chip can be demonstrated with respect to the state-of-the- art.

• E: Because (i) the results of our method are better than the results obtained using the

state-of the-art academia as well as commercial tools for a standard circuit benchmark set and (ii) the state-of-the-art tools are based on the best implementations proposed so far, we claim that our solution is equal to or better than the most recent human-created solution to a long-standing problem for which there has been a succession of increasingly better human-created solutions.

• G: Despite the fact that various logic synthesis and optimization tools have been

proposed in the recent 50 years, the logic synthesis/optimization problem is considered as very difficult. We claim that the proposed method solves a problem of indisputable difficulty in its field.

• Why we should win (1)

Why we should win (1) Why we should win (1)

• A significant contribution to the evolutionary circuit design

and evolvable hardware theory was presented.

• We significantly eliminated the scalability problem of the fitness

function evaluation which has been known from the very beginning of digital evolvable hardware.

• We believe that the approaches based on formal verification

techniques could lead to many new applications of evolvable hardware, genetic programming and evolutionary design/optimization.

• The result was accepted by the GP/EHW community
• Genetic Programming and Evolvable Machines – in its special

issue on Evolvable hardware challenges.

• Why we should win (2)

Why we should win (2) Why we should win (2)

• A significant contribution which has a great impact to

applications was presented.

• The proposed method is capable of discovering logic circuit

transformations that are unreachable by conventional minimization algorithms => better minimization allowed => area/energy/cost savings.

• Our contribution is in the field
• which is well-established (more than 50 years!),
• where extreme competition exists (many companies involved),
• which is conservative and pragmatic with respect to completely

new approaches and methodologies.

• The result was accepted outside the EC community
• DATE 2011 – one of the leading conferences in the field of circuit

design automation (928 submissions, 34% acceptance rate).

• Thank you for your attention!
