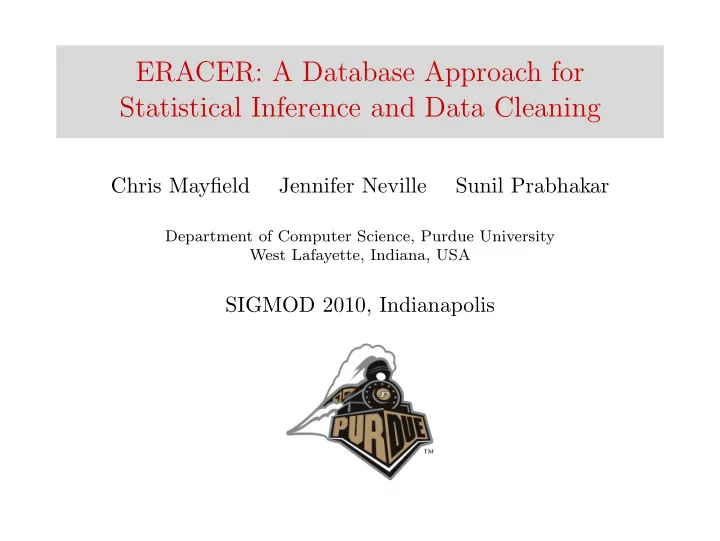

ERACER: A Database Approach for Statistical Inference and Data Cleaning

Chris Mayfield Jennifer Neville Sunil Prabhakar

Department of Computer Science, Purdue University West Lafayette, Indiana, USA

SIGMOD 2010, Indianapolis

Problem

Real data is dirty

◮ Inconsistent, incomplete, corrupted, outdated, etc. ◮ Safety measures (e.g., constraints) are often not used ◮ Poor decisions based on dirty data costs billions annually

Data cleaning is hard

◮ Typically ad hoc, interactive, exploratory, etc. ◮ Uncertain process: what to do with the “errors?” ◮ Maintenance of results (e.g., lineage/provenance) ◮ Consumes large amount of data management time (see Fan, Geerts, & Jia, VLDB 2008 tutorial)

Mayfield, Neville, & Prabhakar SIGMOD 2010 2 of 21

Example 1: Genealogy Data

5M people from Pedigree Resource File

◮ Person (ind id, birth, death) ◮ Relative (ind id, rel id, role)

B: 1744 D: 1804 B: ? D: ? B: 1781 D: 1807 B: ? D: ? B: ? D: ? B: ? D: ? B: 1743 D: 1787 B: 1707 D: 1766 B: 1741 D: 1771 B: 1763 D: 1826 B: ? D: ? B: 1769 D: 1769 B: 1770 D: 1770

Integrated from many sources, e.g.:

◮ Census records ◮ Immigration lists ◮ Family history

societies

◮ Individual

submissions

Mayfield, Neville, & Prabhakar SIGMOD 2010 3 of 21

Example 2: Sensor Networks

◮ 54 sensors, every 31

seconds, for 38 days

◮ ≈ 18% obviously incorrect ◮ Multiple data types

2M readings of Intel Lab Data

◮ Sensor (epoch, mote id,

temp, humid, light, volt)

◮ Neighbor (id1, id2,

distance)

Source: http://db.csail.mit.edu/labdata/labdata.html

Mayfield, Neville, & Prabhakar SIGMOD 2010 4 of 21

Insight

Correlations within tuples, e.g.:

◮ Birth and death years ◮ Temperature and humidity values

Correlations across tuples, e.g.:

◮ Parents and children ◮ Neighboring sensors

Apply statistical relational learning

◮ Don’t just clean tuples in isolation

(e.g., functional dependencies)

◮ Propagate inferences multiple times

Input:

◮ Possible tuple

dependencies

◮ Correlation

model skeleton Output:

◮ PDFs for

missing data

◮ Flags for

dirty data

Mayfield, Neville, & Prabhakar SIGMOD 2010 5 of 21

Baseline Approach: Bayesian networks Exact inference (junction tree) Bayes Net Toolbox for Matlab

Bayesian Network Formulation

Model template specifies conditional dependencies:

Individual Individual Birth Death Father Mother

= ⇒

F.b F.d I.b M.b M.d I.d C1.b C2.b C3.b S.b S.d C2.d C2.d C3.d

Conditional probability distribution (CPD) at each node: P(I.d | I.b) death year, given the birth year P(I.b | M.b , F.b) birth year, given parent birth years Prior distribution at nodes with no parents: P(I.b)

Simplified version of Relational Bayesian Networks (see e.g., Getoor & Taskar 2007)

Mayfield, Neville, & Prabhakar SIGMOD 2010 7 of 21

Maximum Likelihood Estimation

F.b F.d I.b M.b M.d I.d C1.b C2.b C3.b S.b S.d C2.d C2.d C3.d

• 1. Learn CPDs from data, e.g.:

CREATE TABLE cpt_birth AS SELECT birth , death , count (*) FROM person GROUP BY birth , death;

• 2. Share CPDs across all nodes:
• - P(I.d | I.b = 1750)

SELECT death , count FROM cpt_birth WHERE birth = 1750;

• 3. Run inference (e.g., junction tree)

◮ Construct Bayesian network ◮ Bind evidence (query from DB) ◮ Extract results (store in DB)

Mayfield, Neville, & Prabhakar SIGMOD 2010 8 of 21

Challenges and Lessons Learned

Limiting model assumptions

◮ Fixed CPD structure (e.g., always two parents) ◮ Acyclicity constraint (can’t model sensor data)

Potentially millions of parameters

◮ Becomes very inefficient ◮ Floating point underflow

Not scalable to large data sets

◮ DB may not fit into main memory ◮ Moving data in/out of R, Matlab, etc.

Not designed for data cleaning

◮ Propagates outliers/errors in original data ◮ Need to look beyond the Markov blanket

Mayfield, Neville, & Prabhakar SIGMOD 2010 9 of 21

ERACER Approach: Relational dependency networks Approximate inference algorithm SQL-based framework Integrated data cleaning

Relational Dependency Networks

For example, at each sensor and time epoch:

Sensor Sensor Temp Humid Neighbor Neighbor Neighbor

= ⇒

S1.t S1.h S2.t S4.h S2.h S3.t S3.h S4.t

In contrast to Bayesian networks, RDNs:

◮ approximate the full joint distribution ◮ learn CPDs locally based on component models ◮ allow cyclic dependencies (i.e., many-to-many) ◮ use aggregation to deal with heterogeneity (see Neville & Jensen, JMLR 2007)

Mayfield, Neville, & Prabhakar SIGMOD 2010 11 of 21

Component Models

Convolution (for genealogy)

◮ parent age: MPA = P(I.b − P.b) ◮ death age: MDA = P(I.d − I.b)

• - death

age model SELECT hist(death - birth) FROM person;

20 40 60 80 100 0.00 0.02 0.04

Expected value = 54.0 Standard deviation = 29.0

Regression (for sensors)

◮ mean temperature:

S.t ∼ β0 + β1 · S.h + β2 · avg(N.t) + β3 · avg(N.h)

◮ mean humidity:

S.h ∼ γ0 + γ1 · S.t + γ2 · avg(N.t) + γ3 · avg(N.h)

Mayfield, Neville, & Prabhakar SIGMOD 2010 12 of 21

ERACER Framework

Learning (one time, offline):

• 1. Extract graph structure using domain knowledge
• 2. RDNs aggregate existing data to learn parameters

Inference (multiple iterations):

• 3. Apply component models to every value in DB
• 4. Combine predictions to deal with heterogeneity
• 5. Evaluate posterior distributions for cleaning
• 6. Repeat 3–5 until happy (i.e., results converge)

Mayfield, Neville, & Prabhakar SIGMOD 2010 13 of 21

Step 1: Extract Graphical Model

Construct nodes:

INSERT INTO node SELECT make_nid (epoch , mote_id), -- creates simple key new_basis (temp), new_basis (humid), new_basis (light), new_basis (volt) FROM sensor;

basis data type:

initial

• riginal value, if any (e.g., humid)

pdf current prediction (or distribution) suspect data cleaning flag (true = outlier) round when pdf/suspect was last updated

Construct edges:

INSERT INTO link SELECT make_nid (a.epoch , a.mote_id), make_nid(b.epoch , b.mote_id) FROM neighbor AS c -- e.g., within 6 meters INNER JOIN sensor AS a ON c.id1 = a.mote_id INNER JOIN sensor AS b ON c.id2 = b.mote_id WHERE a.epoch - 30 <= b.epoch AND a.epoch + 30 >= b.epoch;

Mayfield, Neville, & Prabhakar SIGMOD 2010 14 of 21

Step 2: Learn RDN Parameters

Aggregate original data values:

CREATE TABLE learn AS SELECT

• - individual

instances min(expect(i.t)) AS ti , min(expect(i.h)) AS hi , min(expect(i.l)) AS li , min(expect(i.v)) AS vi ,

• - average

neighbor values avg(expect(n.t)) AS tn , avg(expect(n.h)) AS hn , avg(expect(n.l)) AS ln , avg(expect(n.v)) AS vn FROM node AS i LEFT JOIN link AS l ON i.nid = l.id1 LEFT JOIN node AS n ON l.id2 = n.nid GROUP BY i.nid;

Optional: apply noise filters, sample data, etc. Estimate applicable component models

◮ Convolution: use built-in hist aggregate ◮ Regression: export to R; use lm function

Mayfield, Neville, & Prabhakar SIGMOD 2010 15 of 21

Steps 3–6: Approximate Inference

For each round of inference:

• 1. Update predictions via the erace aggregate query

◮ Infers/cleans all attributes in a single function call

SELECT erace(i, n) FROM node AS i LEFT JOIN link AS l ON i.nid = l.id1 LEFT JOIN node AS n ON l.id2 = n.nid GROUP BY i;

Key design choice: grouping by tuples, not attributes

• 2. Store results via CREATE TABLE AS (i.e., propagation)

◮ Faster than UPDATE over the entire relation (MVCC) ◮ Other optimizations possible (e.g., indexes on nid’s)

Mayfield, Neville, & Prabhakar SIGMOD 2010 16 of 21

erace Aggregate Function

SELECT erace(i, n) ti hi tn hn ? 40% 21◦ 38% 35◦ 23% 24◦ ?

For each attribute in i:

◮ Select applicable model ◮ Apply/combine predictions ◮ Evaluate (cf. init and prev)

Data cleaning algorithm:

◮ Run inference for known values, as if missing ◮ Is original evidence within expected range? ◮ Replace outliers with inferred distributions ◮ Do not propagate suspects (rely on other data)

Many more details in the paper!

Mayfield, Neville, & Prabhakar SIGMOD 2010 17 of 21

Experiments: Generate synthetic populations Randomly set attributes to NULL Compare inferred values to original

Genealogy Data Results

Accuracy of birth pdfs:

20 30 40 50 60 2 4 6 8 10 Percent Missing (per blanket) Mean Absolute Error

• BayesNet

ERACER 5 10 15 20 25 5 10 15 20 Percent Corrupt (per blanket) Mean Absolute Error

• BayesNet

ERACER

Variance (uncertainty):

20 30 40 50 60 5 10 15 Percent Missing (per blanket) Average Standard Deviation

• BayesNet

ERACER 5 10 15 20 25 5 10 15 20 25 Percent Corrupt (per blanket) Average Standard Deviation

• BayesNet

ERACER Mayfield, Neville, & Prabhakar SIGMOD 2010 19 of 21

Sensor Data Results

Accuracy of temperature pdfs:

30 40 50 60 70 80 90 1 2 3 4 5 Percent Missing Mean Absolute Error

• Baseline

ERACER 10 20 30 40 50 60 70 1 2 3 4 5 Percent Corrupt Mean Absolute Error

• Baseline

ERACER

Accuracy of humidity pdfs:

30 40 50 60 70 80 90 2 4 6 8 10 Percent Missing Mean Absolute Error

• Baseline

ERACER 10 20 30 40 50 60 70 2 4 6 8 10 Percent Corrupt Mean Absolute Error

• Baseline

ERACER Mayfield, Neville, & Prabhakar SIGMOD 2010 20 of 21

Summary

Database-centric approach for approximate inference

◮ Statistical framework for correcting errors ◮ Efficient; no need to move data to/from R/Matlab

Synergy of imputation and data cleaning tasks

◮ Additional evidence identifies errors more accurately ◮ Corrected data values improve the quality of inference

Empirical evaluation on two real-world data sets

◮ Similar accuracy to Bayesian network baseline ◮ Significant gains in runtime performance ◮ Added benefit of simultaneous data cleaning

Mayfield, Neville, & Prabhakar SIGMOD 2010 21 of 21
