Enhance protection from security bugs in the Xen hypervisor Anthony PERARD Xen architecture Dom0 VMs QEMU Xen Scheduler MMU vPIC Memory CPUs I/O HW Emulation in hypervisor For performance Examples: Interrupt controller

slide-1
SLIDE 1

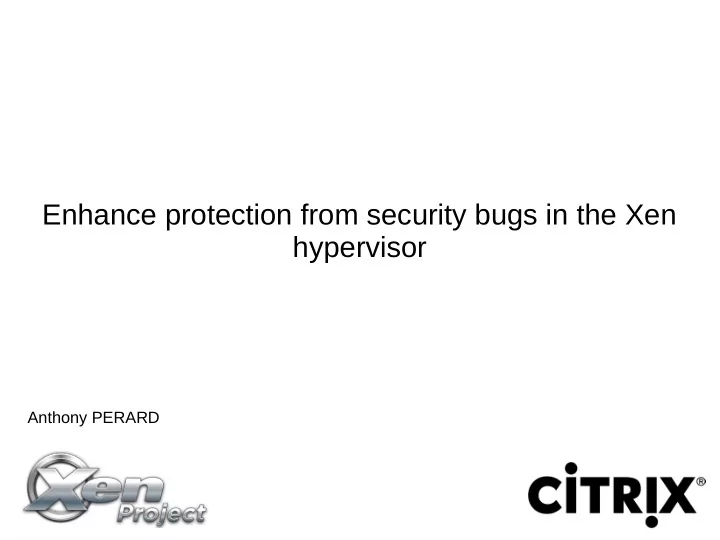

Enhance protection from security bugs in the Xen hypervisor

Anthony PERARD

slide-2
SLIDE 2

Xen architecture

HW Xen Scheduler MMU vPIC Memory CPUs I/O Dom0 QEMU VMs

slide-3
SLIDE 3

Emulation in hypervisor

  • For performance
  • Examples:

– Interrupt controller – Real mode emulation – Timers

slide-4
SLIDE 4

Emulation in hypervisor

  • For performance
  • Examples:

– Interrupt controller – Real mode emulation – Timers

  • Have same privilege as the hypervisor
slide-5
SLIDE 5

Reduce severity of bugs

  • Deprivilege emulator execution
  • Different memory space
  • User mode
slide-6
SLIDE 6

Deprivileged mode

  • Prepare page tables for user access
slide-7
SLIDE 7

Deprivileged mode

  • Prepare page tables for user access
  • Emulator code into different section

– .hvm_deprivileged_enhancement.text

slide-8
SLIDE 8

Deprivileged mode

  • Prepare page tables for user access
  • Emulator code into different section
  • Have context switch:

– vmx_ctxt_switch_from() – Save EFER, then allow sysret/syscall – Save registers – Setup new stack for depriv mode – Sysret – Now in user mode, call the function

slide-9
SLIDE 9

Deprivileged mode

  • Prepare page tables for user access
  • Emulator code into different section
  • Have context switch
  • Jump table for switch statement issue

– .rodata

slide-10
SLIDE 10

Bad behavior

  • What if there is a bug in the emulator?

– Access other memory? – Infinite loop? – Other exception?

slide-11
SLIDE 11

Bad behavior

  • Trap handlers for exception:

– Page fault – General exception – ...

slide-12
SLIDE 12

Bad behavior

  • Trap handlers for exception:

– Page fault – General exception – ...

→ crash domain!

slide-13
SLIDE 13

Bad behavior

  • Trap handlers for exception:

– Page fault – General exception – ...

→ crash domain!

  • Infinit loop?

– Watchdog

slide-14
SLIDE 14

Bad behavior

  • Trap handlers for exception:

– Page fault – General exception – ...

→ crash domain!

  • Infinit loop?

– Watchdog → crash domain

slide-15
SLIDE 15

Syscall from depriv mode

  • Do privileged command while in depriv mode
slide-16
SLIDE 16

Syscall from depriv mode

  • Do privileged command while in depriv mode

– Set a number in a register, then syscall

slide-17
SLIDE 17

Syscall from depriv mode

  • Do privileged command while in depriv mode

– Set a number in a register, then syscall

  • Problem, syscall use same return path

– Have a syscall number for actual return

slide-18
SLIDE 18

Conclusion

  • Optimisation
  • Benchmark
  • Do not trust depriv mode
  • Work in progress
slide-19
SLIDE 19

Conclusion

  • Optimisation
  • Benchmark
  • Do not trust depriv mode
  • Work in progress
  • Proof-of-concept by Ben Catterall
  • Look for “deprivileged mode” in xen-devel

archive

– http://lists.xen.org/archives/html/xen-devel/

slide-20
SLIDE 20

Question?

  • Look for “deprivileged mode” in xen-devel

archive

– http://lists.xen.org/archives/html/xen-devel/
