JPD/JICA Task Force Columbia, NY, Feb. 19-20 2015 ECONOMIC COMPLEXITY Measuring the Intangible Growth Potential of Countries Luciano Pietronero 1,2,3 Collaborators: G. Chiarotti 1,2 , G. Cimini 1,2, M. Cristelli 1,2 , R. Di Clemente 1,2 , A.

slide-1

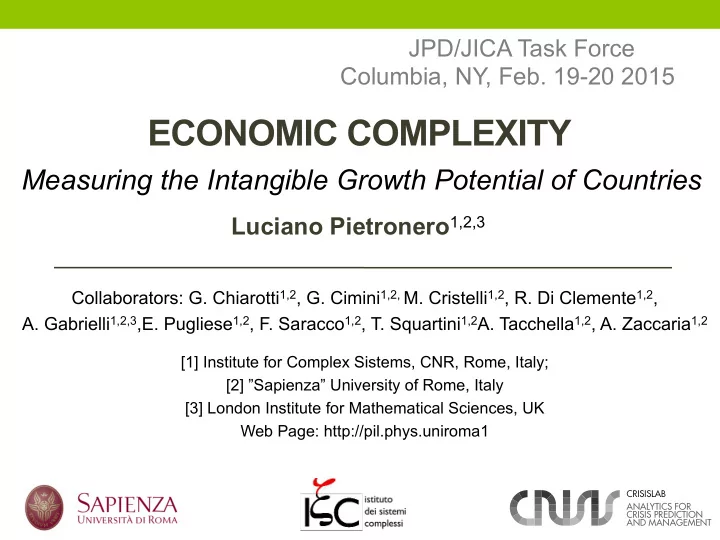

SLIDE 1

ECONOMIC COMPLEXITY

Collaborators: G. Chiarotti1,2, G. Cimini1,2, M. Cristelli1,2, R. Di Clemente1,2,

  • A. Gabrielli1,2,3,E. Pugliese1,2, F. Saracco1,2, T. Squartini1,2A. Tacchella1,2, A. Zaccaria1,2

[1] Institute for Complex Sistems, CNR, Rome, Italy; [2] ”Sapienza” University of Rome, Italy [3] London Institute for Mathematical Sciences, UK Web Page: http://pil.phys.uniroma1

CRISISLAB ANALYTICS FOR CRISIS PREDICTION AND MANAGEMENT

JPD/JICA Task Force Columbia, NY, Feb. 19-20 2015 Luciano Pietronero1,2,3

Measuring the Intangible Growth Potential of Countries

slide-2
SLIDE 2

ECONOMICS:

From ”the dismal science” (Thomas Carlyle) to…..

slide-3
SLIDE 3

ECONOMICS:

From ”the dismal science” (Thomas Carlyle) to…..

slide-4
SLIDE 4

Amman conference, June 2014

Stiglitz’s Task Force on Industrialization: Yau Ansu: ACET Report (221pages)

Comparison of economic data between 12 african countries and

  • ther countries (mostly asiatic)

which went through industrialization In the recent past.

slide-5
SLIDE 5
  • Aggregated data for the

two groups of countries

  • Interesting information

but sometimes conflicting

  • Difficult to get a unified

comprehensive picture

slide-6
SLIDE 6
slide-7
SLIDE 7

More and more data but difficult to draw a clear conclusion ??? And still data are aggregated, no specific information

  • n individual countries
slide-8
SLIDE 8

The Economic Complexity answer: New synthetic concepts Individual country trajectories in the new space Clear interpretation - Complete information - Visual impact

Trajectories refer to the evolution 1995 - 2010

slide-9
SLIDE 9

Countries Products COMTRADE database: Which country exports which product

Bipartite Network: New algorithm to extract information for

  • Fitness of Countries
  • Complexity of Products

NB: this is not an analysis

  • f the export volumes.

The information is derived from the nature of products

slide-10
SLIDE 10

THE THEORY OF HIDDEN CAPABILITIES

A COUNTRY IS ABLE TO PRODUCE A PRODUCT WHEN IT OWNS ALL THE CAPABILITIES NEEDED FOR IT (Hausmann& Hidalgo 2009) Products discount all the information on capabilities as stock prices should discount all the information on companies (except finance fluctuations) HOW TO MEASURE CAPABILITIES FROM THE AVAILABLE DATA?

slide-11
SLIDE 11

SPECIALIZATION VS. DIVERSIFICATION

Evidence for leading role of diversification with respect to competitive advantage (specialization)

  • Globalization
  • Ecosystems
  • Evolvability
  • Adaptation

From Qualitative to Quantitative

DATA DRIVEN APPROACH:

  • Math. Problem: minimal elements to have a triangilar matrix

Complex Hierarchical structure, nestdness etc.

  • For sectors and companies the situation evolves towards specialization
slide-12
SLIDE 12

Monetary measures Metrics for intangibles

NEW INFORMATION

  • M. Cristelli, A. Tacchella, L. Pietronero, The Heterogenous Dynamics of Economic

Complexity (in preparation)

  • M. Cristelli, A. Tacchella, L. Pietronero, Economic Complexity: Measuring the

Intangibles (ebook)

(GDP, GDPpc, etc)

slide-13
SLIDE 13

We measure the Fitness of countries (DNA/intangibles) and the Complexity of products with an iterative Google- like algorithm for the bipartite country-product network

Fitness Complexity

Fc: diversification weighted by complexity Qp: Extremal non-linear complexity of products a single low fitness producer implies low complexity

  • A. Tacchella et al., A New Metrics for Countries’ Fitness and Products’ Complexity, Scientific Reports 2, 723 (2012)
slide-14
SLIDE 14

Fc: diversification weighted by complexity Qp: Extremal non-linear complexity of products a single low fitness producer implies low complexity

Fc Platinum Nails Wheat Chips Optic Fibers 0.0032 0.0099 0.12 1.81 4.39

+ + + + =

Fc

6.3331

  • A. Tacchella et al., A New Metrics for Countries’ Fitness and Products’ Complexity, Scientific Reports 2, 723 (2012)
slide-15
SLIDE 15

The Economic Dynamical Ecosystem:

Data driven approach from micro to macro

  • Countries: diversified in products

Countries and Products: Google like approach – Big Data Countries: Fitness index Products: Complexity index Dynamics: Monetary vs Intangible metrics – Hidden potential

  • Subsystems: Regions, Districts, Cities (London, Shanghai)
  • Industrial sectors: Various levels of grouping

Evolution of their Complexity Policy making: virtual experiments, what if? Criteria for optimization

  • Companies: specialized in products

But diversified in terms of Technologies in their control (ie patents)

slide-16
SLIDE 16

How the model works:

  • 1. Probability of having a product with combinatorial complexity

C (number of capabilities) is Meaning of π: how effective is a country in making more products by combining capabilities

  • 2. The diversification d of a country which has K capabilities (K

represents the complexity of that country) is

1° Prediction: let’s test, as proxy for K , log(Fitness) and the Economic Complexity Index (ECI, C. Hidalgo et al. PNAS, 2009)

  • S. Inoua, On the Complexity Approach to Economic Development, 2013

http://vixra.org/pdf/1301.0182v1.pdf

p(C) ∼ πC

d =

K

X

C=1

p(C) ✓K C ◆ ∼ (1 + π)K

NB: no loss of generality assuming minimum number of capabilities =1

slide-17
SLIDE 17

log(DIVERSIFICATION) vs log(FITNESS)

Log(Fitness) is good proxy for the complexity K of countries R2≈0.92-0.94 in the period 1995-2010

slide-18
SLIDE 18

Hausmann & Hidalgo have tried to use exactly the Google algorithm but their ECI is not a good proxy for complexity K, R2 ≈ 0.52-0.65 in the period 1995-2010

slide-19
SLIDE 19

MICRO ORIGIN OF POVERTY TRAP?

No longer exponential relationship btw diversification and complexity (i.e. Log(Fitness))

Poverty trap

slide-20
SLIDE 20
slide-21
SLIDE 21

1995

slide-22
SLIDE 22

ECONOMIC DYNAMICS IS HETEROGENEOUS

slide-23
SLIDE 23
slide-24
SLIDE 24
slide-25
SLIDE 25
slide-26
SLIDE 26

South Korea Evolution

  • •• •
  • •
  • 1963

2000

  • 8
  • 6
  • 4
  • 2

1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0

  • 8
  • 6
  • 4
  • 2

1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 Log10FF Log10HGDPper capitaL

Some examples of different regimes… South Korea

  • Starting from low values to arrive to

high values of GDP per capita;

  • First period of increasing fitness, at

GDP almost constant;

  • Subsequently rapid growth in GDP per

capita w/ slow increasing Fitness; => Exit from the poverty trap

1963 - 2000

slide-27
SLIDE 27
slide-28
SLIDE 28

Method of Analogs: forecasting the future by the knowledge of the past

Empirical Evo. Distribution

slide-29
SLIDE 29

In the laminar regime (green area) the evolution of countries tends to be highly predictable

The Selective Predictability Scheme (SPS)

SPS = forecasting the future by the knowledge of the past (green area)

slide-30
SLIDE 30

1

slide-31
SLIDE 31

6

slide-32
SLIDE 32

9

slide-33
SLIDE 33
slide-34
SLIDE 34

NEW: SCIENTIFIC COMPETITIVENESS OF COUNTRIES Do countries specialize or diversify their research Activity?

slide-35
SLIDE 35

Is it economically worth spending in research?

slide-36
SLIDE 36

Extensive adiacency matrix Intensive adiacency matrix

slide-37
SLIDE 37

Extensive Intensive

Ranking of scientific domains

slide-38
SLIDE 38

COUNTRY SPECTROSCOPY

Product Complexity

  • Products appear clustered in Quality Space
  • The revanche of specialization – Industrial sectors and individual

companies tend to be reasonably specialized Oil, Potatoes Smartphone Textiles

Exported volume

slide-39
SLIDE 39

COUNTRY SPECTROSCOPY

slide-40
SLIDE 40

COUNTRY SPECTROSCOPY

slide-41
SLIDE 41

COUNTRY SPECTROSCOPY

slide-42
SLIDE 42

MET ALLURGIC INDUSTRY AND RELA TED RA W MA TERIALS AND W ASTE

W A TCHES AND JEWELERY PREF ABRICA TED BUILDINGS, CONT AINERS, T ANKS WIRES

MECHANICAL INDUSTRY TEXTILE PAINTS, GLUES, PIGMENTS

SPECIALIZED INDUSTRIAL MACHINERY LAB EQUIPMENT

AGRIFOOD

SWEDEN: PORTION OF THE PRODUCT SPACE

slide-43
SLIDE 43

Example: SK 81 detailed products

Automatic data processing machines Sound recordings Office machines Thermionic, valves, transistors Typewriters Optical Instruments Radio broadcast receivers Photographic cameras Other musical instru Parasols, walking sticks Television receivers

slide-44
SLIDE 44

Diffusion of South Korea 1963-2000

1963

slide-45
SLIDE 45

1963 1966

Example: Diffusion of SK 1963-2000

slide-46
SLIDE 46

1963 1966

Example: Diffusion of SK 1963-2000

1971

slide-47
SLIDE 47

1963 1966

Example: Diffusion of SK 1963-2000

1971 1977

slide-48
SLIDE 48

1963 1966

Example: Diffusion of SK 1963-2000

1971 1977 1993

slide-49
SLIDE 49

1963 1966

Example: Diffusion of SK 1963-2000

1971 1977 1993 2000

slide-50
SLIDE 50

MET ALLURGIC INDUSTRY AND RELA TED RA W MA TERIALS AND W ASTE

W A TCHES AND JEWELERY PREF ABRICA TED BUILDINGS, CONT AINERS, T ANKS WIRES

MECHANICAL INDUSTRY TEXTILE PAINTS, GLUES, PIGMENTS

SPECIALIZED INDUSTRIAL MACHINERY LAB EQUIPMENT

AGRIFOOD

SWEDEN: PORTION OF THE PRODUCT SPACE

slide-51
SLIDE 51
  • 5

10 15 20

China

  • 5

10 15 20

Brazil

NEW: Forecasting of the new products (sectors) which have a high probability to appear in the near future

slide-52
SLIDE 52

These concepts are general exist in ecology too Economics Ecology

Countries Products Plants Pollinators

  • J. Bascompte et al. PNAS (2003)
  • M. Munoz et al, preprint 2014

NEW:

slide-53
SLIDE 53

Economics Ecology Great divergence sudden increase in income PRODUCTS’ DIVERSITY Cambrian Explosion “sudden” increase in BIODIVERSITY

slide-54
SLIDE 54

Future developments of Economic Complexity

  • COUNTRIES have a long time horizon and they have to diversify

for their long range stability. Meaning and implications of product complexity Q yet to be fully explored

  • COMPANIES have a short time horizon (3 months) and have to

specialize and compete on few products. A company which diversifies its products looses 14% of the stock value (BCG report). Also for companies diversification helps long range stability

  • New database on trading between companies – Supply Chain:
  • Bloomberg: 38,000 quoted companies including volumes
  • Standard&Poor: 4 millions companies without volumes

Fantastic information on the infrastructure and dynamics of

  • economics. New ideas and algorithms are needed.
  • Possibly Alibaba data on trade between chinese companies
slide-55
SLIDE 55

Policy making and consulting

  • Institute for New Economic Thinking (2013)
  • The Boston Consulting Group (New York)

Report on Sweden (2013)

  • Royal Dutch Shell (NL), Report on South Africa (2014)
  • Institute for Public Policy Research (UK), Report for UK

government on UK industrial competitiveness (2014)

  • Azimut private bank, Asset allocation Fund (2015)
  • Alibaba Complexity Research Center (Hangzhou, China)
