EasyTracker Automatic Transit Tracking, Mapping, and Arrival Time Prediction Using Smartphones James Biagioni, Tomas Gerlich, Timothy Merrifield and Jakob Eriksson We love bus trackers! slide 2 Winter in Chicago slide 3 Our shuttle web

slide-1
SLIDE 1

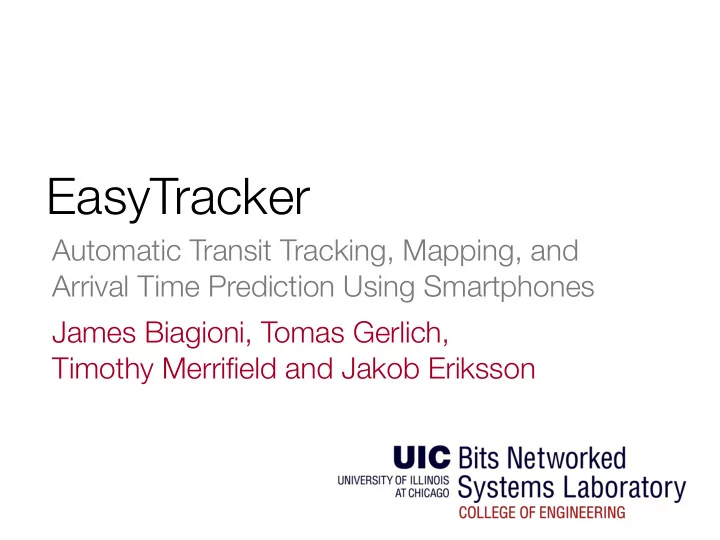

James Biagioni, Tomas Gerlich, Timothy Merrifield and Jakob Eriksson Automatic Transit Tracking, Mapping, and Arrival Time Prediction Using Smartphones

EasyTracker

slide-2
SLIDE 2

slide

We love bus trackers!

2

slide-3
SLIDE 3

slide

Winter in Chicago

3

slide-4
SLIDE 4

slide 4

Our shuttle web (before)

slide-5
SLIDE 5

slide 4

Our shuttle web (before)

slide-6
SLIDE 6

slide

Our shuttle web (after)

5

slide-7
SLIDE 7

slide

One service for everyone

6

slide-8
SLIDE 8

slide

Our shuttle web

7

slide-9
SLIDE 9

slide

Our shuttle web

7

slide-10
SLIDE 10

slide

This paper in a nutshell

  • Automatic generation of
  • route shapes
  • stop locations
  • schedules
  • Online processing for
  • vehicle-to-route classification
  • arrival-time prediction

8

slide-11
SLIDE 11

slide

EasyTracker installation

9

slide-12
SLIDE 12

slide

EasyTracker installation

  • 1. Obtain smartphone

9

slide-13
SLIDE 13

slide

EasyTracker installation

  • 1. Obtain smartphone

9

  • 2. Install EasyTracker app
slide-14
SLIDE 14

slide

EasyTracker installation

  • 1. Obtain smartphone

9

  • 2. Install EasyTracker app
  • 3. Stick phone in bus
slide-15
SLIDE 15

slide

  • 4. Relax

10

slide-16
SLIDE 16

slide

System overview

11

GPS GPS

slide-17
SLIDE 17

slide

System overview

11

GPS GPS

slide-18
SLIDE 18

slide

Batch processing

12

slide-19
SLIDE 19

slide

Batch processing

12

slide-20
SLIDE 20

slide

Raw GPS traces

13

slide-21
SLIDE 21

slide

Route map

14

slide-22
SLIDE 22

slide

Raw GPS traces

15

slide-23
SLIDE 23

slide

Kernel Density Estimation

16

slide-24
SLIDE 24

slide

Kernel Density Estimation

16

slide-25
SLIDE 25

slide

Kernel Density Estimation

16

slide-26
SLIDE 26

slide

Kernel Density Estimation

16

slide-27
SLIDE 27

slide

K(x) = 1 √ 2πσ2 e− x2

2σ2

Kernel density estimation

17

ˆ f(x) = 1 n

n

X

i=1

K(x − xi)

slide-28
SLIDE 28

slide

2-D histogram

18

slide-29
SLIDE 29

slide

Trajectory density estimate

19

slide-30
SLIDE 30

slide

Thresholded image

20

slide-31
SLIDE 31

slide

  • Davies et al., 2006

Map extraction

21

slide-32
SLIDE 32

slide

Route extraction

  • Map match GPS traces
  • Viterbi-based map matching
  • based on Thiagarajan, et al. 2009
  • Extract common routes
  • edge subsequence matching
  • statistical test removes spurious results

22

slide-33
SLIDE 33

slide

Route extraction

23

slide-34
SLIDE 34

slide

Route extraction

23

slide-35
SLIDE 35

slide

Route extraction

23

slide-36
SLIDE 36

slide

Route extraction

24

slide-37
SLIDE 37

slide

Route extraction

24

slide-38
SLIDE 38

slide

Route extraction

24

slide-39
SLIDE 39

slide

Route extraction

24

slide-40
SLIDE 40

slide

Route extraction

24

slide-41
SLIDE 41

slide

Route extraction

24

slide-42
SLIDE 42

slide

Route extraction

24

slide-43
SLIDE 43

slide

Route extraction

24

slide-44
SLIDE 44

slide

Route extraction

24

slide-45
SLIDE 45

slide

Route extraction

24

slide-46
SLIDE 46

slide

Route extraction

24

slide-47
SLIDE 47

slide

Route extraction

24

slide-48
SLIDE 48

slide

Route extraction results

25

slide-49
SLIDE 49

slide

Welch’s t-Test

26

0.008 0.015 0.023 0.030 P-value

slide-50
SLIDE 50

slide

Routes separated

27

Real Routes Spurious Routes

slide-51
SLIDE 51

slide

Stop extraction

28

slide-52
SLIDE 52

slide

Route-labeled GPS traces

29

slide-53
SLIDE 53

slide

2-D histogram

30

slide-54
SLIDE 54

slide

Point density estimate

31

slide-55
SLIDE 55

slide

Thresholded binary image

32

slide-56
SLIDE 56

slide

Noise in binary image

33

slide-57
SLIDE 57

slide

Noise reduced binary image

34

slide-58
SLIDE 58

slide

Stop extraction

35

slide-59
SLIDE 59

slide

Stop extraction

36

slide-60
SLIDE 60

slide

Stop extraction performance

37

slide-61
SLIDE 61

slide

Schedule extraction

38

slide-62
SLIDE 62

slide

Bus stop arrival times

39

slide-63
SLIDE 63

slide

Bus stop arrival times

39

slide-64
SLIDE 64

slide

Bus stop arrival times

39

slide-65
SLIDE 65

slide

Bus stop arrival times

39

slide-66
SLIDE 66

slide

Bus stop arrival times

39

slide-67
SLIDE 67

slide

Bus stop arrival times

40

slide-68
SLIDE 68

slide

First stop schedule

41

slide-69
SLIDE 69

slide

Travel time variance

42

slide-70
SLIDE 70

slide

Last stop arrival times

43

slide-71
SLIDE 71

slide

travel time(1, j, t) = 1 |D| X

D

at

j − at 1

Compute mean travel times

44

slide-72
SLIDE 72

slide

Compute downstream schedules

45

kj

t = k1 t + travel time(1, j, t)

slide-73
SLIDE 73

slide

Last stop arrival times

46

slide-74
SLIDE 74

slide

Last stop schedule

47

slide-75
SLIDE 75

slide

Schedule accuracy

48

slide-76
SLIDE 76

slide

Schedule accuracy

48

slide-77
SLIDE 77

slide

System architecture

49

slide-78
SLIDE 78

slide

Online processing

50

slide-79
SLIDE 79

slide

Online processing

50

slide-80
SLIDE 80

slide

Un-classified buses

51

slide-81
SLIDE 81

slide 52

Classified buses

slide-82
SLIDE 82

slide

Hidden Markov model

53

slide-83
SLIDE 83

slide

Classification accuracy

54 0.2 0.4 0.6 0.8 1.0 Correct Incorrect Unclassified

slide-84
SLIDE 84

slide

Classification delay

55

slide-85
SLIDE 85

slide

Classification delay

55

slide-86
SLIDE 86

slide

Arrival time prediction

56

slide-87
SLIDE 87

slide

Predicting arrival times

57

time until arrival(si) = γtravel time(sprev+1, si)+ (1 − γ)travel time(sprev, si)

slide-88
SLIDE 88

slide

Arrival time predictions

58

slide-89
SLIDE 89

slide

Schedule vs. real-time

59

slide-90
SLIDE 90

slide

Schedule vs. real-time

59

slide-91
SLIDE 91

slide

Schedule vs. real-time

59

slide-92
SLIDE 92

slide

System overview

60

GPS GPS

slide-93
SLIDE 93

slide

Come and see our demo!

  • Thursday, 3:30p-7:30p

61

slide-94
SLIDE 94

Questions?

Thanks!
