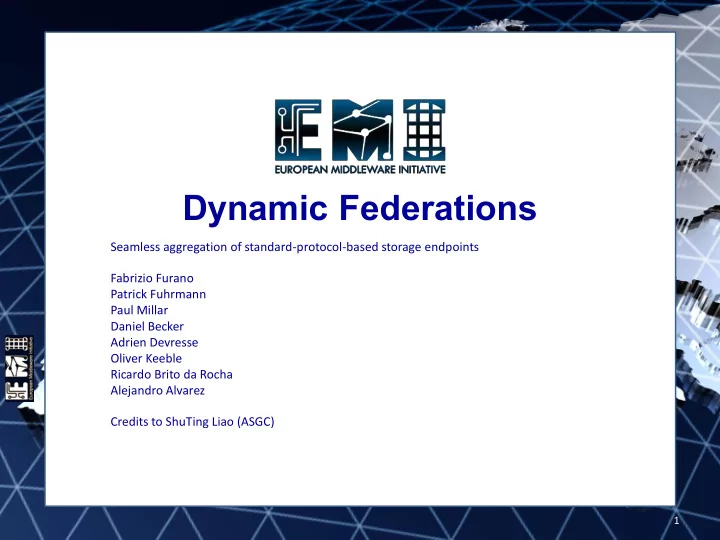

Dynamic Federations

Seamless aggregation of standard-protocol-based storage endpoints Fabrizio Furano Patrick Fuhrmann Paul Millar Daniel Becker Adrien Devresse Oliver Keeble Ricardo Brito da Rocha Alejandro Alvarez Credits to ShuTing Liao (ASGC)

1

2

EMI INFSO-RI-261611 18 Sept 2012 F.Furano - Dynamic federations

WLCG Computing Model

Worker

Data

App Cernvmfs

Data Data

Worker Worker Worker

3

EMI INFSO-RI-261611 18 Sept 2012 F.Furano - Dynamic federations

Storage Federations: Motivations

• Currently data lives on islands of storage
• catalogues are the maps
• FTS/gridFTP are the delivery companies
• Experiment frameworks populate the island
• Jobs are directed to places where the needed data is
• or should be ......
• Almost all data lives on more than one island
• Assumption:
• perfect storage ( unlikely to impossible)
• perfect experiment workflow and catalogues ( unlikely )
• Strict locality has some limitations

–a single missing file can derail the whole job

• or series of jobs -> Failover to data on another island could help
• Replica catalogues impose limitations, too

–E.g. synchronization is difficult, performance too

• Quest for direct, Web-like forms of data access
• Great plus: other use cases may be fulfilled e.g. site

caching, sharing storage amongst sites

Dynamic Federations, Lyon, Sept 2012

3 EMI INFSO-RI-261611

Storage federations

• What’s the goal?

–Make different storage clusters be seen as one –Make global file-based data access seamless

• How should this be done?

–Dynamically

• easy to setup/maintain
• no complex metadata persistency
• no DB babysitting (keep it for the experiment’s metadata)
• no replica catalogue inconsistencies, by design

–Light config constraints on participating storage –Using standards

• No strange APIs, everything looks familiar
• Global direct access to global data

11 EMI INFSO-RI-261611 EMI INFSO-RI-261611

/dir1/file1 /dir1/file2 Storage/MD endpoint 1 /dir1/file2 /dir1/file3 Storage/MD endpoint 2

/dir1 /dir1/file1 /dir1/file2 /dir1/file3

Aggregation We see this All the metadata interactions are hidden NO persistency needed here, just efficiency and parallelism With 2 replicas

The basic idea

Dynamic Federations, Lyon, Sept 2012

2 EMI INFSO-RI-261611

Dynamic HTTP Federations

• Federation

–Simplicity, redundancy, storage/network efficiency, elasticity, performance –Dynamic: does everything on the fly, no DB

• Focus on HTTP/DAV

–Standard clients everywhere –One protocol for everything (WAN/LAN) –Transparent redirection

• Use cases

–Easy, direct job/user data access, WAN friendly –Access missing files after job starts –Friend sites can share storage –Cache integration (future)

Dynamic Federations, Lyon, Sept 2012

4 EMI INFSO-RI-261611

What is federated?

• We federate (meta)data repositories that are ‘compatible’

–HTTP interface –Name space (modulo simple prefixes)

• Including catalogues

–Permissions (they don’t contradict across sites) –Content (same key or filename means same file [modulo translations])

• Dynamically and transparently discovering metadata

–looks like a unique, very fast file metadata system –properly presenting the aggregated metadata views –redirecting clients to the geographically closest endpoint

• Local SE is preferred
• The system also can load a “Geo” plugin

Dynamic Federations, Lyon, Sept 2012

5 EMI INFSO-RI-261611

• Technically TODAY we can aggregate:

–SEs with DAV/HTTP interfaces –dCache, DPM

• Future: Xrootd? EOS? Storm?

–Catalogues with DAV/HTTP interfaces

• LFC supported
• Future: Experiment catalogues could be integrated

–Cloud DAV/HTTP/S3 services –Anything else that happens to have an HTTP interface…

• Caches

–Native LFC and DPM databases

What is federated?

Dynamic Federations, Lyon, Sept 2012

Why HTTP/DAV?

• It’s everywhere

–A very widely adopted technology

• It has the right features

–Redirection, WAN friendly

• Convergence

–Transfers and data access –No other protocols required

• We (humans) like browsers, they give an

experience of simplicity

–Open to direct access and integrated web apps

6 EMI INFSO-RI-261611

Dynamic Federations, Lyon, Sept 2012

DPM/HTTP

• DPM has invested significantly in HTTP as part of

the EMI project

–New HTTP/DAV interface –Parallel WAN transfers –3rd party copy –Solutions for replica fallback

• “Global access” and metalink

–Performance evaluations

• Experiment analyses
• Hammercloud
• Synthetic tests
• Root tests

7

Dynamic Federations, Lyon, Sept 2012

10 EMI INFSO-RI-261611

Demo

• We have set up a stable demo testbed, using HTTP/DAV

–Head node in DESY: http://federation.desy.de/myfed/ –a DPM instance at CERN –a DPM instance at ASGC (Taiwan) –a dCache instance in DESY –a Cloud storage account by Deutsche Telecom

• The feeling it gives is surprising

–Metadata performance is in avg higher than contacting the endpoints

• We see the directories as merged, as it was only one system
• There’s one test file in 3 sites, i.e. 3 replicas.

–/myfed/atlas/fabrizio/hand-shake.JPG –Clients in EU get the one from DESY/DT/CERN –Clients in Asia get the one from ASGC

• There’s a directory whose content is interleaved between CERN and

DESY

–http://federation.desy.de/myfed/dteam/ugrtest/interleaved/

• There’s a directory where all the files are in two places

–http://federation.desy.de/myfed/dteam/ugrtest/all/

1 2

LFC SE SE SE SE LFC or DB SE SE SE SE

Plain DAV/HTTP

EMI INFSO-RI-261611 EMI INFSO-RI-261611 18 Sept 2012 F.Furano - Dynamic federations

Client

Plain DAV/HTTP

Aggregator (UGR) Plugin DMLite Frontend

(Apache2+DMLite)

Plugin DAV/HTTP Plugin HTTP

Example

Dynamic Federations, Lyon, Sept 2012

15 EMI INFSO-RI-261611

Design and performance

• Full parallelism

–Composes on the fly the aggregated metadata views by managing parallel tasks of information location

• Never stacks up latencies!
• The endpoints are treated in a completely independent way

–No global locks/serialisations! –Thread pools, prod/consumer queues used extensively (e.g. to stat N items in M endpoints while X clients wait for some items)

• Aggressive metadata caching

–The metadata caching keeps the performance high

• Peak raw cache performance is ~500K->1M hits/s per core

–A relaxed, hash-based, in-memory partial name space –Juggles info in order to always contain what’s needed

• Keep them in an LRU fashion and we have a fast 1st level namespace cache

–Stalls clients the minimum time that is necessary to juggle their information bits

13 EMI INFSO-RI-261611

Server architecture

Clients come and are distributed through:

• different machines (DNS alias)
• different processes (Apache config)

Clients are served by the UGR. They can browse/stat or be redirected for action. The architecture is multi/manycore friendly and uses a fast parallel caching scheme

Dynamic Federations, Lyon, Sept 2012

14 EMI INFSO-RI-261611

Name translation

• A sophisticated scheme of name translation is a key to be

able to federate almost any source of metadata

–UGR implements algorithmic translations and can accommodate non algorithmic ones as well –A plugin could also query an external service (e.g. an LFC or a private DB)

Dynamic Federations, Lyon, Sept 2012

16 EMI INFSO-RI-261611

Design and performance

• Horizontally scalable deployment

–Multithreaded –DNS balanceable

• High performance DAV client implementation

–Wraps DAV calls into a POSIX-like API, saves from the difficulty of composing requests/responses –Performance is privileged: uses libneon w/ sessions caching –Compound list/stat operations are supported –Loaded by the core as a “location” plugin

Dynamic Federations, Lyon, Sept 2012

17 EMI INFSO-RI-261611

A performance test

• Two endpoints: DESY and CERN (poor VM)
• One UGR frontend at DESY
• Swarm of test clients at CERN
• 10K files in a 4-levels deep directory

–Files exist on both endpoints

• The test (written in C++) invokes Stat only once per file, using many

parallel clients doing stat() at the maximum pace from 3 machines

18 EMI INFSO-RI-261611

The result, WAN access

18 EMI INFSO-RI-261611

Another test, LAN, Cache impact

18 EMI INFSO-RI-261611

Another test, LAN, access patterns

Dynamic Federations, Lyon, Sept 2012

Get started

• Get it here:

https://svnweb.cern.ch/trac/lcgdm/wiki/Dynafed s

• What you can do with it:

–Easy, direct job/user data access, WAN friendly –Access missing files after job starts –Friend sites can share storage –Diskless sites –Federating catalogues

• Combining catalogue-based and catalogue-free data

19

Dynamic Federations, Lyon, Sept 2012

21 EMI INFSO-RI-261611

Next steps

• Release our beta, as the nightlies are good
• More massive tests, with many endpoints, possibly distant

–We are now looking for partners

• Precise performance measurements
• Refine the handling of the ‘death’ of the endpoints
• Immediate sensing of changes in the endpoints’ content,

e.g. add, delete

–SEMsg in EMI2 SYNCAT would be the right thing in the right place

• Some more practical experience (getting used to the idea,

using SQUIDs, CVMFS, EOS, clouds,... <put your item here> )

Dynamic Federations, Lyon, Sept 2012

References

• Wiki page and packages

–https://svnweb.cern.ch/trac/lcgdm/wiki/Dynafeds

• CHEP papers

–Federation –http://cdsweb.cern.ch/record/1460525?ln=en –DPM & dmlite –https://cdsweb.cern.ch/record/1458022?ln=en –HTTP/dav –https://cdsweb.cern.ch/record/1457962?ln=en

23

Dynamic Federations, Lyon, Sept 2012

24 EMI INFSO-RI-261611

Conclusions

• Dynamic Federations: an efficient, persistency-

free, easily manageable approach to federate remote storage endpoints

• HTTP, standard, WAN and cloud friendly
• Interoperating with and augmenting the xrootd
• nes is desirable and productive
• Work in progress, status is very advanced,

demoable, installable, documented.

Dynamic Federations, Lyon, Sept 2012

25 EMI INFSO-RI-261611

Thank you
