SLIDE 1

. .

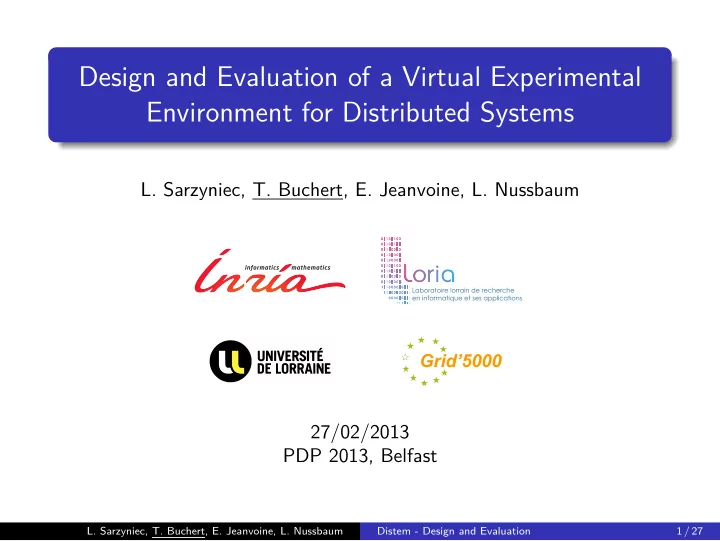

Design and Evaluation of a Virtual Experimental Environment for Distributed Systems

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

. .

Grid’5000

27/02/2013 PDP 2013, Belfast

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 1 / 27

SLIDE 2

. . Study of distributed systems

Many objects of study:

Response time Throughput Performance Scalability Robustness Complexity Fault-tolerance Fairness etc.

Many experimental methodologies:

In-situ: real applications on real platforms Grid’5000, FutureGrid, PlanetLab, etc. Simulation: modeled applications on modeled systems SimGrid, ns-2, OMNET++, etc.

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 2 / 27

SLIDE 3

. . Different methodologies

In-situ methodology:

☺

more realistic

☺

uses real implementation

☹

limited to available environmental conditions

☹

usually unreproducible

Simulation:

☺

enables unprecedented experiments

☺

perfectly reproducible

☹

simplified assumptions

☹

lower realism

Is there a middle ground methodology?

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 3 / 27

SLIDE 4

. . Emulation

Technique used to efficiently simulate the behavior of a computer on another one, usually more powerful

Idea:

. .

1

Use an existing platform . .

2

Model your desired platform . .

3

Efficiently emulate the desired platform using the real platform

.

→

.

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 4 / 27

SLIDE 5

. . Emulation (cont.)

Advantages:

Combines advantages of simulation and in-situ approaches:

allows to use real applications and infrastructure enables complicated experiments

Paves the way to reproducibility

Answers following type of questions:

How can I reproduce an experiment published in 2001 even if 1.5GHz processors do not exist anymore? How can I evaluate my new P2P software designed for DSL networks? How does this runtime with advanced load-balancing capabilities perform

n highly hierarchical networks?
L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 5 / 27

SLIDE 6

. . Plan of the talk

During the rest of the talk I will:

. .

1

present our emulation-based solution . .

2

describe its architecture . .

3

show and discuss evaluation results . .

4

conclude and outline future work

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 6 / 27

SLIDE 7

. . Distem - DISTributed systems EMulator

Distem is a (freely available) software to build virtual distributed experimental environments. . .

+

.

=

.

Heterogeneous nodes, Long distance networks, Grid, Cloud, P2P, …

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 7 / 27

SLIDE 8

. . What can Distem do for you?

Features of Distem include:

Introducing heterogeneity in otherwise homogeneous cluster:

CPU heterogeneity How does your solution perform when some nodes are slower? Network heterogeneity Does your solution work in Internet-like infrastructure?

Emulating complex network topologies How does your solution perform on a Grid? Enlarging the scale of the experiment How does your solution perform on several thousands of nodes? User-friendliness

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 8 / 27

SLIDE 9

. . CPU heterogeneity

Distem can host multiple virtual nodes on one physical node:

with a different number of cores with different CPU performance

There are 2 strategies for degrading performance:

CPU-Gov – based on hardware CPU throttling CPU-Hogs – advanced CPU burning . . . 1 . 2 . 3 . 4 . 5 . 6 . 7 . VN 1 . VN 2 . VN 3 . Virtual node 4 . CPU cores . CPU performance

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 9 / 27

SLIDE 10

. . Network heterogeneity

Distem can emulate properties of network links between nodes. Each link can have a different:

maximum bandwidth latency

They can be set for incoming and outgoing traffic independently.

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 10 / 27

SLIDE 11

. . Complex network configuration

Define properties of network links using network heterogeneity Use them to emulate several local networks linked together

. . n3 . n1 . n2 .

5 Mbps 10 ms

.

5 ms 10 Mbps

.

if0

.

1 Mbps 30 ms

.

30 ms 1 Mbps

.

if0

.

100 Mbps 3 ms

.

1 ms 100 Mbps

.

if0

. n4 . n5 .

4 Mbps 12 ms

.

16 ms 6 Mbps

.

if1

.

100 kbps 25 ms

.

30 ms 256 kbps

.

if0

.

200 kbps 30 ms

.

40 ms 512 kbps

.

if0

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 11 / 27

SLIDE 12

. . Scale of the experiment

Distem uses a lightweight virtualization to:

share resources between nodes:

CPU network filesystem

host many instances of virtual nodes on a single node

This powerful feature:

enables challenging experiments of unprecedented scale saves resources and energy

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 12 / 27

SLIDE 13

. . User-friendliness

Distem strives to be user-friendly:

complex and tedious tasks are automated:

configuring network interfaces populating routing tables distributing system images etc.

3 interfaces with increasing complexity and feature-set are offered:

command-line Ruby library REST interface (with JSON to represent data)

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 13 / 27

SLIDE 14

. . User interfaces

Command-line interface – distem command

☺

Easy to use

☹

Hard to automate

☹

No access to more advanced features

Ruby library

☺

Easy to automate

☺

Access to all features

☺

Easy to use (if you know Ruby)

☹

Requires Ruby

REST API

☺

Language agnostic

☹

Requires REST knowledge

. . User . REST API . Ruby . CLI CLI example:

distem --create-vnetwork vnetwork=net,address=10.144.0.0/22 distem --create-vnode vnode=node-1,rootfs=file:///image.tgz distem --create-viface vnode=node-1,iface=if0,vnetwork=net distem --start-vnode node-1 distem --execute vnode=node-1,command="hostname"

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 14 / 27

SLIDE 15

. . Distem internals

Distem uses modern Linux features:

Control Groups and Linux containers (LXC) CPU frequency scaling advanced networking (network bridging) network traffic control (packet schedulers and shapers)

Note that it limits the scope of experiments to Linux/Unix.

. . Node 1 . Node 2 . Node 3 . Switch .

+

. .

=

. Node 1 . Node 2 . Node 3 . Switch

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 15 / 27

SLIDE 16

. . Communication architecture

. User’s machine .

Uses the command line interface, the Ruby client library

r a REST client

. Pnode 2 . distemd . Pnode 3 . distemd . Coordinator & Pnode 1 .

Starts and controls other Pnodes, keeps the global state

f the platform and acts as the

gateway to Pnodes and Vnodes

. distemd .

REST

.

R E S T

.

R E S T

. Vnodes

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 16 / 27

SLIDE 17

. . Evaluation

To evaluate Distem we designed a few experiments concerned with:

network emulation:

precision of latency emulation latency emulation over time precision of bandwidth emulation emulation of a simple topology basic performance analysis of scp and rsync tools

CPU emulation (Linpack, DGEMM and FFT benchmarks) scalability (by performing a large deployment with Distem)

Each measurement was repeated many times and results are averaged. We used the Grid’5000 testbed.

Grid’5000

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 17 / 27

SLIDE 18

. . Precision of latency emulation

Purpose: test if latency is properly emulated Setup:

2 physical nodes, 1 virtual node on each Emulated latencies from 1 ms to 100 ms

Data point: RTT (custom ping tool) between two virtual nodes

.

. .

100

.

101

.

102

.

100

.

101

.

102

.

Emulated latency (ms)

.

Measured latency (ms)

. . .Measured latency (in) . .Measured latency (out) . .Expected latency

.

Conclusion

. .

Emulation is accurate, especially for values above real network latency (0.3 ms).

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 18 / 27

SLIDE 19

. . Latency emulation over time

Purpose: test if latency is constant over time Setup:

2 physical nodes, 1 virtual node on each

Data point: result of high-frequency RTT probing

.

. . .

1

.

2

.

3

.

4

.

9.8

.

10

.

10.2

.

10.4

.

Time (ms)

.

Latency (ms)

. . .Measured latency . .Emulated latency

.

Conclusion

. .

Emulation is stable and correct during the measurement.

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 19 / 27

SLIDE 20

. . Precision of bandwidth emulation

Purpose: test if bandwidth emulation is correct Setup:

2 physical nodes, 1 virtual node on each Two bandwidth ranges: [ 56 Kbps, 1Mbps ] and [ 50 Mbps, 1Gbps ]

Data point: bandwidth between two nodes (using iperf)

. . .

128

.

256

.

512

.

768

.

1,024

. .

500

.

1,000

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Emulated bandwidth (kbps)

.

Measured bandwidth (kbps)

. . .Measured bandwidth (in) . .Measured bandwidth (out) . .Expected bandwidth . . . . .

100

.

300

.

500

.

700

.

900

. .

500

.

1,000

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Emulated bandwidth (Mbps)

.

Measured bandwidth (Mbps)

. . . .Measured bandwidth (in) . . .Measured bandwidth (out) . . .Expected bandwidth

.

Conclusion

. .

Bandwidth emulation is accurate in both situations.

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 20 / 27

SLIDE 21

. . Emulation of a simple topology

Purpose: test if Distem properly emulates non-trivial network Setup:

simple topology created with Distem heterogeneous network links

Data point: bandwidth and RTT between each pair of nodes

. . n3 . n1 . n2 .

5 Mbps 10 ms

.

5 ms 10 Mbps

.

if0

.

1 Mbps 30 ms

.

30 ms 1 Mbps

.

if0

.

100 Mbps 3 ms

.

1 ms 100 Mbps

.

if0

. n4 . n5 .

4 Mbps 12 ms

.

16 ms 6 Mbps

.

if1

.

100 kbps 25 ms

.

30 ms 256 kbps

.

if0

.

200 kbps 30 ms

.

40 ms 512 kbps

.

if0

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 21 / 27

SLIDE 22

. . Emulation of a simple topology (cont.)

. n3 . n1 . n2 .

5 Mbps 10 ms

.

5 ms 10 Mbps

.

if0

.

1 M b p s 3 m s

.

3 m s 1 M b p s

.

i f

.

1 M b p s 3 m s

.

1 m s 1 M b p s

.

i f

. n4 . n5 .

4 Mbps 12 ms

.

16 ms 6 Mbps

.

if1

.

1 k b p s 2 5 m s

.

3 m s 2 5 6 k b p s

.

i f

.

2 k b p s 3 m s

.

4 m s 5 1 2 k b p s

.

i f From \ To n1 n2 n3 n4 n5 n1

0.06 s / 1.07 Mbps

0.08 s / 1.07 Mbps 0.16 s / 0.29 Mbps 0.17 s / 0.55 Mbps n2 0.06 s / 1.04 Mbps

0.02 s / 9.57 Mbps

0.10 s / 0.29 Mbps 0.12 s / 0.55 Mbps n3 0.08 s / 1.05 Mbps 0.02 s / 4.92 Mbps

0.08 s / 0.30 Mbps

0.10 s / 0.57 Mbps n4 0.16 s / 0.17 Mbps 0.10 s / 0.16 Mbps 0.08 s / 0.15 Mbps

0.13 s / 0.15 Mbps

n5 0.17 s / 0.26 Mbps 0.12 s / 0.27 Mbps 0.10 s / 0.27 Mbps 0.13 s / 0.26 Mbps

RTTn3→n5 = RTTn5→n3 = (16 ms + 40 ms) + (30 ms + 12 ms) = 98 ms ≈ 0.1 s

BWn3→n5 = min {6 Mbps, 512 kbps} ≈ 0.57 Mbps BWn5→n3 = min {200 kbps, 4 Mbps} ≈ 0.27 Mbps

.

Conclusion

. .

Emulation is correct: bandwidth between each pair of nodes is a minimum of link bandwidths, and RTT is a sum of all latencies on the path.

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 22 / 27

SLIDE 23

. . Performance analysis of scp and rsync tools

Purpose: compare scp and rsync when transferring Distem sources Setup:

2 physical nodes, 1 virtual node on each Emulated latency (from 0 to 100 ms) and bandwidth (from 1 to 5 Mbps) scp and rsync are unchanged

Data point: time needed to transfer 700 KBs (small files)

. . . .

20

.

40

.

60

.

80

.

100

.

1

.

2

.

3

.

4

.

5

.

100

.

101

.

102

.

Latency (ms)

.

Bandwidth (Mbps)

.

Time (s)

. . .scp . .rsync

.

Conclusion

. .

rsync outperforms scp thanks to a more efficient transfer of many files.

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 23 / 27

SLIDE 24

. . CPU emulation

Purpose: compare CPU emulation strategies available in Distem Setup:

1 physical node with 1 virtual node, 1 or 4 cores Emulated frequencies from [ 1.2 GHz, 2.54 GHz ] range

Data point: each benchmark result

1 core 4 cores

. . .

1,200

.

1,333

.

1,467

.

1,600

.

1,733

.

1,867

.

2,000

.

2,133

.

2,267

.

2,400

.

2,534

. .

2

.

4

.

6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Frequency (Ghz)

.

GFlops

. . . .HPL/CPU-Hogs . . .HPL/CPU-Gov . . .DGEMM/CPU-Hogs . . .DGEMM/CPU-Gov . . .FFT/CPU-Hogs . . .FFT/CPU-Gov . . .

1,200

.

1,333

.

1,467

.

1,600

.

1,733

.

1,867

.

2,000

.

2,133

.

2,267

.

2,400

.

2,534

. .

10

.

20

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Frequency (Ghz)

.

GFlops

. . .HPL/CPU-Hogs . .HPL/CPU-Gov . .DGEMM/CPU-Hogs . .DGEMM/CPU-Gov . .FFT/CPU-Hogs . .FFT/CPU-Gov

.

Conclusion

. .

Even with real benchmarks (CPU & memory usage), the CPU-Hogs strategy (usable without any hardware support) behaves as expected.

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 24 / 27

SLIDE 25

. . Scalability

Purpose: test scalability of Distem Setup: 25 or 100 physical nodes Data point: time required to deploy from 500 to 5000 virtual nodes and to launch a taktuk command (command execution tool using tree topology)

Distem installation (s) Virtual nodes deployment (s) TakTuk command (s) # Vnodes # Pnodes 25 100 25 100 25 100 500 56.9 95.4 53.7 51.7 2.4 2.1 1000 56.4 94.7 94.3 91.1 3.4 3.8 2500 59.7 95.8 219.2 207.7 10.3 9 5000 64 97.1 445.5 410.7 21.3 21.3

TakTuk communication topology with 2560 virtual nodes (10 physical nodes)

.

Conclusion

. .

Deploying 5000 virtual nodes takes less than 10 minutes One physical node can host many virtual nodes efficiently

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 25 / 27

SLIDE 26

. . Related work

Network emulation CPU emulation Complexity Maintained / Available Emulab

☺ ☹ ☹ ☺

Wrekavoc

☺ 😑 ☺ ☹

PlanetLab

😑 ☹ ☹ ☺

ModelNet

☺ ☹ 😑 ☹

DieCast

☺ ☺ ☹ ☹

Distem

☺ ☺ ☺ ☺

Distem is the only tool offering advanced emulation and low complexity. Moreover it is freely available and actively maintained.

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 26 / 27

SLIDE 27

. . Conclusion and future works

In this talk I presented Distem. It features:

Emulation of resources:

Network parameters and topology CPU performance

Scalability and efficiency:

Sharing of resources using virtualization Thousands of nodes can be deployed in a few minutes

Easy way to design and run advanced experiments:

Supports reproducibility (by saving topology information) Ready to use on Grid’5000

In the near future we plan to:

Push scalability even further Emulate more properties: memory, advanced CPU features

More information on http://distem.gforge.inria.fr/

L. Sarzyniec, T. Buchert, E. Jeanvoine, L. Nussbaum

Distem - Design and Evaluation 27 / 27
