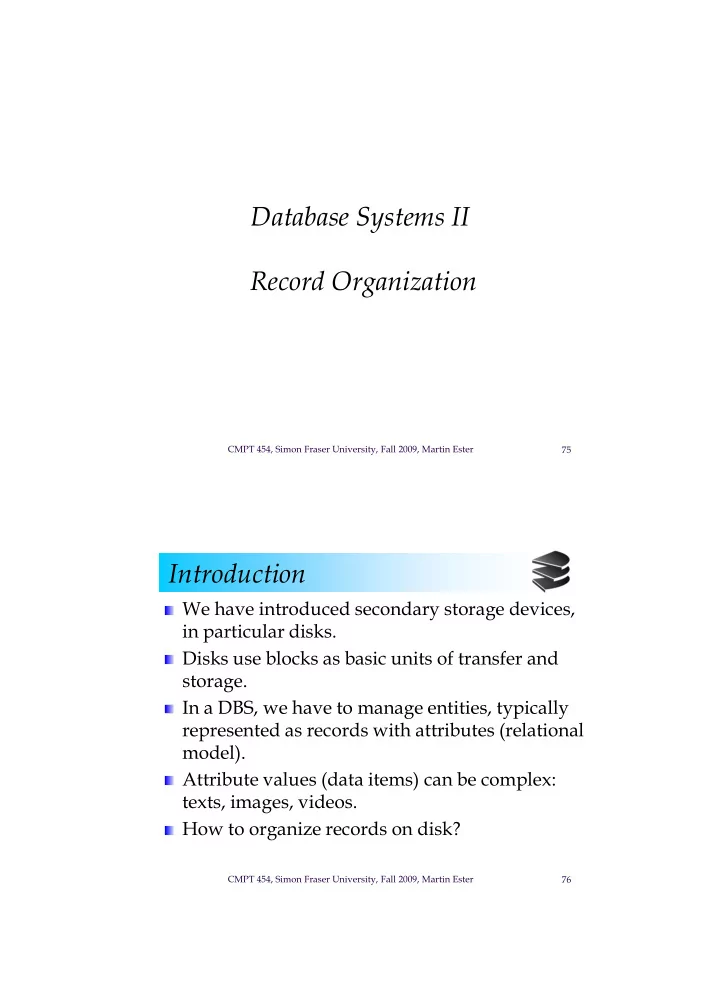

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 75

Database Systems II Record Organization

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 76

Introduction

We have introduced secondary storage devices, in particular disks. Disks use blocks as basic units of transfer and storage. In a DBS, we have to manage entities, typically represented as records with attributes (relational model). Attribute values (data items) can be complex: texts, images, videos. How to organize records on disk?

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 77

Introduction

Data Items Records Blocks Files Memory

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 78

Data Items

Short Integer, unsigned (16 Bits) e.g., 35 is Short Integer, signed e.g., -35 is 00000000 00100011 25 + 21 + 20 10000000 00100011

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 79

Data Items

Floating point (32 Bits, single precision) 1 bit for sign, m for exponent, n bits for mantissa value = (-1)sign x 2exponent – bias x 1.fraction

bias = 2m-1-1 = 127 = 0.15625

124 1.01 (binary) = 1.25 (decimal)

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 80

Data Items

Characters various coding schemes suggested most popular is ASCII 1 Character = 1 Byte = 8 Bits examples A: 1000001 a: 1100001 5: 0110101 LF: 0001010

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 81

Data Items

String of characters NULL-terminated e.g., length indicator e.g., fixed length do not need terminating NULL

• r length indicator

c t a m u

• e

s c t a 4 3 m u

• e

s

VARCHAR CHAR

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 82

Records

Fixed format e.g., relational data model record is list of data items number and type of data items fixed

• vs. variable format

e.g., XML number of data items variable Fixed length

• vs. variable length

e.g., VARCHAR, blobs, repeating fields

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 83

Records

Record header keeps general information about the record. Header contains (some of) the following:

• pointer to schema,
• record types,
• record length

(to skip record without consulting schema),

• timestamp of last access,
• pointers (offsets) to record attributes.

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 84

Fixed-Length Records

Fixed length records are the simplest format. Header contains only pointer to schema, record length and timestamp. Example (1) id, 2 byte integer (2) name, 10 char. Schema (3) dept, 2 byte code

55 s m i t h 02 83 j o n e s 01

Records

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 85

Variable-Length Records

Variable length records first store fixed length fields, followed by variable-length fields. Header contains also pointers (offsets) to variable-length fields (except first one). NULL values can be efficently represented by null pointers in the header.

header birthdate name address fixed variable

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 86

Variable Format Records

Variable format records are self-describing. Simplest representation as sequence of tagged fields. Record header contains number of fields. Tag contains

• attribute name,
• attribute type,
• field length

(if not apparent from attribute type).

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 87

Variable Format Records

Example

4 I 5 2 4 S D R O F 46 # Fields Code identifying field as E# Integer type Value Code for EName String type Length of str. Value

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 88

Introduction

How to pack records into blocks? Need to address the following issues

• separating records,
• spanned vs. unspanned,
• mixing record types,
• ordering records,
• addressing records,
• BLOBs.

Packing Records Into Blocks

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 89

Separating records

for fixed-length records, no need to separate for variable-length records use special marker

• r store record lengths (or offsets)
• within each record
• in block header

Packing Records Into Blocks

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 90

Spanned vs. unspanned

Unspanned records on a single block

block 1 block 2

Spanned records split into fragments that are distributed over multiple blocks

block 1 block 2

Packing Records Into Blocks

R1 R2 R3 R4 R5 R1 R2

R3

(a)

R3

(b)

R6 R5 R4

R7

(a)

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 91

Packing Records Into Blocks

Spanned vs. unspanned

Spanning necessary if records do not fit in a block, e.g. if they have very long fields (VARCHAR, blob). Spanning useful for better space utilization, even if records fit in a block.

2050 bytes wasted 2046 2050 bytes wasted 2046

R1 R2

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 92

Packing Records Into Blocks

Spanned vs. unspanned

Spanned records requires extra header information in records and record fragments:

• is it fragment? (bit)
• if fragment, is it first or last? (bit)
• if applicable, pointers to previous/next

fragment.

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 93

Packing Records Into Blocks

Mixing record types

Can we mix records of different types (relations)in same block? Why should we? Records that are frequently accessed together should be in the same block (clustering). Compromise: no mixing on same block, but keep related records in same cylinder.

EMP

e1

DEPT

d1

DEPT

d2

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 94

Packing Records Into Blocks

Ordering records

Want to efficiently read records in order Ordering records in file and block by some key value (sequential file) Implementation options

• next record physically contiguous
• link to next record

Next (R1) R1 R1 Next (R1)

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 95

Packing Records Into Blocks

Ordering records

Overflow area

R1 R2 R3 R4 R5 header R2.1 R1.3 R4.7

records in sequence

 links more flexible under modifications, but require random I/O

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 96

Packing Records Into Blocks

Addressing records

In memory records have virtual memory address. How to address a record on disk? Trade-off between efficiency of dereferencing and flexibility in moving records over time Many options, from purely physical to fully indirect (logical)

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 97

Packing Records Into Blocks

Addressing records

Purely physical direct address on disk Record address (record ID) consists of cylinder # track # block #

• ffset in block

 efficient access, but cannot move record within block or across blocks

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 98

Packing Records Into Blocks

Addressing records

Fully indirect (logical) address (record ID) can be any bit string, needs to be mapped to physical address  inefficient access, but can move record anywhere

Physical addr. Rec ID

Often 8-16 Bytes! Typically ≤ 8 Bytes

map

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 99

Packing Records Into Blocks

Addressing records

Indirection in block  compromise between physical and fully indirect

Header Free space

R3 R4 R1 R2

• ffsets

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 100

Packing Records Into Blocks

BLOBs

Sometimes, very large data items, e.g. images, videos,. . . Store them as Binary Large Objects (BLOBs) Stored as spanned sequence of blocks

• preferably contiguous on disk,
• possibly even striped over several disks.

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 101

Record Modifications

Insertions

If record order does not matter, just append record to file, i.e. find a block of that file with empty space. If order does matter, may be more complicated. First locate corresponding block. If block has enough space left, insert record there and rearrange records in block.

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 102

Record Modifications

Insertions

If block does not have enough space left, use one

• f the two following strategies:
• find space in nearby block

predecessor or successor in sort order

• create overflow block

and link it into chain of blocks  only if order implemented by links

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 103

Record Modifications

Insertions

Overflow blocks raise the following issues:

• How much free space to

leave in each block, track, cylinder?

• How often to reorganize

file and overflow area?

Free space

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 104

Record Modifications

Deletions

Try to reclaim space. Either move around records within a block or maintain available-space list. Must avoid dangling pointers to deleted records. Typical approach: place tombstone in place of deleted record.

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 105

Record Modifications

Deletions

physical record IDs This space This space can never re-used be re-used

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 106

Record Modifications

Deletions

logical record IDs ID LOC 7788 map Never reuse ID 7788 nor space in map...

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 107

Buffer Management

Introduction

The part of the DB relevant for the current transactions needs to reside in memory, i.e. in the DB buffer.

DB

MAIN MEMORY DISK disk block free frame BUFFER POOL choice of frame dictated by replacement policy

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 108

Buffer Management

Block request

If requested block is not in buffer pool, choose a frame for replacement. If this frame is dirty, write it to disk. Read requested page into chosen frame. Pin the page and return its address.

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 109

Buffer Management

Block replacement

Requestor of page must unpin it, as soon as block is no longer needed. Requestor must also indicate whether block has been modified: dirty bit is used for this. Block in pool may be requested many times, and a pin count is used. Block is candidate for replacement if and only if pin count = 0.

CMPT 454, Simon Fraser University, Fall 2009, Martin Ester 110

Buffer Management

Replacement policy

Frame is chosen for replacement by a replacement policy:

• Least-recently-used (LRU),
• Clock,

efficient approximation of LRU

• Most-recently-used (MRU) etc.

Policy can have big impact on number of I/O’s, depends on the access pattern. Will discuss more in the context of query

• ptimization.
